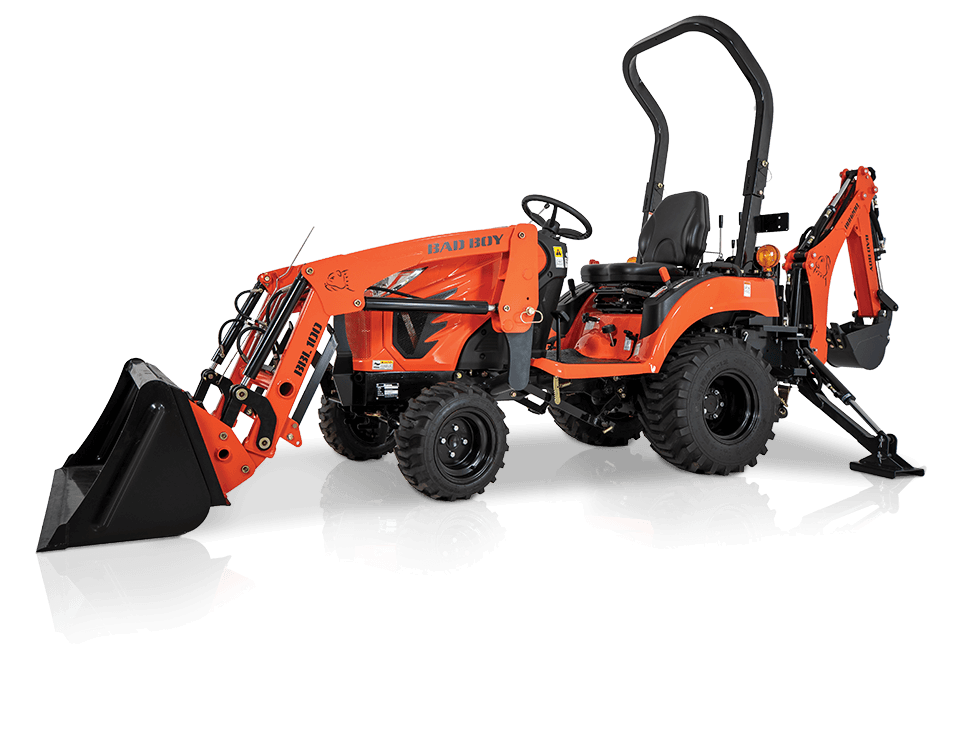

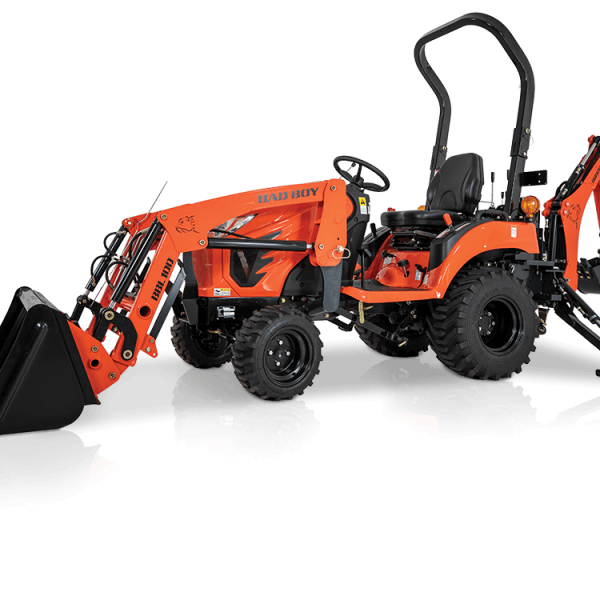

Bad Boy 10 Series Model 1022 Sub-Compact Tractor

The smallest Bad Boy Tractor in our line-up still packs a powerful punch. The Bad Boy 1022 Sub-Compact Tractor is perfect for the small property owner who still wants a workhorse to get jobs done. Measuring just under 4 feet wide, this sub-compact tractor can squeeze into barn stalls, through gates and into tight spaces where bigger tractors just won’t fit. It’s driven by a powerful 22-horsepower engine. It has 617 lbs. of loader lift capacity. In terms of pulling power, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. If you need even more boost, use the selectable 4-wheel drive to engage the front wheels and maximize traction. And this tractor is made with Bad Boy steel, including the full metal hood.

Engine
3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM
21.5
Displacement (in.)
60.6
Number Of Cylinders
3
Fuel Tank (gal.)
6.6
Transmission
HST
Number Of Speeds
2 Range
Clutch
Dry Single Plate
Brakes
Wet, Multi-Disc
Type
Power Assisted Hydro-Static
Total Hydraulic Flow (Power Steering + Implement)
6.3 (2.1+4.2) / 23.8 (8+15.8)
3-Point Hitch
Limited Cat 1
Rear Remote Valve
Optional (Up To 1)
3-Point Hitch Lift Capacity @ 24″ Behind Lift Point (lbs.)
679
Overall Length
94.2″
Overall Width
44.5″
Overall Height
86.6″
Wheelbase
53.1″
Minimum Ground Clearance
8.3″
Weight
1,433 lbs.
Type
Independent
Rear (Mid) PTO Speed
540
PTO HP
15.4
Battery
12 V, 500 CCA
Alternator
12 V, 40 A
IND (Front)
18X8.50-10
IND (Rear)
26X12-12
Standard Bucket Size (in.)
48
Maximum Lift Height (in.)
72.7
Dig Depth (in.)
4.0
Lift Capacity To Full Height At Pivot Pin (lbs.)
617
Breakout Force (lbs.)
1,253
Shipping Weight (lbs.)
438
Standard Bucket Size (in.)
12
Type
Subframe-Mounted, Quick Attach
Maximum Dig Depth (in.)
66
Dig Force Bucket (lbs.)
1,975
Shipping Weight (lbs.)
747
