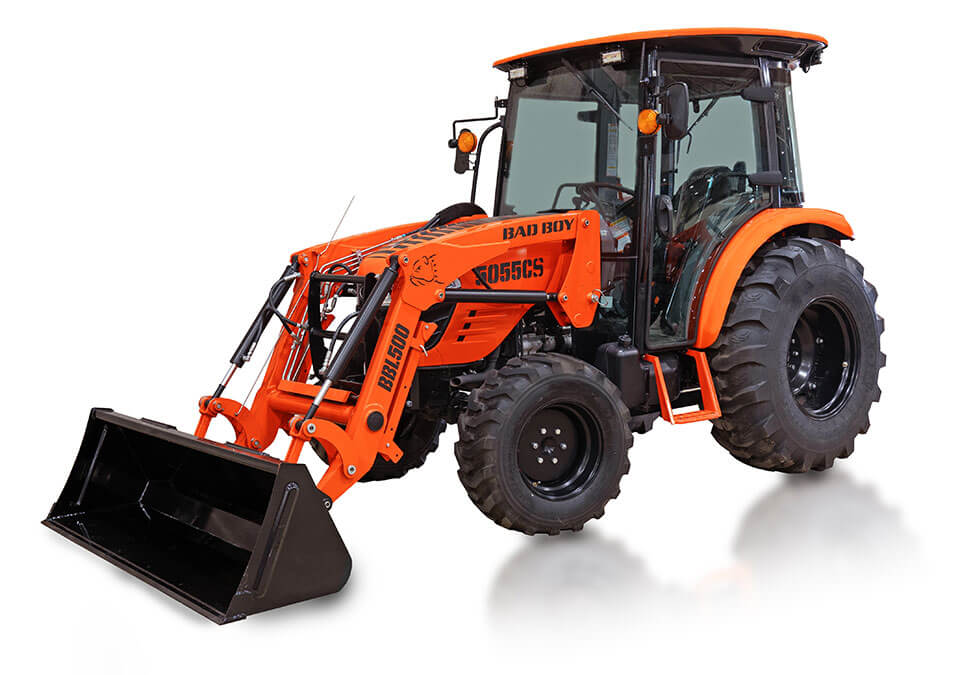

Bad Boy 50 Series Model 5055 Compact Utility Tractor

The Bad Boy 5055 Series Tractor is the big dog, the largest tractor in our Bad Boy line-up. Powered by a 55-horsepower engine with a loader lift capacity of 2700 lbs., this tractor is built to handle the toughest jobs. If pulling power is a priority, this Bad Boy features differential lock, automatically equalizing power to both rear wheels for an added boost. Still want more? Use our selectable 4-wheel drive to engage the front wheels and maximize traction and pulling power. If you want top-of-the-line performance, strength and lifting power, the 5055 is the Bad Boy for you.

REQUEST QUOTE
GET FINANCING
MODEL
A2300T3-UTR_4
FUEL SYSTEM
WATER-COOLED DIESEL
DISPLACEMENT, IN
139.5
NUMBER OF CYLINDERS
4
FUEL TANK SIZE, GAL
11.8
RATED ENGINE POWER, HP
55
RATED SPEED, RPM
2600
MAX PTO POWER, HP
44
DPF / SCR / DOC
DPF / DOC
TYPE
5055S/CS – SYNCHRO | 5055H/CH – HST
NUMBER OF GEARS
5055S/CS – 16F / 16R | 5055H/CH – 4 RANGE
MAXIMUM TOTAL FLOW, GPM
5055S/CS – 16.4 | 5055H/CH – 15.7
IMPLEMENT PUMP CAP, GPM
5055S/CS – 11.4 | 5055H/CH – 10.7
STEERING PUMP CAP, GPM
5
3P CATEGORY
1
HITCH LIFT CAPACITY, LB
3,306
AT 24 INCHES BEHIND LINK ENDS, LB
2,425
OVERALL LENGTH, IN, 3P
127.4
OVERALL WIDTH, IN
64.9
HEIGHT TO TOP OF ROPS, IN
5055S/H – 98.4 | 5055CS/CH – 97
WHEELBASE, IN
71.1
MIN. GROUND CLEARANCE, IN
15.5
WEIGHT, LB
5055S/H – 3,836 | 5055CS/CH – 4,349
540, 540E
584, 791
Standard Bucket Size (in.)
72
Maximum Lift Height (in.)
106.6
Dig Depth (in.)
3.1
Lift Capacity To Full Height At Pivot Pin (lbs.)
2,700
Breakout Force (lbs.)
3,660
Shipping Weight (lbs.)
1,075
Standard Bucket Size (in.)
16
Maximum Dig Depth (in.)
91.2
Shipping Weight (lbs.)
1,500
