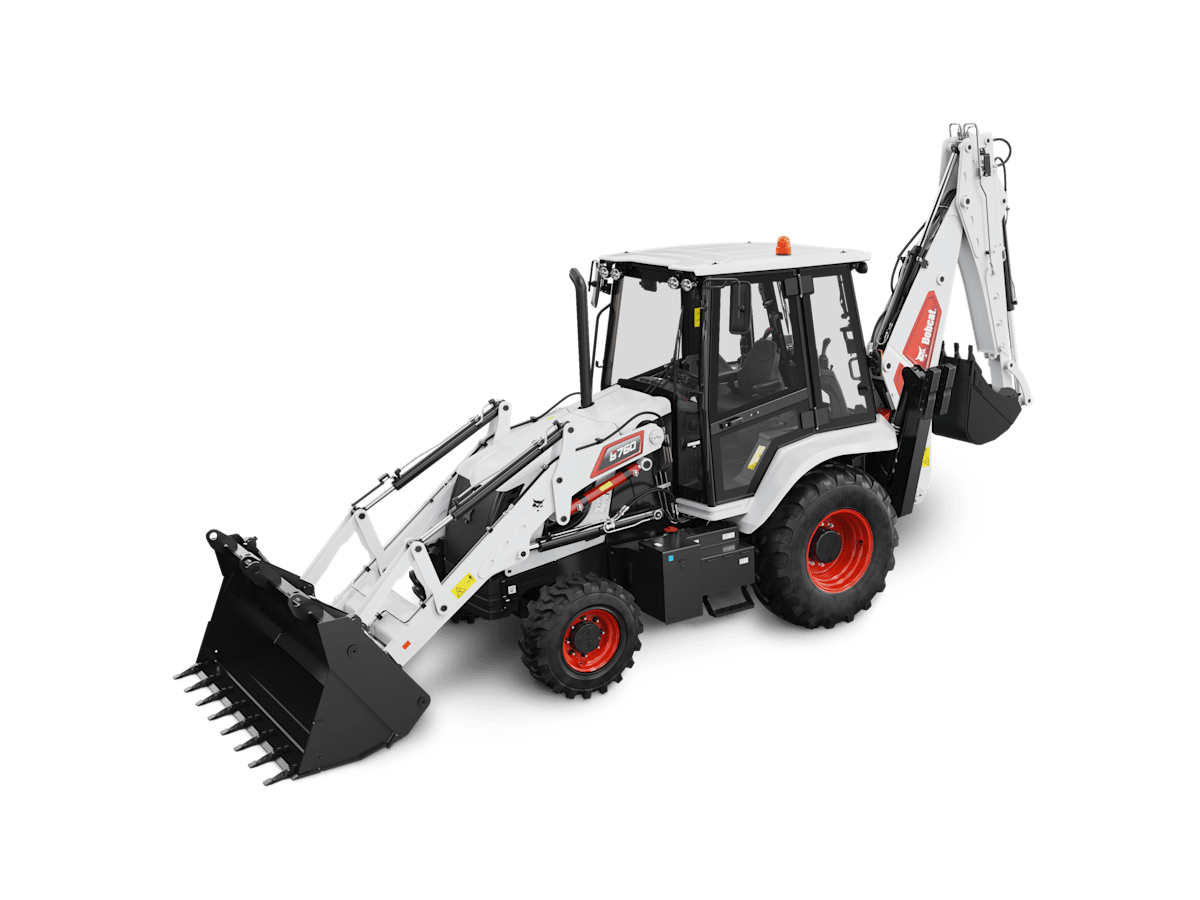

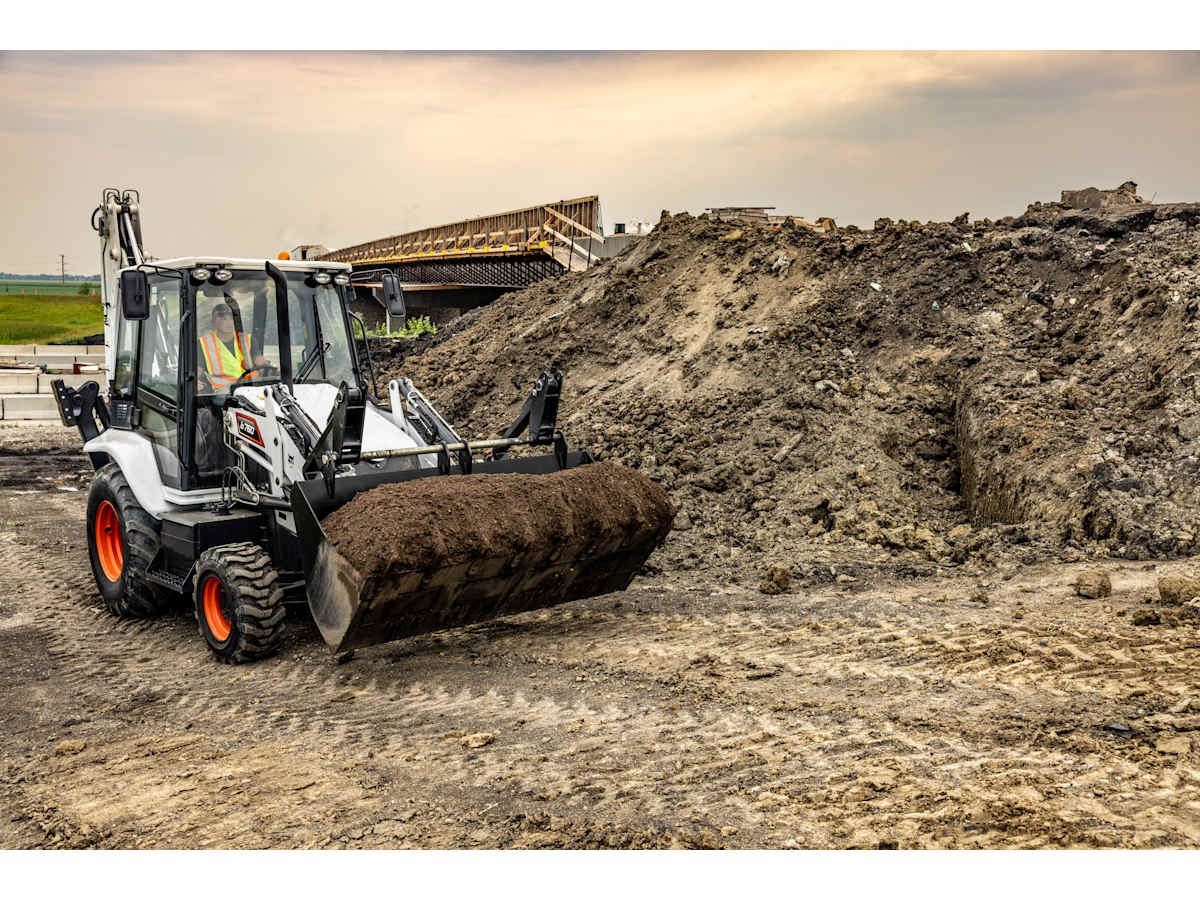

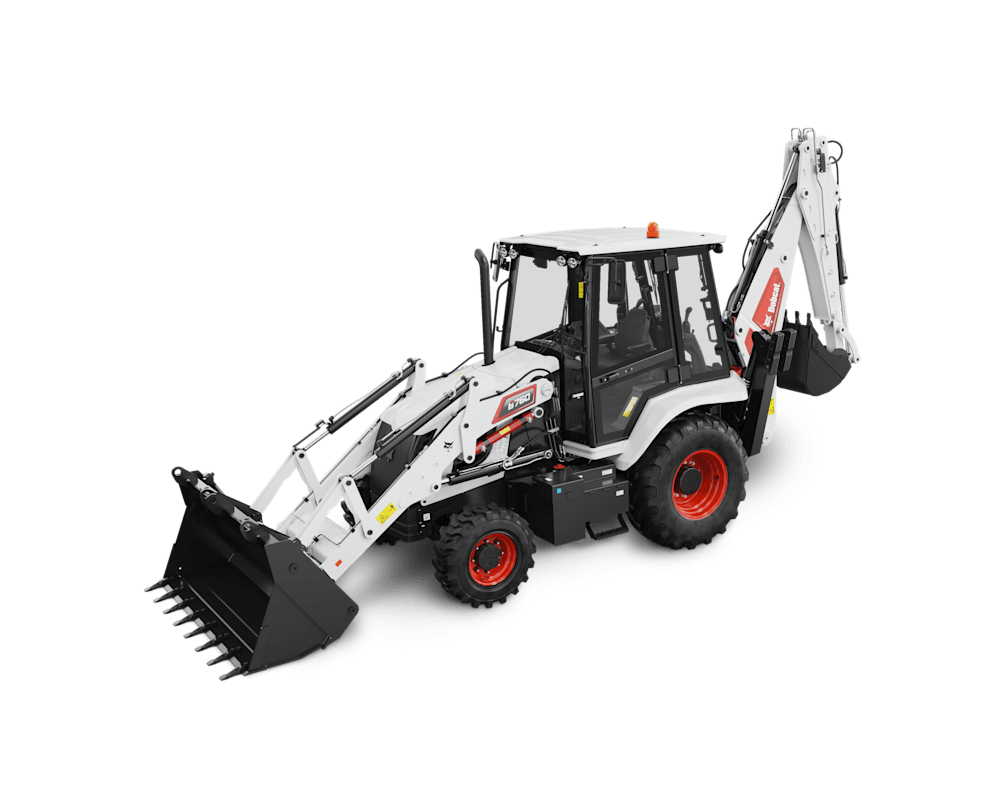

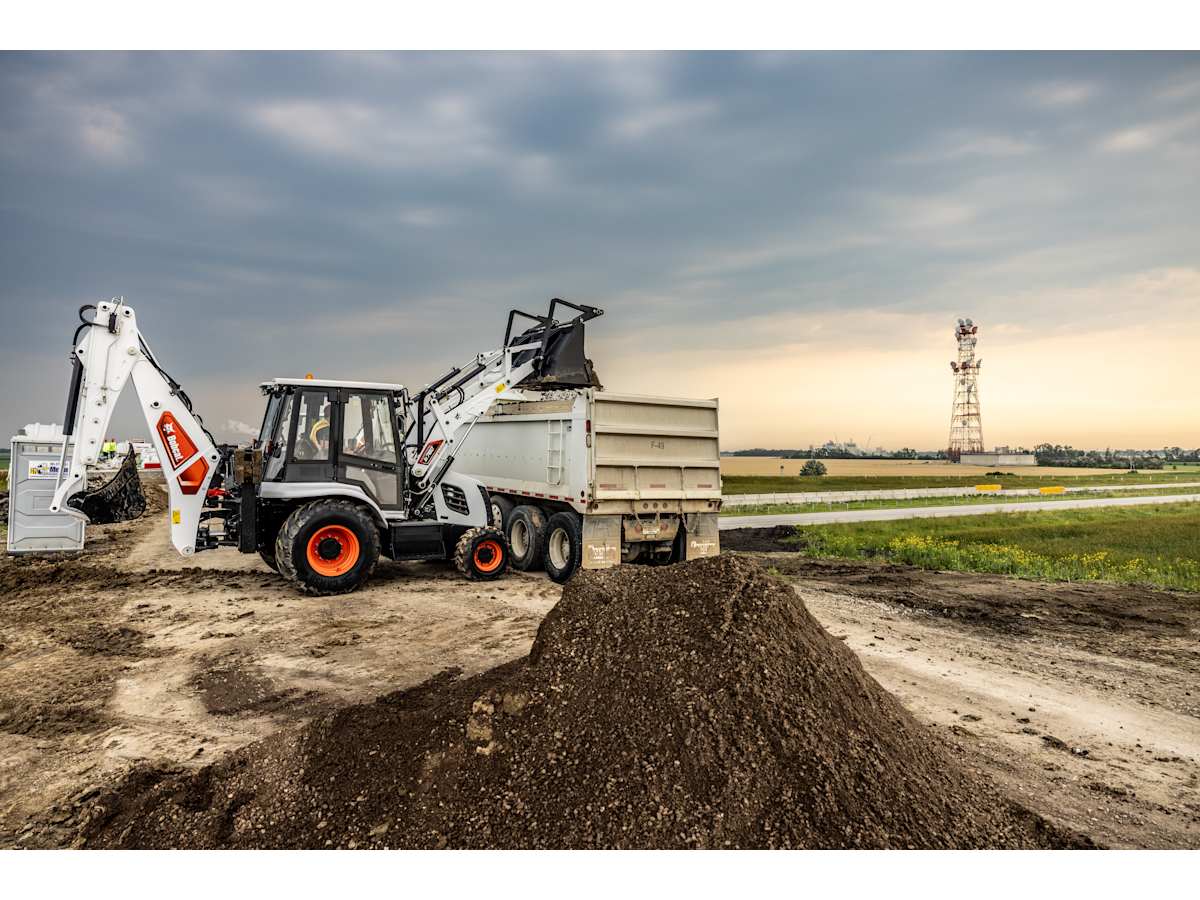

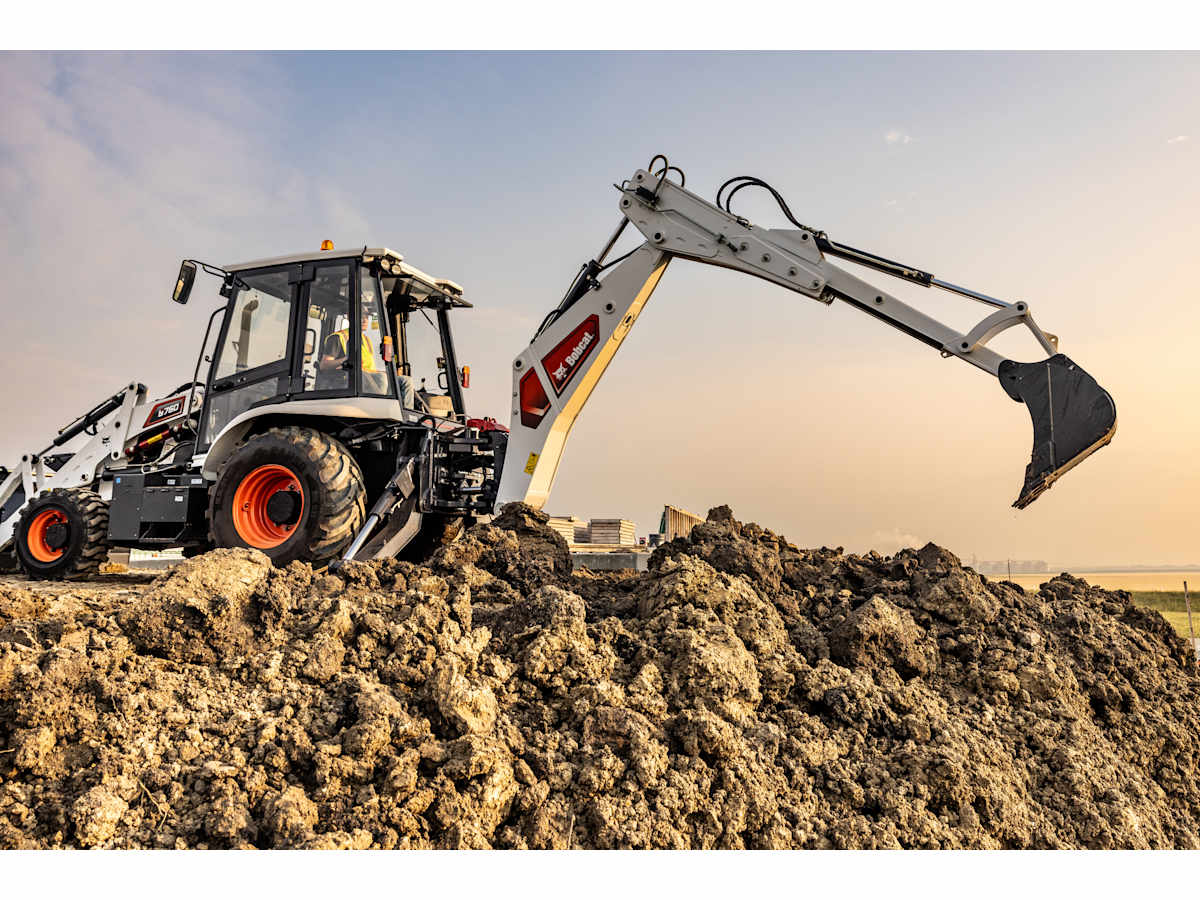

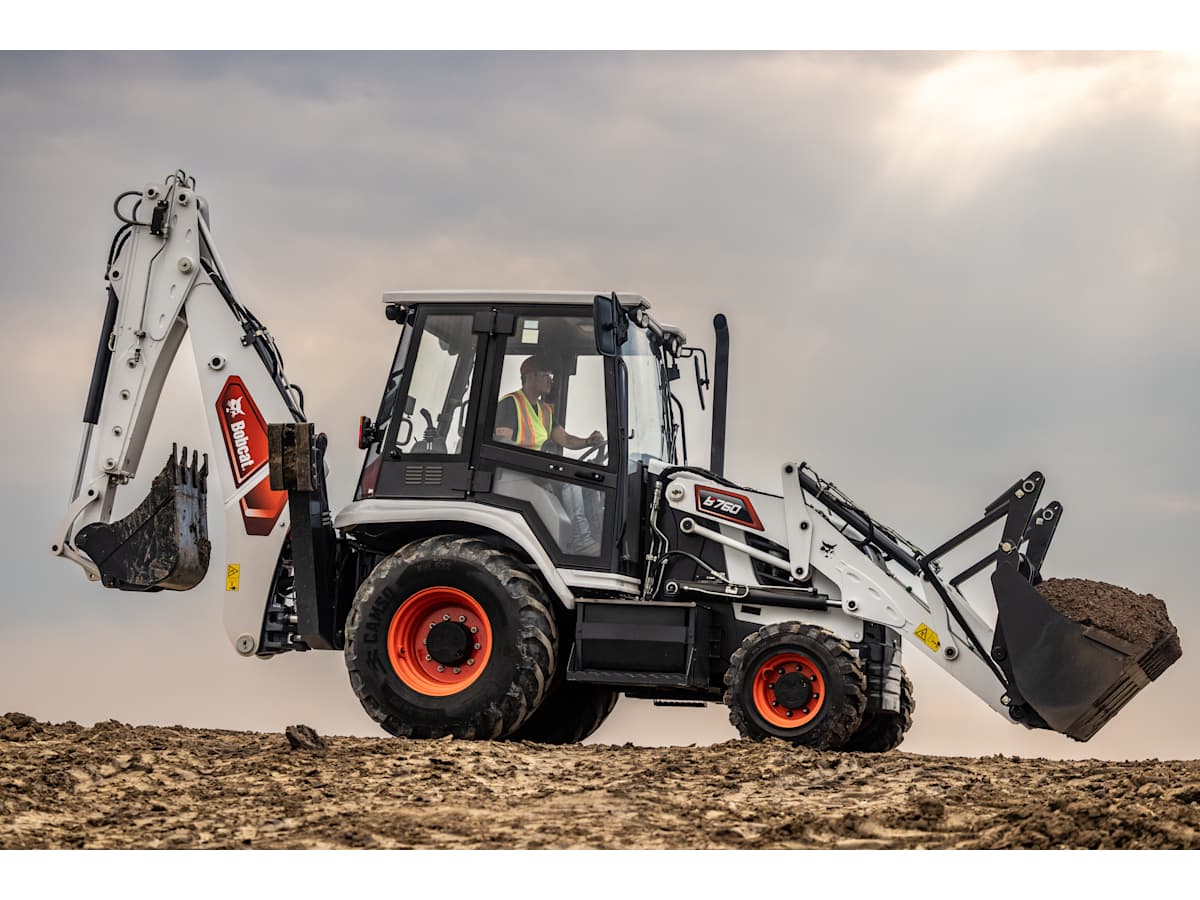

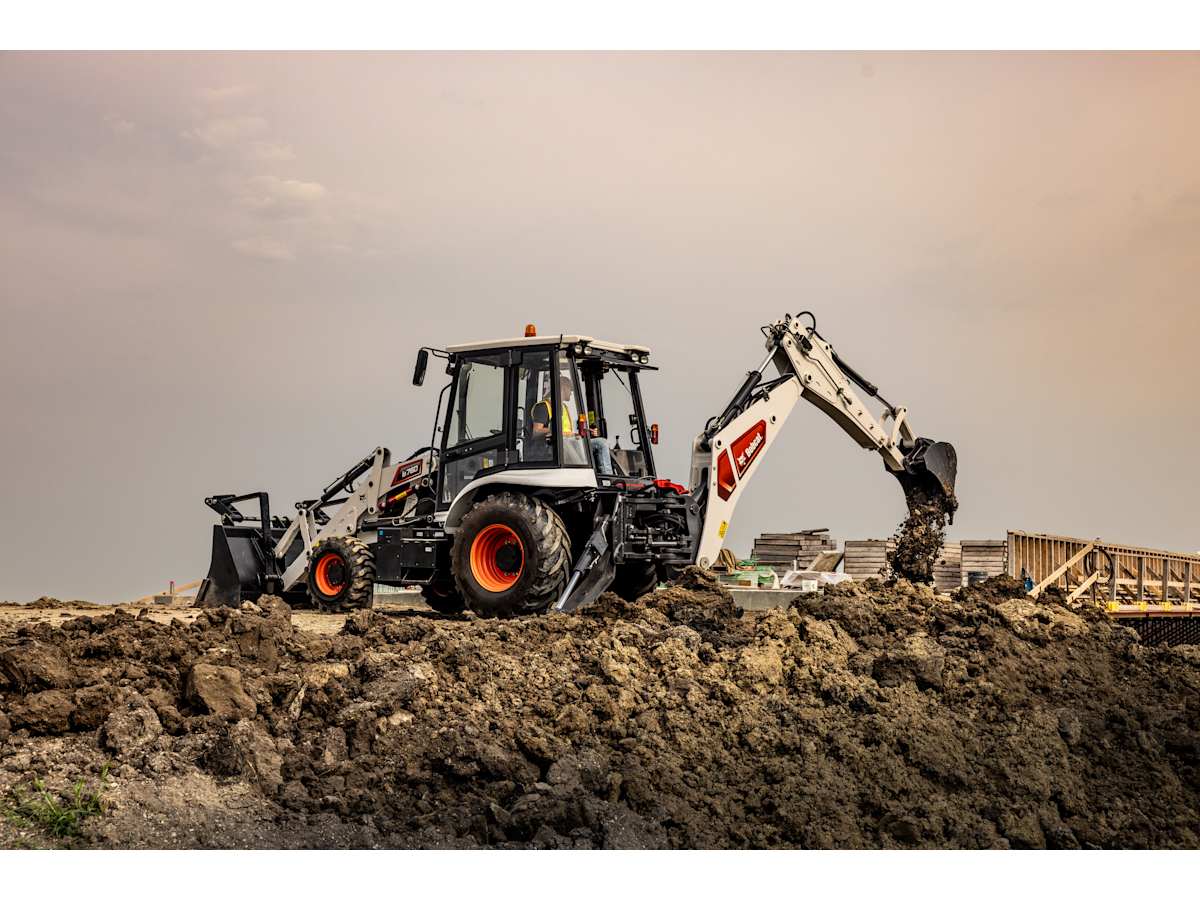

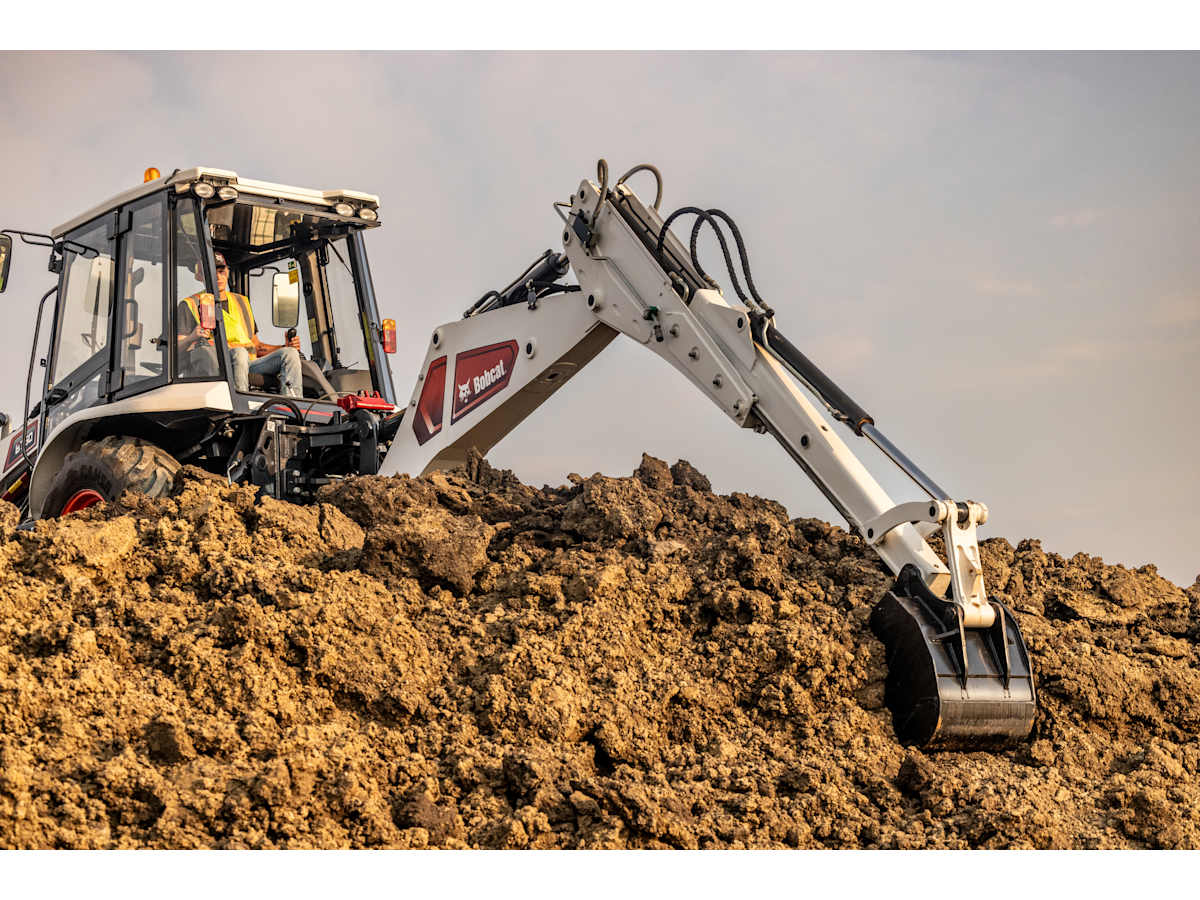

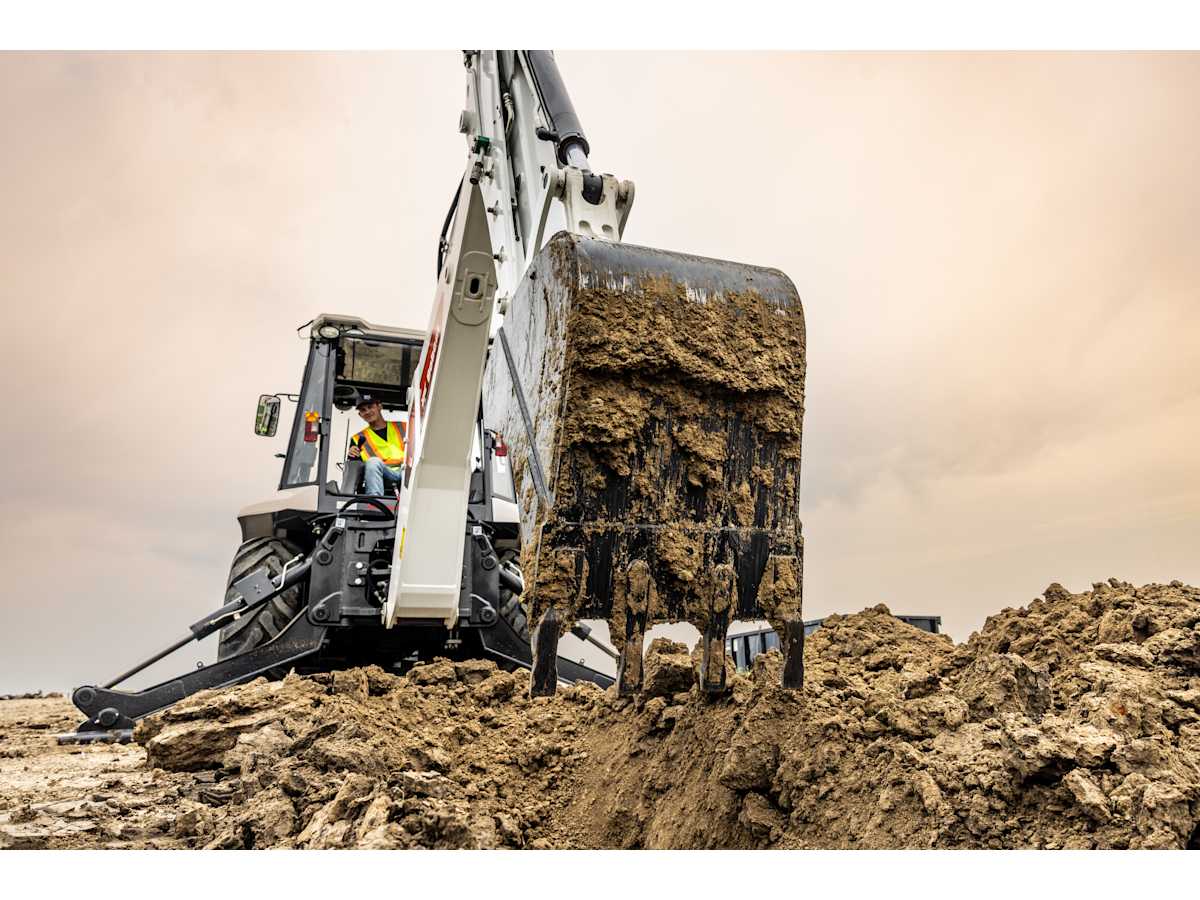

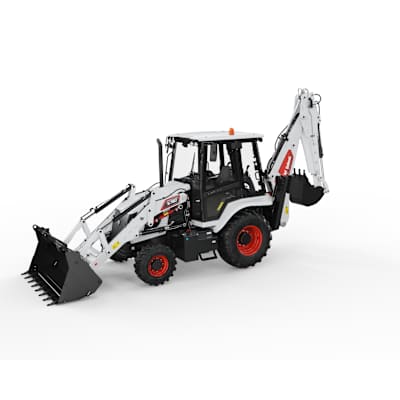

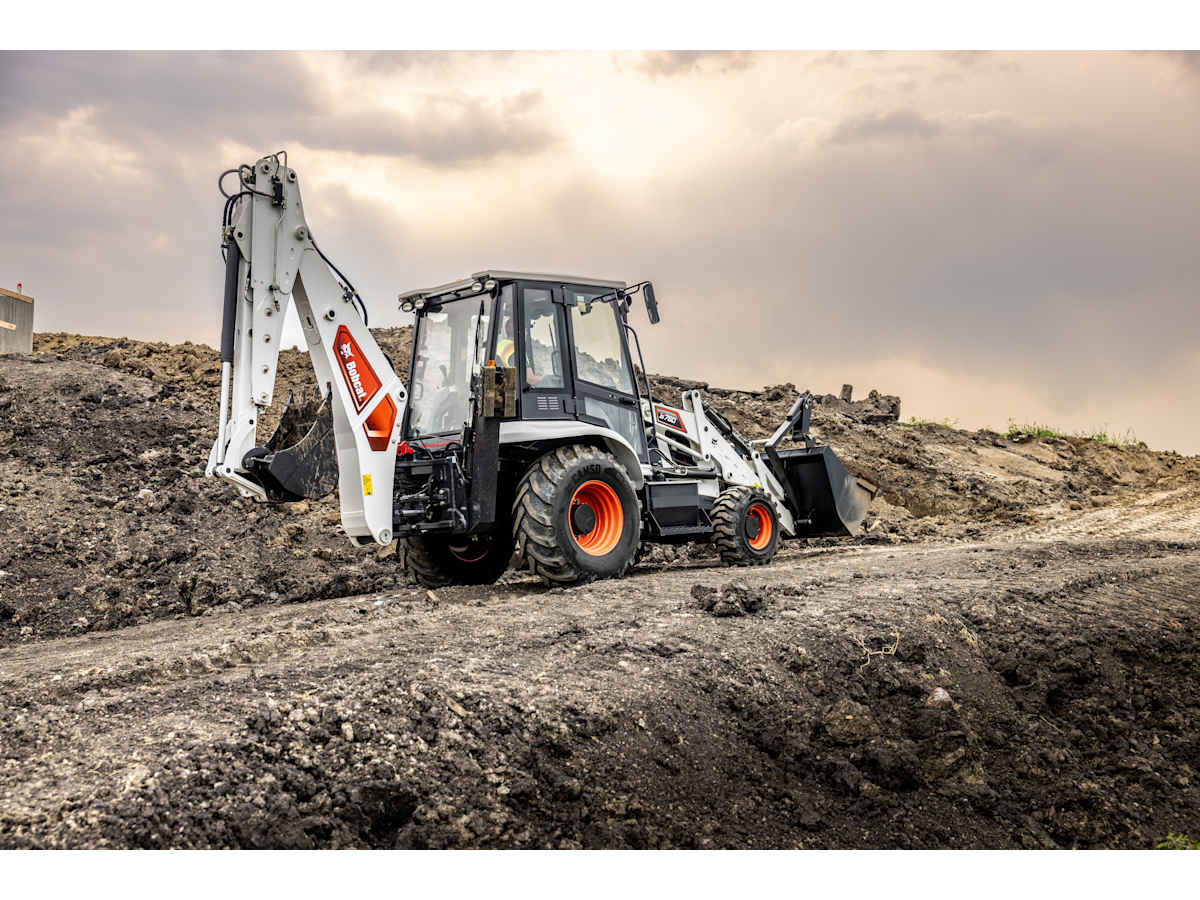

Bob Cat B760 Backhoe Loader

Carry and load in front. Dig in back. The Bobcat® B760 backhoe loader can pull double duty on a wide range of tough jobs.

$112,317 USD**

As low as 0% for 36 months* or rebates up to $4,000 USD* / $5,400 CAD* in lieu of financing on Bobcat B760 backhoe loaders. Offers end June 30, 2025.

B760 Key Specifications

B760

Engine

B760
Engine Cooling
Liquid
Engine Fuel
Diesel
Engine Make
Bobcat
Horsepower
96 hp

Performance

B760
Arm Digging Force
9,667 lbf
Loader Bucket Breakout Force
14,388 lbf
Backhoe Bucket Digging Force
14,388 lbf
Loader Lift Capacity at Full Height
7,985 lbs
Backhoe Max Dump Height
188.3 in
Backhoe Lift Capacity at Max Reach
2,204 lbs
Backhoe Max Dig Depth
221.4 in
Operating Weight
19,224 lbs
Backhoe Max Reach from Swing Center
265.2 in

Drive System

B760
Brake Type
Wet Multi-Disc
Differential Lock
Optional
Max Travel Speed
22.6 mph
Transmission Type
Powershift

Dimension

B760
Ground Clearance
13.3 in
Loader Height to Bucket Hinge Pin
136 in
Machine Width
89.5 in
Machine Width – Stabilizers Folded Down
142.4 in
Overall Height
113.3 in
Overall Height in Travel Position
147.4 in
Overall Length in Travel Position
293 in
Loader Reach at Full Height
47.4 in
Wheelbase
87.4 in

Features

B760
Extendable Arm
Standard
Enclosed Cab with Heater/Air Conditioning
Optional
Ride Control
Standard
Rotating Flashing Beacon
Standard
Selectable 4 wheel drive
Standard
Operator Canopy ROPS/FOPS
Standard
Mechanical Suspension Seat
Standard
Floormat
Standard
Tilt Steering Wheel with Wheel Knob
Standard
Side Storage
Standard
Side Mirrors Right and Left
Standard
Horn
Standard
Backup Alarm
Standard
Front and Rear Work Lights
Standard

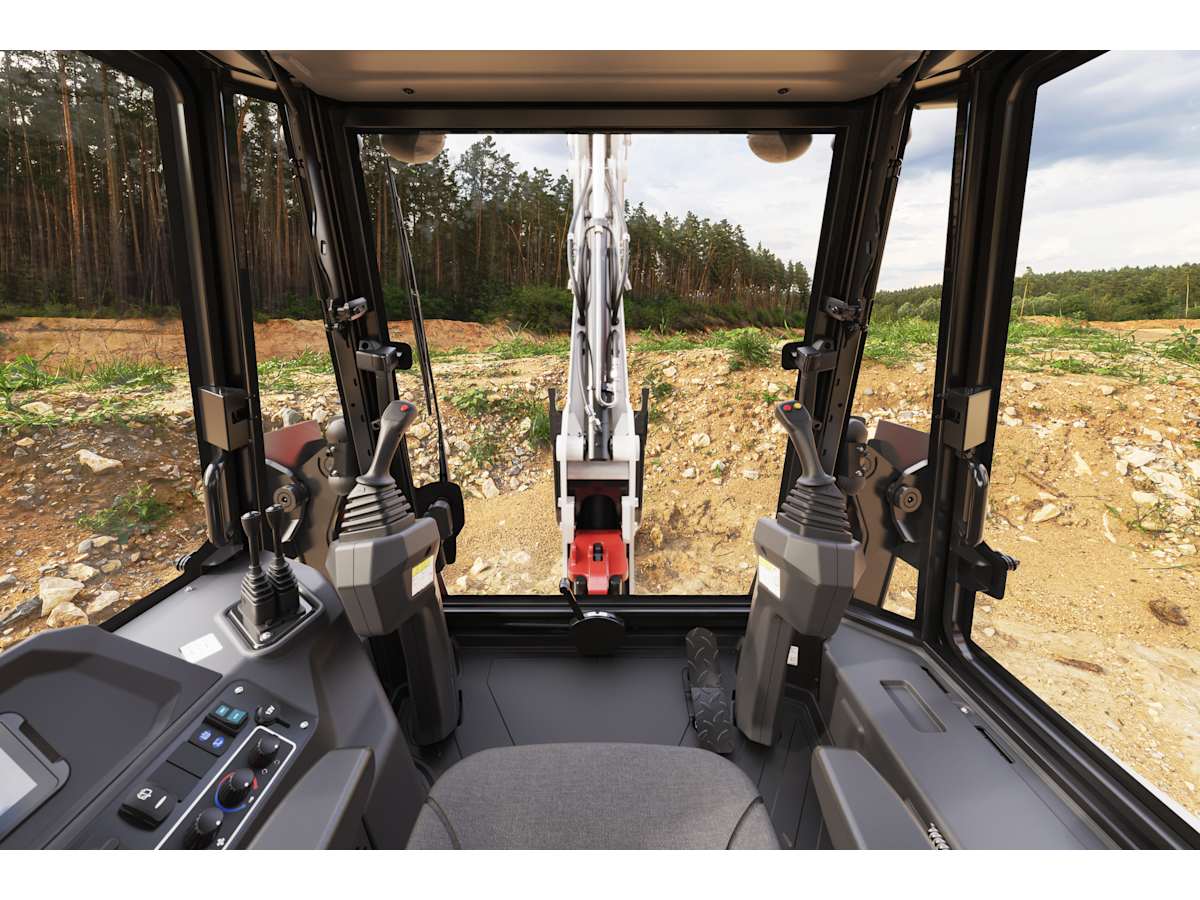

Pilot Controls
Standard
