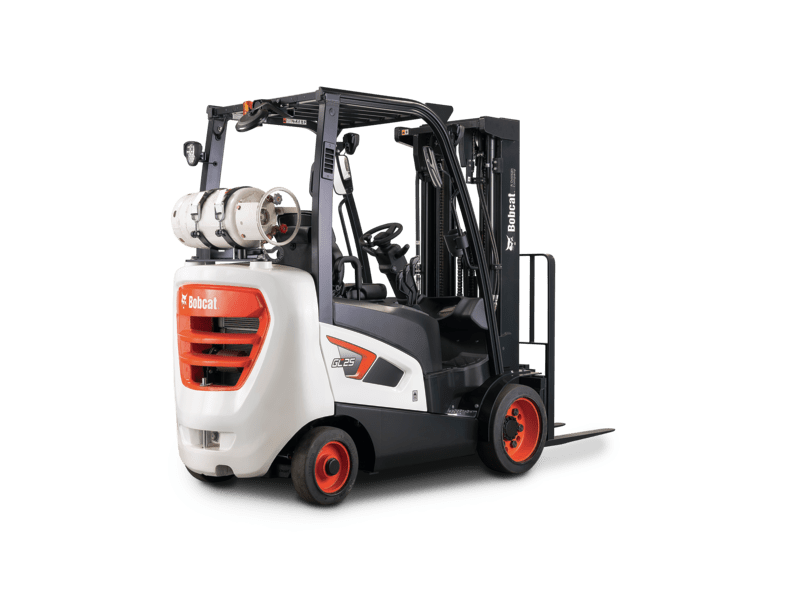

Bob Cat GC20S-9 | GC25S-9 | GC30S-9 | GC33S-9 Medium-Capacity LPG Cushion Tire Forklifts

Medium-Capacity LPG Cushion Tire Forklifts Key Specifications

GC20S-9
GC25S-9
GC30S-9
GC33S-9
Max Load Capacity
4000 lbs
5000 lbs
6000 lbs
6500 lbs

BobQuote

GC20S-9
GC25S-9
GC30S-9
GC33S-9

Engine

GC20S-9
GC25S-9
GC30S-9
GC33S-9
Engine Model
GCT/GK25
GCT/GK25
GCT/GK25
GCT/GK25

Performance

GC20S-9
GC25S-9
GC30S-9
GC33S-9
Load Center
24 in
24 in
24 in
24 in
Travel Speed – Loaded
10.6 mph
10.6 mph
10.3 mph
10.3 mph
Travel Speed – Unloaded
10.9 mph
10.9 mph
10.9 mph
10.9 mph
Lift Speed – Loaded
124 ft/min
122 ft/min
120 ft/min
118 ft/min
Lift Speed – Unloaded
128 ft/min
128 ft/min
128 ft/min
128 ft/min
Max Load Capacity
4000 lbs
5000 lbs
6000 lbs
6500 lbs

Capacities

GC20S-9
GC25S-9
GC30S-9
GC33S-9

Dimension

GC20S-9
GC25S-9
GC30S-9
GC33S-9
Height – Mast Lowered
83.9 in
83.9 in
83.9 in
83.9 in
Overhead Guard Height
83.6 in
83.6 in
83.6 in
83.6 in
Load Management Center
16.3 in
16.3 in
16.5 in
16.5 in
Free Lift
5.8 in
5.8 in
6 in
6 in
Length
130.9 in
133.1 in
135.4 in
136.8 in
Wheelbase
56.3 in
56.3 in
56.3 in
56.3 in

Price

GC20S-9
GC25S-9
GC30S-9
GC33S-9

Additional Product Information

GC20S-9
GC25S-9
GC30S-9
GC33S-9

Tires

GC20S-9
GC25S-9
GC30S-9
GC33S-9
Tire Type
Cushion
Cushion
Cushion
Cushion

Electrical System

GC20S-9
GC25S-9
GC30S-9
GC33S-9
Rated power
59 hp
59 hp
59 hp
59 hp

DIV Specs

GC20S-9
GC25S-9
GC30S-9
GC33S-9
