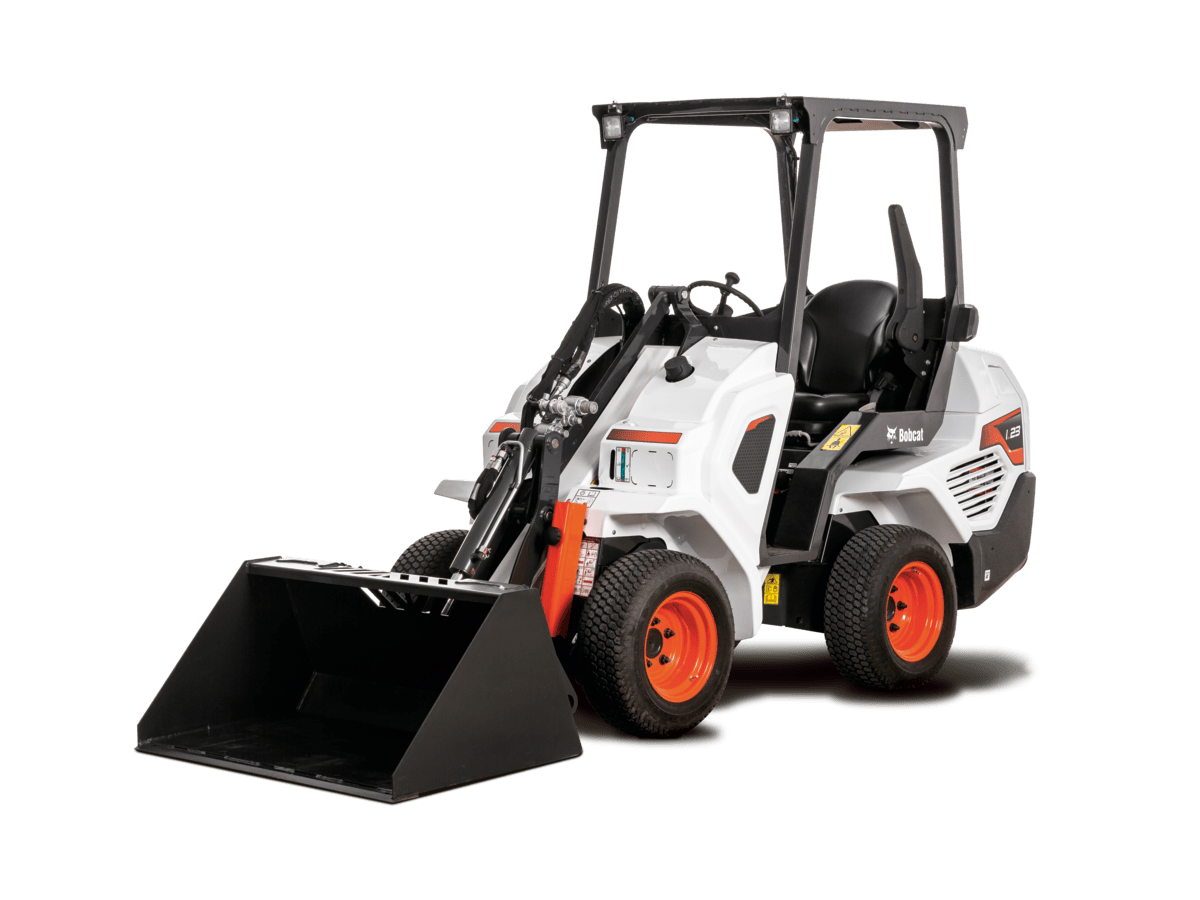

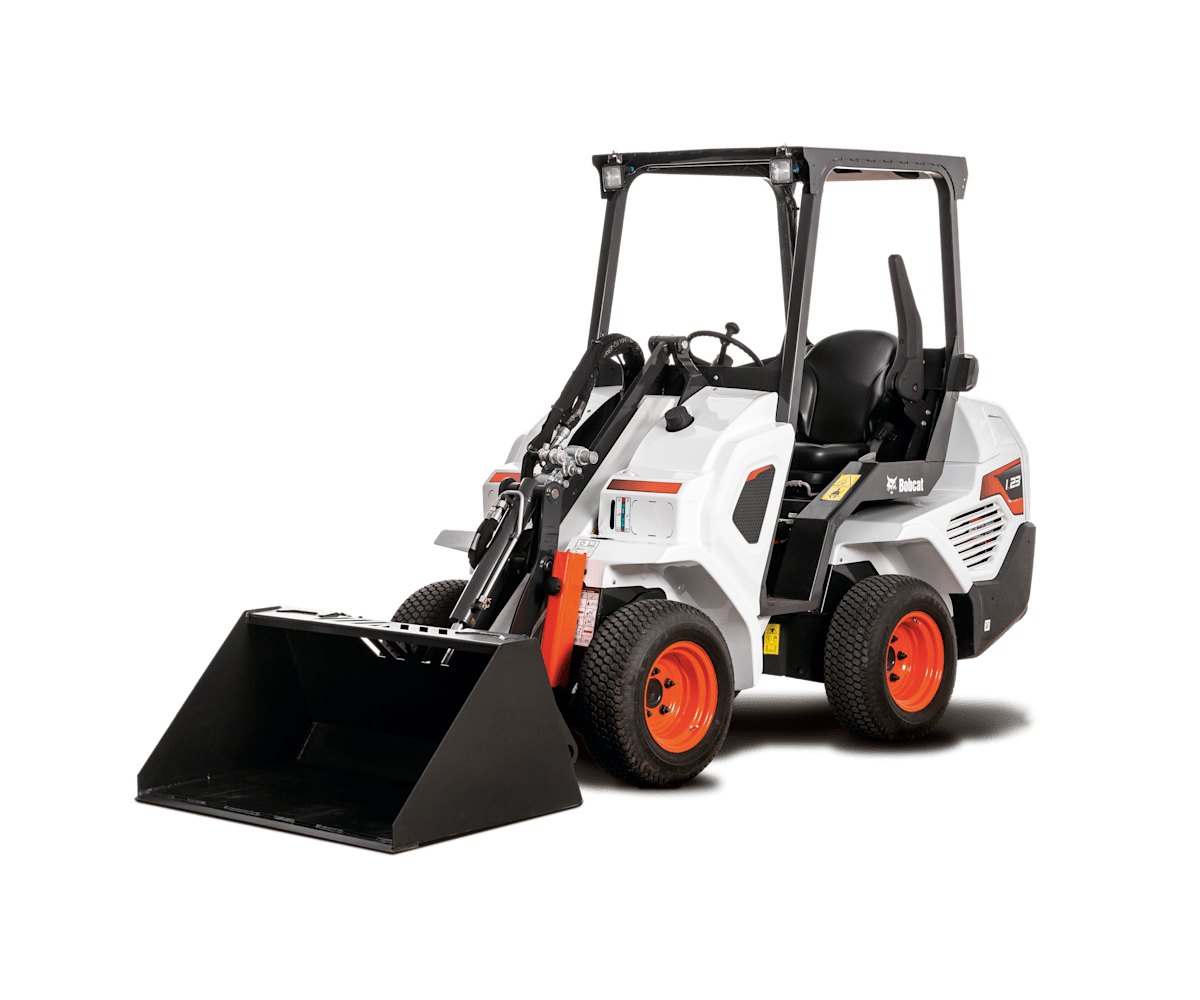

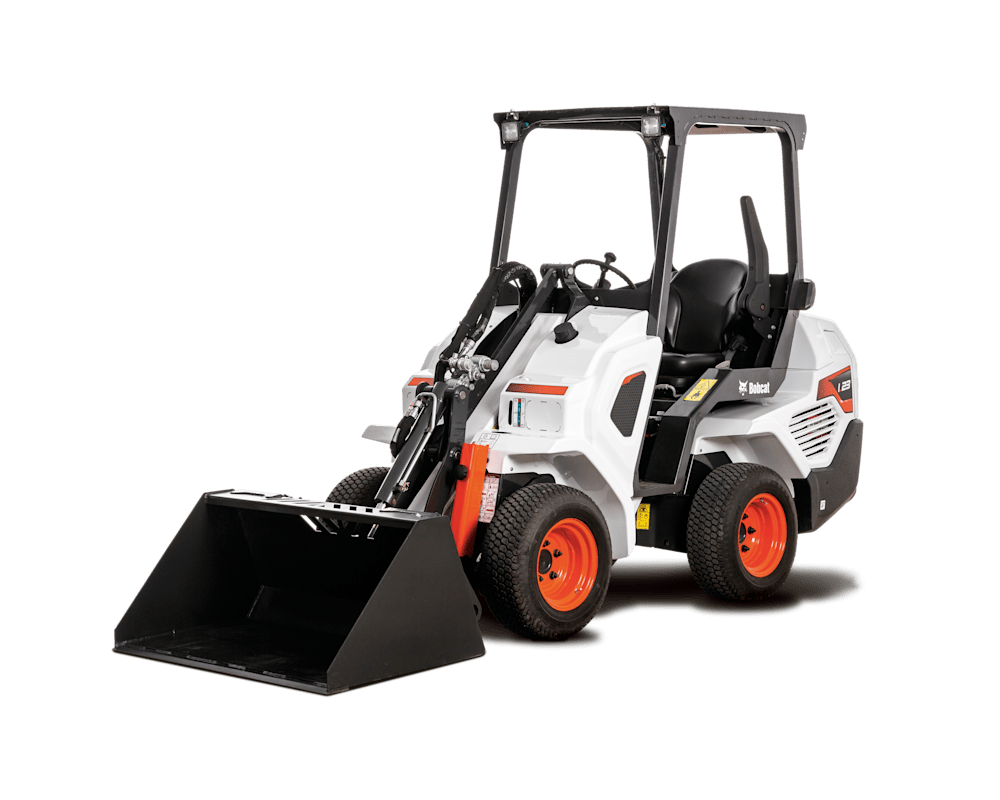

Bob Cat L23 Small Articulated Loader

The L23 Bobcat® small articulated loader delivers impressive lifting capability in a compact and turf-friendly package.

$42,420 USD**

As low as 0% for 36 months* or rebates up to $1,500 USD* / $2,000 CAD* in lieu of financing on Bobcat L23 Small Articulated Loader. Offers end June 30, 2025.

REQUEST QUOTE
GET FINANCING

L23 Key Specifications

L23
Horsepower
24.8 hp
Rated Operating Capacity (ISO) (Straight)
1395 lbs
Rated Operating Capacity (ISO) (Articulated)
1159 lbs
Operating Weight
3790 lbs
Auxiliary Std Flow
11.4 gpm
Width (over tires)
43.2 in

BobQuote

L23

SSL Specs

L23

Engine

L23
Horsepower
24.8 hp
Fuel Consumption
1.1 gph
Turbocharged Engine
no

Performance

L23
Tipping load – Articulated
2317 lbs
ROC with Counterweight Option – Straight
1815 lbs
ROC with Counterweight Option – Articulated
1471 lbs
Rated Operating Capacity (ISO) (Straight)
1395 lbs
Rated Operating Capacity (ISO) (Articulated)
1159 lbs
Tipping Load – Straight
2789 lbs
Operating Weight
3790 lbs
Travel Speed
8.2 mph

Capacities

L23
Fuel Tank
9.6 gal

Hydraulic System

L23
Pump Type
Engine Driven Gear Type
System Relief @ Quick Couplers
2900 psi
Auxiliary Std Flow
11.4 gpm
Control Valve – Type
MANUALLY OPERATED SERIES TYPE (LIFT & TILT FUNCTIONS) WITH FLOAT DETENT ON LIFT. E/H OPERATED PARALLEL TYPE (AUX FUNCTIONS).
Cylinders: Lift – Bore
2.8 in
Cylinders: Lift – Rod
1.5 in
Cylinders: Lift – Stroke
16.5 in
Cylinders: Tilt – Bore
2.5 in
Cylinders: Tilt – Rod
1.5 in
Cylinders: Tilt – Stroke
13.3 in

Dimension

L23
Articulation Angle
43 deg
Height to Bucket Hinge Pin – Extended
85.4 in
Inside Turning Radius
77.2 in
Outside Turning Radius
100.9 in
Length without Attachment
93.2 in
Length with Standard Bucket
122.4 in
Width (with bucket)
44 in
Width (over tires)
43.2 in
Dump Angle @ Maximum Height
40 deg
Reach @ Maximum Height
16.8 in
Ground Clearance
5.5 in
Rollback Angle
32 deg
Wheelbase
47.2 in
Tire Size
23X8.5-12
Wheel Tread
34.4 in

Controls

L23

Instrumentation

L23

Features

L23
Front and Rear Work Lights
Standard
Air Conditioning
Not Applicable
Backup Alarm
Standard
Cab Enclosure
Optional
Cab Heater
Optional
Operating Lights
Optional
Rear Window
Optional
Rotating Flashing Beacon
Optional
Lift-Arm Support
Standard
Grab Handles
N/A
Suspension Seat
Standard
Turn Signals
Optional
Two Speed Travel
Not Applicable
Deluxe Instrumentation
Not Applicable
Hydraulic Bucket Positioning
Standard
Auxiliary Hydraulics
Standard
Spark Arrestor Muffler
Standard
Bob-Tach Attachment System
Standard
Tires-Ply Rating
10
Cup Holder
Standard
Horn
Standard

Serviceability

L23

Drive System

L23
Main Drive
Hydrostatic pump driving 4 independent wheel motors
