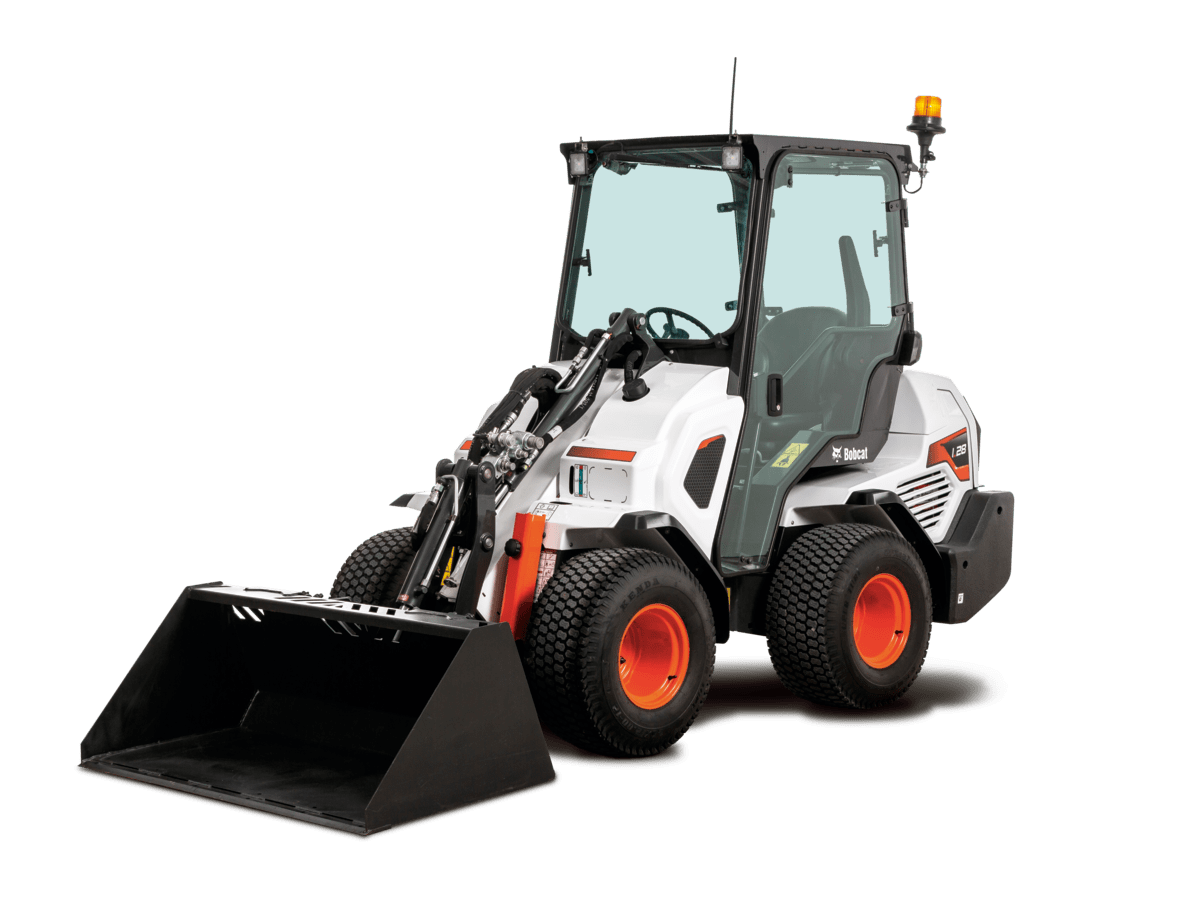

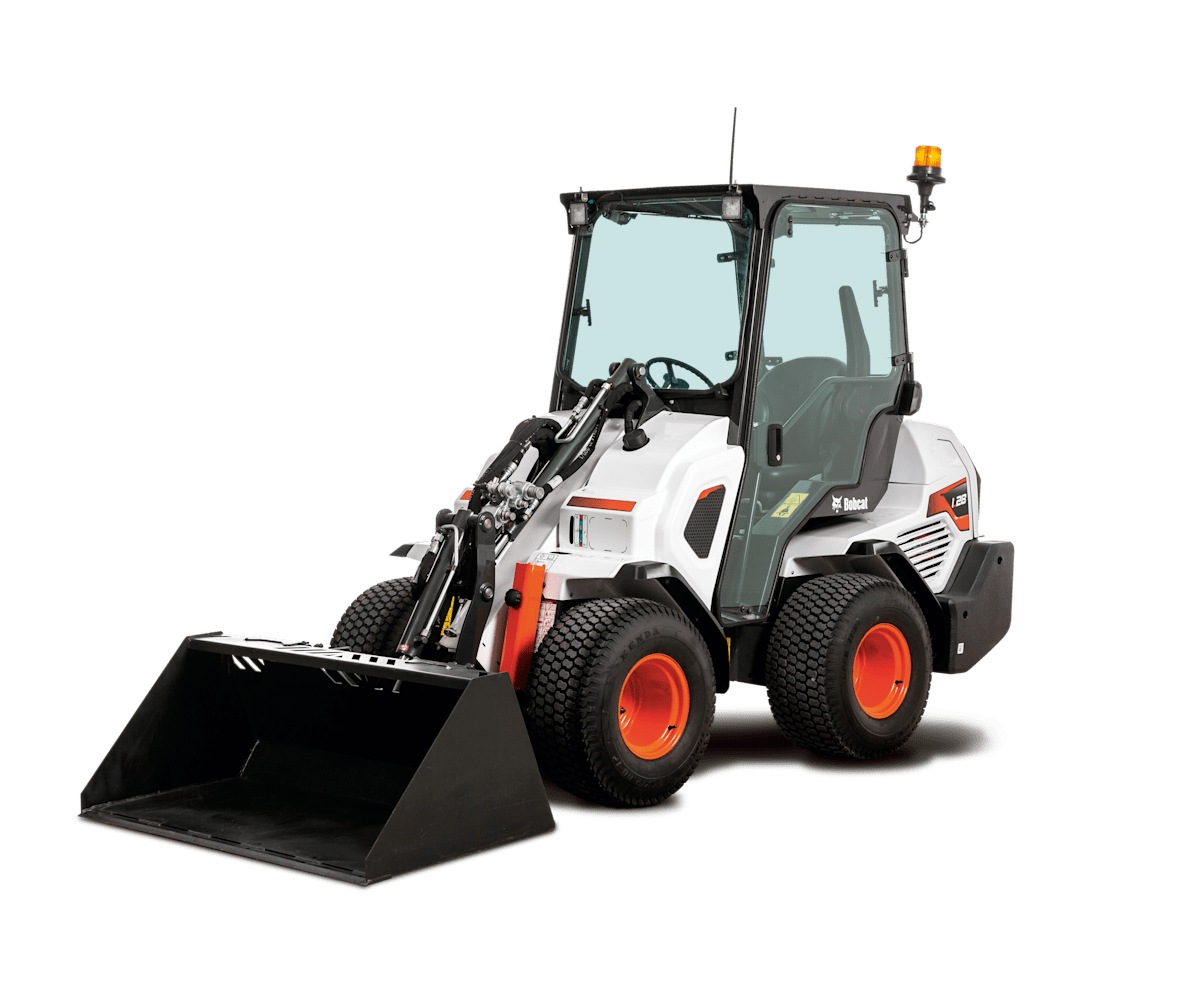

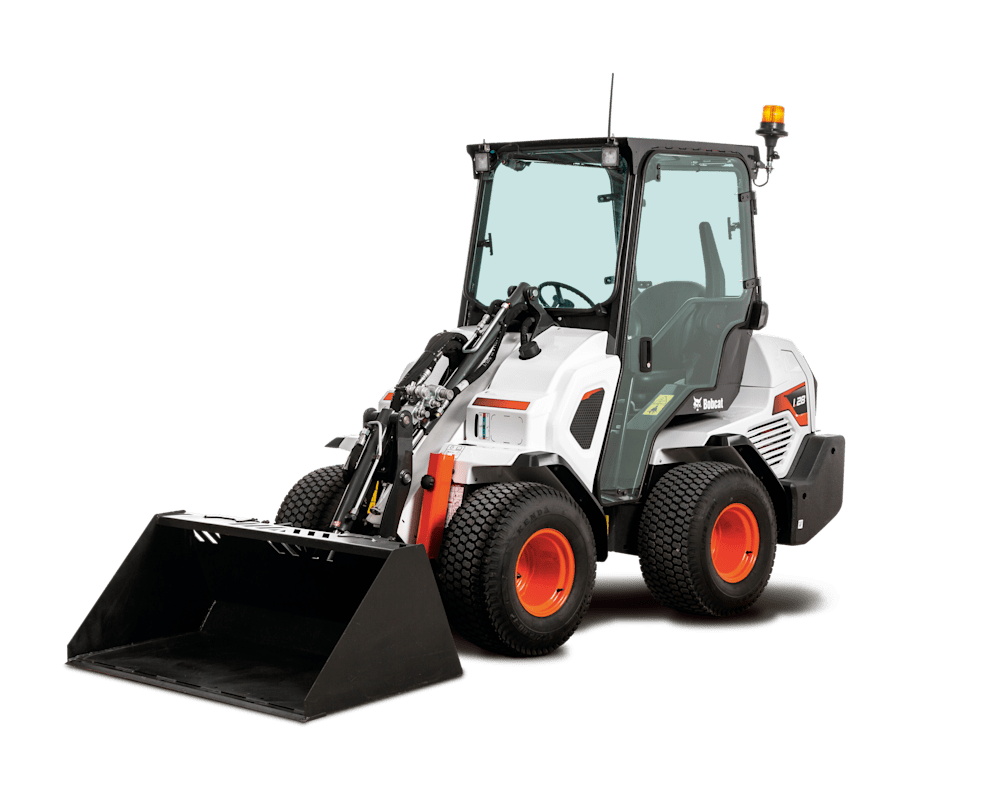

Bob Cat L28 Small Articulated Loader

The L28 Bobcat® small articulated loader delivers big performance and heavy lifting in a small package.

$49,700 USD**

As low as 0% for 36 months* or rebates up to $1,500 USD* / $2,000 CAD* in lieu of financing on Bobcat L28 small articulated loader. Offers end June 30, 2025.

REQUEST QUOTE
GET FINANCING

L28 Key Specifications

L28
Horsepower
24.8 hp
Rated Operating Capacity (ISO) (Straight)
1534 lbs
Rated Operating Capacity (ISO) (Articulated)
1222 lbs
Operating Weight
4195 lbs
Auxiliary Std Flow
11.4 gpm
Width (over tires)
46.5 in

BobQuote

L28

SSL Specs

L28

Engine

L28
Horsepower
24.8 hp
Fuel Consumption
1.1 gph
Turbocharged Engine
no

Performance

L28
Tipping load – Articulated
2444 lbs
ROC with Counterweight Option – Straight
1952 lbs
ROC with Counterweight Option – Articulated
1475 lbs
Rated Operating Capacity (ISO) (Straight)
1534 lbs
Rated Operating Capacity (ISO) (Articulated)
1222 lbs
Tipping Load – Straight
3068 lbs
Operating Weight
4195 lbs
Travel Speed
8.3 mph

Capacities

L28
Fuel Tank
9.6 gal

Hydraulic System

L28
Cylinder Extend Rod
1.2 in
Cylinder Extend Bore
2.2 in
Pump Type
ENGINE DRIVEN GEAR TYPE
System Relief @ Quick Couplers
2900 psi
Auxiliary Std Flow
11.4 gpm
Control Valve – Type
MANUALLY OPERATED SERIES TYPE (LIFT & TILT FUNCTIONS) WITH FLOAT DETENT ON LIFT. E/H OPERATED PARALLEL TYPE ( AUX & TELESCOPIC FUNCTIONS).
Cylinders: Lift – Bore
2.8 in
Cylinders: Lift – Rod
1.5 in
Cylinders: Lift – Stroke
16.5 in
Cylinders: Tilt – Bore
2.5 in
Cylinders: Tilt – Rod
1.5 in
Cylinders: Tilt – Stroke
13.3 in

Dimension

L28
Articulation Angle
43 deg
Height to Bucket Hinge Pin – Extended
104.4 in
Inside Turning Radius
78.2 in
Height to Bucket Hinge Pin – Retracted
85.4 in
Outside Turning Radius
100.9 in
Length without Attachment
93.2 in
Length with Standard Bucket
122.4 in
Width (with bucket)
50 in
Width (over tires)
46.5 in
Dump Angle @ Maximum Height
40 deg
Reach @ Maximum Height
30.9 in
Ground Clearance
5.5 in
Rollback Angle
32 deg
Wheelbase
47.2 in
Tire Size
23X10.5-12, 8 PLY
Wheel Tread
36.4 in

Controls

L28

Instrumentation

L28

Features

L28
Front and Rear Work Lights
Standard
Air Conditioning
Not Applicable
Backup Alarm
Standard
Cab Enclosure
Optional
Cab Heater
Optional
Operating Lights
Optional
Rear Window
Optional
Rotating Flashing Beacon
Optional
Lift-Arm Support
Standard
Grab Handles
N/A
Suspension Seat
Standard
Turn Signals
Optional
Two Speed Travel
Not Applicable
Deluxe Instrumentation
Not Applicable
Hydraulic Bucket Positioning
Standard
Auxiliary Hydraulics
Standard
Spark Arrestor Muffler
Standard
Bob-Tach Attachment System
Standard
Tires-Ply Rating
8
Cup Holder
Standard
Horn
Standard

Serviceability

L28

Drive System

L28
Main Drive
Hydrostatic drive with 4 individual drive motors

Price

L28

Additional Product Information

L28
