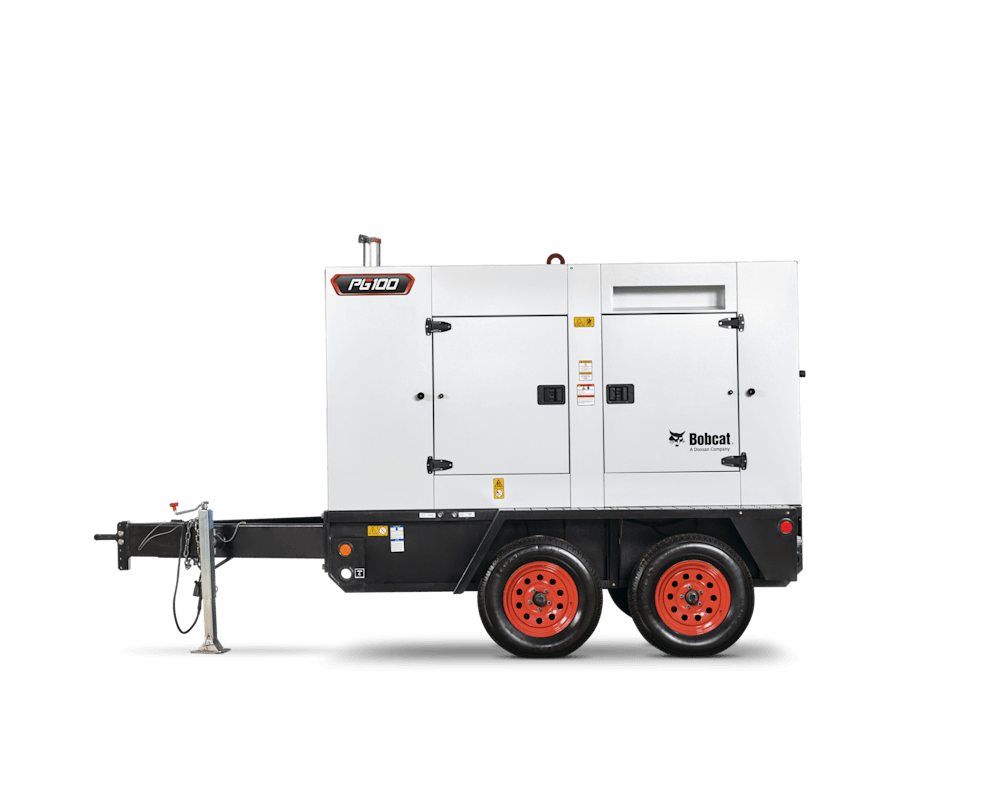

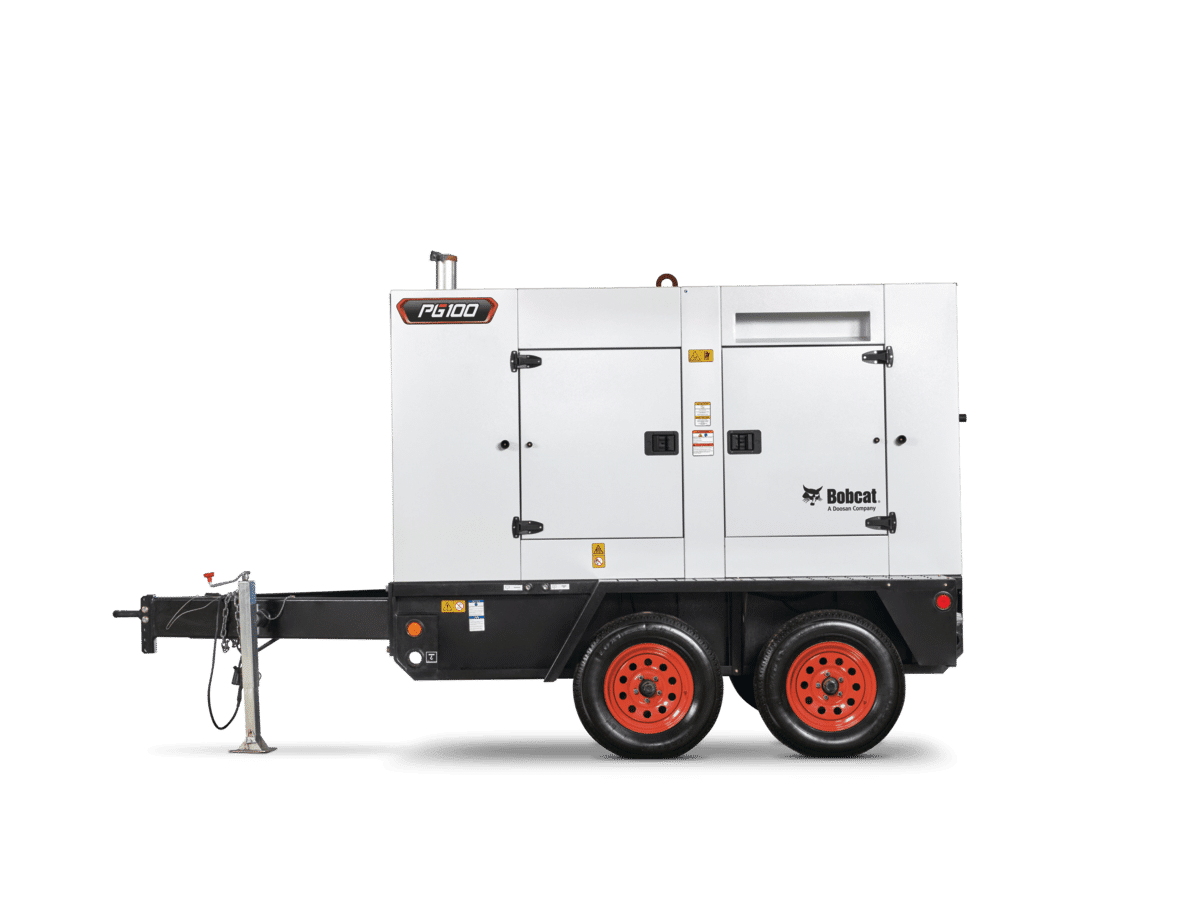

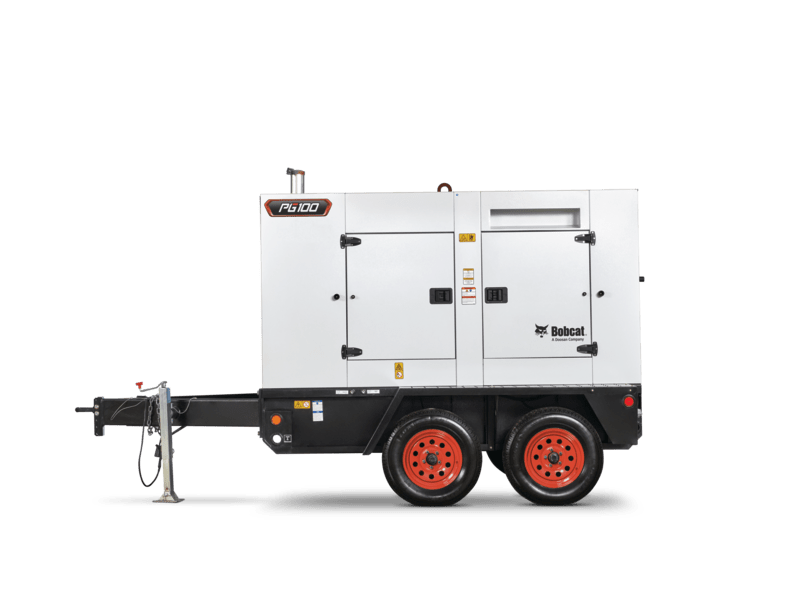

Bob Cat PG100 Portable Generator

The diesel-powered mobile and towable Bobcat® PG100 portable generator (100 kVA/80 kW) delivers power you can depend on, even in the toughest jobsite conditions.

REQUEST QUOTE
GET FINANCING

PG100 Key Specifications

PG100
Power Output @ 1800RPM
129 hp
Runtime Hours at 75% Load
37
PG100
Emissions Tier Level
Tier 4 Final
Aftertreatment Technology
DOC / SCR / DPF
Engine Model
Cummins F3.8
Displacement
3800 cubic cm
PG100
PG100
Diesel Exhaust Fluid (DEF) Capacity
14.7 gal
Fuel Tank Capacity
172 gal
PG100
Length
166.1 in
Width
72.5 in
Height
94.7 in
PG100
PG100
PG100
Frequency Capability
50Hz/60Hz Switchable
Voltage Configuration
3-Position Switch
Power Output @ 1800RPM
129 hp
@ 400V-3-phase, 0.8PF, 50Hz
100 kVA (80 kW), 144 Amps
@ 480V-3-phase, 0.8PF, 60Hz
100 kVA (80 kW), 120 Amps
@ 240V-3-phase, 0.8PF, 60Hz
100 kVA (80 kW), 241 Amps
@ 120V-single-phase, 1.0PF, 60Hz
72 kVA (72 kW), 300 x 2 Amps
@ 240V-single-phase, 1.0PF, 60Hz
72 kVA (72 kW), 300 Amps
@ 208V-3-phase, 0.8PF, 60Hz
100 kVA (80 kW), 278 Amps
Runtime Hours at 75% Load
37
Number of Cylinders
4
PG100
