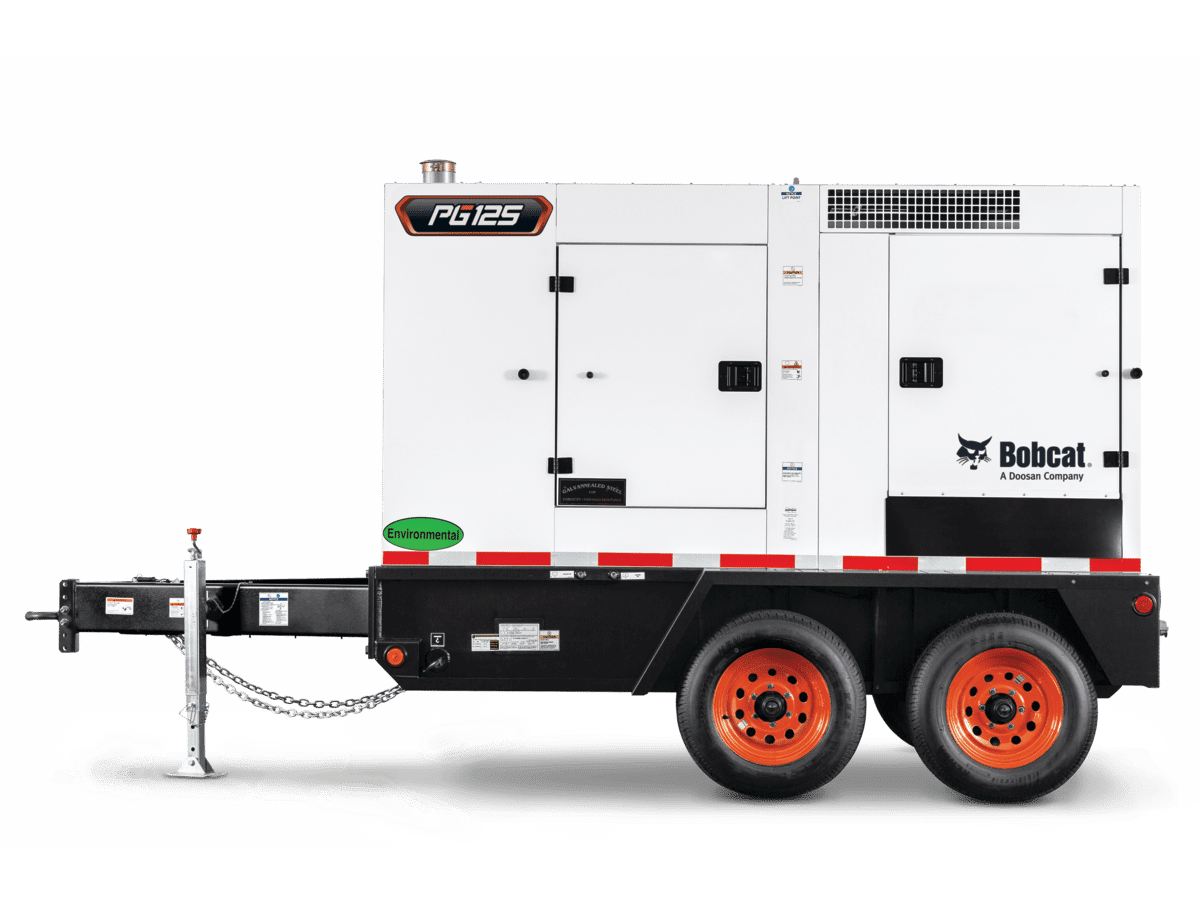

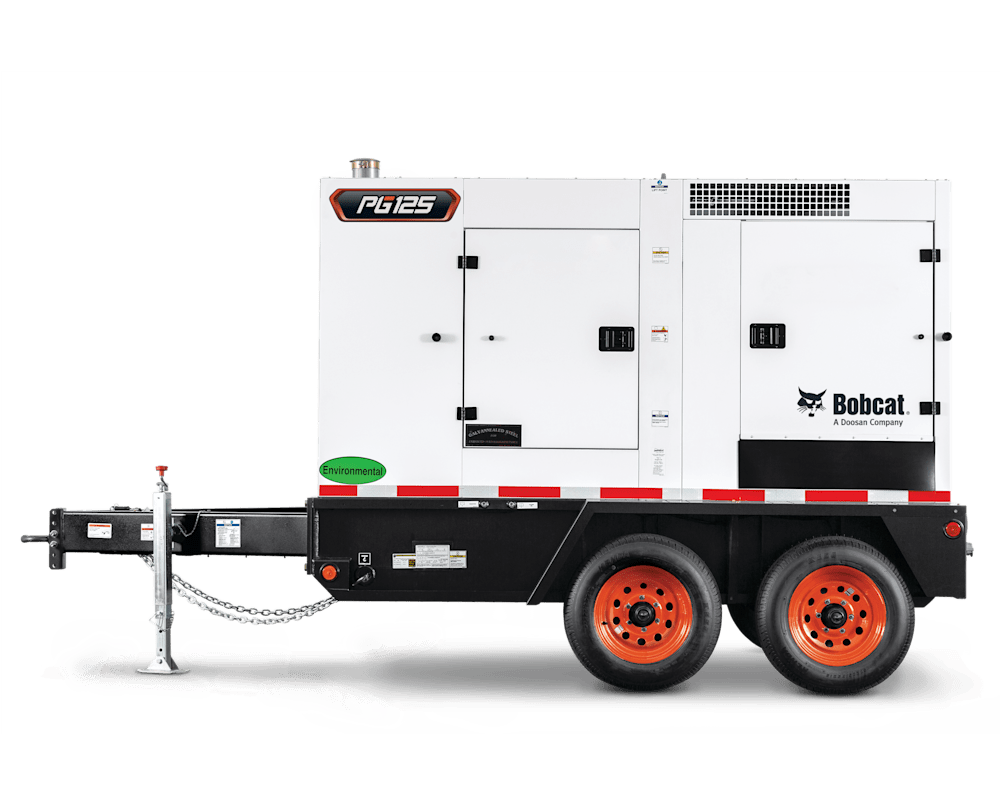

Bob Cat PG125 Portable Generator

The Bobcat® PG125 portable generator offers a wide range of output voltages and multiple connection options to deliver ruggedly reliable portable power.

REQUEST QUOTE
GET FINANCING

PG125 Key Specifications

PG125
Power Output @ 1800RPM
153 hp
Runtime Hours at 75% Load
32.4

Engine

PG125
Emissions Tier Level
Tier 4 Final
Aftertreatment Technology
DOC / SCR
Engine Model
Cummins QSB5-G11
Displacement
4500 cubic cm

Performance

PG125

Capacities

PG125
Diesel Exhaust Fluid (DEF) Capacity
24 gal
Fuel Tank Capacity
172 gal

Dimension

PG125
Length
169.9 in
Width
71.3 in
Height
94.9 in

Price

PG125

Additional Product Information

PG125

Prime Power Rating

PG125
Frequency Capability
50Hz/60Hz Switchable
Sound Level
68 dB(A)
Voltage Configuration
3-Position Switch
Power Output @ 1800RPM
153 hp
@ 400V-3-phase, 0.8PF, 50Hz
105 kVA (84 kW), 152 Amps
@ 480V-3-phase, 0.8PF, 60Hz
125 kVA (100 kW), 151 Amps
@ 240V-3-phase, 0.8PF, 60Hz
125 kVA (100 kW), 301 Amps
@ 120V-single-phase, 1.0PF, 60Hz
86 kVA (86 kW), 360 x 2 Amps
@ 240V-single-phase, 1.0PF, 60Hz
86 kVA (86 kW), 360 Amps
@ 208V-3-phase, 0.8PF, 60Hz
121 kVA (97 kW), 336 Amps
Runtime Hours at 75% Load
32.4
Number of Cylinders
4
