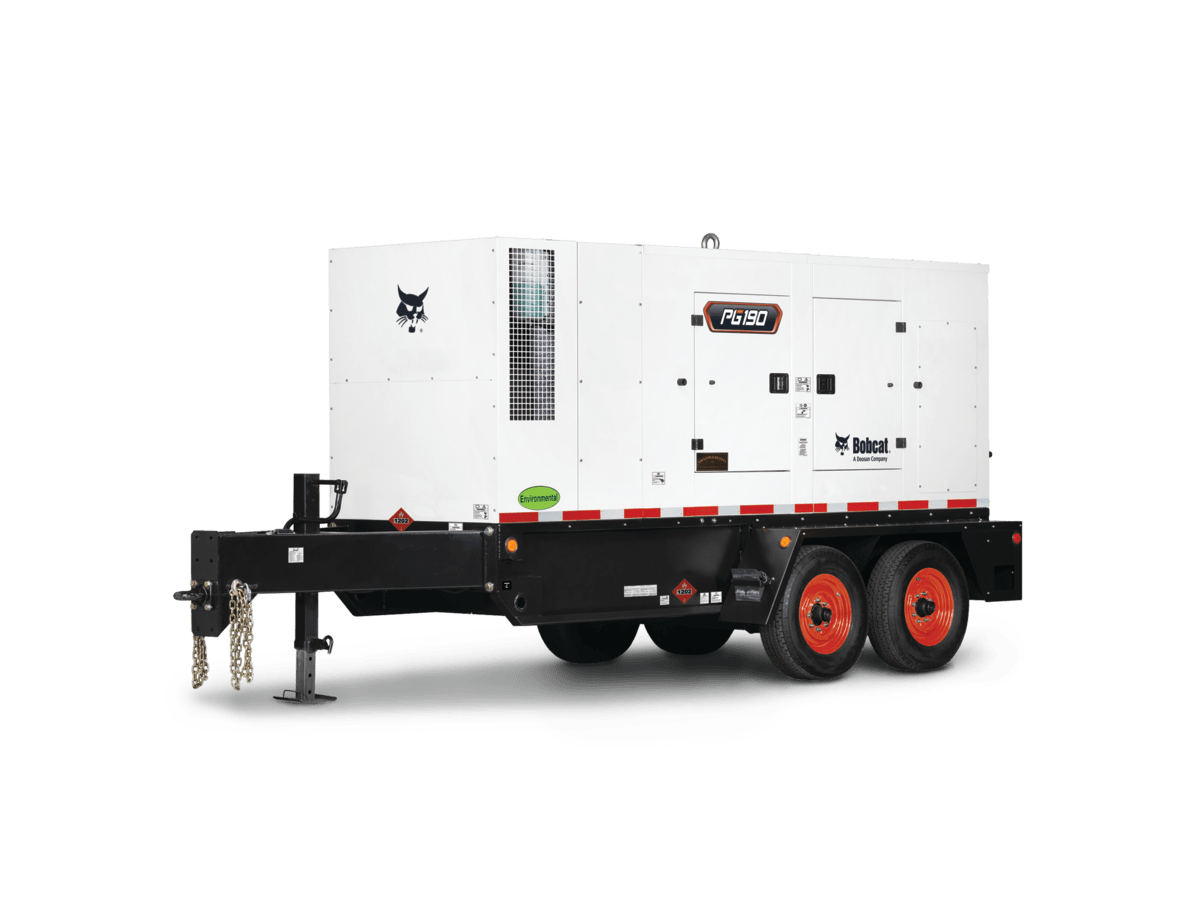

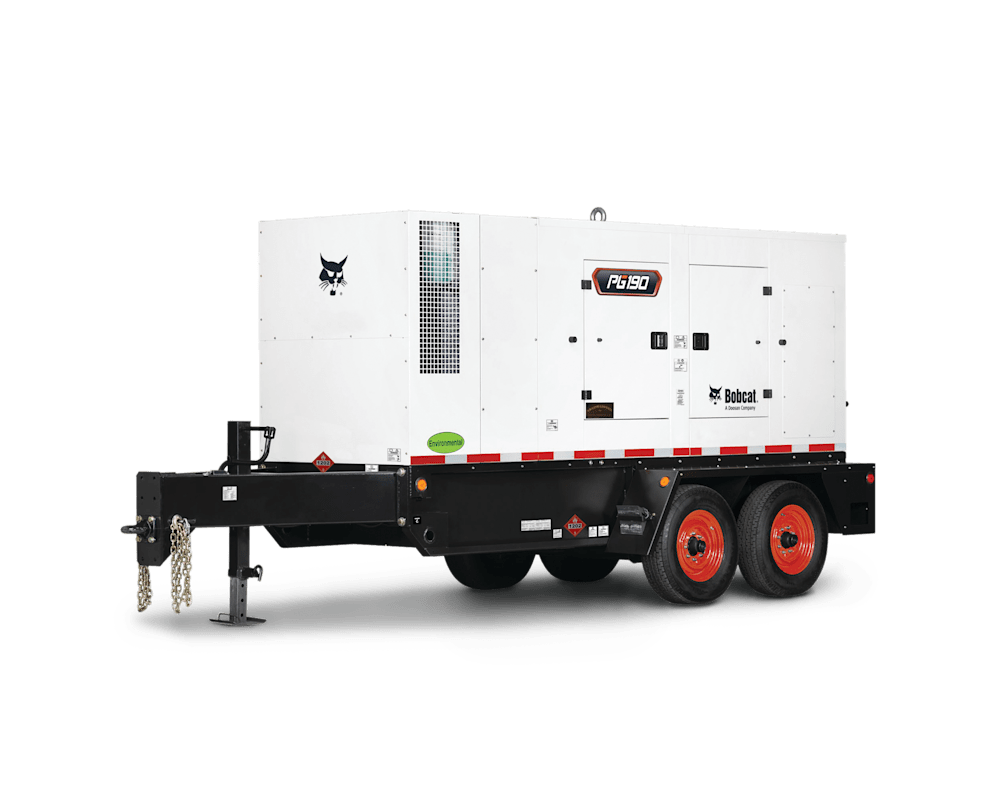

Bob Cat PG190 Portable Generator

The diesel-powered Bobcat® PG190 portable generator (181 kVA/145 kW) from Bobcat delivers reliable power with industry-leading serviceability to maximize uptime and productivity.

PG190 Key Specifications

PG190
Power Output @ 1800RPM
219 hp
Runtime Hours at 75% Load
46

BobQuote

PG190

Engine

PG190
Aftertreatment Technology
DOC / SCR
Emissions Tier Level
Tier 4 Final
Engine Model
Cummins QSB7-G8
Displacement
6700 cubic cm

Performance

PG190

Capacities

PG190
Diesel Exhaust Fluid (DEF) Capacity
24 gal
Fuel Tank Capacity
368 gal

Dimension

PG190
Length
224 in
Width
83.2 in
Height
102.9 in

Price

PG190

Additional Product Information

PG190

Prime Power Rating

PG190
240V-single-phase, 1.0PF, 60Hz
110 kVA (110 kW), 458 Amps
@ 208V-3-phase, 0.8PF, 60Hz
181 kVA (145 kW), 503 Amps
@ 240V-3-phase, 0.8PF, 60Hz
181 kVA (145 kW), 436 Amps
@ 480V-3-phase, 0.8PF, 60Hz
181 kVA (145 kW), 218 Amps
@ 120V-single-phase, 1.0PF, 60Hz
110 kVA (110 kW), 458 x 2 Amps
@ 400V-3-phase, 0.8PF, 50Hz
165 kVA (132 kW), 238 Amps
Frequency Capability
50Hz/60Hz Switchable
Power Output @ 1800RPM
219 hp
Voltage Configuration
3-Position Switch
Sound Level
69 dB(A)
Runtime Hours at 75% Load
46
Number of Cylinders
6
