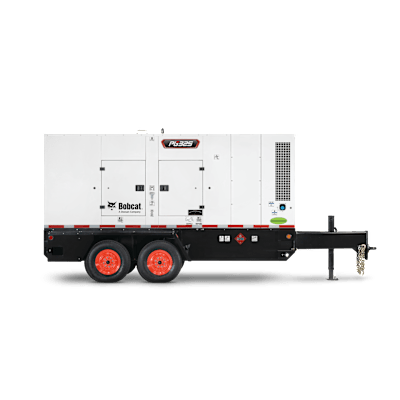

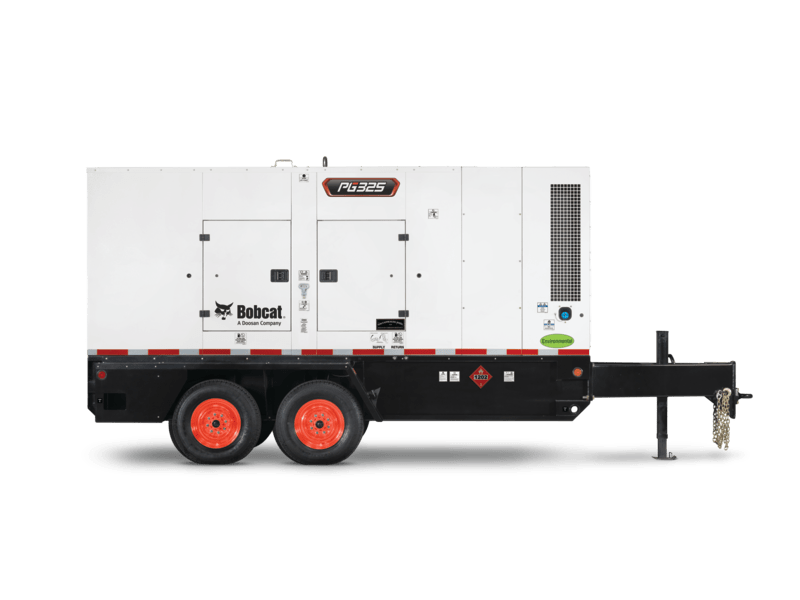

Bob Cat PG325 Portable Generator

Powered by a Cummins QSL9-G9 engine, the Bobcat® PG325 portable generator offers heavy-duty power capable of operating in extreme conditions.

PG325 Key Specifications

PG325
Power Output @ 1800RPM
393 hp
Runtime Hours at 75% Load
32.5

BobQuote

PG325

Engine

PG325
Aftertreatment Technology
DOC / SCR
Emissions Tier Level
Tier 4 Final
Engine Model
Cummins QSL9-G9
Displacement
8900 cubic cm

Performance

PG325

Capacities

PG325
Diesel Exhaust Fluid (DEF) Capacity
24 gal
Fuel Tank Capacity
480 gal

Dimension

PG325
Length
240 in
Width
83 in
Height
113 in

Price

PG325

Additional Product Information

PG325

Prime Power Rating

PG325
240V-single-phase, 1.0PF, 60Hz
197 kVA (197 kW), 821 Amps
Frequency Capability
50Hz/60Hz Switchable
@ 480V-3-phase, 0.8PF, 60Hz
334 kVA (267 kW), 401 Amps
@ 240V-3-phase, 0.8PF, 60Hz
334 kVA (267 kW), 803 Amps
@ 208V-3-phase, 0.8PF, 60Hz
316 kVA (253 kW), 877 Amps
Power Output @ 1800RPM
393 hp
@ 120V-single-phase, 1.0PF, 60Hz
197 kVA (197 kW), 821 x 2 Amps
@ 400V-3-phase, 0.8PF, 50Hz
280 kVA (224 kW), 404 Amps
Voltage Configuration
Link Board
Sound Level
76 dB(A)
Runtime Hours at 75% Load
32.5
Number of Cylinders
6
