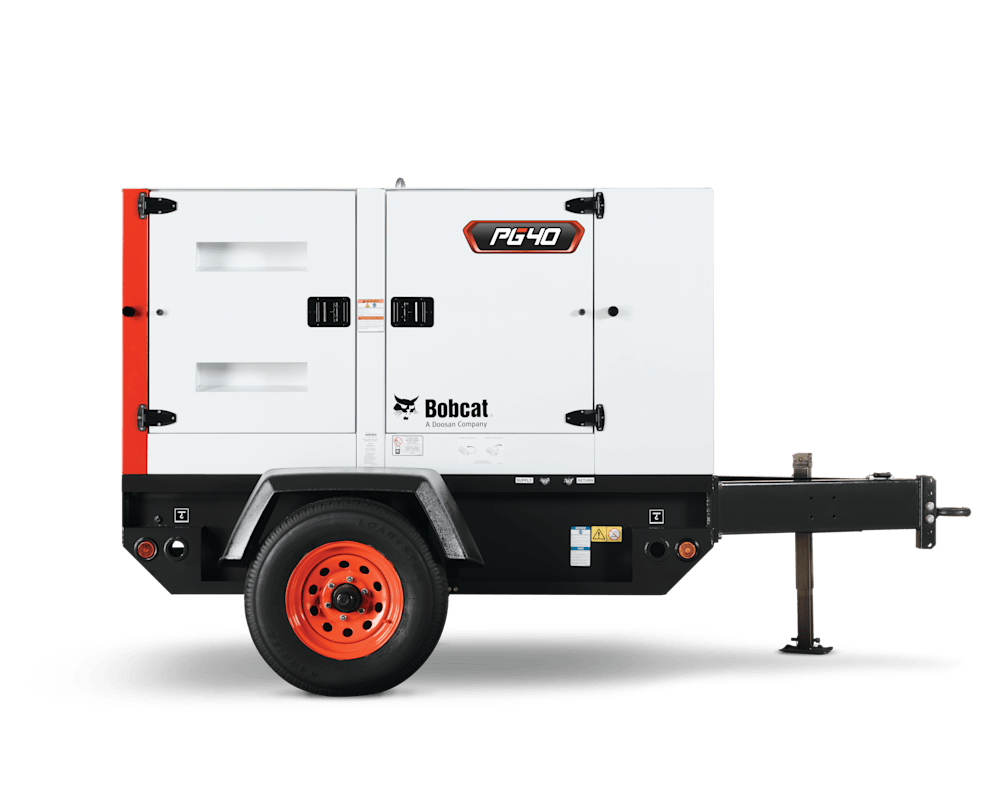

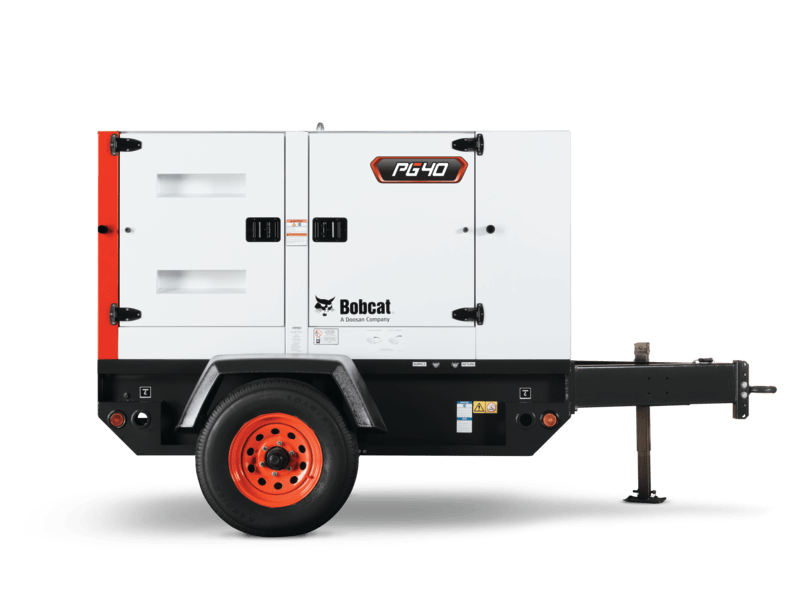

Bob Cat PG40 Portable Generator

The Bobcat® PG40 portable generator offers outstanding motor starting capability, the best low-load operating range in the industry and simple serviceability.

PG40 Key Specifications

PG40
Power Output @ 1800RPM
48.8 hp
Runtime Hours at 75% Load
49.8

BobQuote

PG40

Engine

PG40
Emissions Tier Level
Tier 4 Final
Engine Model
Doosan D18
Displacement
1800 cubic cm

Performance

PG40

Capacities

PG40
Fuel Tank Capacity
102 gal

Dimension

PG40
Length
130.5 in
Width
68.3 in
Height
76.6 in

Price

PG40

Additional Product Information

PG40

Prime Power Rating

PG40
240V-single-phase, 1.0PF, 60Hz
30 kVA (30 kW), 127 Amps
Frequency Capability
50Hz/60Hz Switchable
@ 480V-3-phase, 0.8PF, 60Hz
40 kVA (32 kW), 48 Amps
@ 240V-3-phase, 0.8PF, 60Hz
40 kVA (32 kW), 96 Amps
@ 208V-3-phase, 0.8PF, 60Hz
40 kVA (32 kW), 111 Amps
Power Output @ 1800RPM
48.8 hp
@ 120V-single-phase, 1.0PF, 60Hz
30 kVA (30 kW), 127 x 2 Amps
@ 400V-3-phase, 0.8PF, 50Hz
31 kVA (25 kW), 45 Amps
Voltage Configuration
3-Position Switch
Sound Level
64 dB(A)
Runtime Hours at 75% Load
49.8
Number of Cylinders
3
