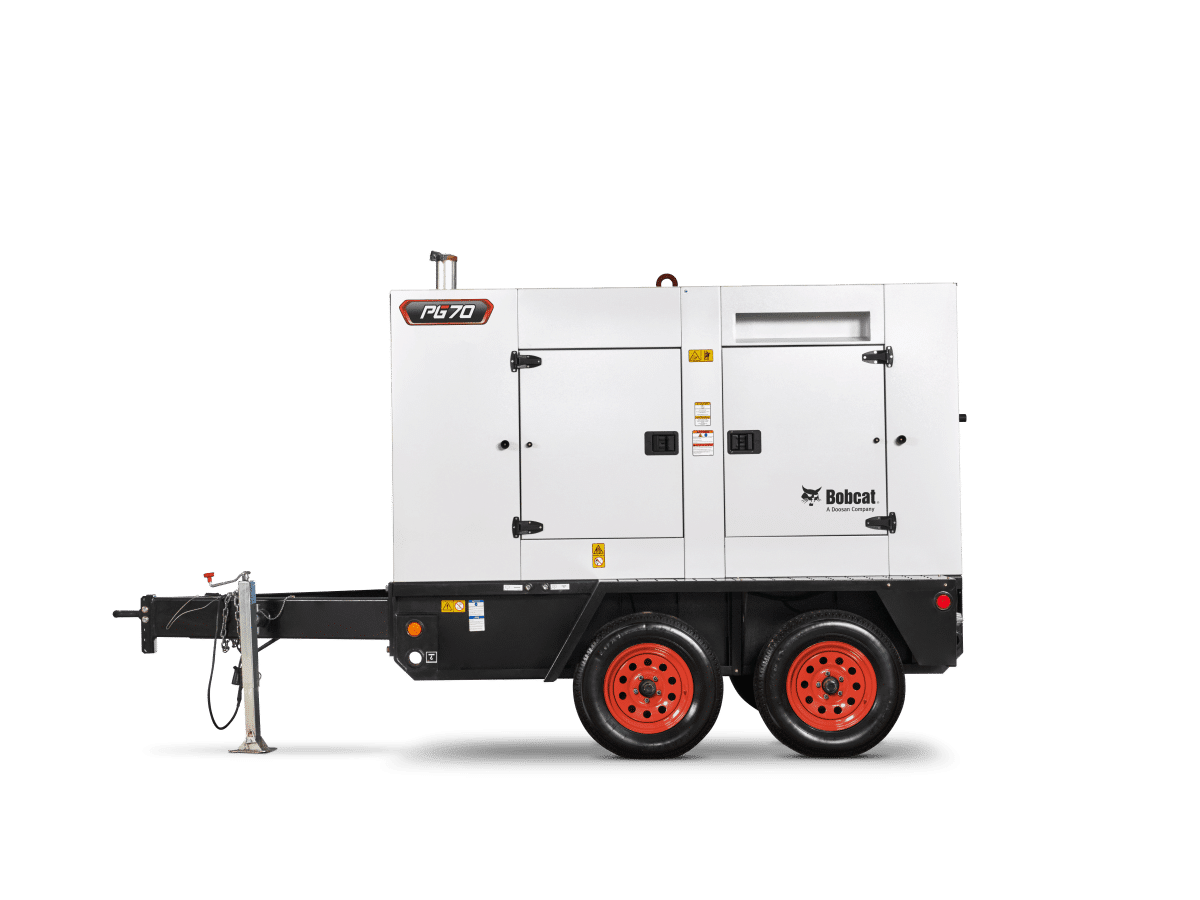

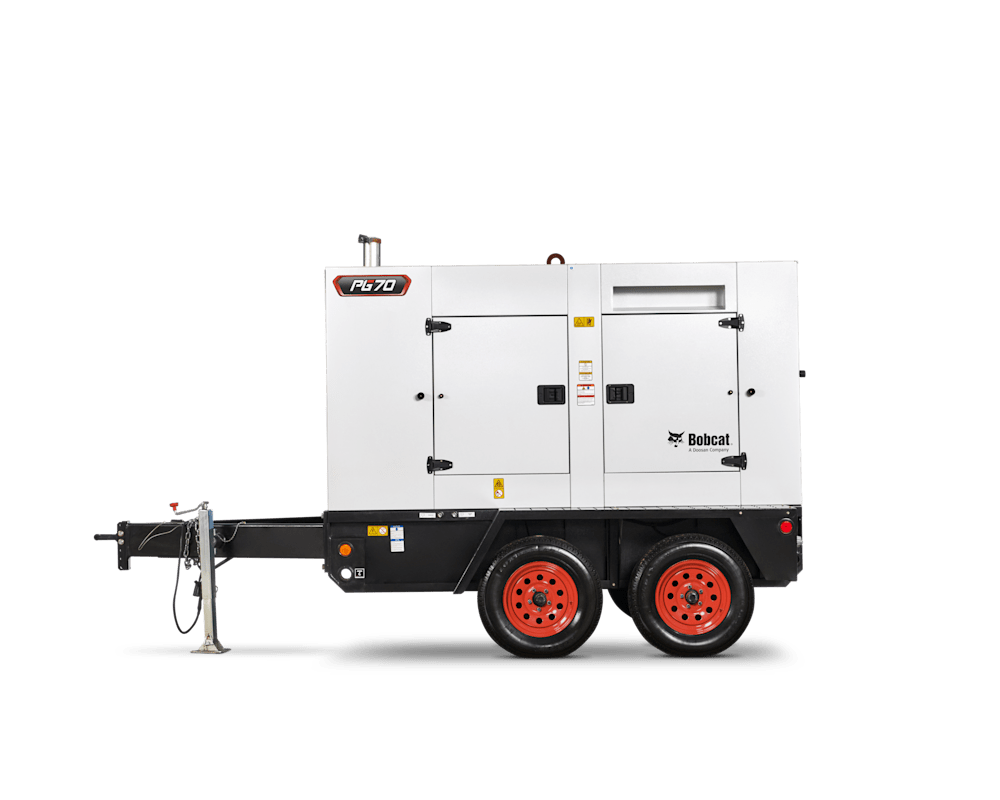

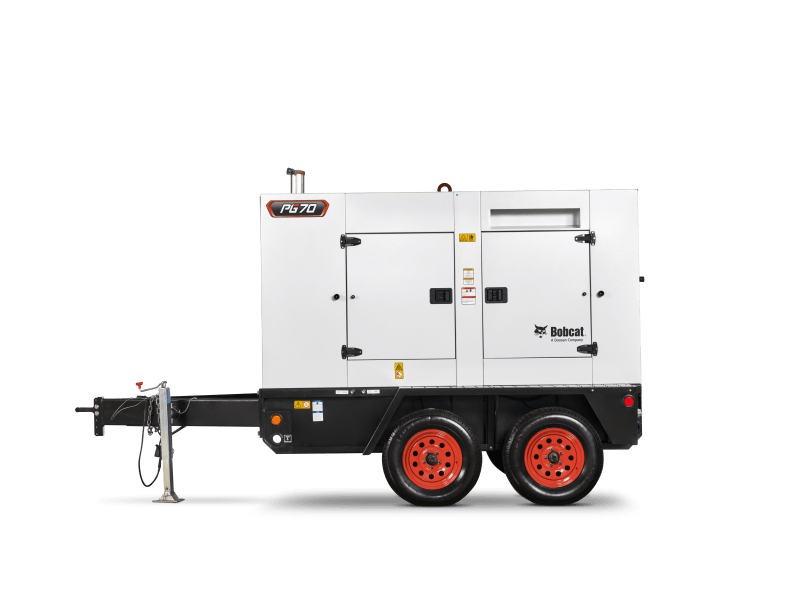

Bob Cat PG70 Portable Generator

Ideal for construction sites, special events, irrigation and municipalities, the Bobcat® PG70 portable generator offers versatility in a compact design.

REQUEST QUOTE
GET FINANCING

PG70 Key Specifications

PG70
Power Output @ 1800RPM
84 hp
Runtime Hours at 75% Load
50
PG70
Emissions Tier Level
Tier 4 Final
Aftertreatment Technology
DOC / SCR / DPF
Engine Model
Cummins F3.8
Displacement
3800 cubic cm
PG70
PG70
Diesel Exhaust Fluid (DEF) Capacity
14.7 gal
Fuel Tank Capacity
172 gal
PG70
Length
166.1 in
Width
72.5 in
Height
94.7 in
PG70
PG70
PG70
Frequency Capability
50Hz/60Hz Switchable
Voltage Configuration
3-Position Switch
Power Output @ 1800RPM
84 hp
@ 400V-3-phase, 0.8PF, 50Hz
65 kVA (52 kW), 94 Amps
@ 480V-3-phase, 0.8PF, 60Hz
70 kVA (56 kW), 84 Amps
@ 240V-3-phase, 0.8PF, 60Hz
70 kVA (56 kW), 168 Amps
@ 120V-single-phase, 1.0PF, 60Hz
50 kVA (50 kW), 208 x 2 Amps
@ 240V-single-phase, 1.0PF, 60Hz
50 kVA (50 kW), 208 Amps
@ 208V-3-phase, 0.8PF, 60Hz
70 kVA (56 kW), 194 Amps
Runtime Hours at 75% Load
50
Number of Cylinders
4
PG70
