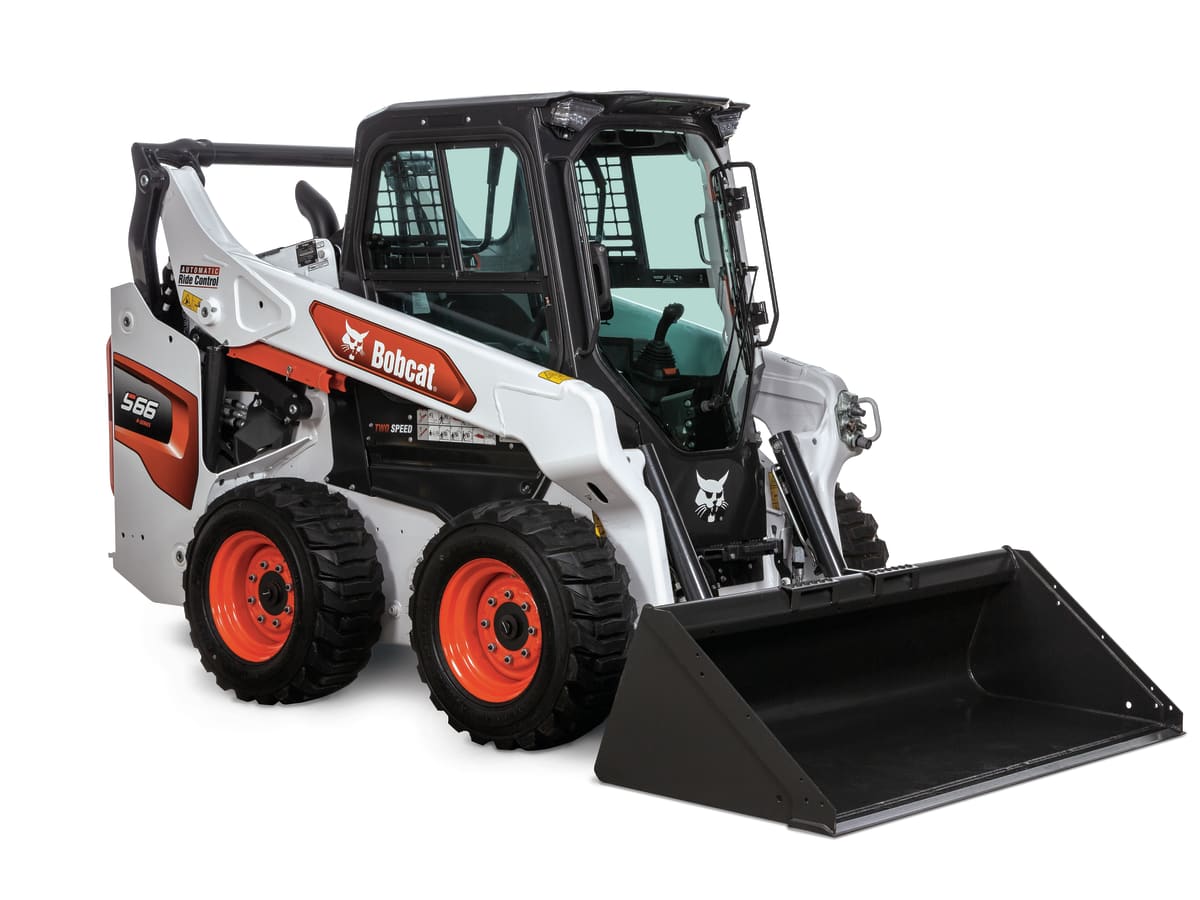

Bob Cat S66 Skid-Steer Loader

The nimble S66 features a unique balance of maneuverability and power with impressive lifting and pushing power. You’ll reach new heights of productivity with unmatched comfort features, precise material handling capabilities, fast cycle times and easy attachment changes.

$60,146 USD**

Lease a S66 skid-steer loader for as low as $849 USD* per month. Offers end June 30, 2025.

S66 Key Specifications

S66
Horsepower
74 hp
Rated Operating Capacity (ISO)
2400 lbs
Operating Weight
7154 lbs
Auxiliary Std Flow
17.6 gpm
Auxiliary High Flow
26.9 gpm
Joystick Control
Optional

BobQuote

S66

SSL Specs

S66

Engine

S66
Horsepower Management
Included with SJC Option
Horsepower
74 hp
Turbocharged Engine
yes

Performance

S66
Rated Operating Capacity (ISO)
2400 lbs
Rated Operating Capacity 200 lb. Counterweight
2550 lbs
Tipping Load
4800 lbs
Operating Weight
7154 lbs
Travel Speed
7.4 mph
Travel Speed (2-speed option)
11 mph

Capacities

S66
Fuel Tank
28.3 gal

Hydraulic System

S66
Hydraulic System Pressure (Standard and High Flow)
3500 psi
System Relief @ Quick Couplers
3500 psi
Auxiliary Std Flow
17.6 gpm
Auxiliary High Flow
26.9 gpm

Dimension

S66
Length
135 in
Length without Attachment
107 in
Length with Standard Bucket
135 in
Width
67 in
Width (with bucket)
68 in
Height
80.5 in
Height with Operator Cab
80.5 in
Height to Bucket Hinge Pin
120 in
Reach @ Maximum Height
34.2 in
Angle of Departure
25 deg
Turning Radius
80.1 in
Wheelbase
44.6 in

Controls

S66

Instrumentation

S66

Features

S66
Joystick Control
Optional
Reversing Fan
Optional
Speed Management
Included with SJC Option
Standard Display (includes keyless start)
Standard
Air Conditioning
Optional
LED Front and Rear Lights
Standard
Heated Cloth Air-Ride Seat
Optional
Dual-Direction Bucket Positioning
Optional
Radio Remote Control (SJC Required)
Optional
Adjustable Seat
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Enclosure
Optional
Sound Option
Optional
Cab Heater
Optional
Operating Lights
Standard
Parking Brake
Wedge Brake System
Radio
Optional
Rear Window
Standard
Top Window
Standard
Lift-Arm Support
Standard
Seat Belt
Standard
Suspension Seat
Standard
Two Speed Travel
Standard
Deluxe Instrumentation
Not Applicable
Engine Shutdown
Standard
Hydraulic Bucket Positioning
Not Applicable
High Flow Option
Optional
Auxiliary Hydraulics
Standard
Spark Arrestor Muffler
DOC
Bob-Tach Attachment System
Standard
Power Bob-Tach
Optional
ACS (Switchable Controls)
Not Applicable
Ride Control
Optional
Rear Hydraulics
Optional
Horn
Standard

Serviceability

S66

Drive System

S66

Price

S66

Flail Mower Specs

S66

Additional Product Information

S66
