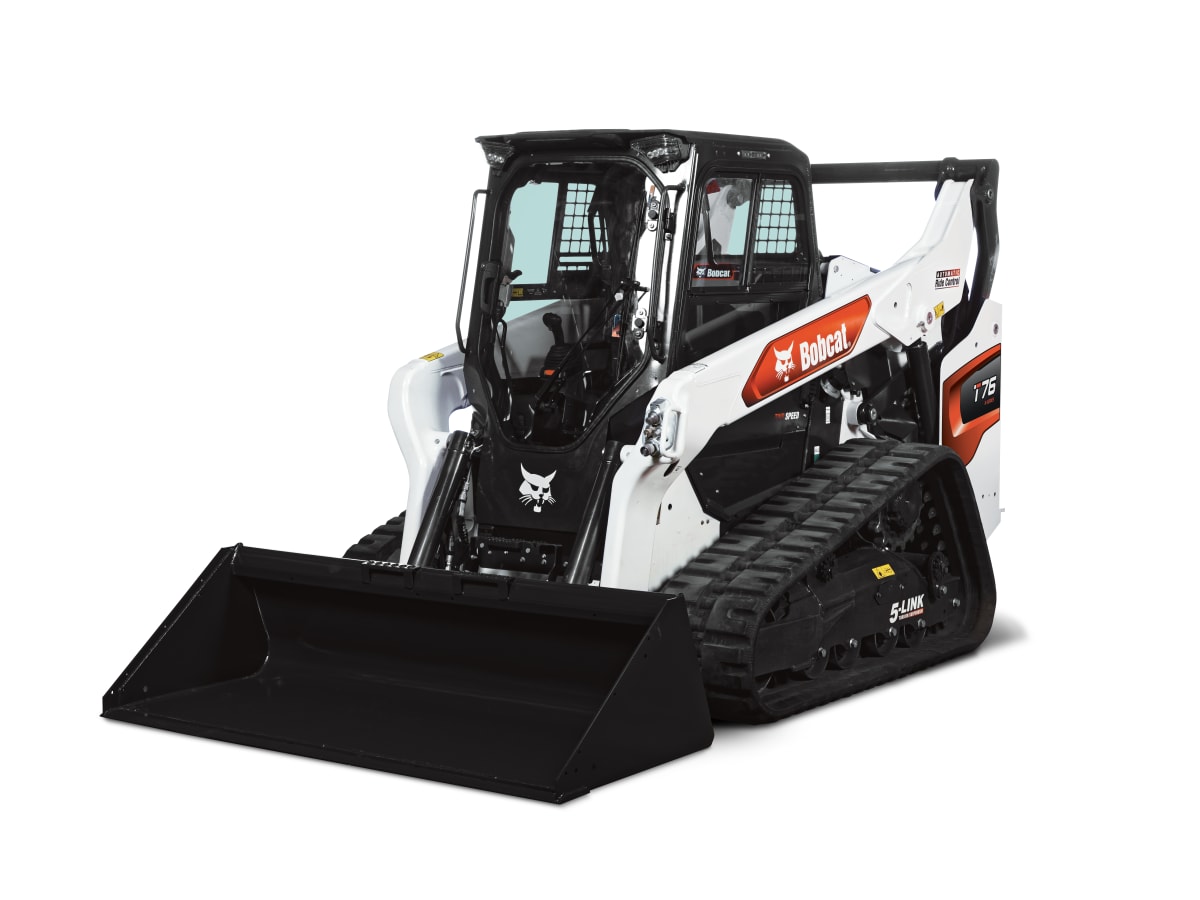

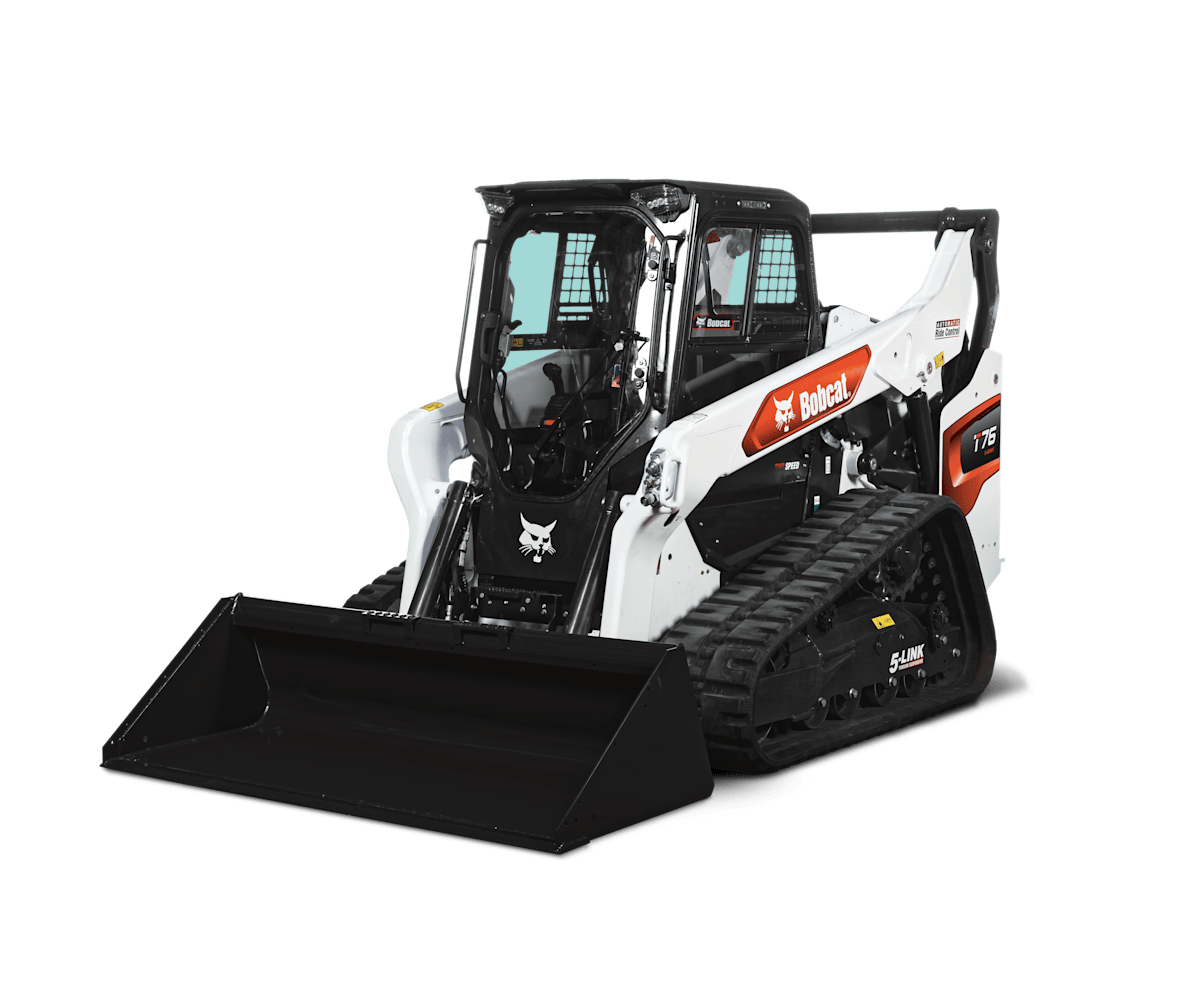

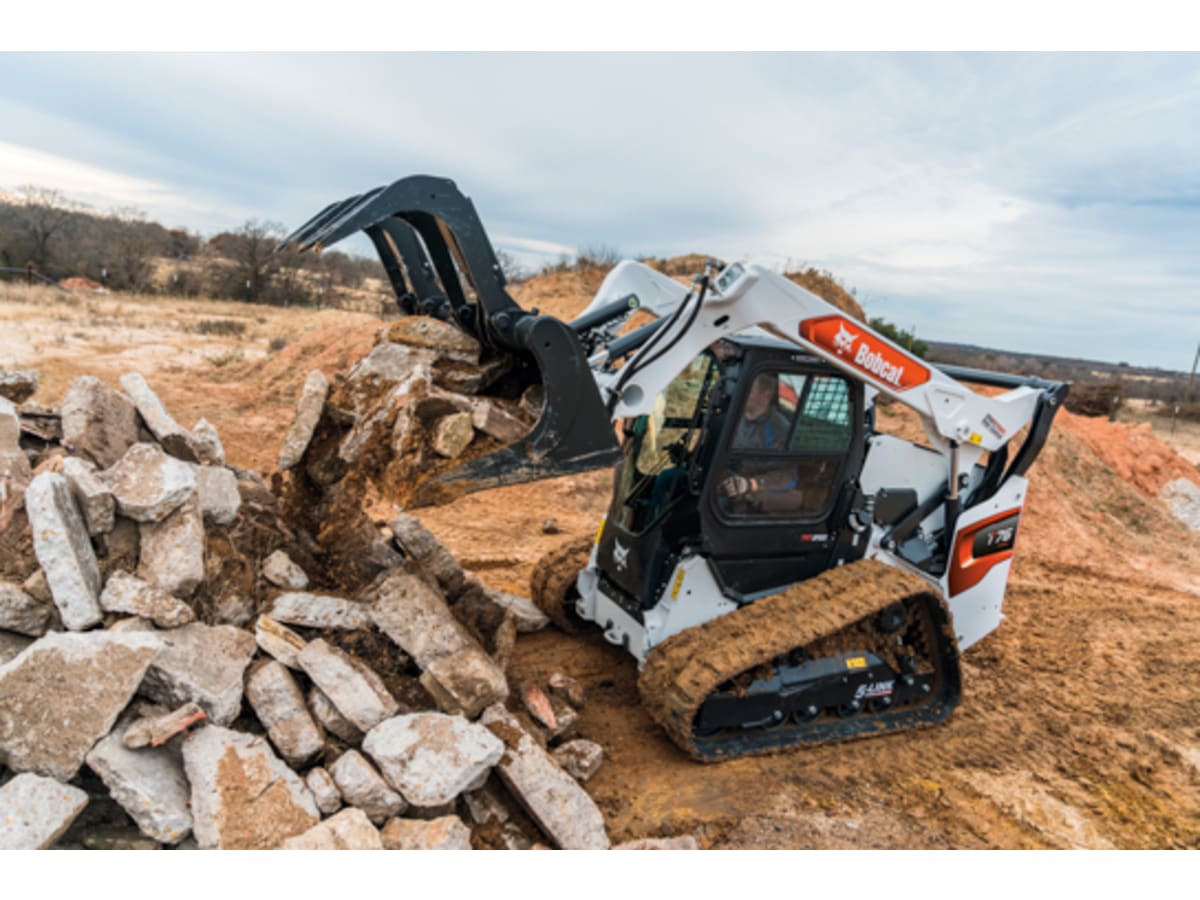

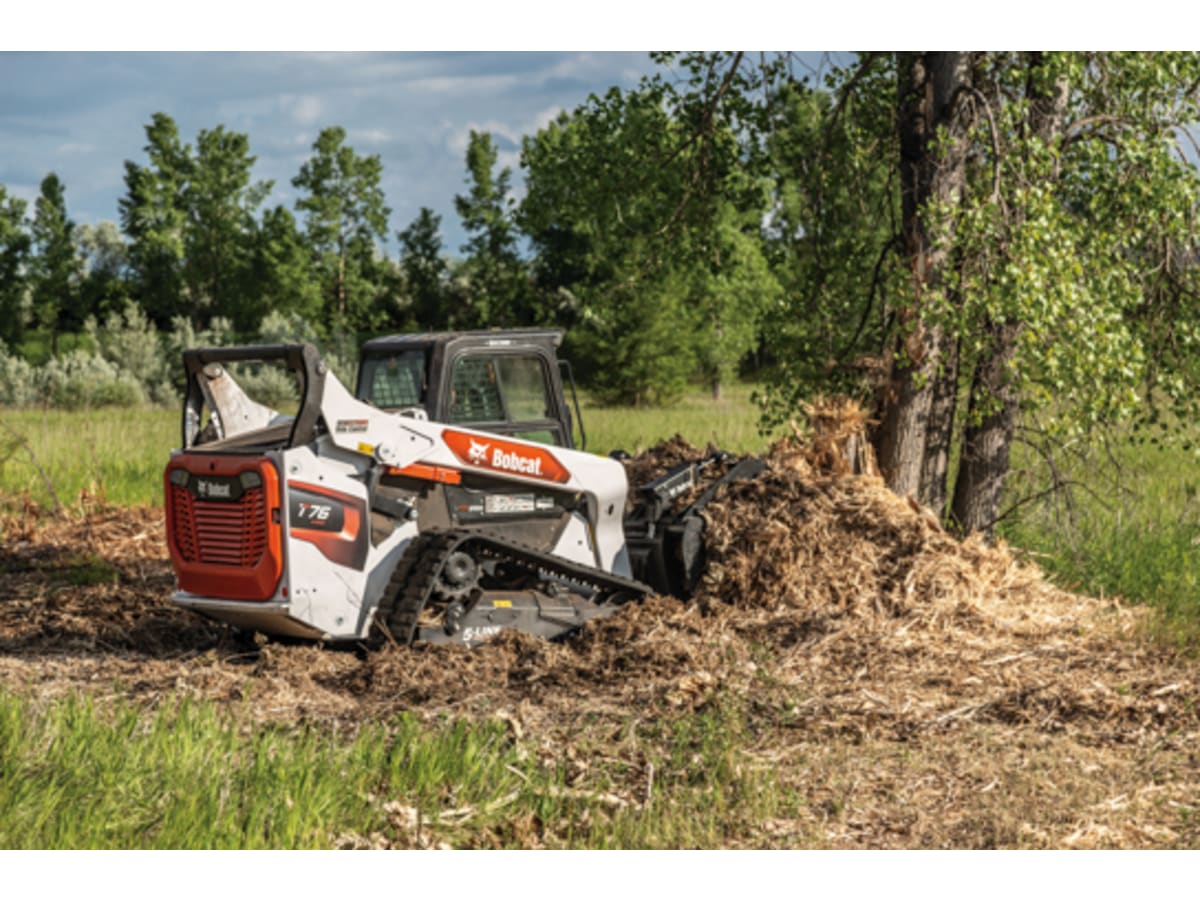

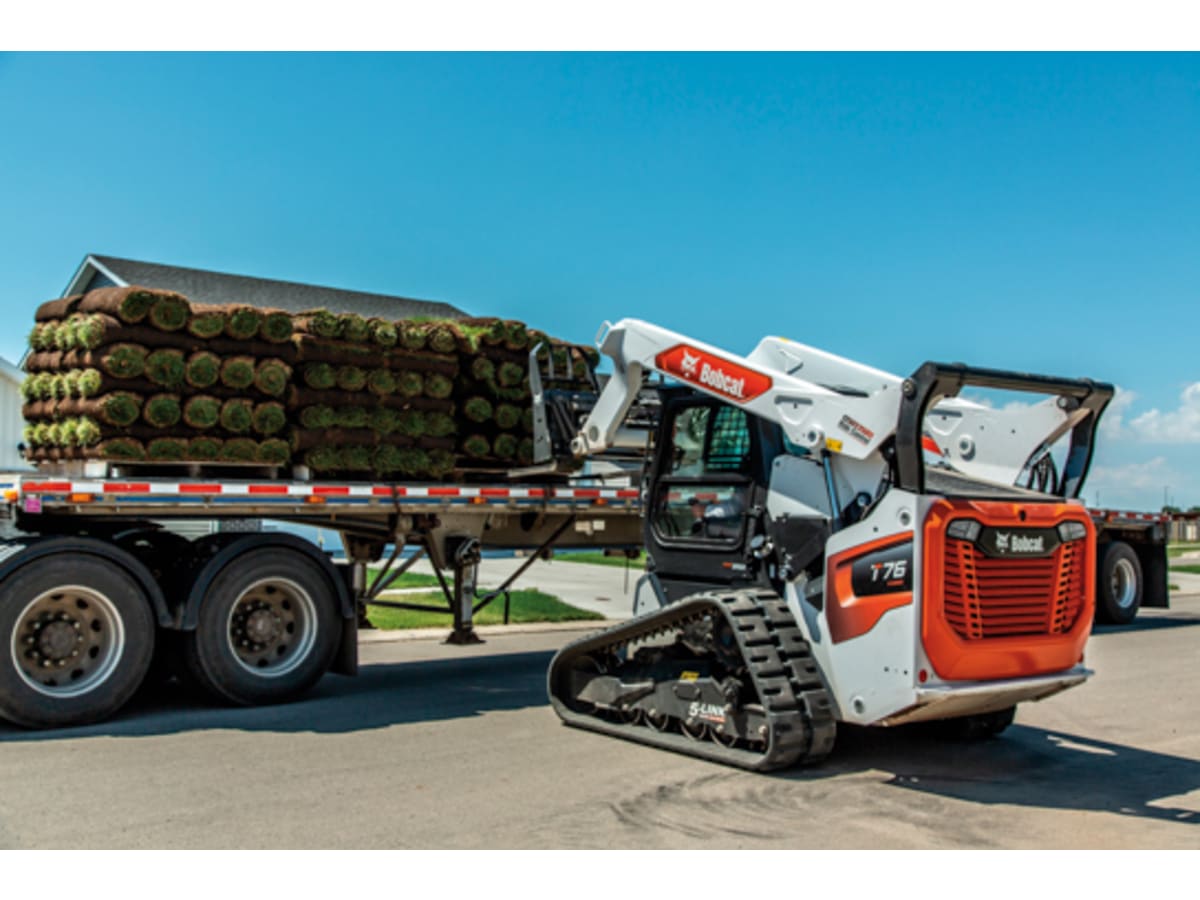

Bob Cat T76 Compact Track Loader

The culmination of more than 60 years building compact loaders, the T76 offers the best of Bobcat features you can’t find anywhere else. You get plenty of engine and hydraulic power, an impressive lift height and powerful breakout forces – all working together to maximize your productivity.

$88,418 USD**

As low as 0% for 60 months* or rebates up to $8,000 USD* / $10,800 CAD* in lieu of financing on Bobcat T76 compact track loaders. Offers end June 30, 2025.

T76 Key Specifications

T76
Rated Operating Capacity (ISO)
2900 lbs
Operating Weight
10250 lbs
Ground Pressure (Rubber)
6.2 psi
Auxiliary Std Flow
23.3 gpm
Auxiliary High Flow
30.3 gpm
Joystick Control
Standard

BobQuote

T76

SSL Specs

T76

Engine

T76
Horsepower
74 hp
Gross HP
74.1 hp
Net HP
70.5 hp
Starter Horsepower
4 hp
Fuel Consumption
2.9 gpm
Turbocharged Engine
yes

Performance

T76
Rated Operating Capacity (ISO)
2900 lbs
Operating Capacity (50% of Tip)
4143 lbs
Tipping Load
8285 lbs
Operating Weight
10250 lbs
Travel Speed
6.8 mph
Travel Speed (2-speed option)
9.2 mph
Ground Pressure (Rubber)
6.2 psi

Capacities

T76
Fuel Tank
31.7 gal
Cooling System
11.2 qt
Engine Oil with Filter
9.7 qt
Hydraulic Reservoir
20 qt
Hyd System Capacity
13.5 gal

Hydraulic System

T76
Pump Capacity
23.3 gpm
System Relief @ Quick Couplers
3500 psi
Auxiliary Std Flow
23.3 gpm
Auxiliary High Flow
30.3 gpm
Raise Lift Arm
4.3 sec
Lower Lift Arm
2.9 sec
Bucket Dump
2.1 sec
Bucket Rollback
1.6 sec

Dimension

T76
Length
147.1 in
Length without Attachment
113.9 in
Length with Standard Bucket
147.1 in
Width
72.9 in
Width (with bucket)
74 in
Height
81.8 in
Height with Operator Cab
81.8 in
Height to Bucket Hinge Pin
128.3 in
Operating Height
167.4 in
Max Dump Height
99.1 in
Reach @ Maximum Height
39.9 in
Angle of Departure
27 deg
Rollback Angle
31 deg
Turning Radius
89.3 in
Length of track on ground
59.2 in
Track Width
12.6 in
Track Width – Optional
17.7 in
Overall Width
78 in

Controls

T76
Vehicle Steering
Selectable Joystick Control
Throttle
Dial and Foot

Instrumentation

T76

Features

T76
Joystick Control
Standard
Front and Rear Work Lights
Standard
Heated Cloth Air-Ride Seat
Standard
Air Conditioning
Standard
5-Link Torsion Suspension Undercarriage
Optional
Adjustable Seat
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Enclosure
Standard
ROPS/FOPS Approved
ROPS Level 1 Standard; ROPS Level 2 Optional
ROPS-Step
N/A
Sound Option
Standard
Cab Heater
Standard
Heater Air Conditioning
Optional
Operating Lights
Standard
Work Lights
Standard
Radio
Optional
Rear Window
Standard
Top Window
Standard
Lift-Arm Support
Standard
Grab Handles
N/A
Seat Belt
Standard 2-Point Lap Belt with Suspension Seat and Standard 3-Point Shoulder Belt with Heated Cloth Air Ride Seat on Two-Speed Models
Seat Bar
One Piece Rollup
Suspension Seat
Standard
Two Speed Travel
Optional
Deluxe Instrumentation
Optional
Lockable Ignition
N/A
Engine Shutdown
Standard
Hydraulic Bucket Positioning
Standard
High Flow Option
Optional
Auxiliary Hydraulics
Standard
3-Spool Valve
N/A
Grease Track Tension
Standard
Purifier Muffler Opt
Not Applicable
Spark Arrestor Muffler
DOC
Bob-Tach Attachment System
Standard
Power Bob-Tach
Standard
ACS (Switchable Controls)
Not Applicable
Ride Control
Optional
Rear Hydraulics
Optional
Horn
Standard

Operation Cost

T76

Serviceability

T76
Grease Interval (hrs)
10 hr

Drive System

T76
Chain Master Link
N/A

Price

T76

Additional Product Information

T76
