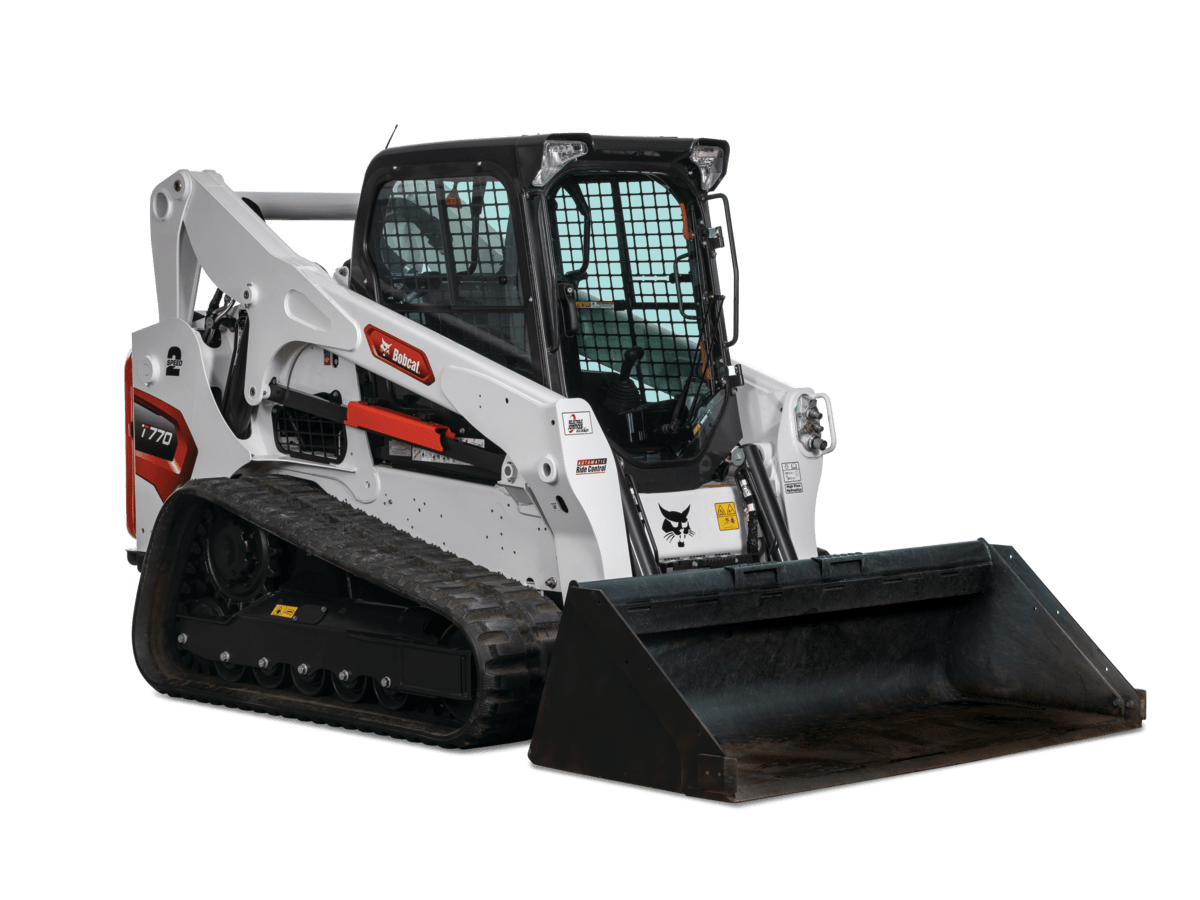

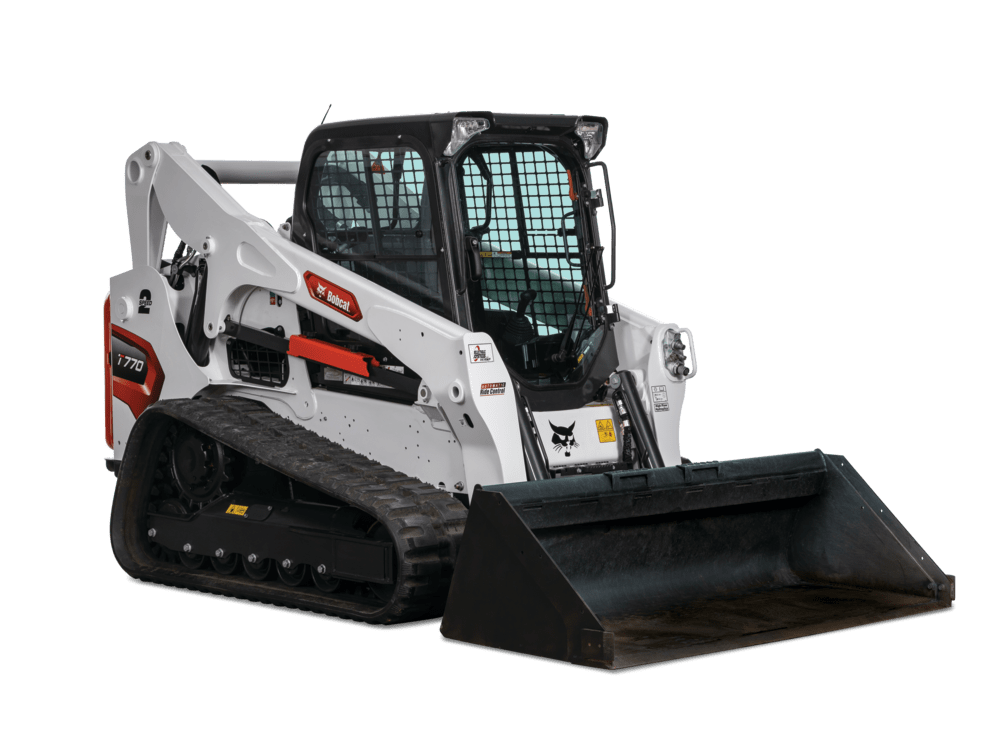

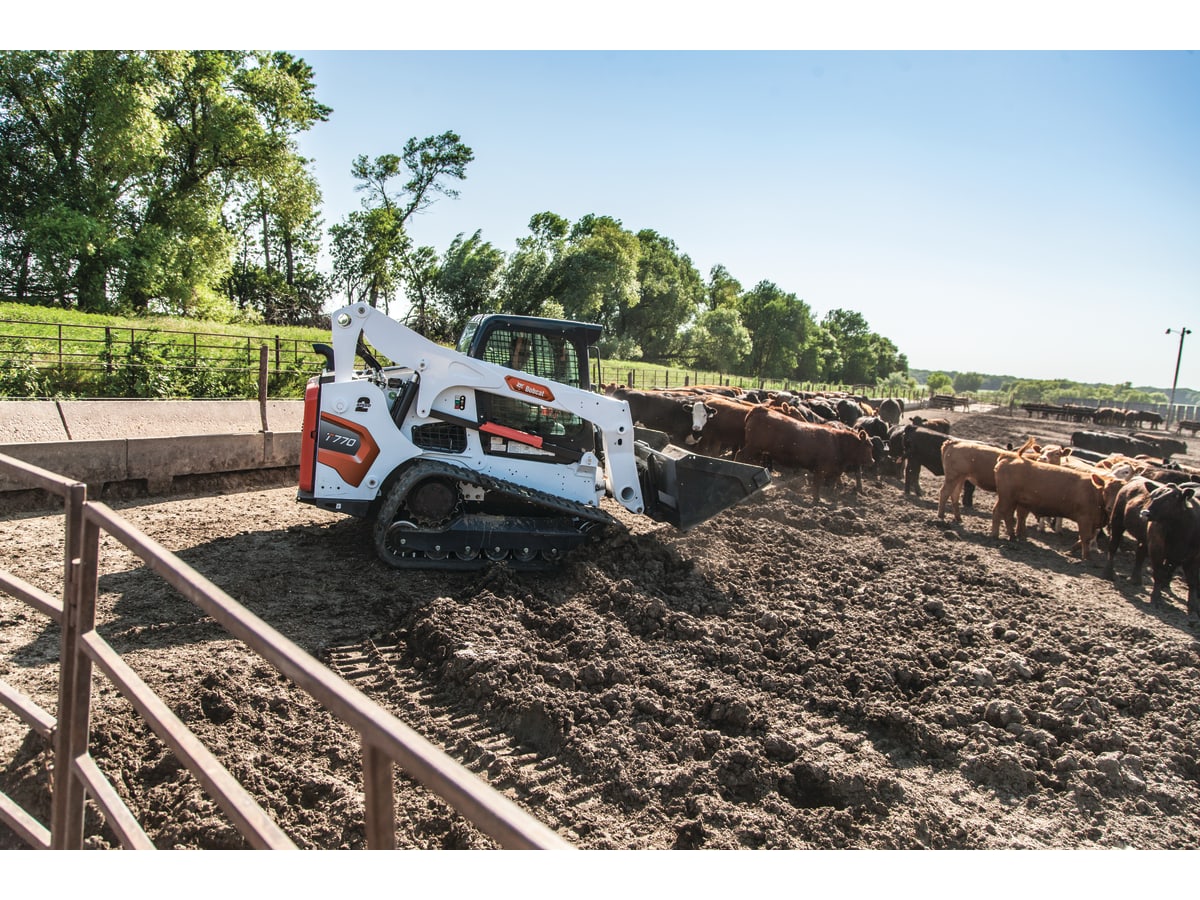

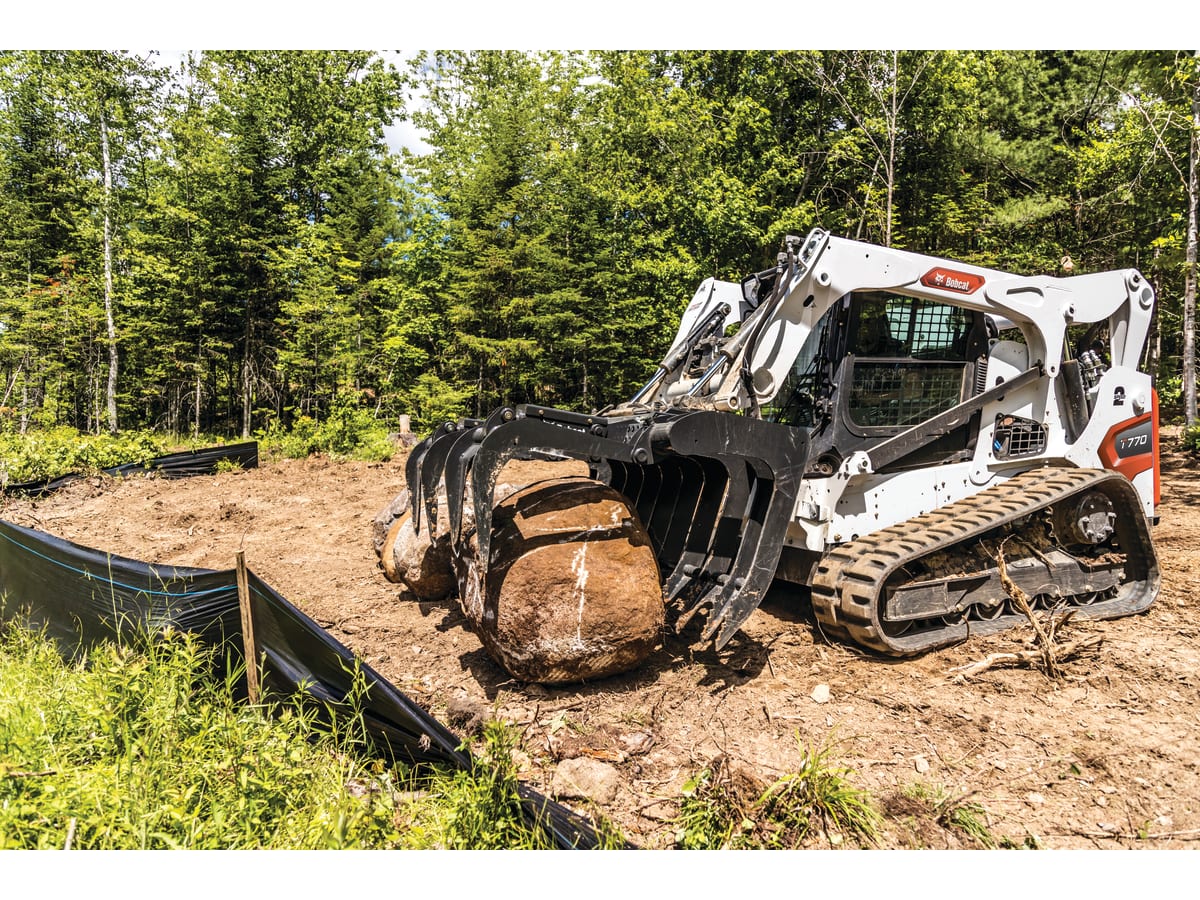

Bob Cat T770 Compact Track Loader

Experience legendary performance with the T770, a top-selling compact track loader. Engineered to protect your uptime, this versatile machine delivers the performance you need to make light work of big projects, with an impressive rated operating capacity, powerful breakout forces and fast cycle times.

$88,703 USD**

Lease a T770 compact track loader for as low as $1,099 USD* per month. Offers end June 30, 2025.

REQUEST QUOTE
GET FINANCING

T770 Key Specifications

T770
Rated Operating Capacity (ISO)
3475 lbs
Operating Weight
10515 lbs
Ground Pressure (Rubber)
4.2 psi
Auxiliary Std Flow
23 gpm
Auxiliary High Flow
36.6 gpm
Joystick Control
Optional

BobQuote

T770

SSL Specs

T770

Engine

T770
Horsepower
92 hp
Gross HP
92 hp
Net HP
88.2 hp
Starter Horsepower
3.6 hp
Turbocharged Engine
yes

Performance

T770
Rated Operating Capacity (ISO)
3475 lbs
Operating Capacity (50% of Tip)
4960 lbs
Tipping Load
9929 lbs
Operating Weight
10515 lbs
Travel Speed
6.6 mph
Travel Speed (2-speed option)
10.7 mph
Ground Pressure (Rubber)
4.2 psi

Capacities

T770
Fuel Tank
43.8 gal
Cooling System
3.6 gal
Engine Oil with Filter
13.3 qt
Hydraulic Reservoir
2.5 gal
Hyd System Capacity
9.5 gal

Hydraulic System

T770
Pump Capacity
23 gpm
System Relief @ Quick Couplers
3500 psi
Auxiliary Std Flow
23 gpm
Auxiliary High Flow
36.6 gpm
Raise Lift Arm
4.8 sec
Lower Lift Arm
3.4 sec
Bucket Dump
2.3 sec
Bucket Rollback
2 sec

Dimension

T770
Length
141.6 in
Length without Attachment
114.3 in
Length with Standard Bucket
141.6 in
Width
78 in
Width (with bucket)
80 in
Height
81.3 in
Height with Operator Cab
81.3 in
Height to Bucket Hinge Pin
131.4 in
Operating Height
166.6 in
Max Dump Height
104.3 in
Reach @ Maximum Height
35.2 in
Angle of Departure
29 deg
Rollback Angle
30 deg
Turning Radius
88 in
Length of track on ground
63.7 in
Track Width
17.7 in
Overall Width
78 in

Controls

T770
Vehicle Steering
Dual Levers

Instrumentation

T770

Features

T770
Joystick Control
Optional
Front and Rear Work Lights
Standard
Air Conditioning
Optional
Adjustable Seat
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Enclosure
Optional
ROPS/FOPS Approved
Standard
ROPS-Step
N/A
Sound Option
Optional
Cab Heater
Optional
Heater Air Conditioning
Optional
Operating Lights
Standard
Work Lights
Standard
Rear Window
Standard
Top Window
Standard
Grab Handles
N/A
Seat Belt
Standard
Seat Bar
Standard
Suspension Seat
Standard
Two Speed Travel
Optional
Deluxe Instrumentation
Optional
Lockable Ignition
N/A
Engine Shutdown
Standard
Hydraulic Bucket Positioning
Optional
High Flow Option
Optional
Auxiliary Hydraulics
Standard
3-Spool Valve
N/A
Grease Track Tension
Standard
Spark Arrestor Muffler
Standard
Bob-Tach Attachment System
Standard
Power Bob-Tach
Optional
ACS (Switchable Controls)
Optional
Ride Control
Optional
Horn
Standard

Operation Cost

T770

Serviceability

T770
Grease Interval (hrs)
8 hr

Drive System

T770
Chain Master Link
N/A

Price

T770

Additional Product Information

T770
