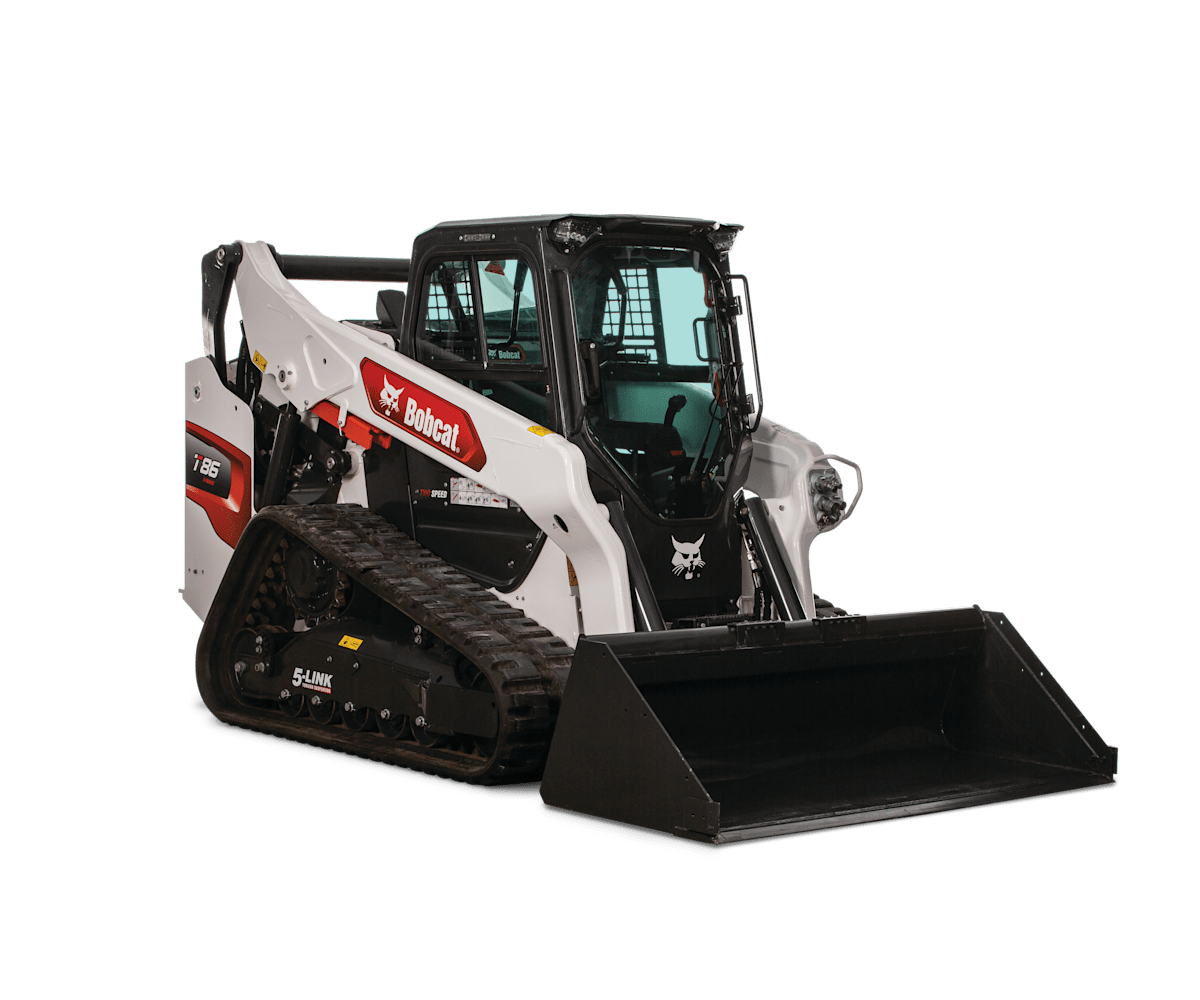

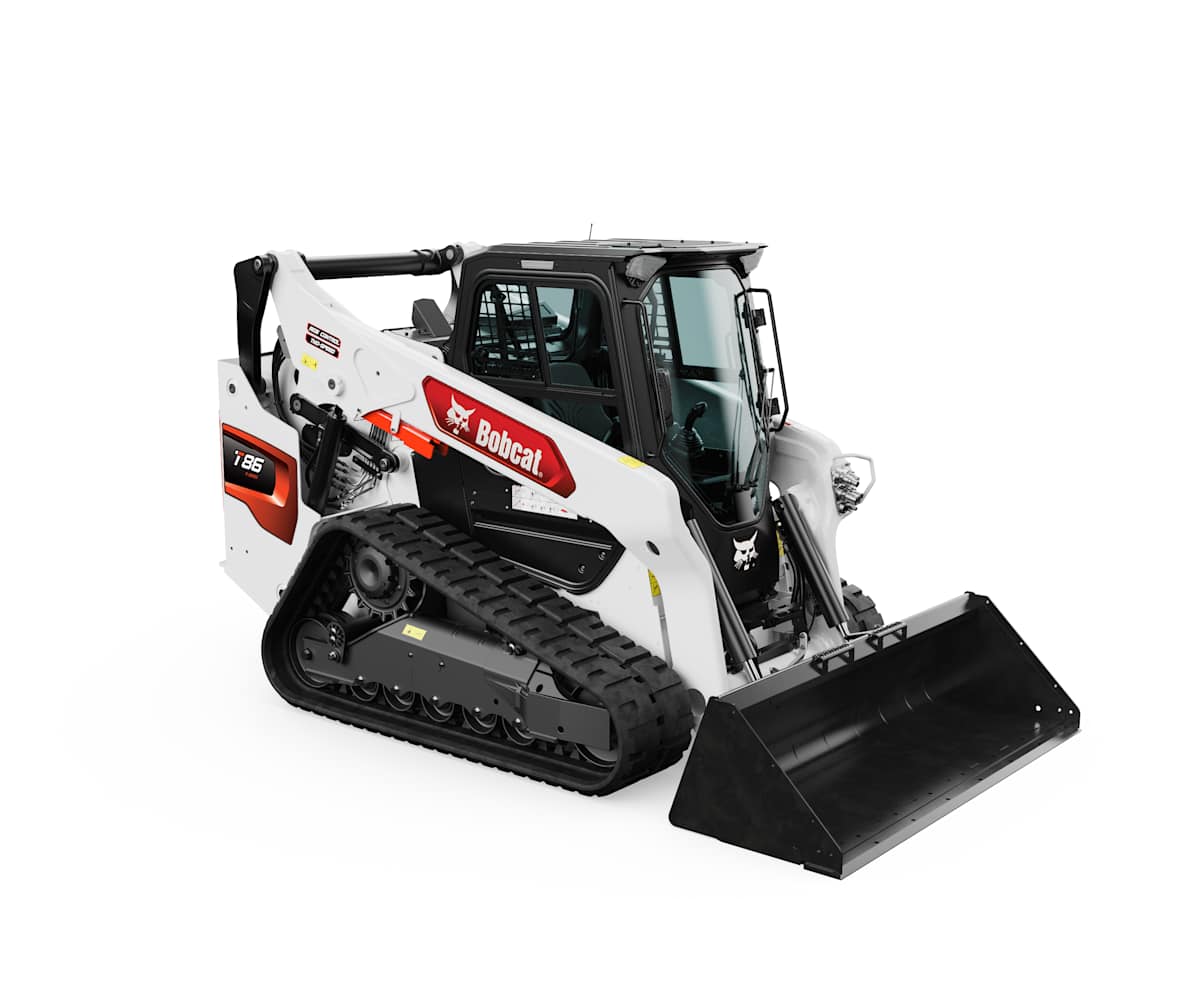

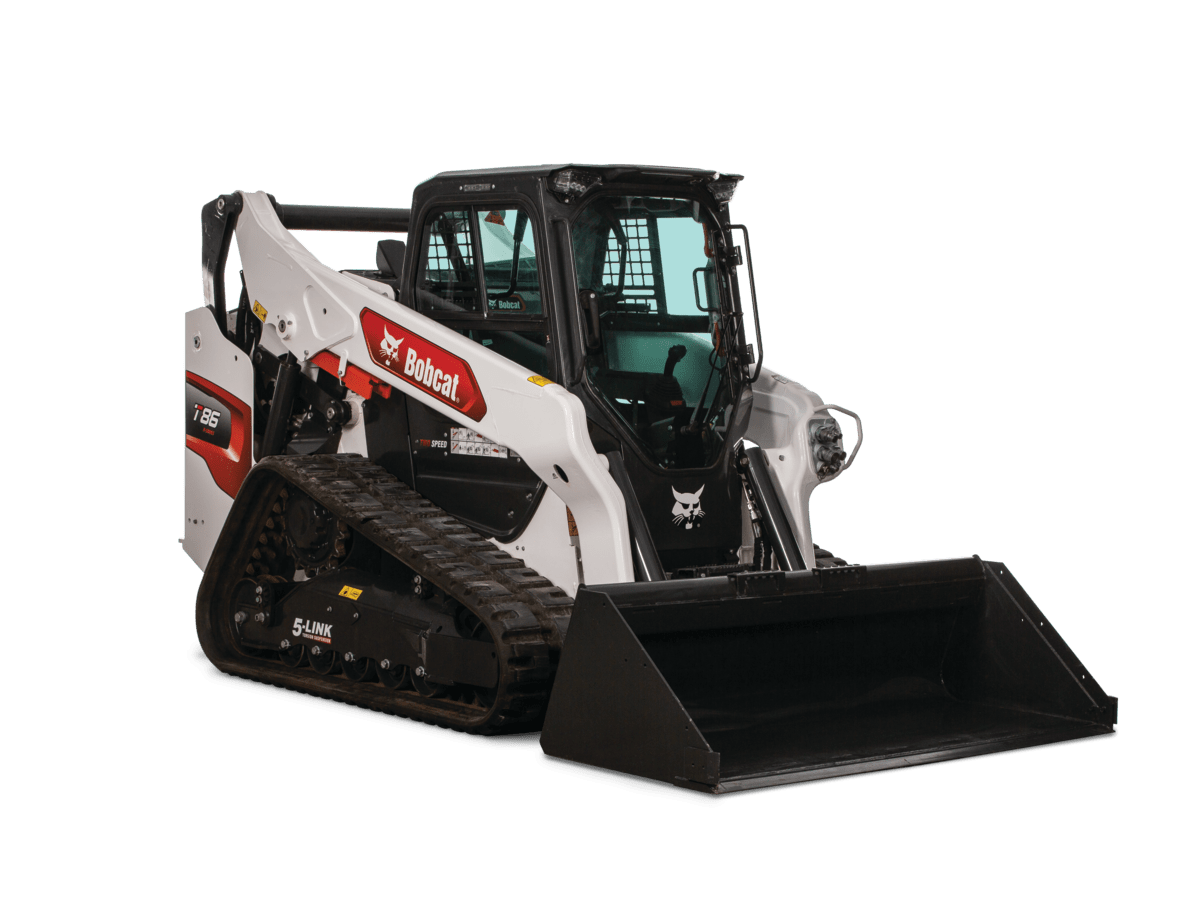

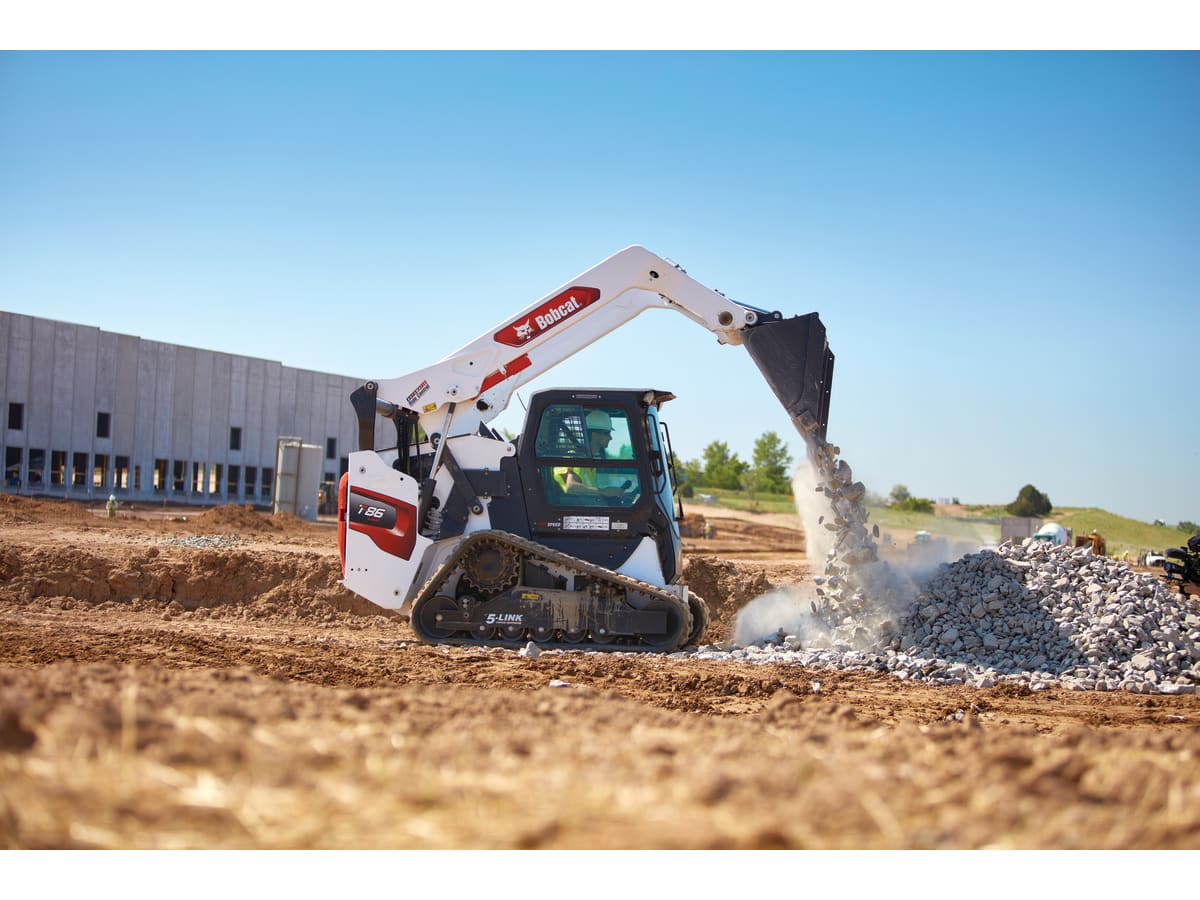

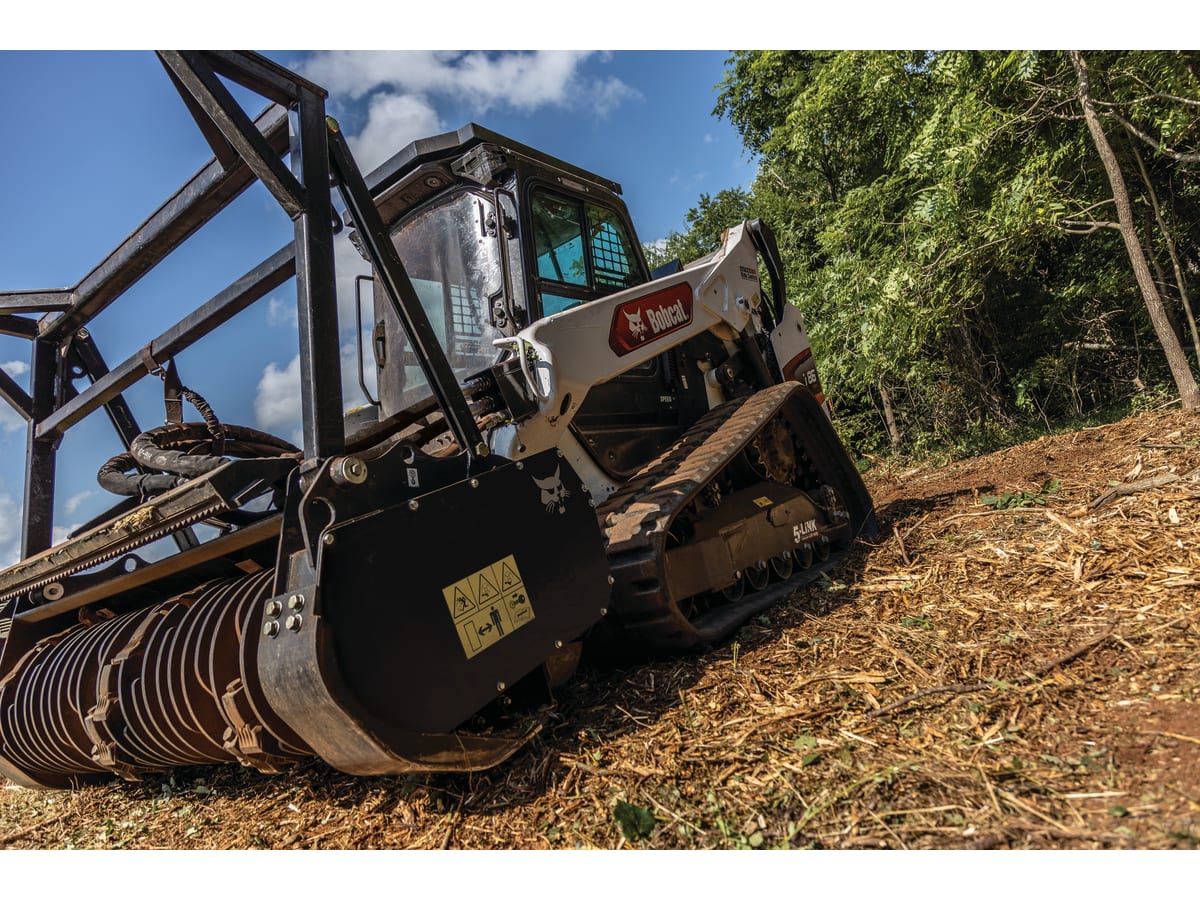

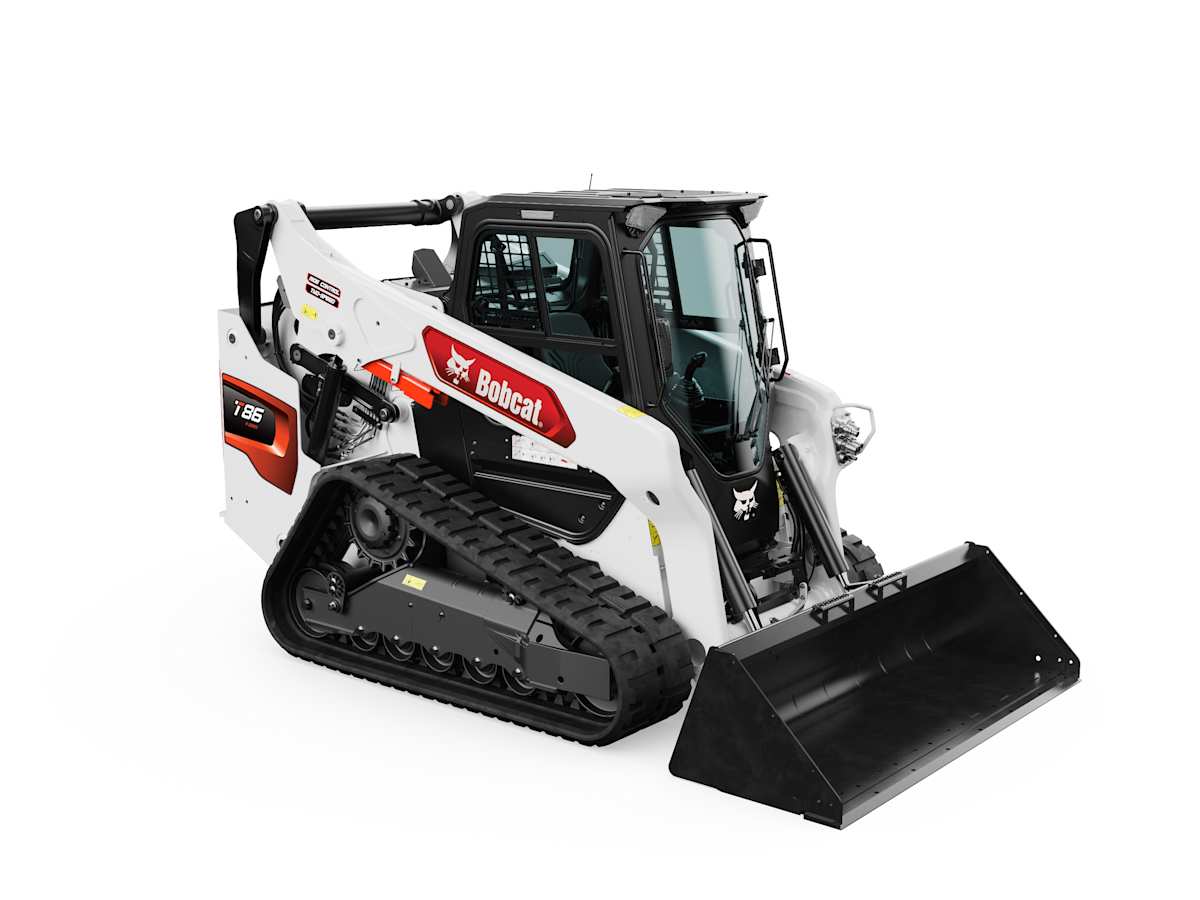

Bob Cat T86 Compact Track Loader

Power and comfort like you’ve never experienced before. You’re getting the best of the best with super-flow hydraulics, industry-leading hydraulic power management, premium comfort features and exceptional cooling even in the harshest conditions. There’s no compromises with the T86.

$120,753 USD**

As low as 0% for 60 months* or rebates up to $10,000 USD* / $13,500 CAD* in lieu of financing on Bobcat T86 compact track loaders. Offers end June 30, 2025.

T86 Key Specifications

T86
Rated Operating Capacity (ISO)
3800 lbs
Operating Weight
12393 lbs
Ground Pressure (Rubber)
4.8 psi
Auxiliary Std Flow
23.6 gpm
Auxiliary High Flow
36.6 gpm
Joystick Control
Standard

BobQuote

T86

SSL Specs

T86

Engine

T86
Horsepower
105 hp
Gross HP
105 hp
Net HP
100.3 hp
Starter Horsepower
3.6 hp
Fuel Consumption
5.8 gph
Turbocharged Engine
yes

Performance

T86
Ground Pressure (Optional Tracks)
4.8 psi
Rated Operating Capacity with Torsion
3700 lbs
Rated Operating Capacity 200 lb. Counterweight
3950 lbs
Rated Operating Capacity 300 lb. Counterweight
4025 lbs
Rated Operating Capacity 400 lb. Counterweight
4100 lbs
Rated Operating Capacity (ISO)
3800 lbs
Operating Capacity (50% of Tip)
5429 lbs
Tipping Load
10857 lbs
Operating Weight
12393 lbs
Travel Speed
5.5 mph
Travel Speed (2-speed option)
10.7 mph
Ground Pressure (Rubber)
4.8 psi

Capacities

T86
Fuel Tank
31.6 gal
Engine Oil with Filter
13.5 qt
Hydraulic Reservoir
25 qt

Hydraulic System

T86
Hydraulic High Flow (optional)
36.6 gpm
Hydraulic System Pressure (Standard and High Flow)
3500 psi
Hydraulic System Pressure (Super Flow)
4061 psi
Hydraulic Standard Flow
23.6 gpm
Hydraulic Super Flow (optional)
42 gpm
Pump Capacity
23.6 gpm
System Relief @ Quick Couplers
3450 psi
Auxiliary Std Flow
23.6 gpm
Auxiliary High Flow
36.6 gpm

Dimension

T86
Length without Attachment
120.4 in
Width
78 in
Width (with bucket)
80 in
Height with Operator Cab
83.1 in
Height to Bucket Hinge Pin
132 in
Operating Height
171.1 in
Max Dump Height
101.8 in
Reach @ Maximum Height
38.4 in
Angle of Departure
30 deg
Length of track on ground
66.3 in
Track Width
17.7 in
Track Width – Optional
17.7 in
Overall Width
78 in

Controls

T86
Vehicle Steering
Selectable Joysticks

Instrumentation

T86

Features

T86
Joystick Control
Standard
Heated Cloth Air-Ride Seat
Standard
LED Front and Rear Lights
Standard
Pressure Release Hydraulic Quick Couplers
Standard
Radio Remote Control (SJC Required)
Optional
Speed Management
Standard
Standard Display (includes keyless start)
Standard
Air Conditioning
Standard
Dual-Direction Bucket Positioning
Standard
5-Link Torsion Suspension Undercarriage
Optional
Reversing Fan
Optional
Backup Alarm
Standard
BICS System (Interlock)
Standard
ROPS/FOPS Approved
Standard
ROPS-Step
N/A
Sound Option
Standard
Heater Air Conditioning
Standard
Radio
Optional
Grab Handles
N/A
Suspension Seat
Not Applicable
Two Speed Travel
Standard
Lockable Ignition
N/A
Auxiliary Hydraulics
Standard
3-Spool Valve
N/A
Grease Track Tension
Optional
Bob-Tach Attachment System
Standard
Power Bob-Tach
Standard
Ride Control
Optional
Horn
Standard

Operation Cost

T86

Serviceability

T86

Drive System

T86
Chain Master Link
N/A

Price

T86

Additional Product Information

T86
