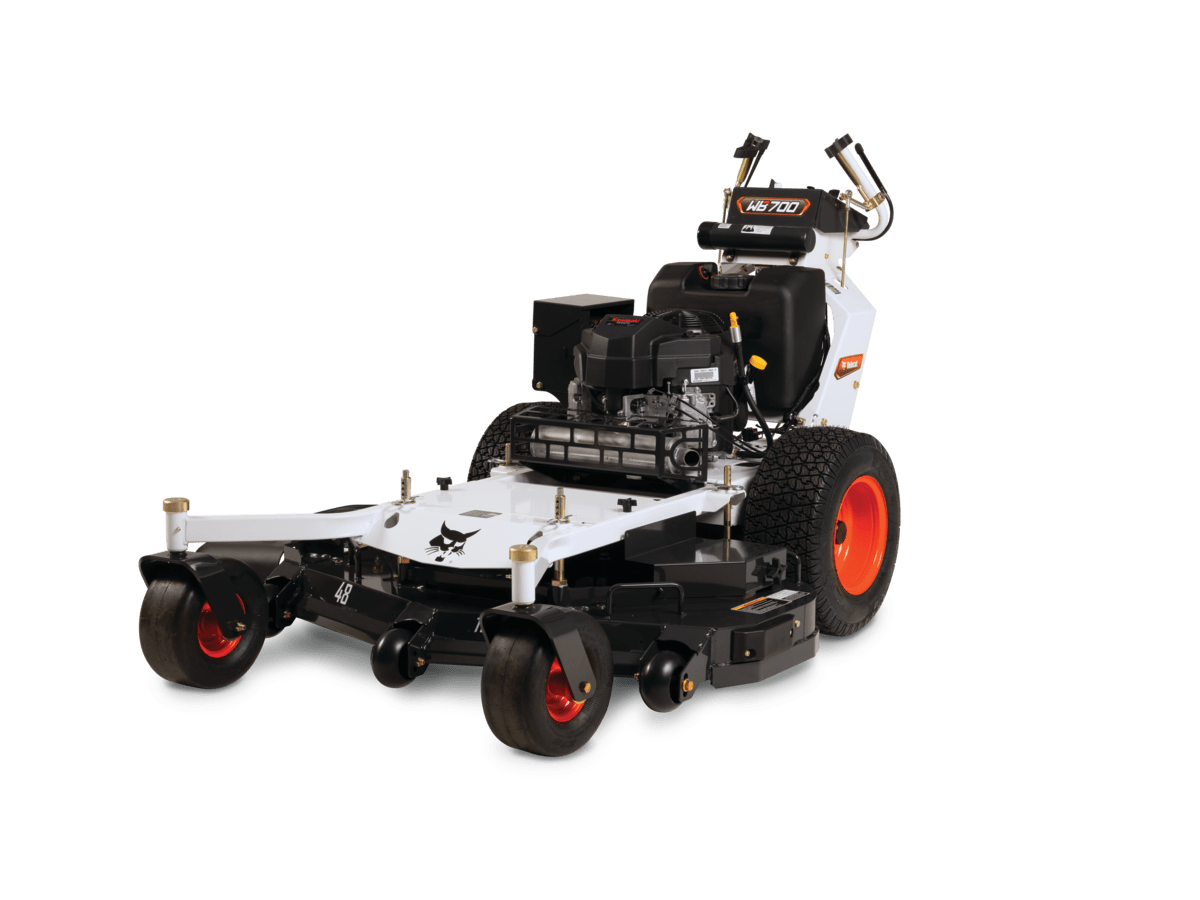

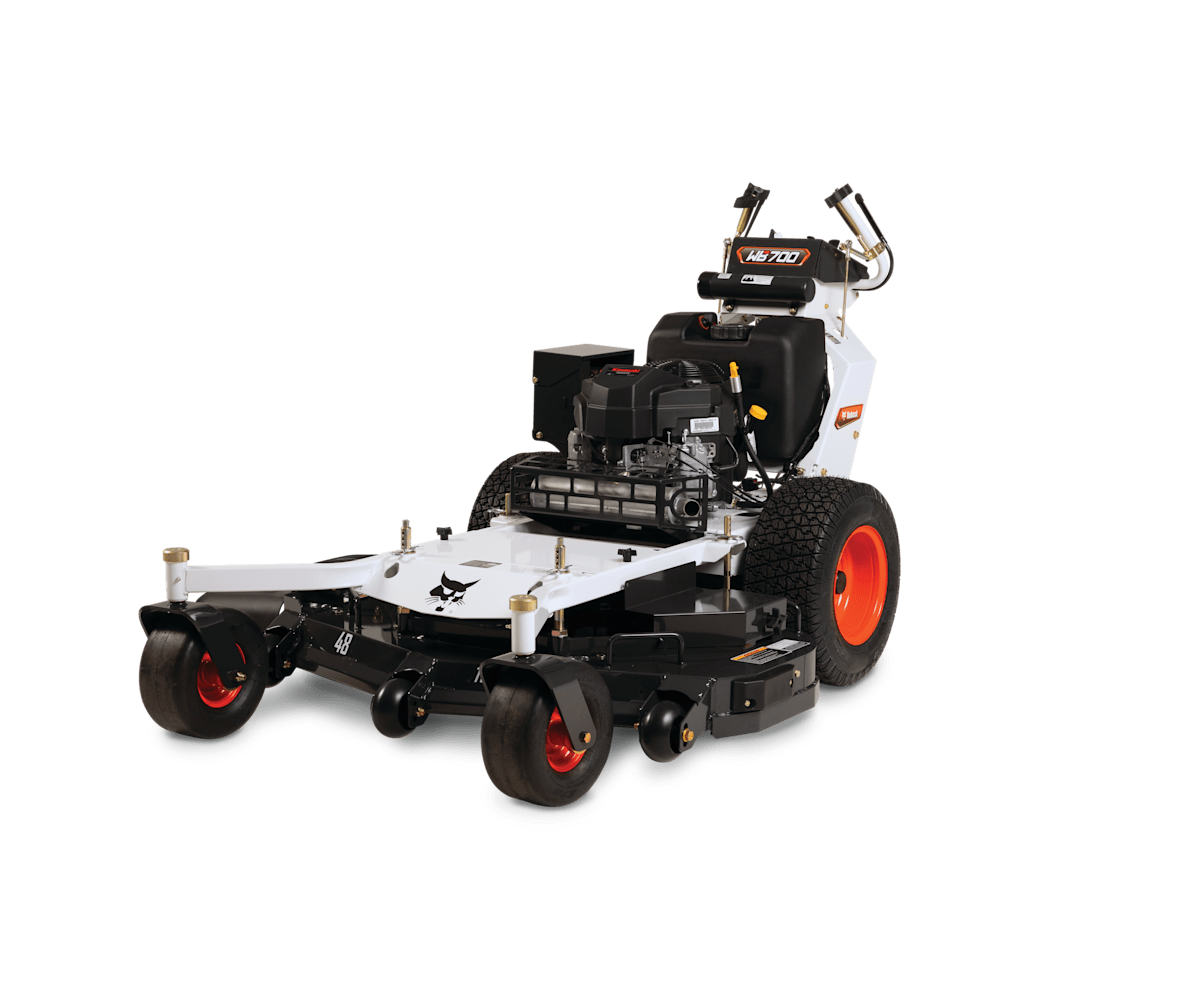

Bob Cat WB700 Walk-Behind Commercial Mower

The WB700 zero-turn mower is a maneuverable, mid-size walk-behind machine with a powerful hydraulic drive that fights operator fatigue and minimizes ground disturbance.

WB700 Key Specifications

WB0736ST
WB0752SV
WB0748SU
Engine Model
Kaw FS481
Kaw FS600
Kaw FS541
Displacement
603 cubic cm
603 cubic cm
603 cubic cm
Transmission Type
Hydro-Gear ZT-2800 transaxles
Hydro-Gear ZT-2800 transaxles
Hydro-Gear ZT-2800 transaxles
Pump Displacement
10 cubic cm
10 cubic cm
10 cubic cm
Cutting Height Range
1.5-4.5 in. (38-114 mm)
1.5-4.5 in. (38-114 mm)
1.5-4.5 in. (38-114 mm)
Mower Deck
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
Width
36 in
52 in
48 in

BobQuote

WB0736ST
WB0752SV
WB0748SU

Engine

WB0736ST
WB0752SV
WB0748SU
Engine Model
Kaw FS481
Kaw FS600
Kaw FS541
Fuel Tank
5 gal
5 gal
18.9 qt
Horsepower
14.5 hp
18.5 hp
15 hp
Displacement
603 cubic cm
603 cubic cm
603 cubic cm

Performance

WB0736ST
WB0752SV
WB0748SU
Machine Weight – Wet
773 lbs
832 lbs
789 lbs

Price

WB0736ST
WB0752SV
WB0748SU

Power/Electrical

WB0736ST
WB0752SV
WB0748SU

Additional Product Information

WB0736ST
WB0752SV
WB0748SU

Transmission

WB0736ST
WB0752SV
WB0748SU
Transmission Type
Hydro-Gear ZT-2800 transaxles
Hydro-Gear ZT-2800 transaxles
Hydro-Gear ZT-2800 transaxles
Pump Displacement
10 cubic cm
10 cubic cm
10 cubic cm
Travel Speed
6.5 mph
6.5 mph
6.5 mph
Travel Speed – Reverse
3 mph
3 mph
3 mph

Wheels

WB0736ST
WB0752SV
WB0748SU
Caster Arm
Welded to Frame
Welded to Frame
Welded to Frame
Drive Wheel Size
20″ Zero-T Tread pattern
20″ Zero-T Tread pattern
20″ Zero-T Tread pattern
Front Caster Wheel Size
11 x 6
11 x 6
11 x 6

Frame

WB0736ST
WB0752SV
WB0748SU
Front and Rear
Welded, 7-gauge Steel; 1.5 x 2.5 in. Steel Tubing
Welded, 7-gauge Steel; 1.5 x 2.5 in. Steel Tubing
Welded, 7-gauge Steel; 1.5 x 2.5 in. Steel Tubing
Length
76 in
79 in
76 in

Deck

WB0736ST
WB0752SV
WB0748SU
Cutting Height Range
1.5-4.5 in. (38-114 mm)
1.5-4.5 in. (38-114 mm)
1.5-4.5 in. (38-114 mm)
Mower Deck
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
Discharge Chute
Flexible Molded Polymer
Flexible Molded Polymer
Flexible Molded Polymer
Mower Blade Tip Speed
18645 ft/min
18645 ft/min
16832 ft/min
Width
36 in
52 in
48 in
