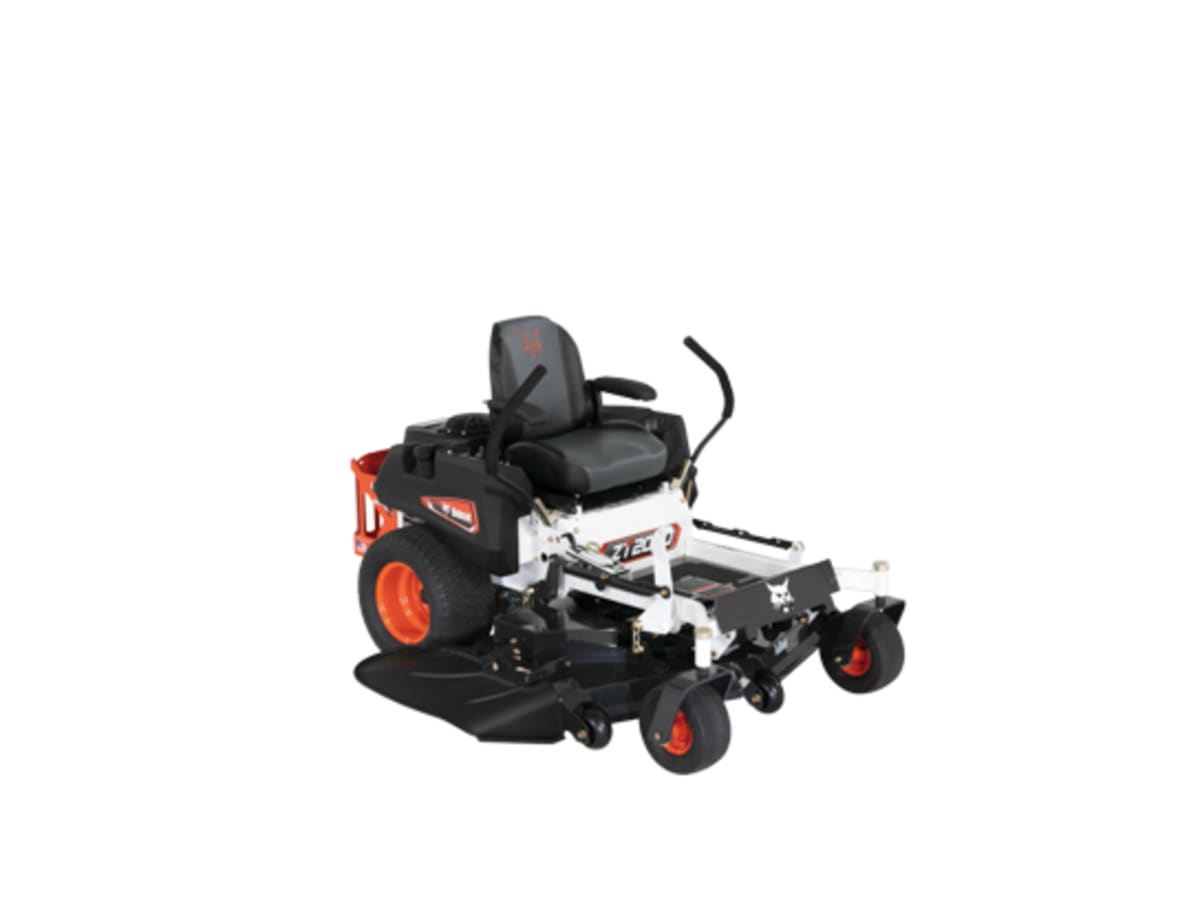

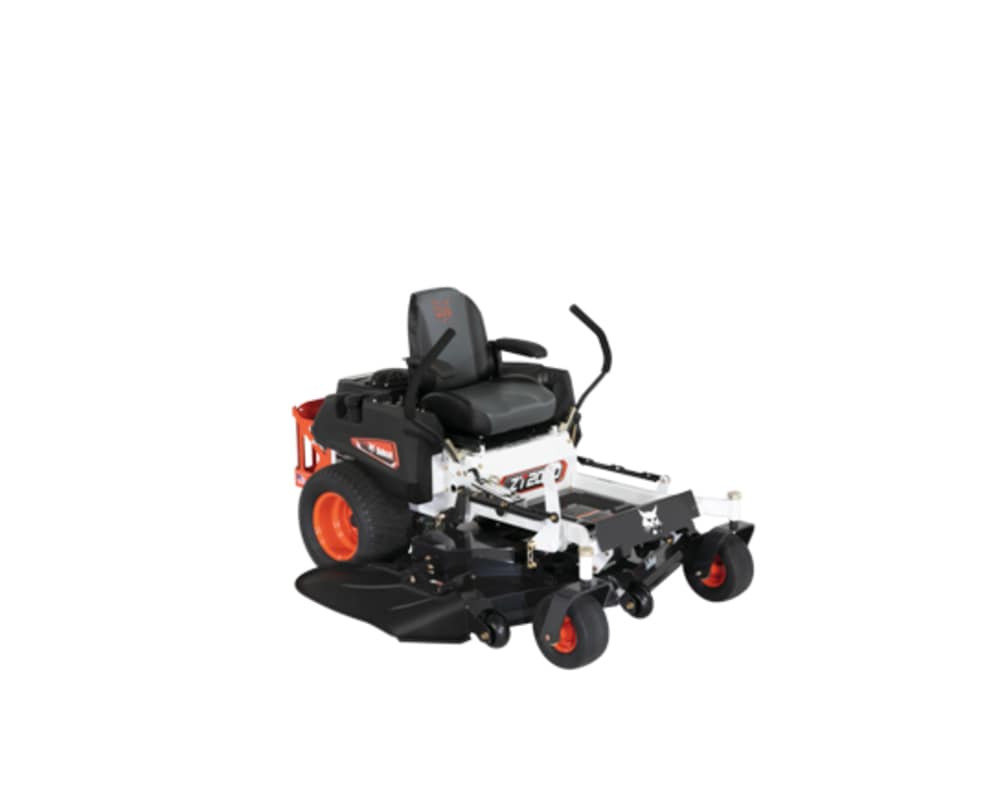

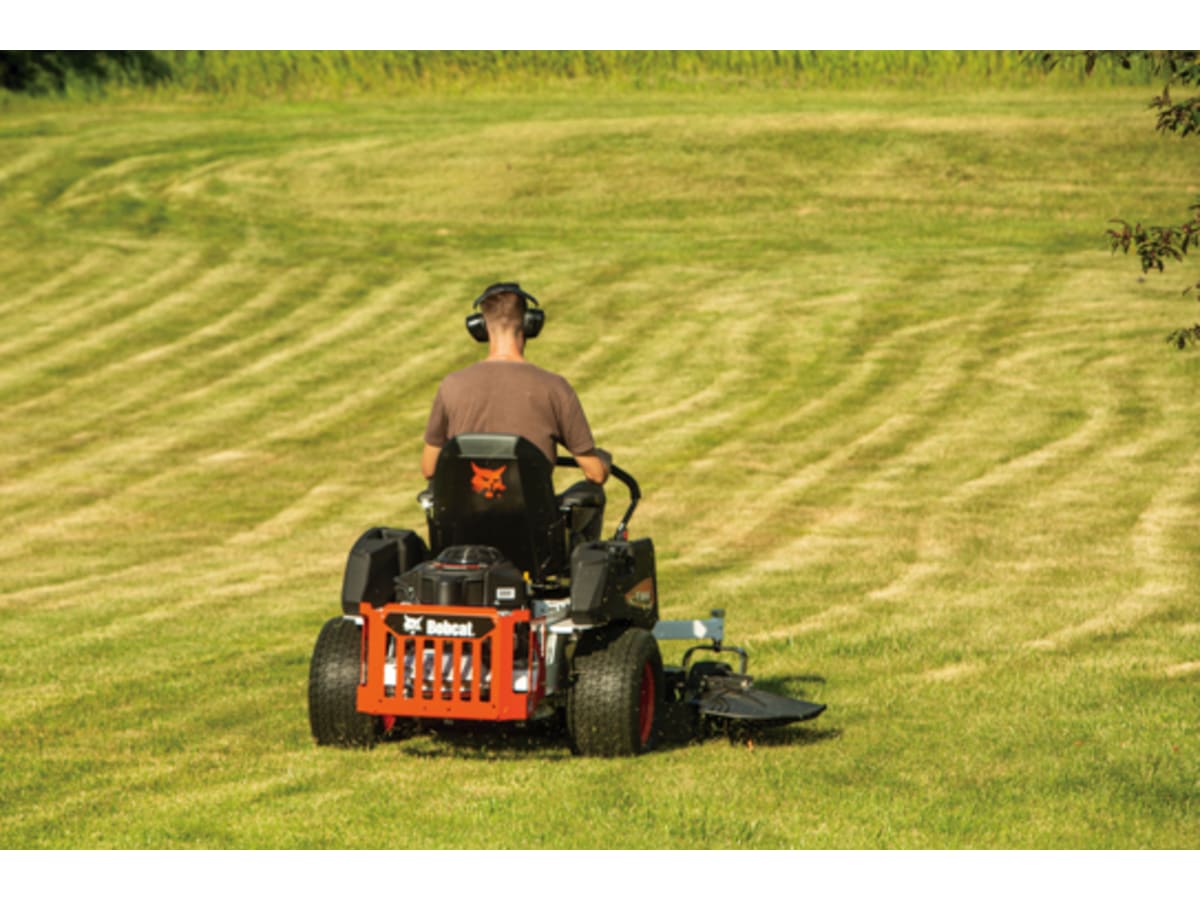

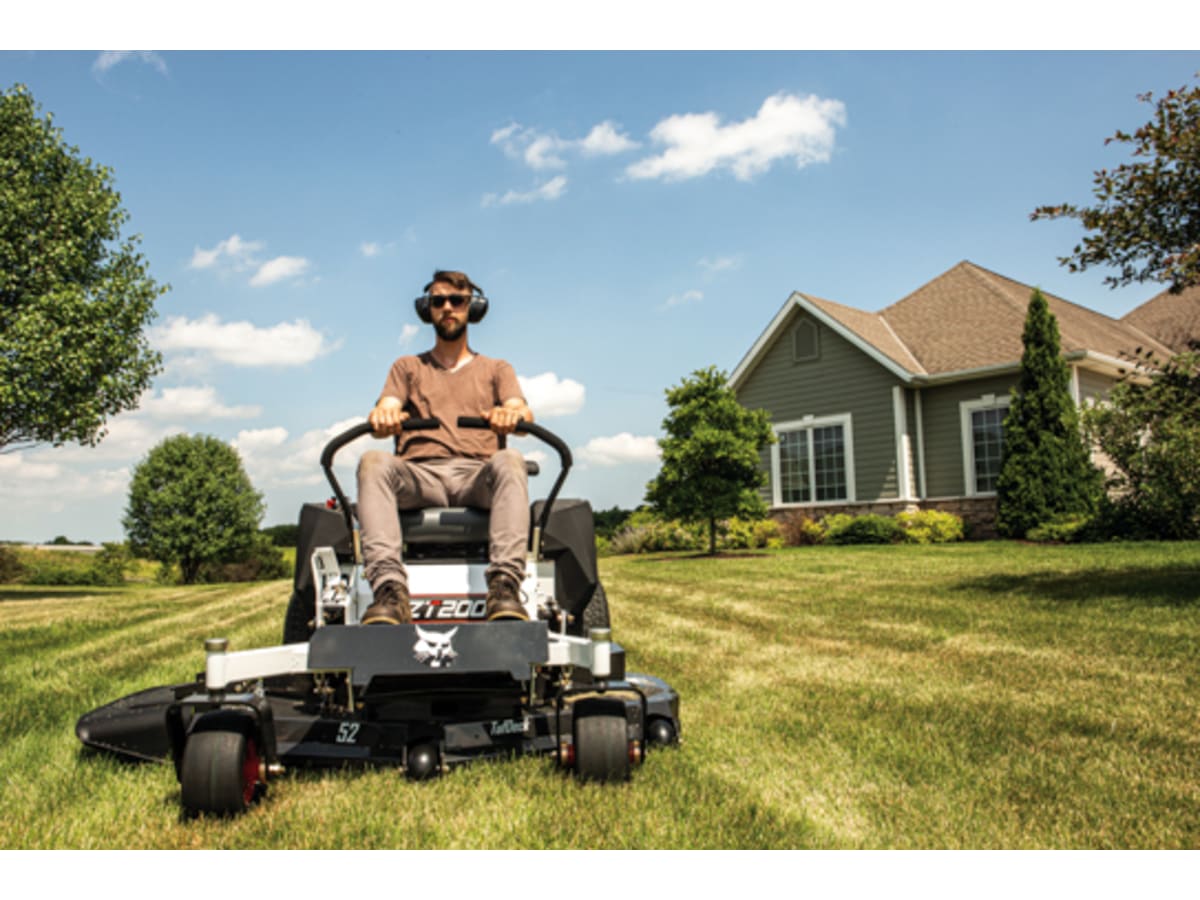

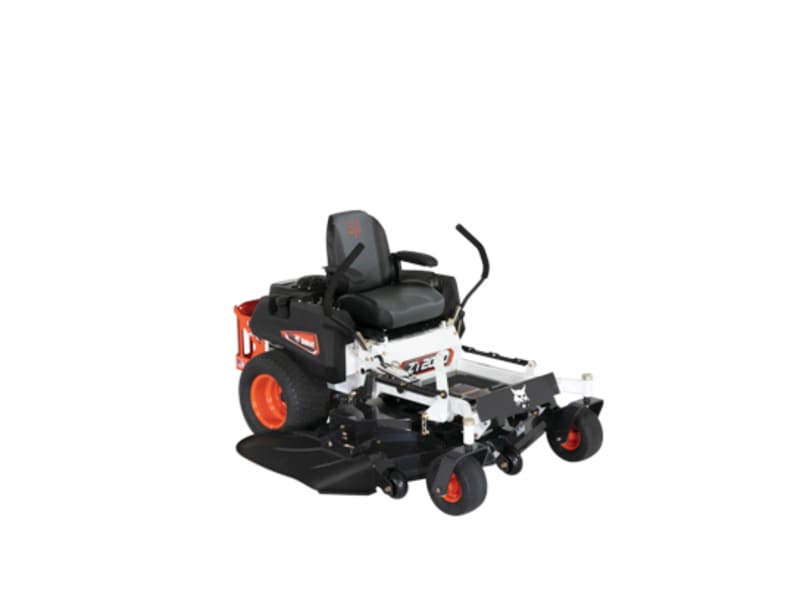

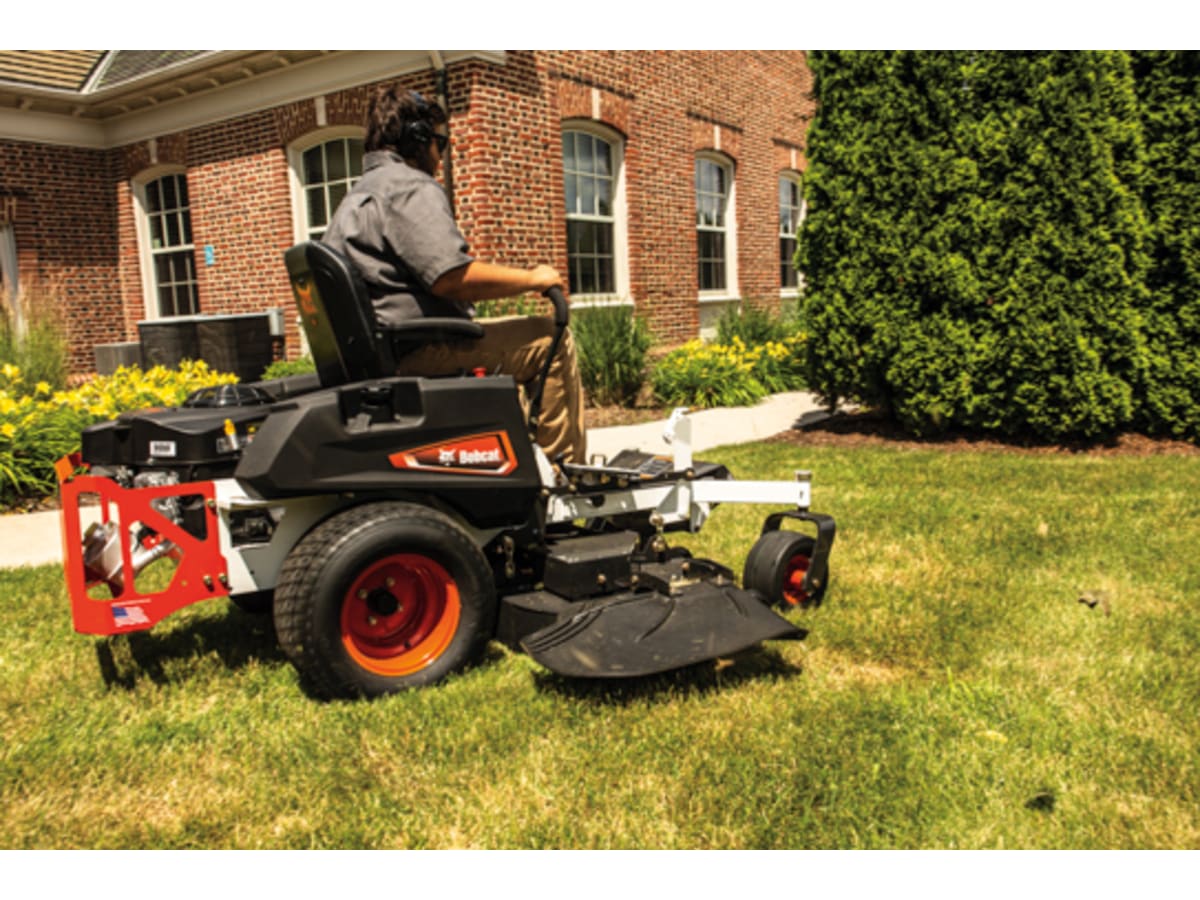

Bob Cat ZT2000 Zero-Turn Mower

ZT2000 Key Specifications

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Engine Model
Kaw FR651V
Kaw FR651V
Kaw FR651V
Displacement
726 cubic cm
726 cubic cm
726 cubic cm
Transmission Type
HG ZT-2800 Hydrostatic Transaxles
HG ZT-2800 Hydrostatic Transaxles
HG ZT-2800 Hydrostatic Transaxles
Pump Displacement
10 cubic cm
10 cubic cm
10 cubic cm
Cutting Height Range
1.5-4.6″ (38-127 mm)
1.5-4.6″ (38-127 mm)
1.5-4.6″ (38-127 mm)
Mower Deck
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
Width
42 in
42 in
42 in

BobQuote

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck

Engine

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Engine Model
Kaw FR651V
Kaw FR651V
Kaw FR651V
Fuel Tank
3.8 gal
3.8 gal
3.8 gal
Horsepower
21.5 hp
21.5 hp
21.5 hp
Displacement
726 cubic cm
726 cubic cm
726 cubic cm

Performance

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Machine Weight – Wet
684 lbs
684 lbs
684 lbs

Price

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck

Power/Electrical

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Clutch
105 ft-lb
105 ft-lb
105 ft-lb
Charging System
15 amp
15 amp
15 amp

Additional Product Information

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck

Transmission

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Transmission Type
HG ZT-2800 Hydrostatic Transaxles
HG ZT-2800 Hydrostatic Transaxles
HG ZT-2800 Hydrostatic Transaxles
Pump Displacement
10 cubic cm
10 cubic cm
10 cubic cm
Oil Capacity
4 qt
4 qt
4 qt
Travel Speed
7 mph
7 mph
7 mph
Travel Speed – Reverse
3 mph
3 mph
3 mph

Wheels

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Caster Arm
Welded to Frame
Welded to Frame
Welded to Frame
Drive Wheel Size
20 x 8.0-10
20 x 8.0-10
20 x 8.0-10
Front Caster Wheel Size
11 x 6.0-5
11 x 6.0-5
11 x 6.0-5

Frame

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Front and Rear
Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Length
76 in
76 in
76 in

Deck

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Cutting Height Range
1.5-4.6″ (38-127 mm)
1.5-4.6″ (38-127 mm)
1.5-4.6″ (38-127 mm)
Mower Deck
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
Discharge Chute
Flexible Molded Polymer
Flexible Molded Polymer
Flexible Molded Polymer
Mower Blade Tip Speed
18809 ft/min
18809 ft/min
18809 ft/min
Width
42 in
42 in
42 in

Seat

ZT2000 – 42″ Deck
ZT2000 – 48″ Deck
ZT2000 – 52″ Deck
Fore-Aft Adjustment
Seat Slide Lever
Seat Slide Lever
Seat Slide Lever
Description
High-Back, Spring Suspension Seat
High-Back, Spring Suspension Seat
High-Back, Spring Suspension Seat
