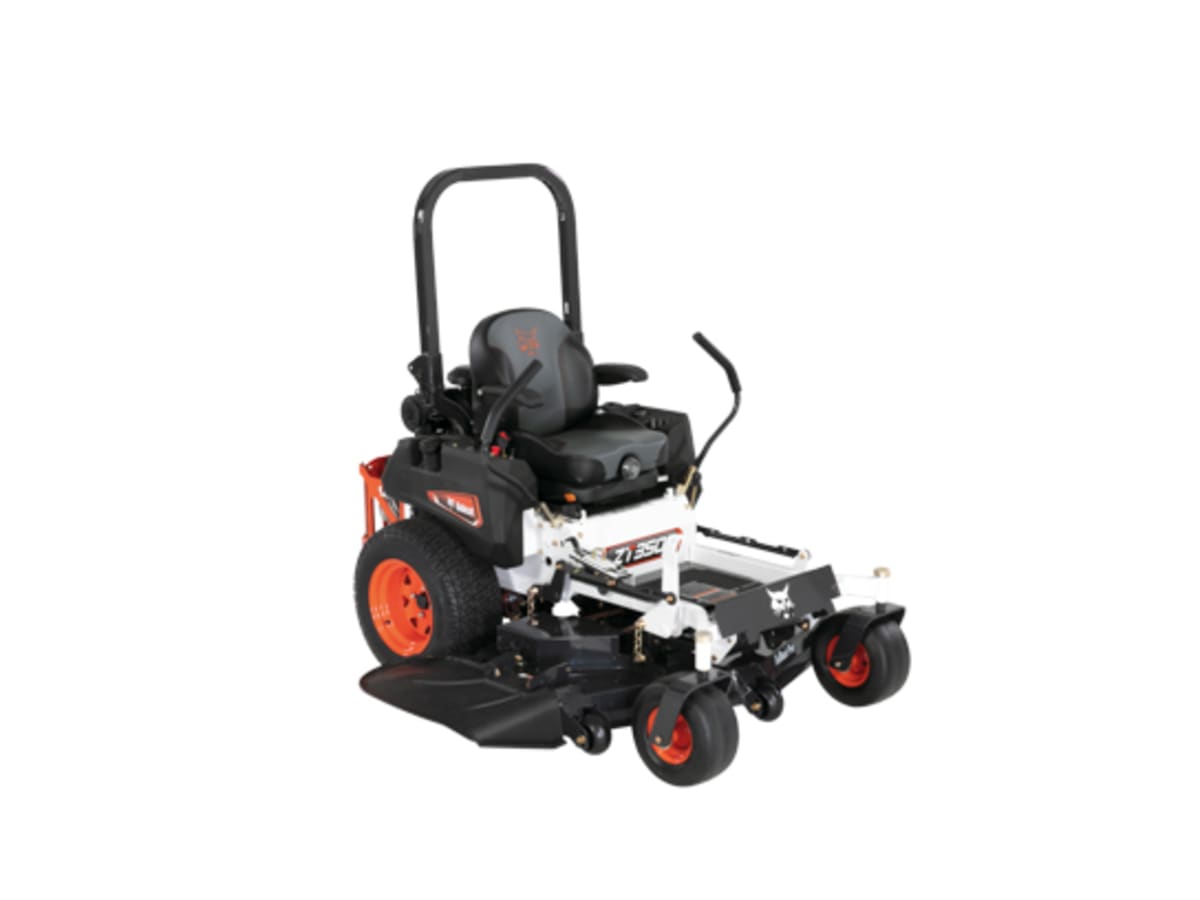

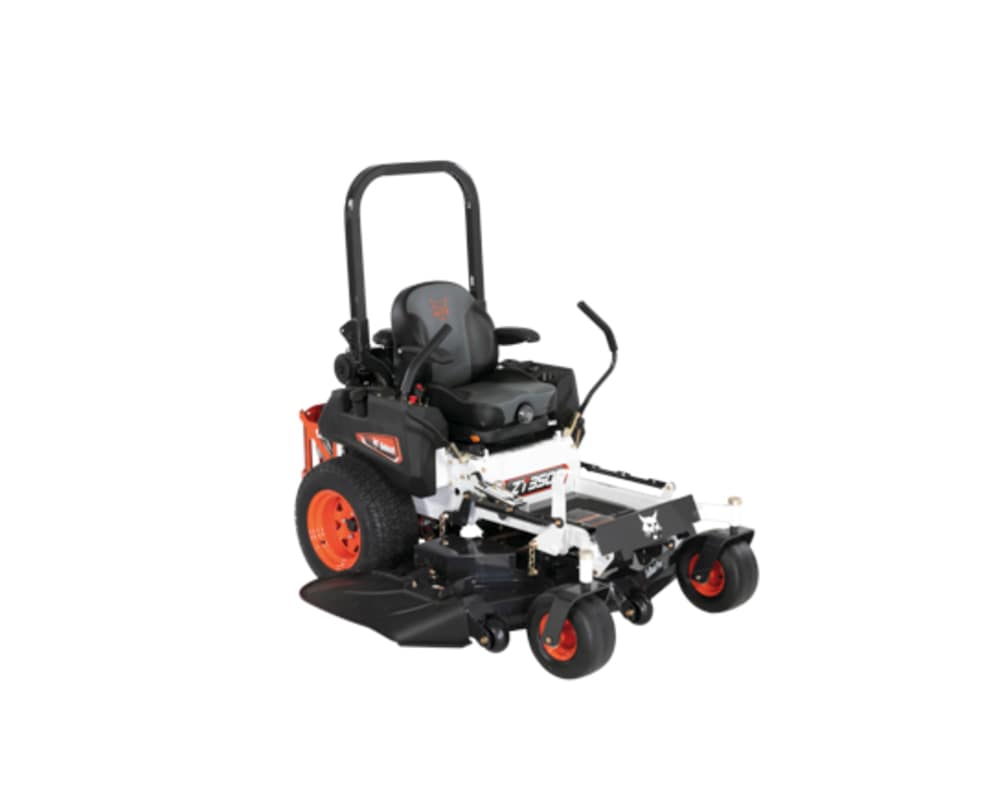

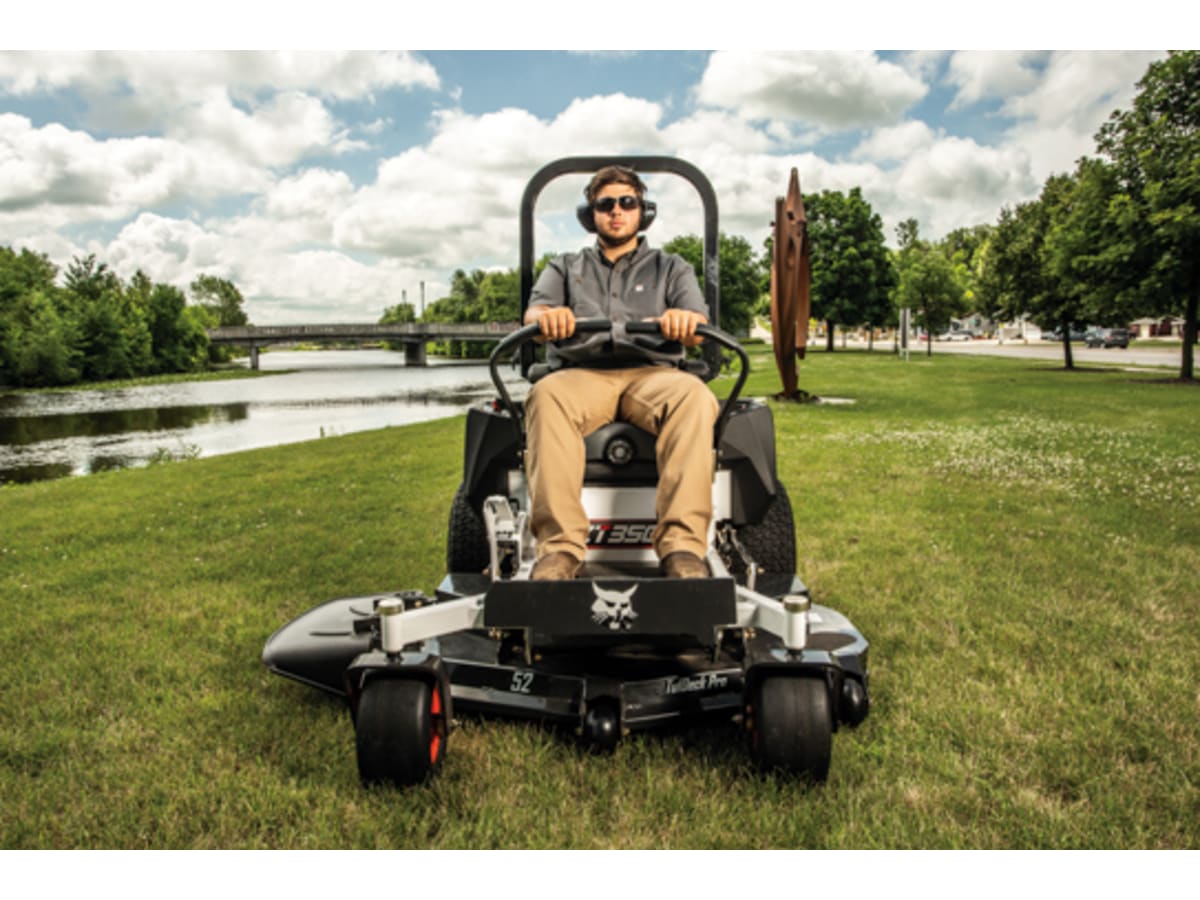

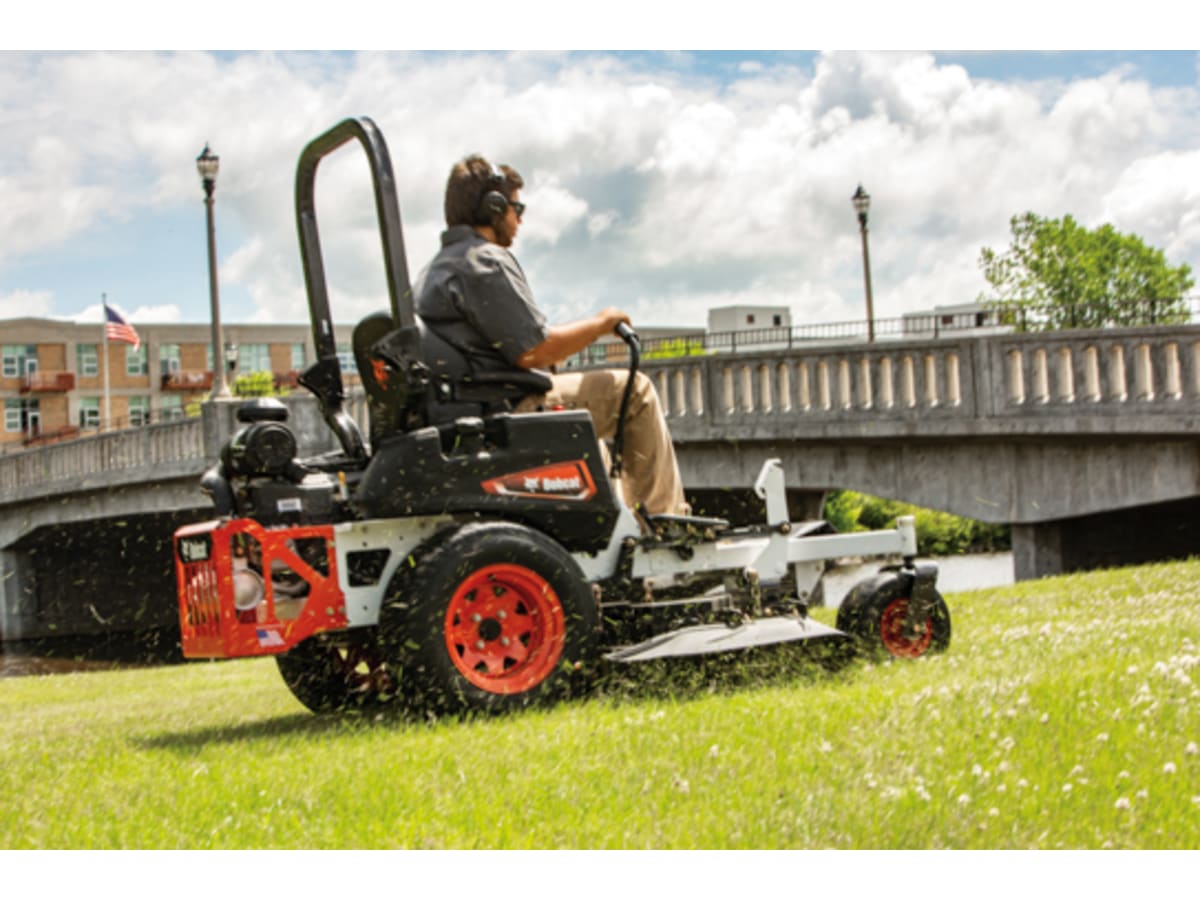

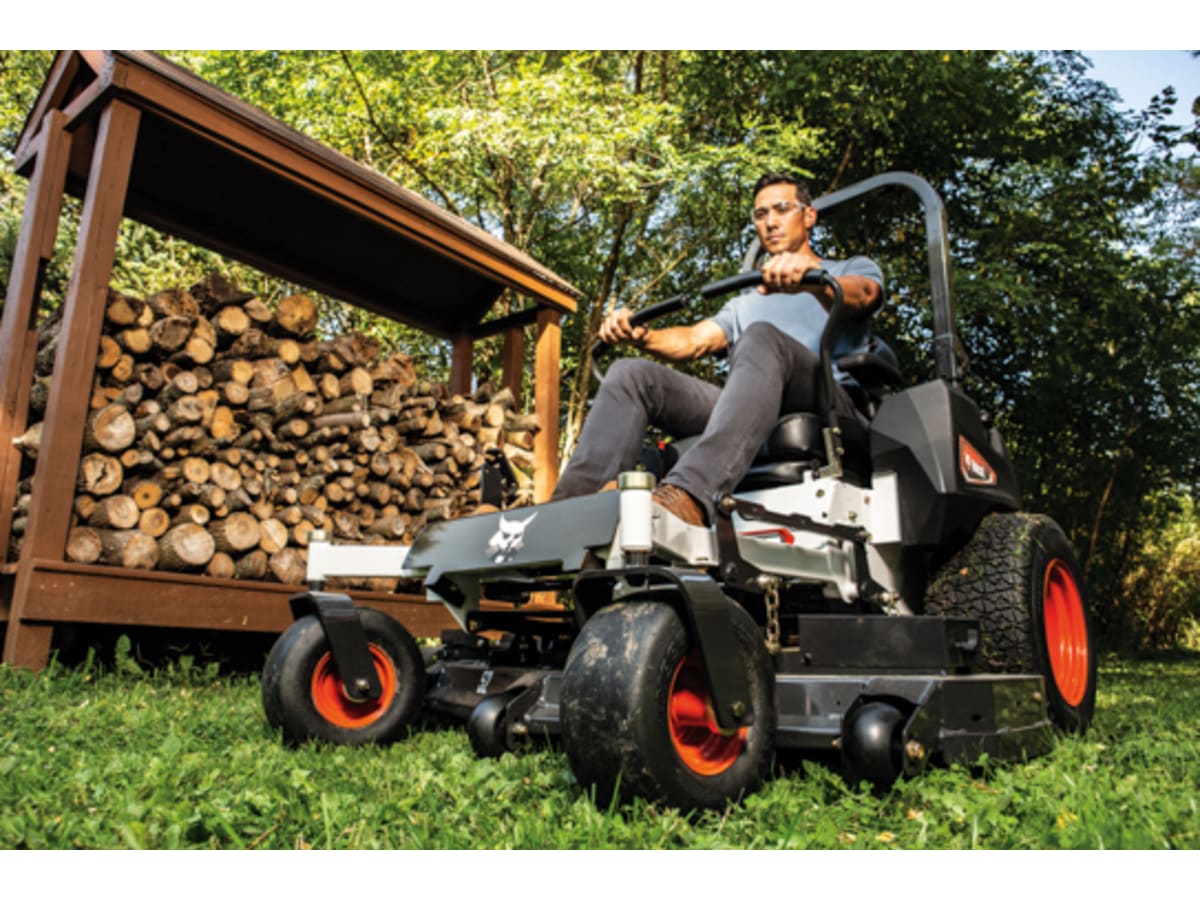

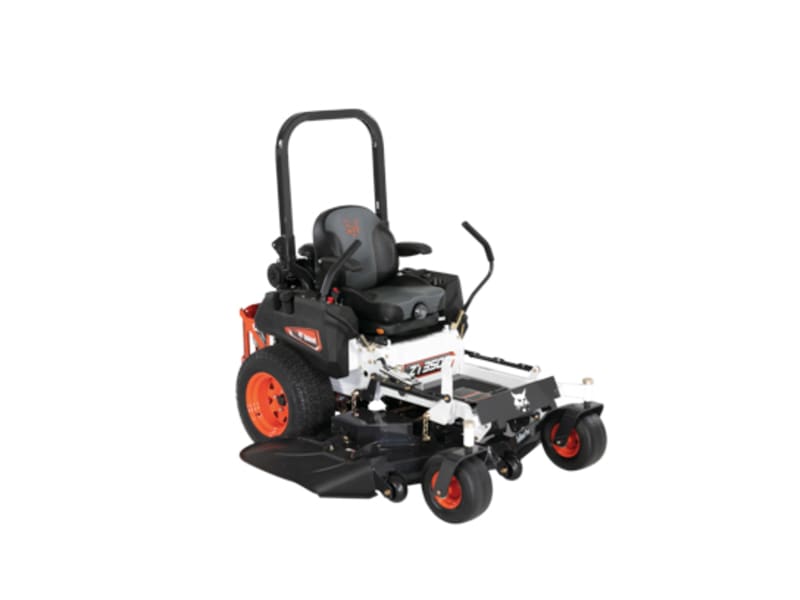

Bob Cat ZT3500 Zero-Turn Mower

When you have more acres to maintain, you need more commercial-grade features to keep you on top. With the ZT3500, that comes standard.

ZT3500 Key Specifications

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Engine Model
Kaw FX651V
Kaw FX651V
Kaw FX651V
Displacement
726 cubic cm
726 cubic cm
726 cubic cm
Transmission Type
HG ZT-3400 Hydrostatic Transaxles
HG ZT-3400 Hydrostatic Transaxles
HG ZT-3400 Hydrostatic Transaxles
Pump Displacement
12 cubic cm
12 cubic cm
12 cubic cm
Cutting Height Range
1.5-4.875
1.5-4.875
1.5-4.875
Mower Deck
TufDeck Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
Width
48 in
48 in
48 in

BobQuote

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck

Engine

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Engine Model
Kaw FX651V
Kaw FX651V
Kaw FX651V
Fuel Tank
7.8 gal
7.8 gal
7.8 gal
Horsepower
21.5 hp
21.5 hp
21.5 hp
Displacement
726 cubic cm
726 cubic cm
726 cubic cm

Performance

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Machine Weight – Wet
773 lbs
773 lbs
773 lbs

Price

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck

Power/Electrical

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Clutch
125 ft-lb
125 ft-lb
125 ft-lb
Charging System
15 amp
15 amp
15 amp

Additional Product Information

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck

Transmission

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Transmission Type
HG ZT-3400 Hydrostatic Transaxles
HG ZT-3400 Hydrostatic Transaxles
HG ZT-3400 Hydrostatic Transaxles
Pump Displacement
12 cubic cm
12 cubic cm
12 cubic cm
Oil Capacity
4 qt
4 qt
4 qt
Travel Speed
10 mph
10 mph
10 mph
Travel Speed – Reverse
3.5 mph
3.5 mph
3.5 mph

Wheels

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Caster Arm
Welded to Frame
Welded to Frame
Welded to Frame
Drive Wheel Size
23 x 10.5-12
23 x 10.5-12
23 x 10.5-12
Front Caster Wheel Size
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6

Frame

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Front and Rear
Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Length
76 in
76 in
76 in

Deck

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Cutting Height Range
1.5-4.875
1.5-4.875
1.5-4.875
Mower Deck
TufDeck Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
Discharge Chute
Flexible Molded Polymer
Flexible Molded Polymer
Flexible Molded Polymer
Mower Blade Tip Speed
17365 ft/min
17365 ft/min
17365 ft/min
Width
48 in
48 in
48 in

Seat

ZT3500 – 48” Deck
ZT3500 – 52” Deck
ZT3500 – 61” Deck
Fore-Aft Adjustment
Seat Slide Lever
Seat Slide Lever
Seat Slide Lever
Description
High-Back, Spring Suspension Seat
High-Back, Spring Suspension Seat
High-Back, Spring Suspension Seat
