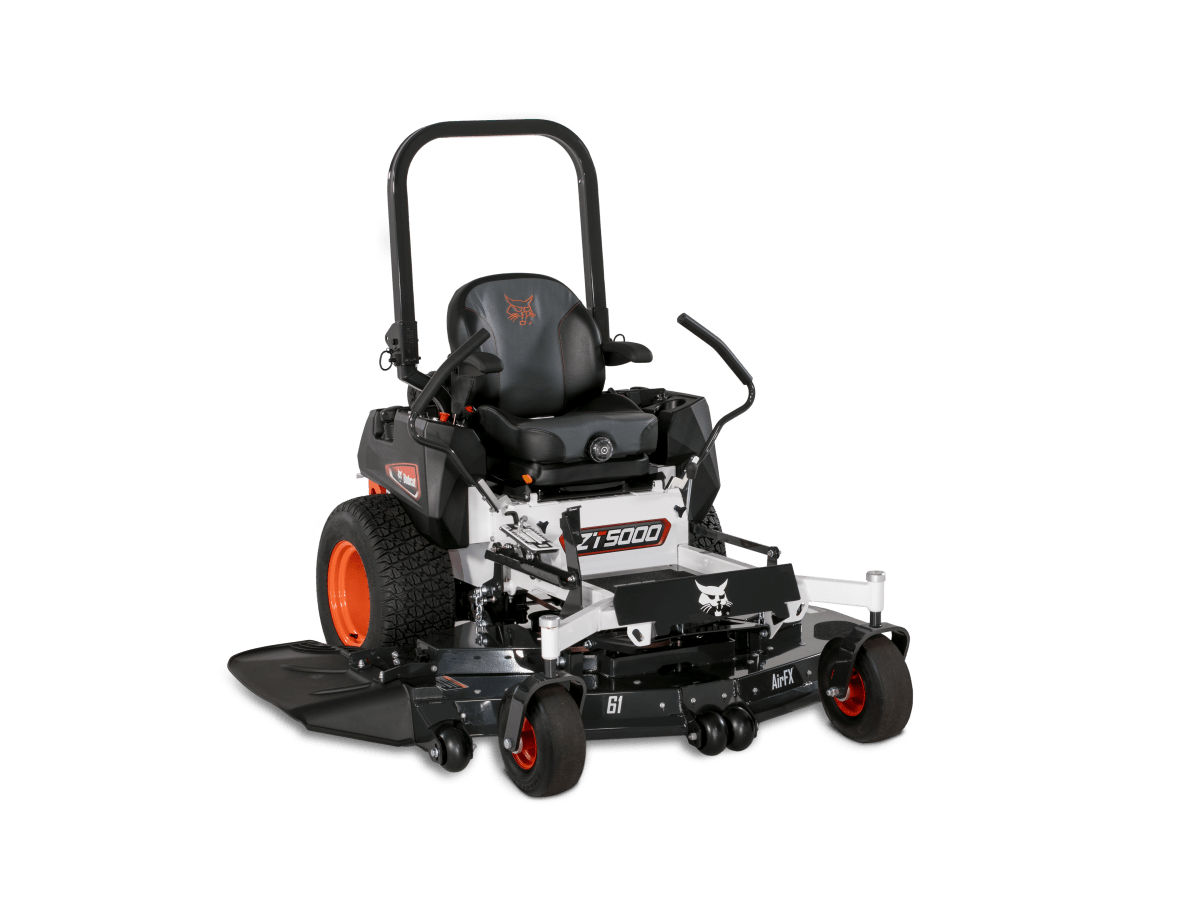

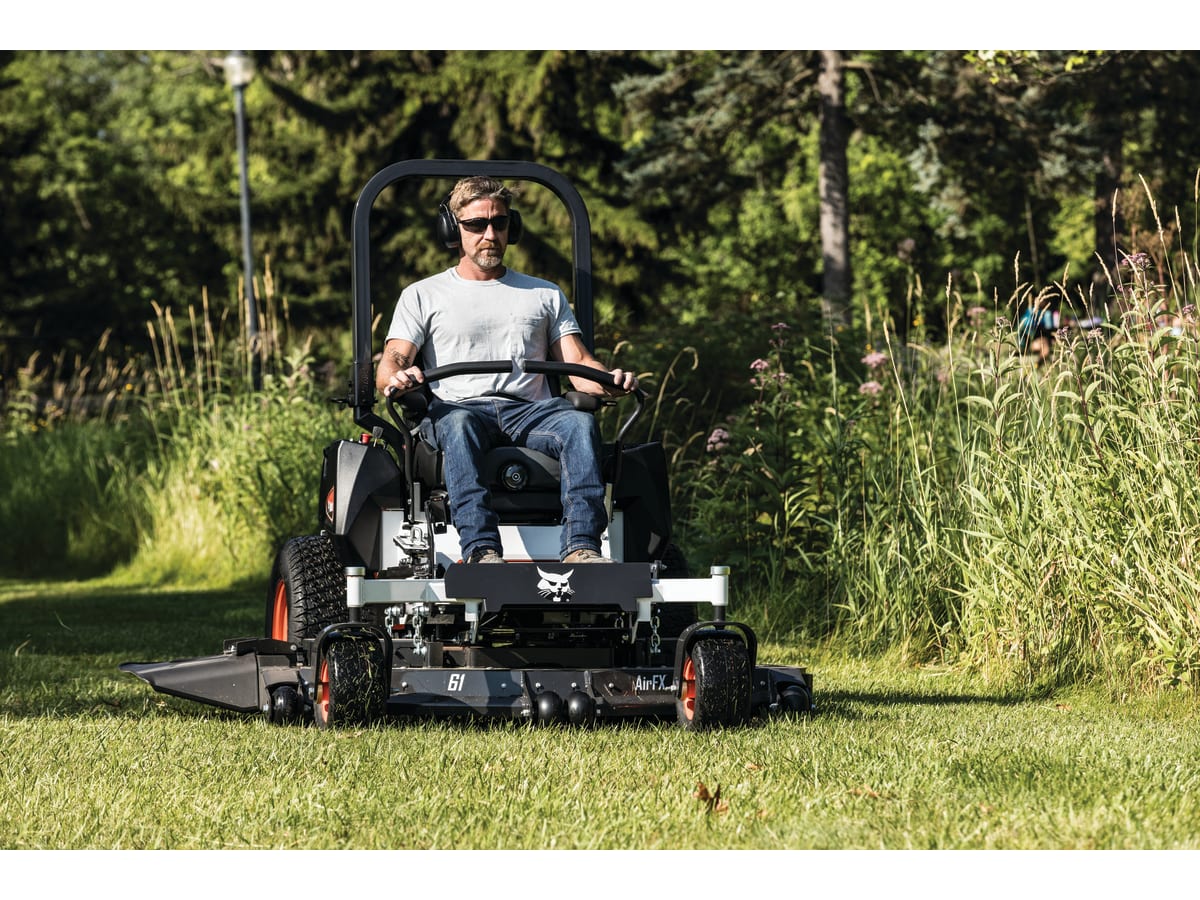

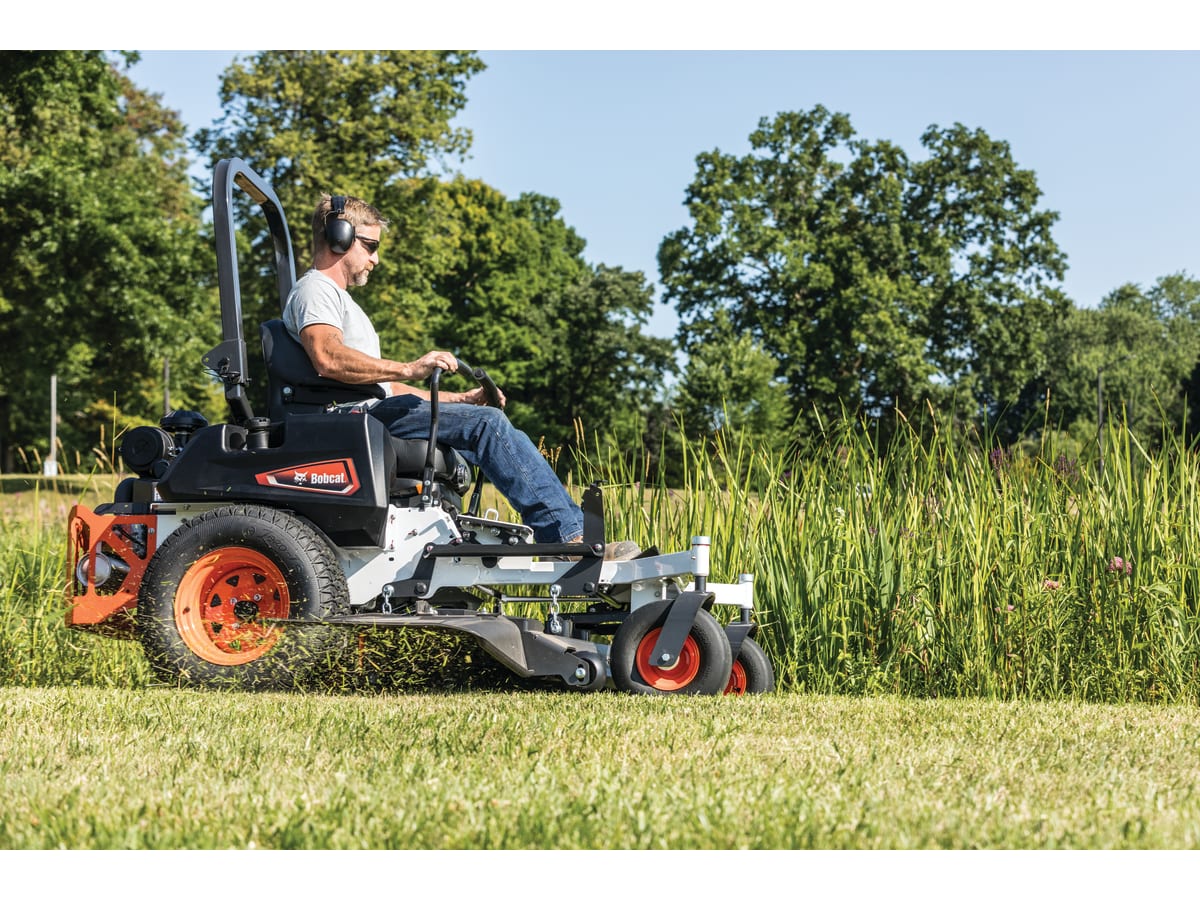

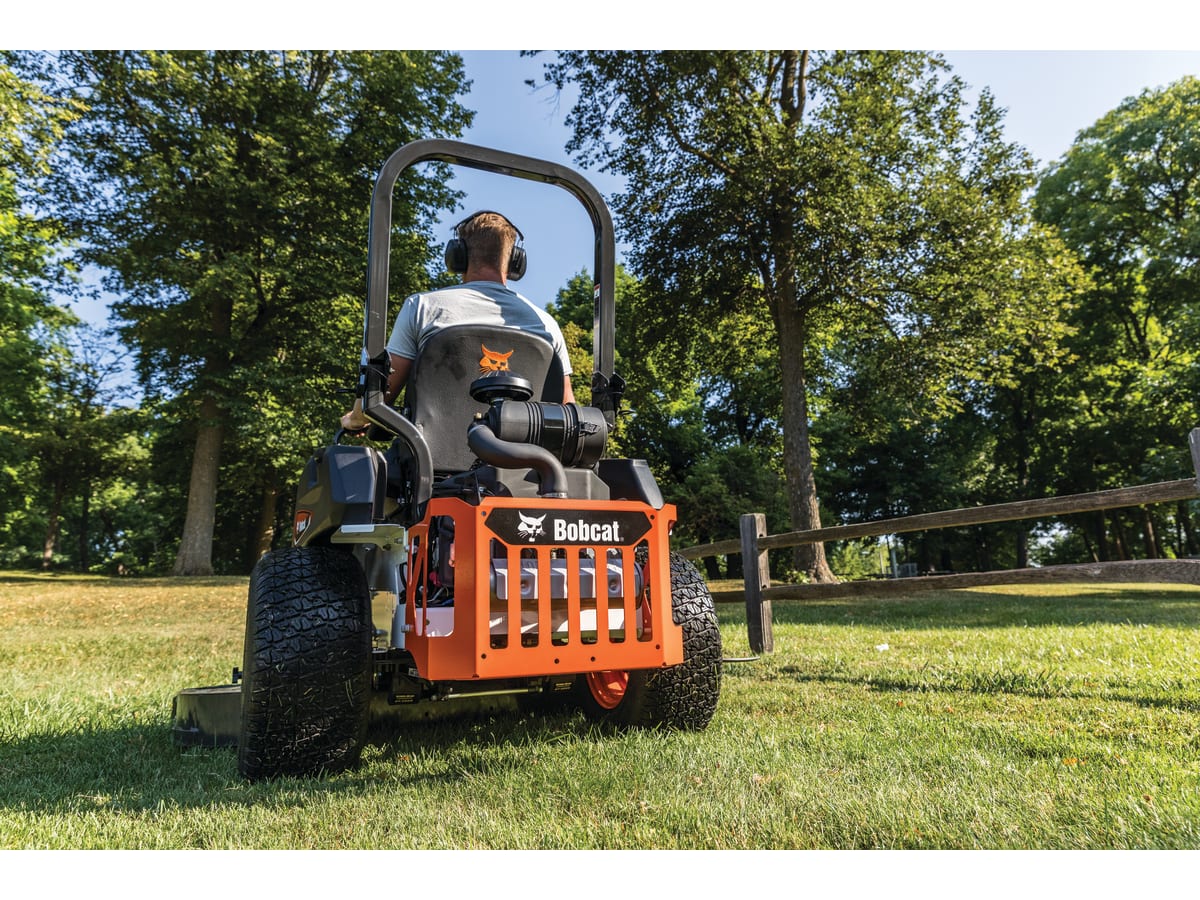

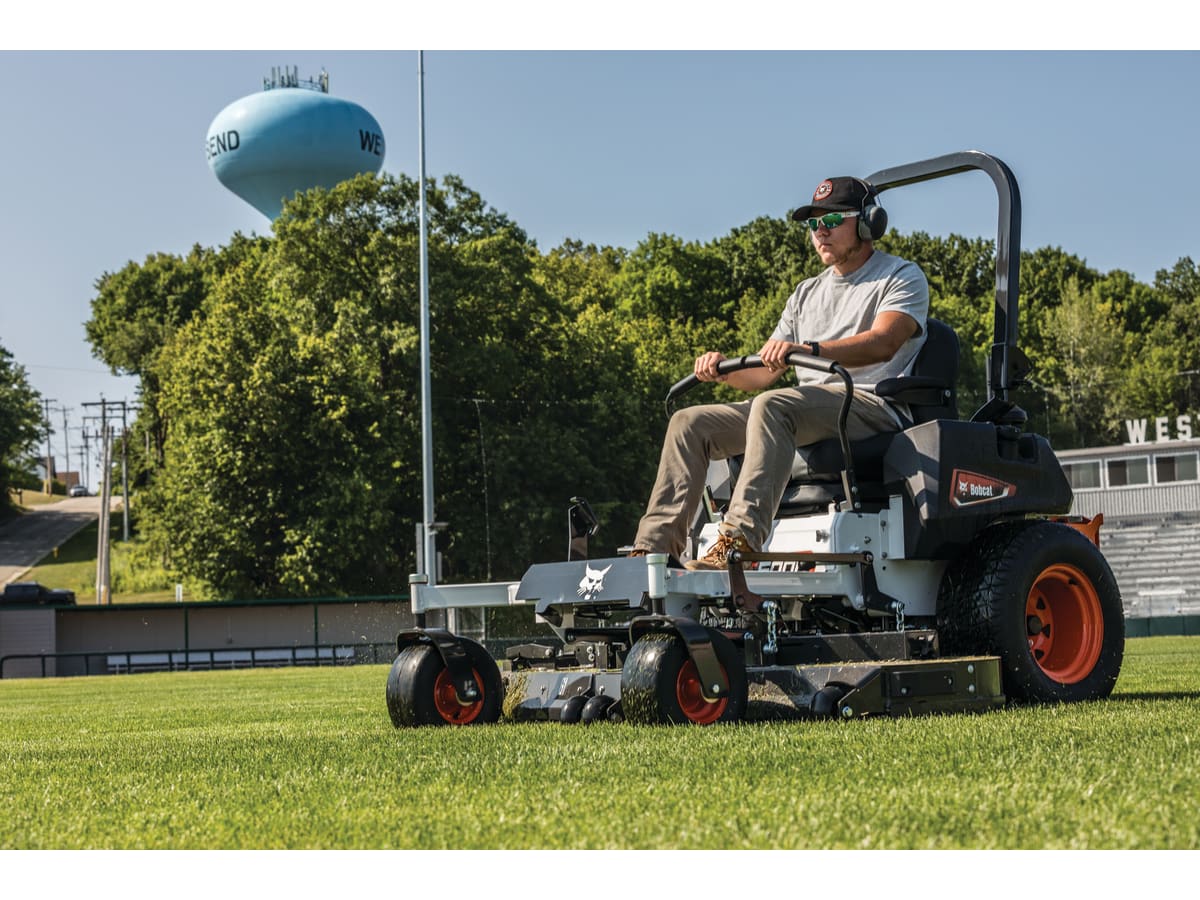

Bob Cat ZT5000 Zero-Turn Mower

The ZT5000 is an ideal fit for landscapers and homeowners who need a solid step up from an entry-level commercial mower.

ZT5000 Key Specifications

ZT5000 – 52” Deck
ZT5000 – 61” Deck
Engine Model
Kawasaki FX730V Gas Engine
Kawasaki FX730V Gas Engine
Displacement
726 cubic cm
726 cubic cm
Pump Displacement
12 cubic cm
12 cubic cm
Transmission Type
Hydro Gear ZT-3800 Hydrostatic
Hydro Gear ZT-3800 Hydrostatic
Cutting Height Range
1.5-4.8 in / 38-121 mm
1.5-4.8 in / 38-121 mm

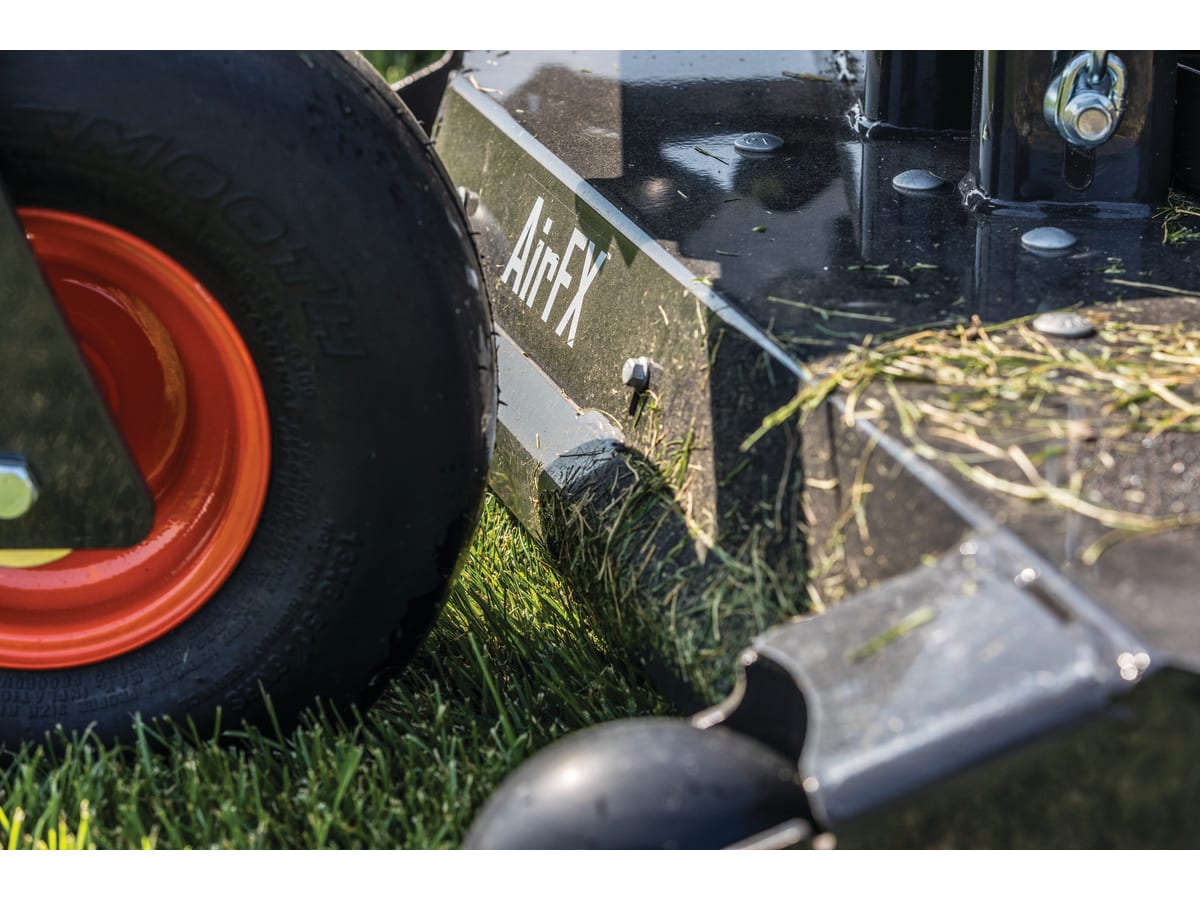

Mower Deck
AirFX Dual 10-gauge layer top with 3-gauge and 7-gauge brackets throughout
AirFX Dual 10-gauge layer top with 3-gauge and 7-gauge brackets throughout
Width
52 in
52 in

BobQuote

ZT5000 – 52” Deck
ZT5000 – 61” Deck

Engine

ZT5000 – 52” Deck
ZT5000 – 61” Deck
Fuel Tank
7.8 gal
7.8 gal
Engine Model
Kawasaki FX730V Gas Engine
Kawasaki FX730V Gas Engine
Horsepower
23.5 hp
23.5 hp
Displacement
726 cubic cm
726 cubic cm

Performance

ZT5000 – 52” Deck
ZT5000 – 61” Deck
Machine Weight – Wet
995 lbs
995 lbs

Price

ZT5000 – 52” Deck
ZT5000 – 61” Deck

Power/Electrical

ZT5000 – 52” Deck
ZT5000 – 61” Deck

Additional Product Information

ZT5000 – 52” Deck
ZT5000 – 61” Deck

Transmission

ZT5000 – 52” Deck
ZT5000 – 61” Deck
Pump Displacement
12 cubic cm
12 cubic cm
Transmission Type
Hydro Gear ZT-3800 Hydrostatic
Hydro Gear ZT-3800 Hydrostatic
Oil Capacity
4 qt
4 qt

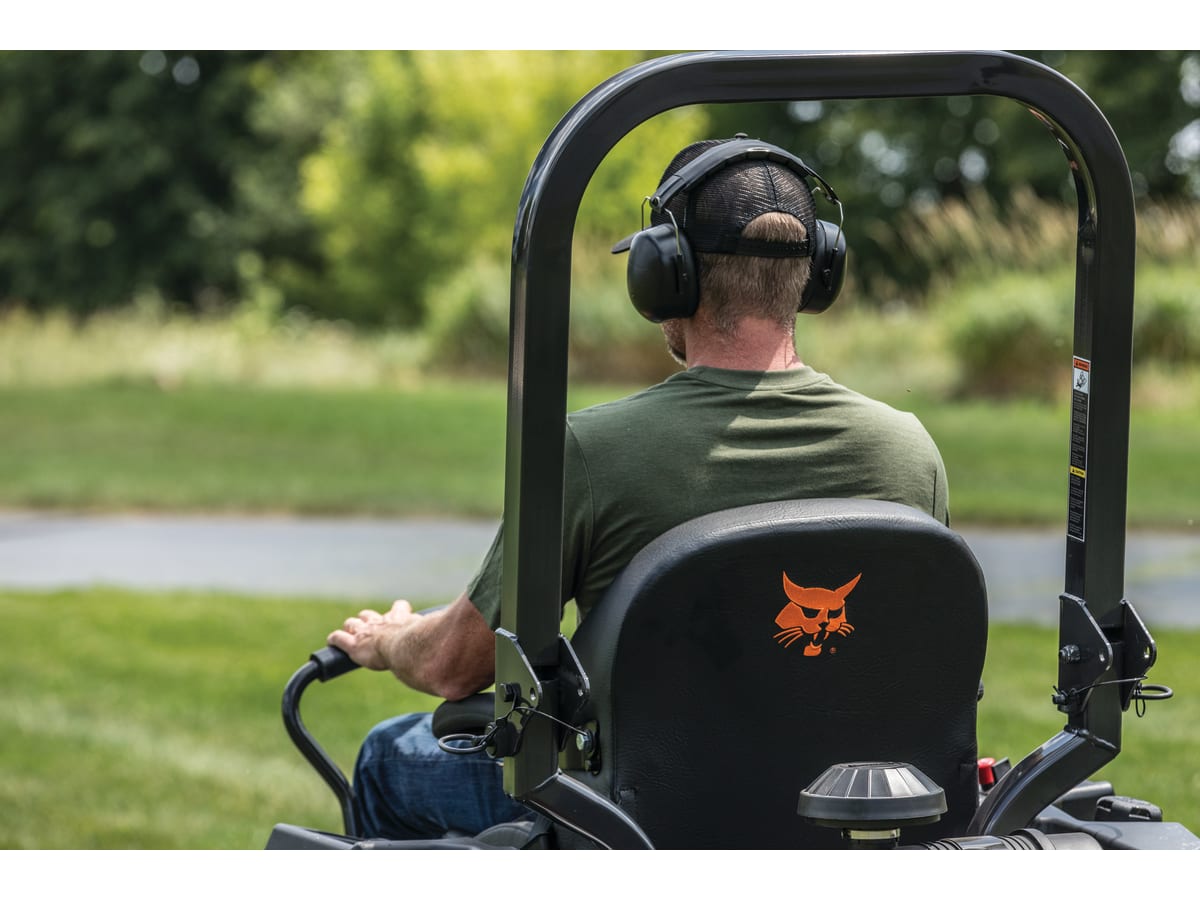

Mower Seat

ZT5000 – 52” Deck
ZT5000 – 61” Deck

Wheels

ZT5000 – 52” Deck
ZT5000 – 61” Deck
Caster Arm
Welded to Frame
Welded to Frame
Front Caster Wheel Size
13 x 6.5-6
13 x 6.5-6
Drive Wheel Size
24 x 10.5-12
24 x 10.5-12

Frame

ZT5000 – 52” Deck
ZT5000 – 61” Deck
Length
79.8 in
79.8 in
Front and Rear
Welded 7-gauge Steel; 1.5- x 2.5-inch Steel Tubing
Welded 7-gauge Steel; 1.5- x 2.5-inch Steel Tubing

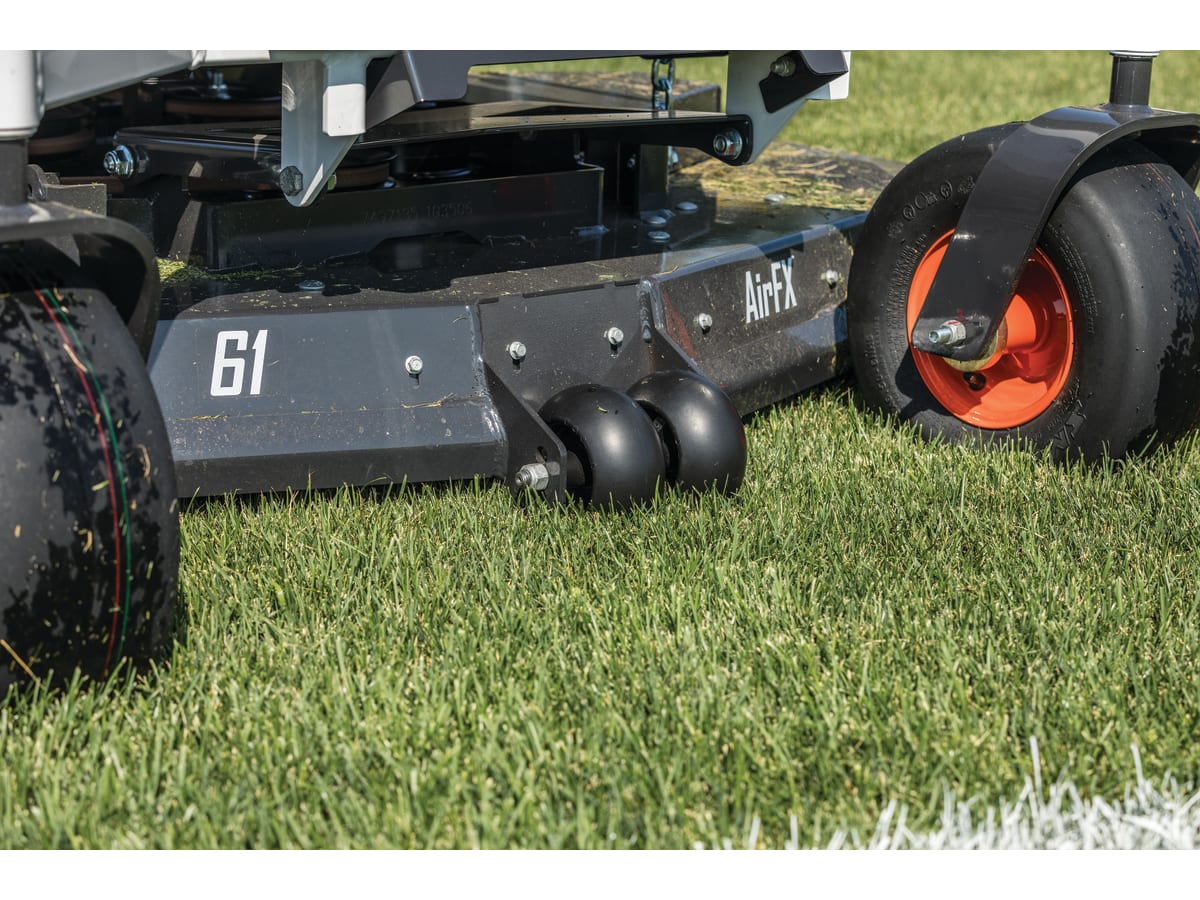

Deck

ZT5000 – 52” Deck
ZT5000 – 61” Deck
Discharge Chute
Flexible Molded Polymer
Flexible Molded Polymer
Cutting Height Range
1.5-4.8 in / 38-121 mm
1.5-4.8 in / 38-121 mm
Mower Deck
AirFX Dual 10-gauge layer top with 3-gauge and 7-gauge brackets throughout
AirFX Dual 10-gauge layer top with 3-gauge and 7-gauge brackets throughout
Mower Blade Tip Speed
18142 ft/min
18142 ft/min
Width
52 in
52 in
