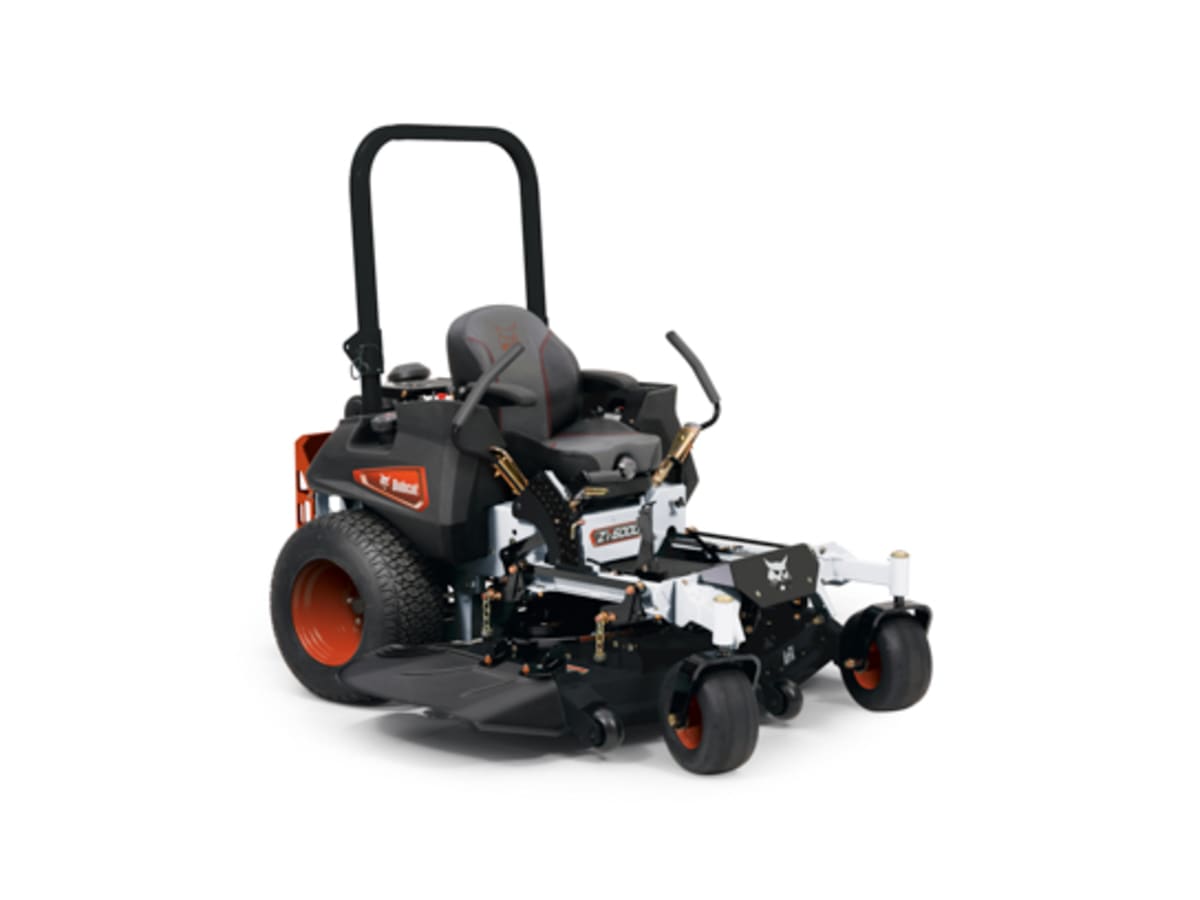

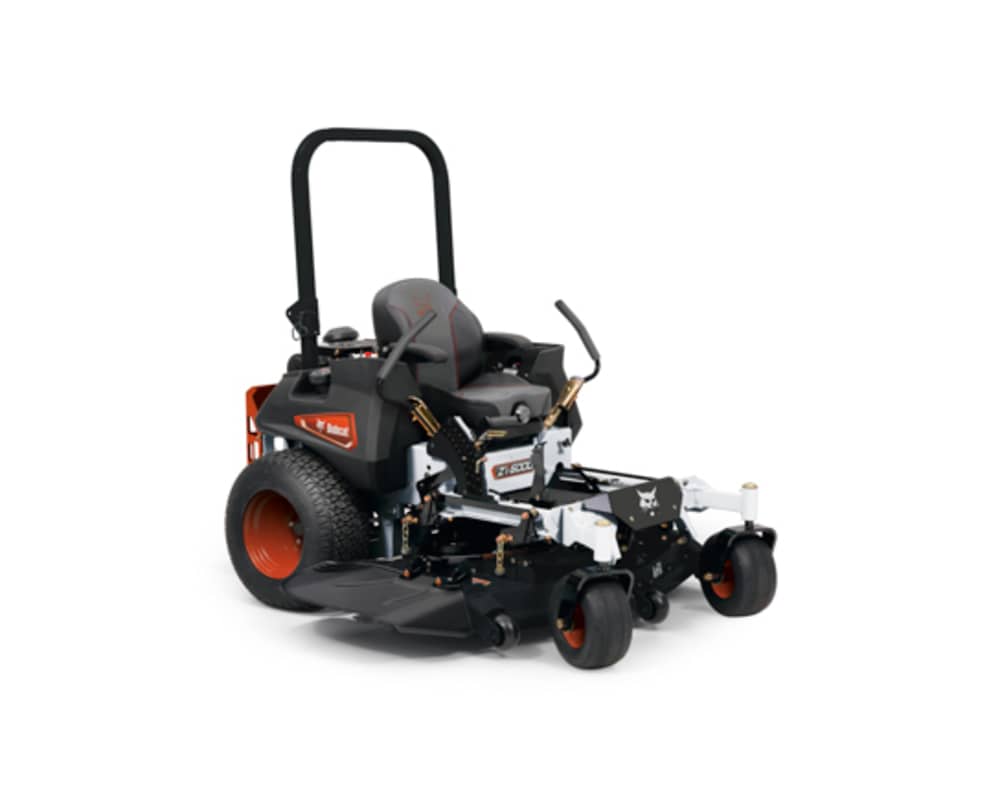

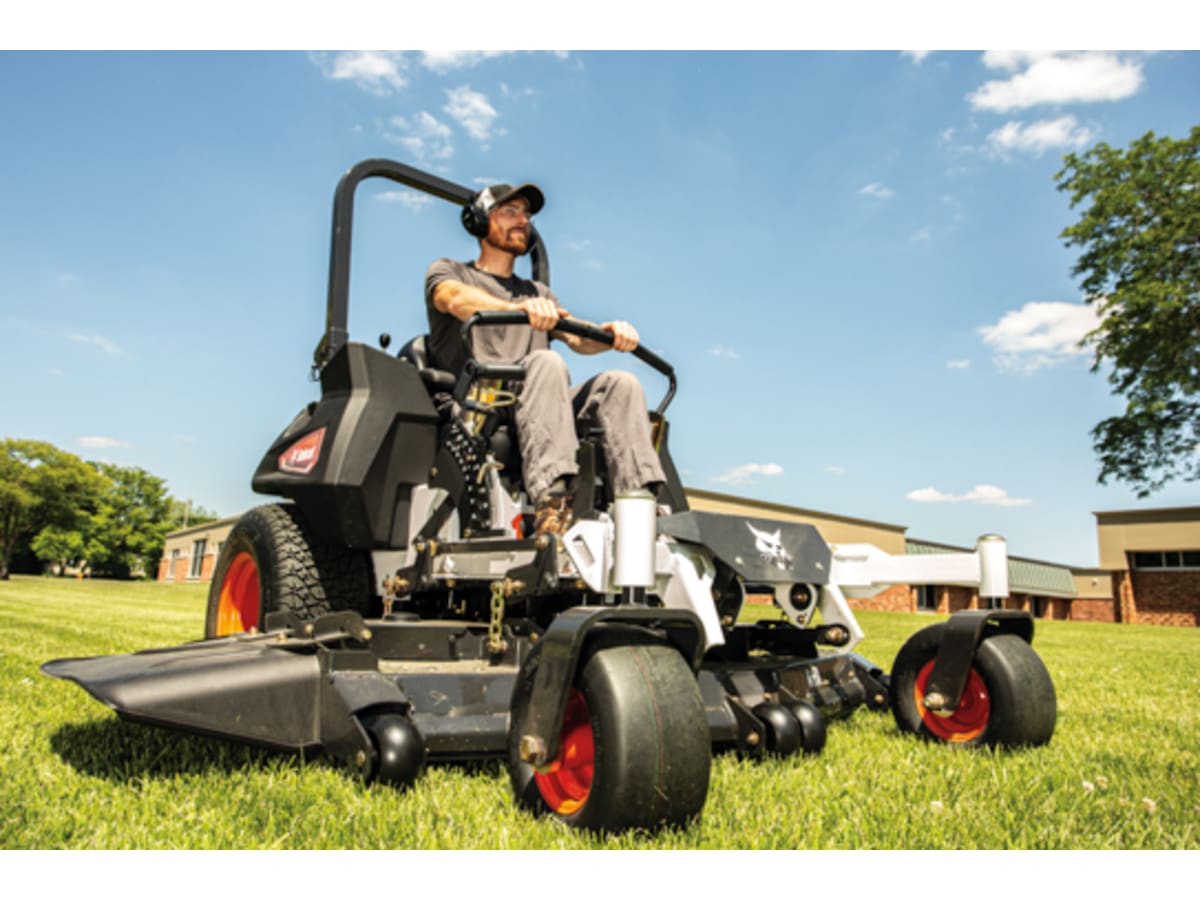

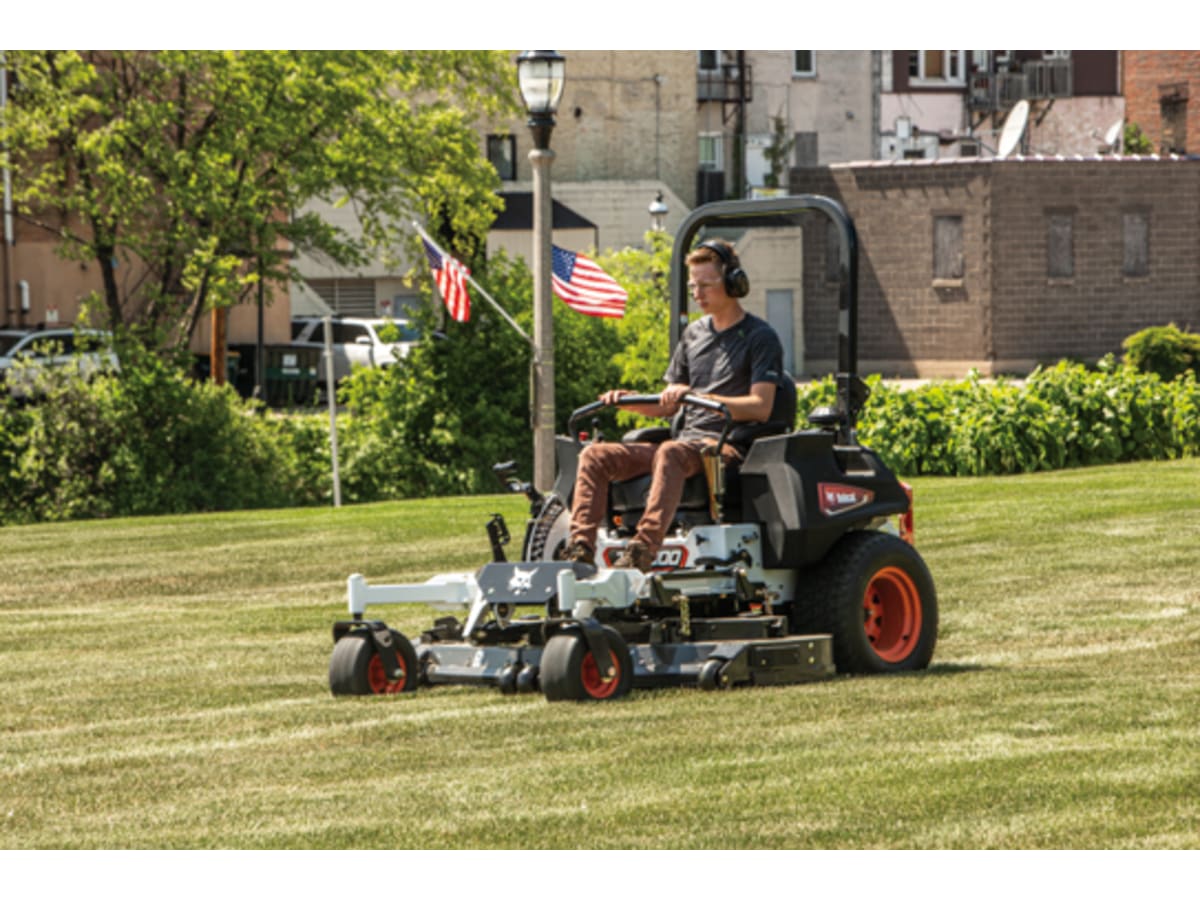

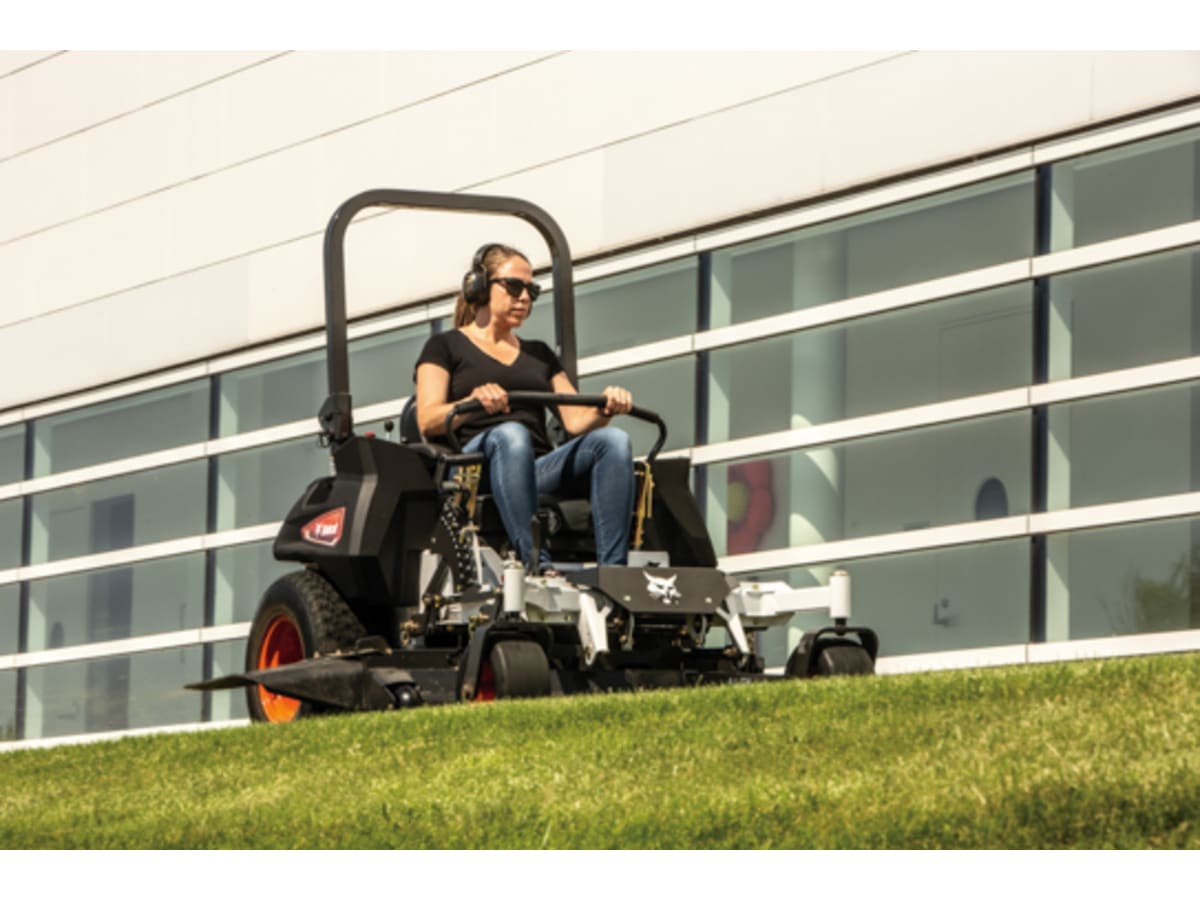

Bob Cat ZT6000 Zero-Turn Mower

ZT6000 Key Specifications

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Engine Model
Kaw FX801V
Kaw FX801V
Displacement
852 cubic cm
852 cubic cm
Transmission Type
HG ZT-4400 Hydrostatic Transaxles
HG ZT-4400 Hydrostatic Transaxles
Pump Displacement
12 cubic cm
12 cubic cm
Cutting Height Range
1-5.5 in.
1-5.5
Mower Deck
AirFX™ Cutting System
AirFX™ Cutting System
Width
52 in
61 in

BobQuote

ZT6000 – 52” Deck
ZT6000 – 61” Deck

Engine

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Engine Model
Kaw FX801V
Kaw FX801V
Fuel Tank
15 gal
15 gal
Horsepower
25.5 hp
25.5 hp
Displacement
852 cubic cm
852 cubic cm

Performance

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Machine Weight – Wet
1371 lbs
1421 lbs

Price

ZT6000 – 52” Deck
ZT6000 – 61” Deck

Power/Electrical

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Clutch
225 ft-lb
225 ft-lb
Charging System
15 amp
15 amp

Additional Product Information

ZT6000 – 52” Deck
ZT6000 – 61” Deck

Transmission

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Transmission Type
HG ZT-4400 Hydrostatic Transaxles
HG ZT-4400 Hydrostatic Transaxles
Pump Displacement
12 cubic cm
12 cubic cm
Oil Capacity
4.5 qt
4.5 qt
Travel Speed
12 mph
12 mph
Travel Speed – Reverse
4 mph
4 mph

Wheels

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Caster Arm
Bolt On
Bolt-On
Drive Wheel Size
24 x 10.5-12
24 x 10.5-12
Front Caster Wheel Size
13 x 6.5-6
13 x 6.5-6

Frame

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Front and Rear
Welded 0.25 in, 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Welded 0.25 in, 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Length
83 in
83 in

Deck

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Cutting Height Range
1-5.5 in.
1-5.5
Mower Deck
AirFX™ Cutting System
AirFX™ Cutting System
Discharge Chute
Flexible Molded Polymer
Flexible Molded Polymer
Mower Blade Tip Speed
18586 ft/min
18500 ft/min
Width
52 in
61 in

Seat

ZT6000 – 52” Deck
ZT6000 – 61” Deck
Fore-Aft Adjustment
Seat Slide Lever
Seat Slide Lever
Description
High-Back, Full-Mechanical Suspension Seat
High-Back, Full-Mechanical Suspension Seat
