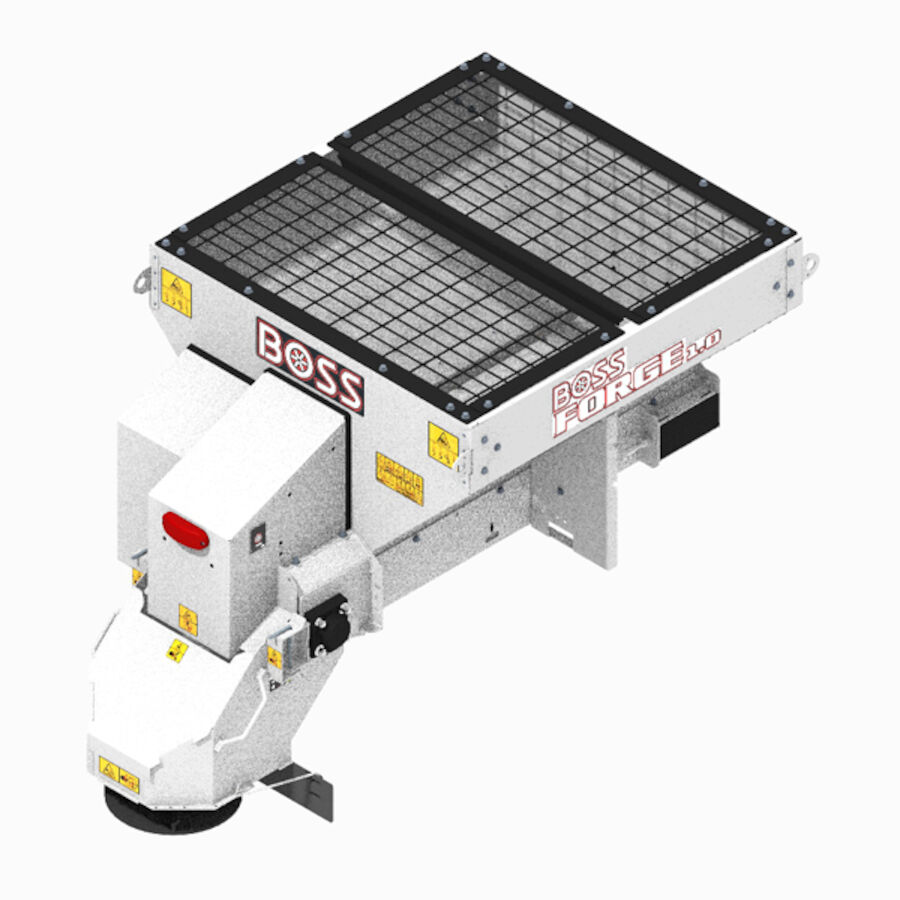

BOSS Snowplow Forge 1.0 Pintle

The FORGE® Stainless Steel 1.0 pintle chain system is the type of sturdiness and durability you need to take on the most adverse winter conditions. The stainless steel hopper and drive train combine bolting, riveting, and welding for optimal heavy-duty usage during the spreader’s lifetime. Constructed with the versatility to spread various types of material, it maximizes productivity while minimizing what you want least – ice and snow. So you can RESTORE ORDER when mother nature strikes.

REQUEST QUOTE
GET FINANCING
Specifications Forge 2.0 Pintle Forge 2.0 Auger Forge 1.5 Pintle Forge 1.5 Auger Forge 1.0 Pintle Forge 1.0 Auger
Capacity cubic yd 2 / cubic m 1.53 cubic yd 2 / cubic m 1.53 cubic yd 1.5 / cubic m 1.15 cubic yd 1.5 / cubic m 1.15 cubic yd 1 / cubic m .76 cubic yd 1 / cubic m .76
Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control
Deflector Standard Standard Standard Standard Standard Standard
Display Type LED Digital Display Controller LED Digital Display Controller LED Digital Display Controller LED Digital Display Controller LED Digital Display Controller LED Digital Display Controller
Feed Mechanism Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger
Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor
Gearbox Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1
Hopper Construction 14 ga Stainless Steel 14 ga Stainless Steel 14 ga Stainless Steel 14 ga Stainless Steel 14 ga Stainless Steel 14 ga Stainless Steel
Hopper Cover Optional Optional Optional Optional Optional Optional
Hopper Height 36 in / 91.44 cm 36 in / 91.44 cm 33 in / 83.82 cm 33 in / 83.82 cm 33 in / 83.82 cm 33 in / 83.82 cm
Hopper Length 96 in / 244 cm 96 in / 244 cm 70 in / 177.8 cm 70 in / 177.8 cm 49.5 in / 126 cm 49.5 in / 126 cm
Hopper Width 48 in / 121.92 cm 48 in / 121.92 cm 48 in / 121.92 cm 48 in / 121.92 cm 48 in / 121.92 cm 48 in / 121.92 cm
Inverted V-Baffle Optional Standard Optional Standard Optional Standard
LED CHSML Standard Standard Standard Standard Standard Standard
Lighting Optional halogen or LED work lights Optional halogen or LED work lights Optional halogen or LED work lights Optional halogen or LED work lights Optional halogen or LED work lights Optional halogen or LED work lights
Material Conveying Method 14″ (36 cm) Wide Pintle Chain 6″ (15 cm) OD x 9″ (23 cm) Pitch Full Length Auger 14″ (36 cm) Wide Pintle Chain 6″ (15 cm) OD x 9″ (23 cm) Pitch Full Length Auger 14″ (36 cm) Wide Pintle Chain 6″ (15 cm) OD x 9″ (23 cm) Pitch Full Length Auger
Max Feed Rate 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute
Minimum Bed Length 96 in (243.8 cm) 96 in (243.8 cm) 78 in (198 cm) 78 in (198 cm) 66 in (168 cm) 66 in (168 cm)
Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner
Spinner Assembly Easily Removable/Swing Out Easily Removable/Swing Out Easily Removable/Swing Out Easily Removable/Swing Out Easily Removable/Swing Out Easily Removable/Swing Out
Spinner Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor
Spreader Overall Length 124 in / 315 cm 124 in / 315 cm 98 in / 249 cm 98 in / 249 cm 78 in / 198 cm 78 in / 198 cm
Spreading Width 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material
Tie-Down Kit Standard Standard Standard Standard Standard Standard
Top Screen Standard Standard Standard Standard Standard Standard
Trough 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel
Vehicle Application 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 1/2 T 1/2 T
Vibrator Optional Standard (Single Vibrator) Optional Standard (Single Vibrator) Optional Standard (Single Vibrator)
Weight 825 lbs / 374.2 kg 775 lbs / 351.5 kg 750 lbs / 340 kg 700 lbs / 317.5 kg 625 lbs / 284 kg 575 lbs / 261 kg
