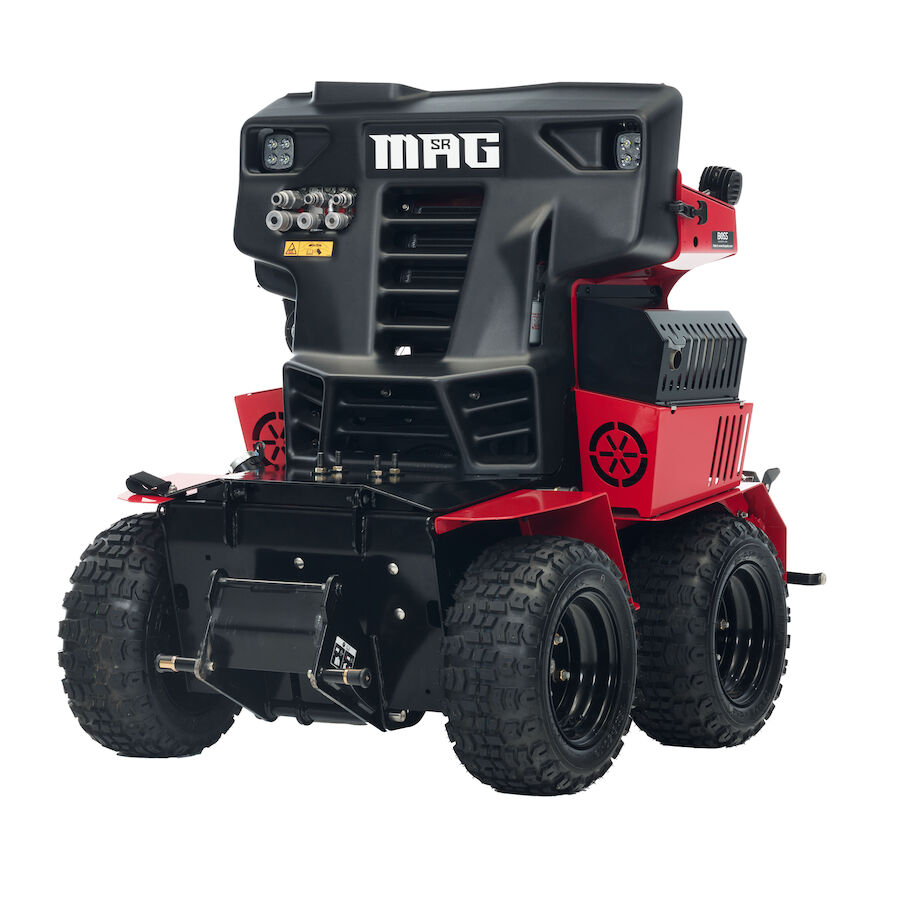

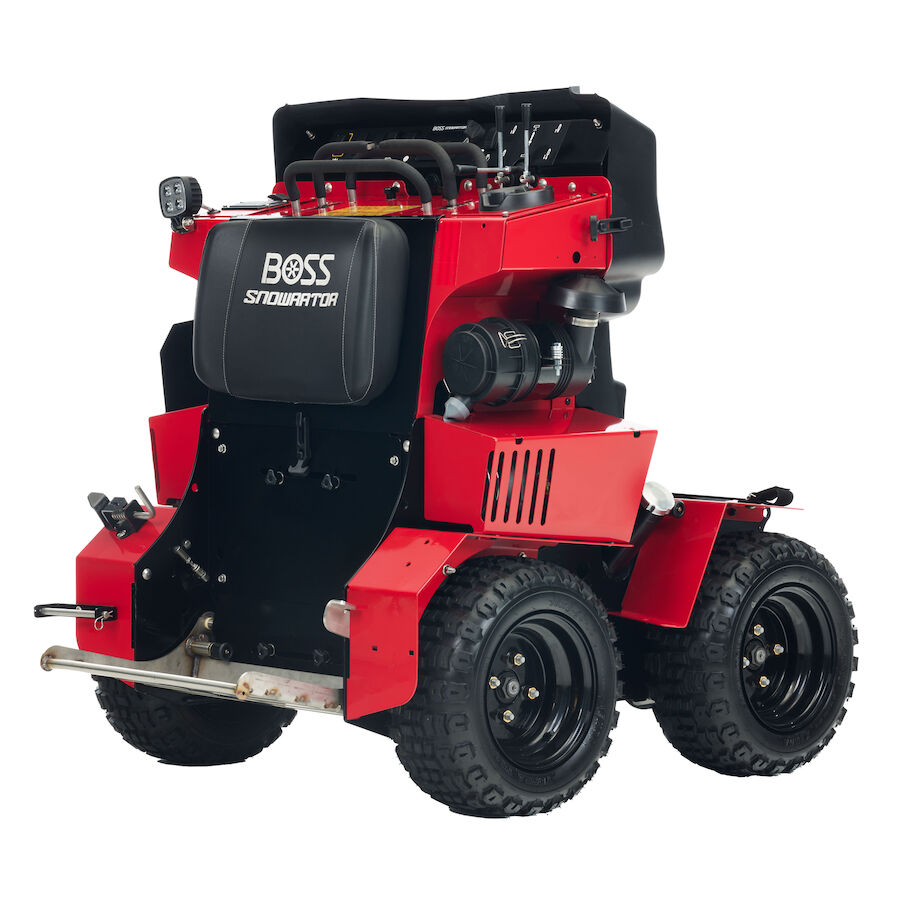

BOSS Snowplow SR MAG

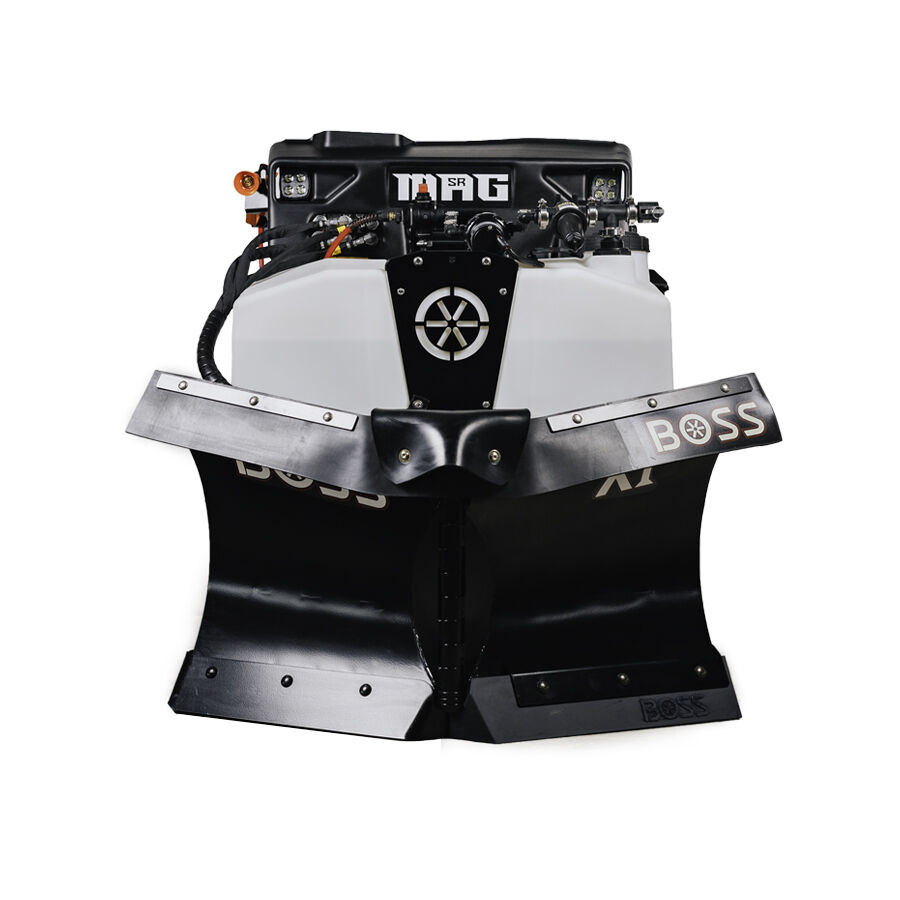

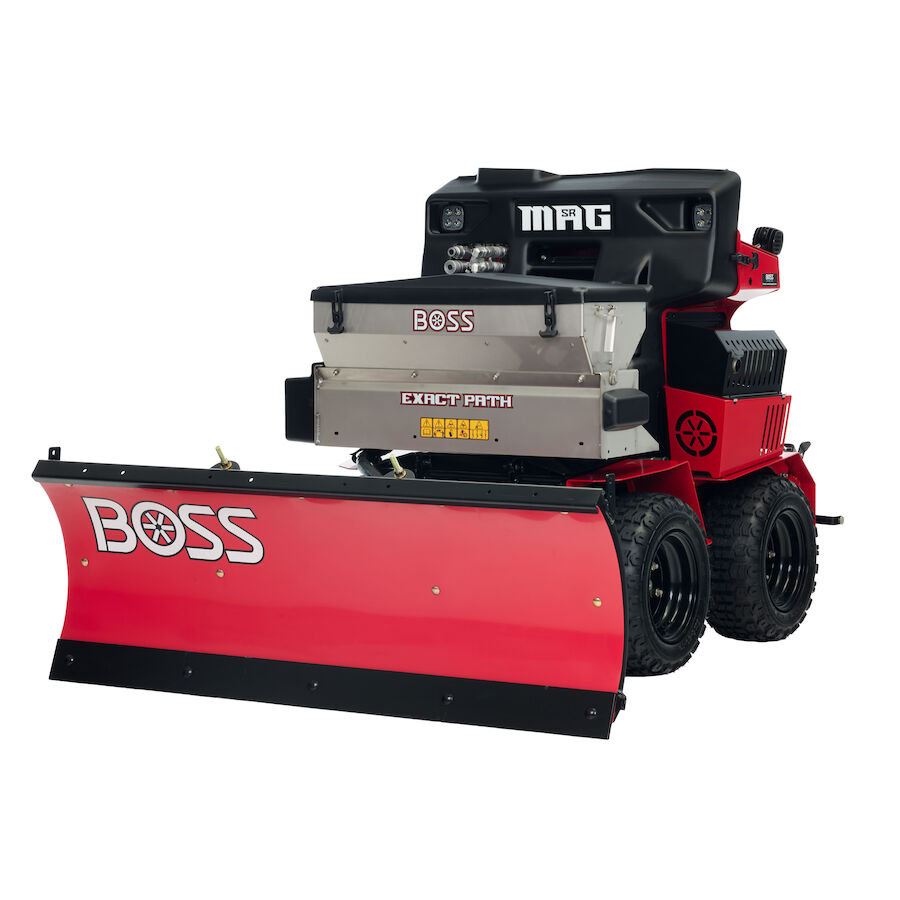

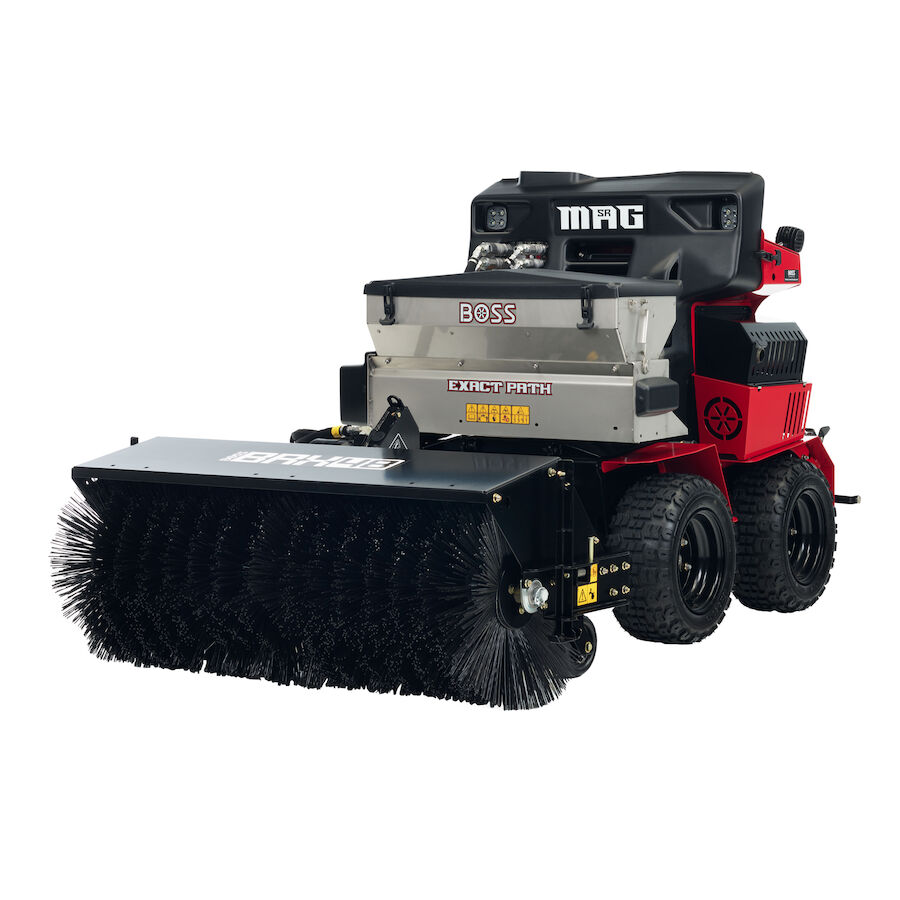

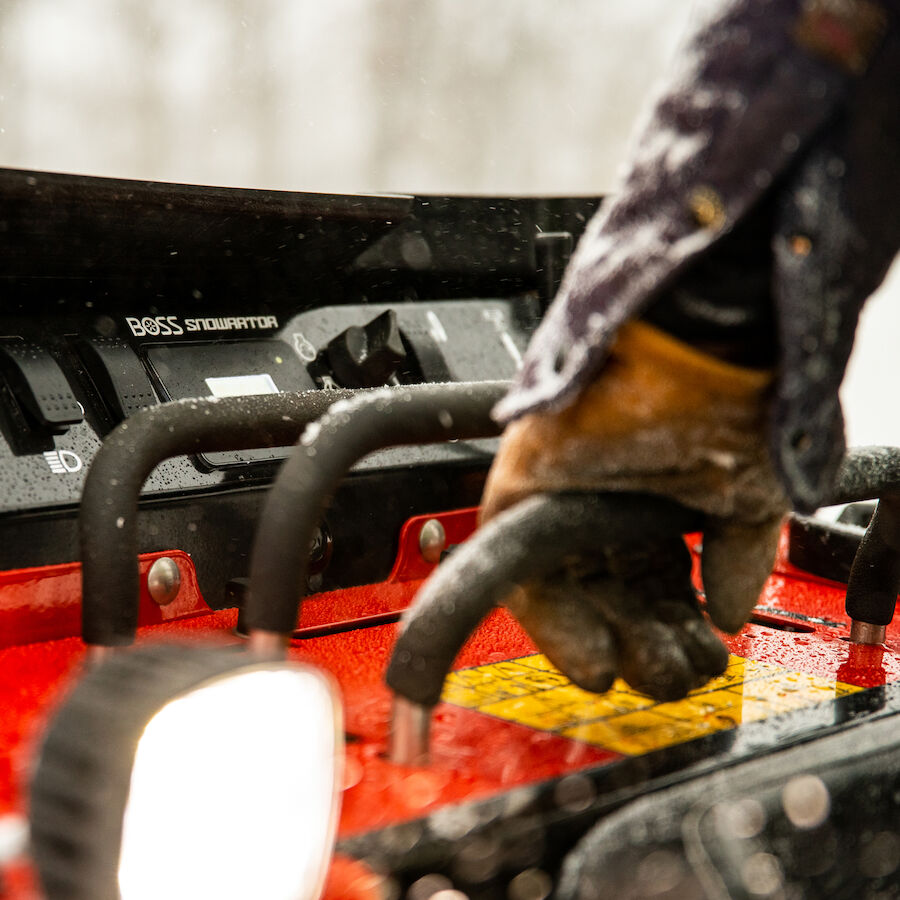

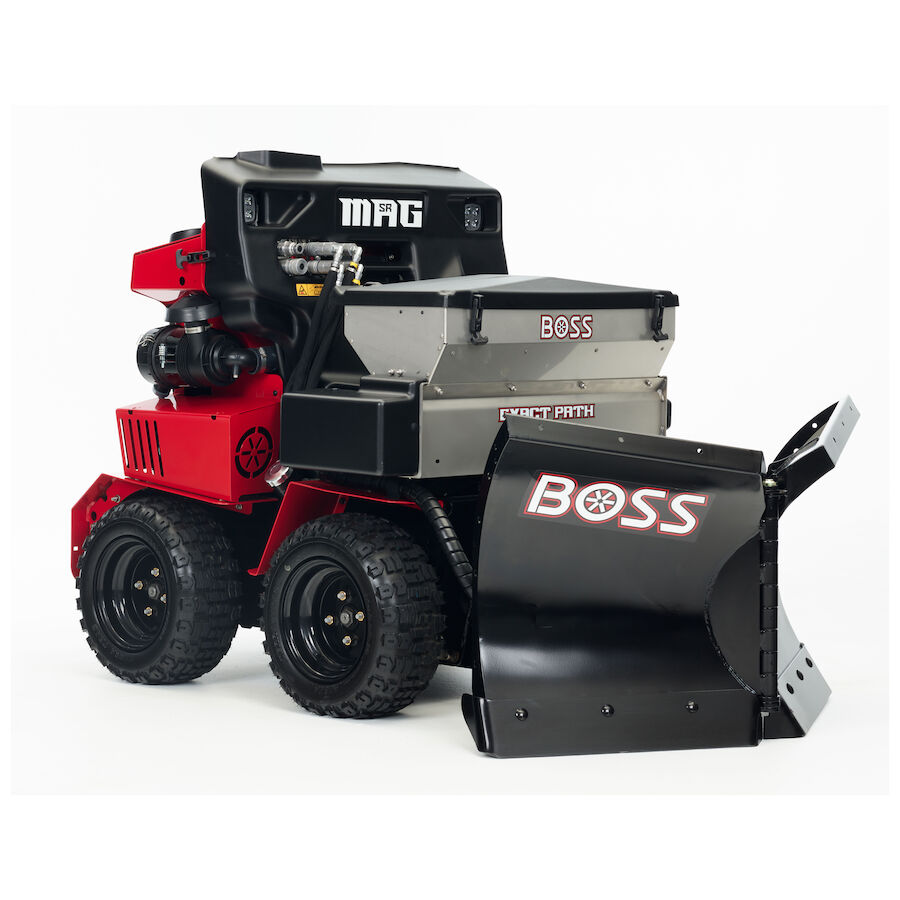

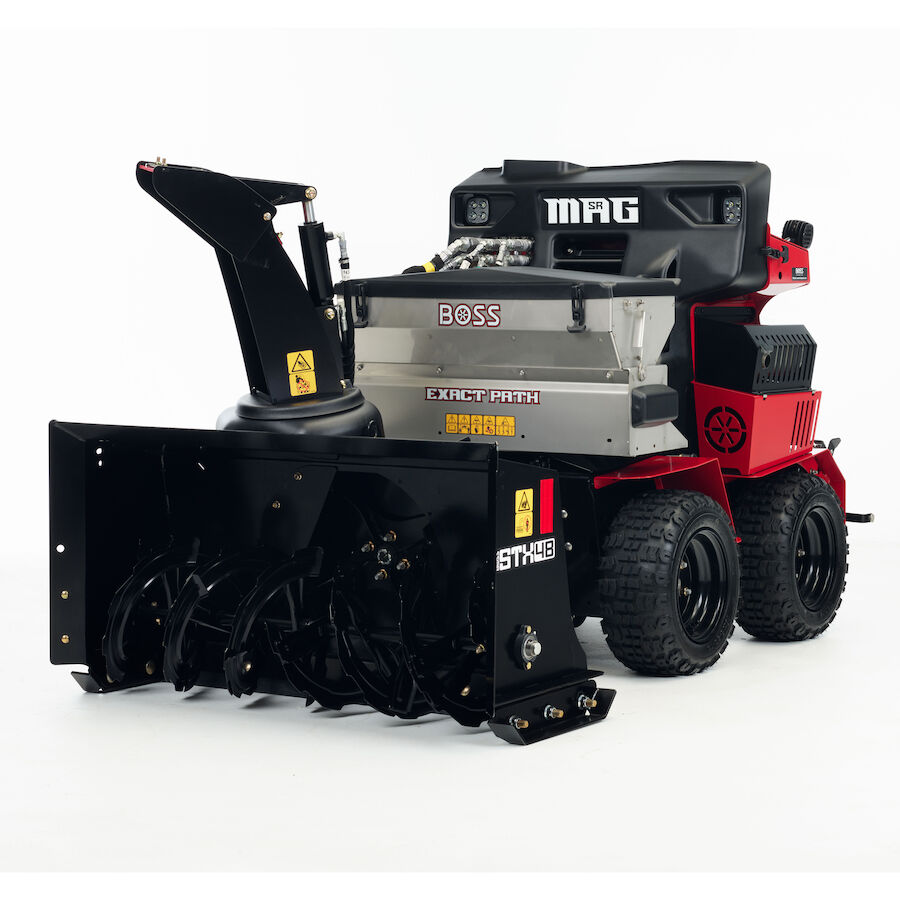

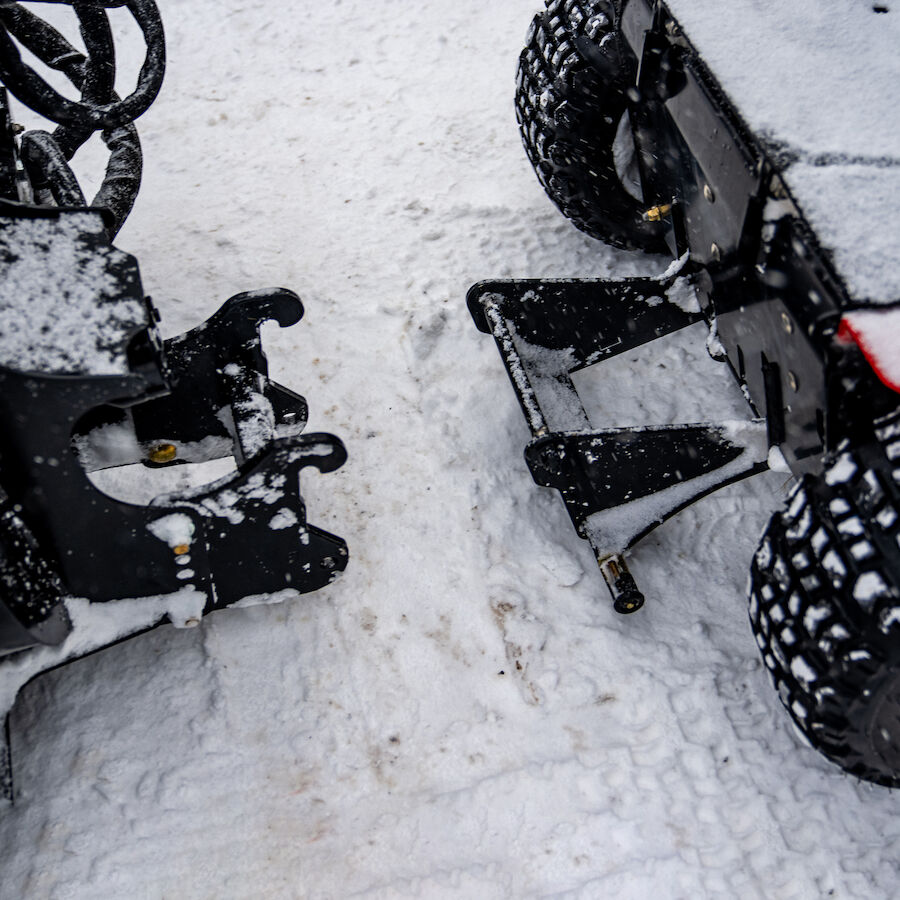

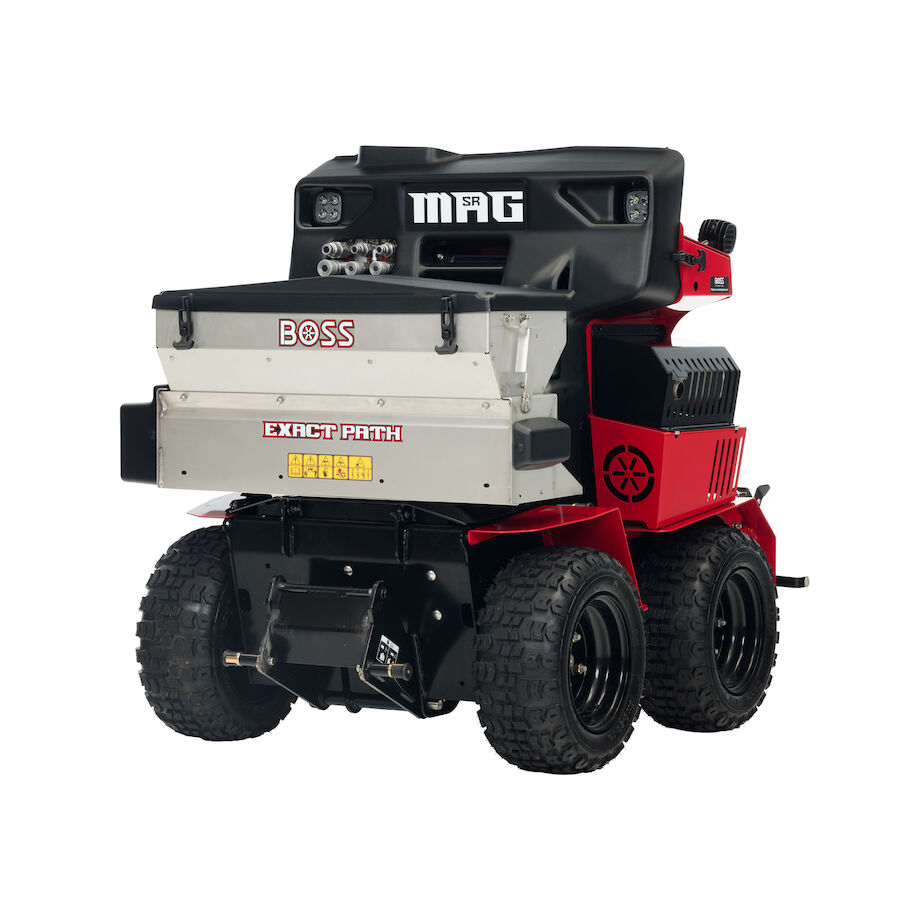

Developed as an entirely new design from the minds at BOSS, the SR MAG has everything contractors need to dominate the snow and ice. The SR MAG is fueled by a turnkey, electronic fuel-injected engine with 747 cc displacement. The electronic throttle body senses, reacts and optimizes power to ensure that the SR MAG can perform in even the heaviest snowfalls. The electronic throttle body makes operating the SR MAG easier with smooth acceleration and deceleration. The SR MAG body is designed to direct engine-heated air toward the operator’s hands and body – while protecting parts and system components from the elements. Its chassis is crafted of stainless steel and its battery is optimized for winter weather, delivering 690 cold cranking amps, so you never have to worry about getting started. The SR MAG also features the ability to add an arsenal of new attachments, expertly crafted to handle any snow or ice-related issue including a v-plow, straight-blade, snow thrower (STX48), broom (BRX48), broadcast spreader (TGS85 and drop spreader (Exact Path). Utilizing BOSS’s proven quick attachment technology, switching from one attachment to another can be done in a matter of seconds. And with 25 degrees of upward lift capability, the SR MAG can navigate curbs and bumps with ease.

Specifications SR MAG
12-Volt Charging Port Yes
4X4 Yes
Approach Angle 47 deg
Available Attachments 4 ft. Straight Blade
5 ft. Straight Blade
BRX48 – 48 in. Broom
Bucket Mount
Exact Path 1.5
STX48 – 48 in. Snow Thrower
TGS85
V-XT
Battery Cold Cranking Amps 690 amps
Break-Over Angle 57.6 deg
Charging System 50 Amps
Chassis Stainless Steel
Cooling System Air Cooled
Cup Holder Yes
Departure Angle 28.72 deg
Down Pressure Angle 17.5 deg
Electric Start Yes
Electronic Throttle Body Yes
Engine Displacement (cc) 747 cc
Engine Manufacturer Kohler
Engine Type EFI
Foldable Operator Platform Yes
Front Lights 2 Standard
Fuel Gasoline
Fuel Capacity 8 gal. / 30.2 L / 32 Qt.
Ground Clearance 6 in / 15.24 cm
Height 52 in / 132.08 cm
High-Flow Hydraulics Yes
High-Flow Hydraulics (QDC) Yes
High-Flow Relief Pressure 2700 psi
Keyed Power Yes
Length 60 in / 152.4 cm
Lift Height Angle 25 deg
Low-Flow Circuits 2
Low-Flow Hydraulics (QDC) Yes
Low-Flow Rate 2.4 gpm
Lumens Per Light 1200
Lumens Total 3600
On-Board Diagnostics Yes
Operator Warming Functionality Yes
Rear Lights 1 Standard
Removable Attachments Yes
Speed Forward 8 mph
Speed Reverse 5 mph
Tires 18″ x 8.5″ x 10″
Turning Radius Zero Turn
Type Skid Steer
Warranty 3-Year Limited
Weight 1,046 lbs / 474.45 kg
Wheelbase 26.5 in / 67.31 cm
Width 39.25 in / 99.67 cm
