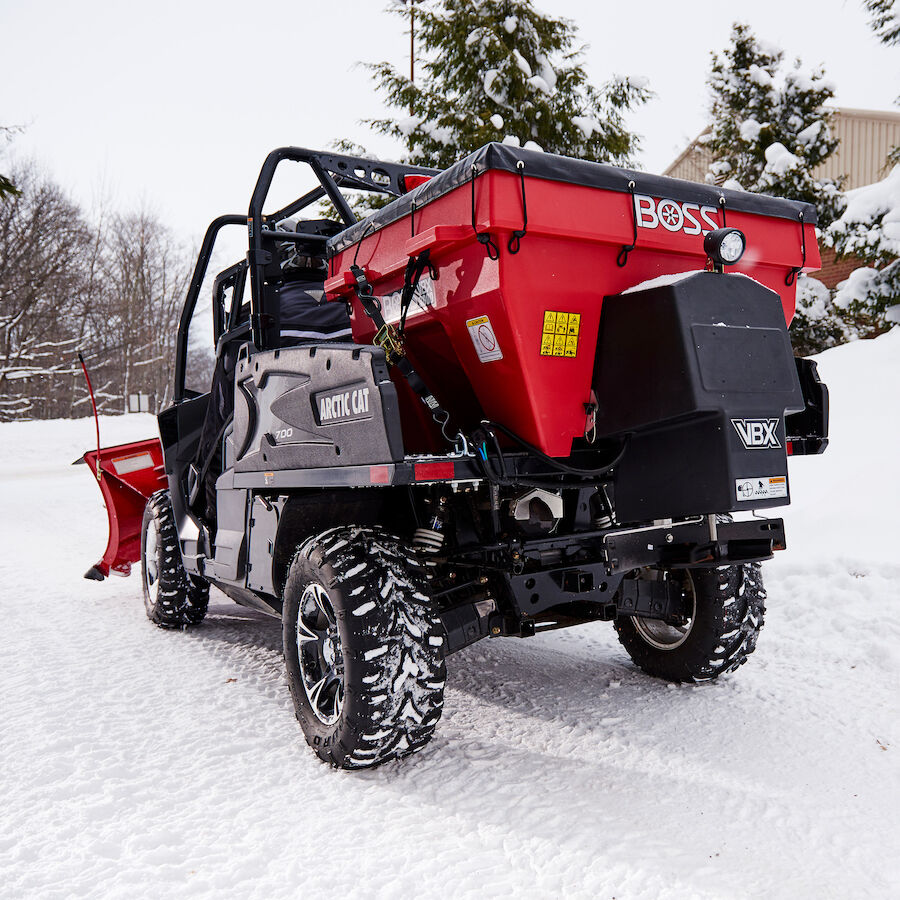

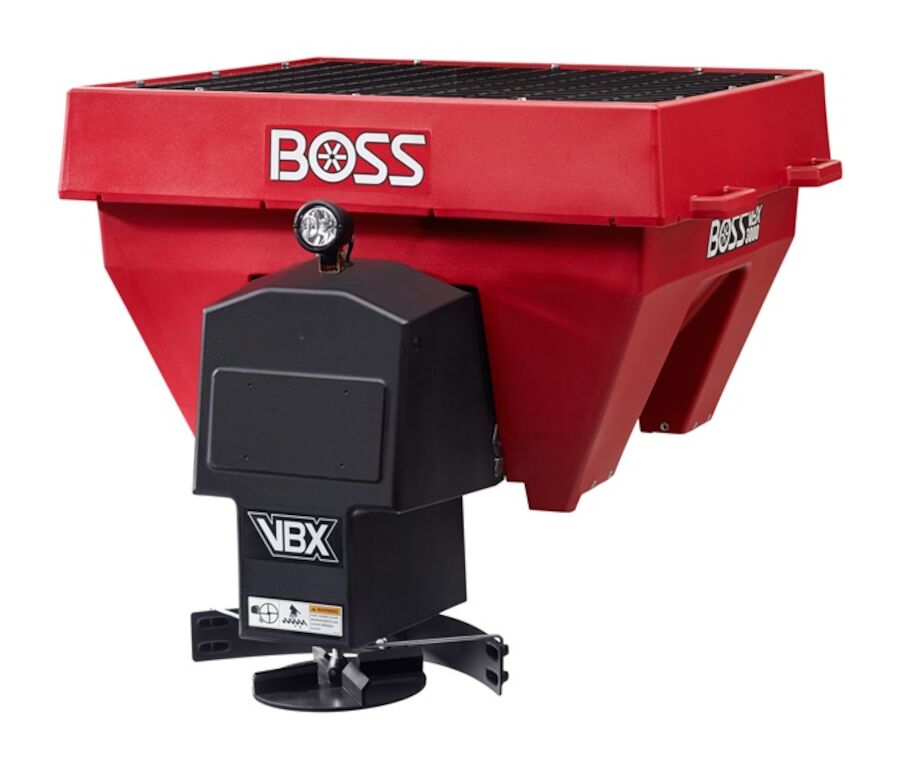

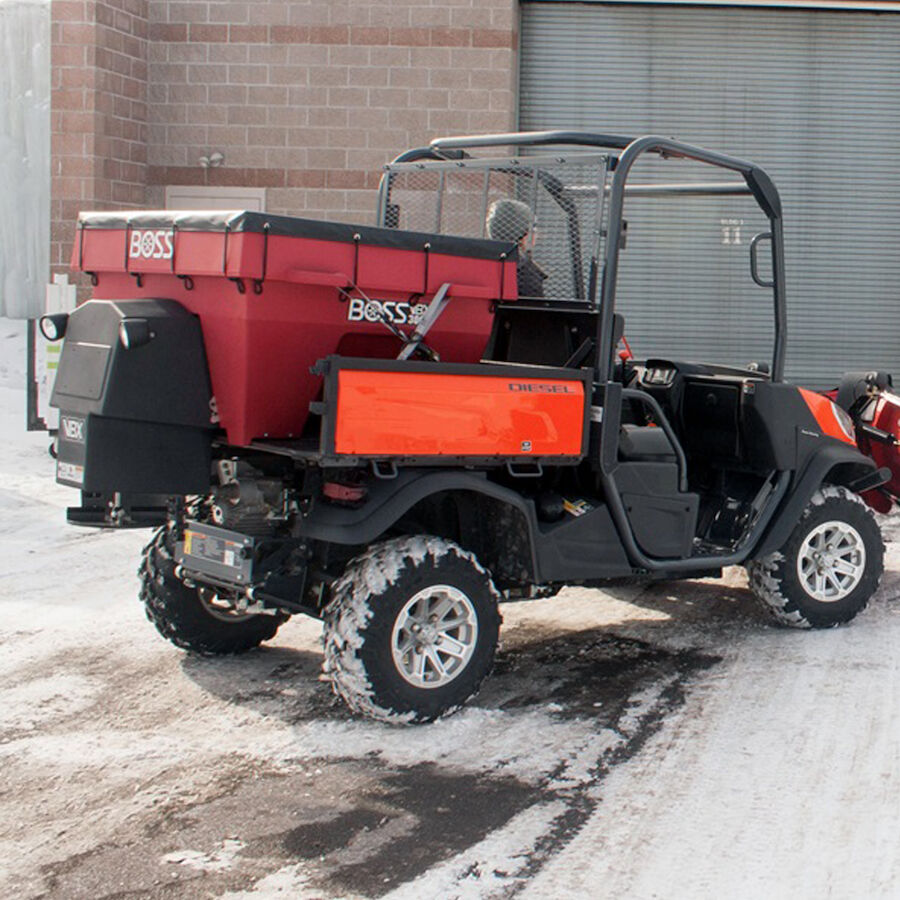

The VBX 3000 spreader brings the power and efficiency of the truck VBX spreader line to your compact vehicle or UTV. It’s fully featured for ease of use and delivers maximum productivity. Tough and durable, the BOSS VBX 3000 will give you years of operation no matter the conditions. So when you need the power and precision fo a BOSS VBX spreader on your compact equipment, the BOSS VBX 3000 is there to BACK YOU UP.

SKU: stinger-VBS19300B Category: Brand:

Specs

Specifications VBX 9000 Pintle VBX 9000 Auger VBX 8000 Pintle VBX 8000 Auger VBX 6500 Pintle VBX 6500 Auger VBX 3000 Auger
Capacity cubic yd 3 / cubic m 2.3 cubic yd 3 / cubic m 2.3 cubic yd 2 / cubic m 1.53 cubic yd 2 / cubic m 1.53 cubic yd 1.5 / cubic m 1.15 cubic yd 1.5 / cubic m 1.15 cubic yd .44 / cubic m .33
Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control
Deflector Standard Standard Standard Standard Standard Standard Standard
Display Type LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller Dual Variable Speed LED Digital Controller
Feed Mechanism Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Auger
Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 1/4 HP Feed Motor
Gearbox Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Worm 40:1
Hopper Construction 3/16″ (0.5 cm) Double Wall Polyethylene Hopper 3/16″ (0.5 cm) Double Wall Polyethylene Hopper 3/16″ (0.5 cm) Double Wall Polyethylene Hopper 3/16″ (0.5 cm) Double Wall Polyethylene Hopper 3/16″ (0.5 cm) Double Wall Polyethylene Hopper 3/16″ (0.5 cm) Double Wall Polyethylene Hopper 3/16″ (0.5 cm) Double Wall Polyethylene Hopper
Hopper Cover VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs
Hopper Height 49 in / 124.46 cm 49 in / 124.46 cm 38 in / 96.52 cm 38 in / 96.52 cm 38 in / 96.52 cm 38 in / 96.52 cm 28 in / 71.1 cm
Hopper Length 107 in / 272 cm 107 in / 272 cm 96 in / 244 cm 96 in / 244 cm 78 in / 198 cm 78 in / 198 cm 33.5 in / 85 cm
Hopper Width 48 in / 121.92 cm 48 in / 121.92 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 50 in / 127.00 cm
Inverted V-Baffle Optional Standard Optional Standard Optional Standard Standard
LED CHSML Standard Standard Standard Standard Standard Standard N/A
Lighting Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Single 55 watt halogen (Standard), single LED work light (optional)
Material Conveying Method 14″ (36 cm) Wide Pintle Chain 6″ (15 cm) OD x 9″ (23 cm) Pitch Full Length Auger 14″ (36 cm) Wide Pintle Chain 6″ (15 cm) OD x 9″ (23 cm) Pitch Full Length Auger 14″ (36 cm) Wide Pintle Chain 6″ (15 cm) OD x 9″ (23 cm) Pitch Full Length Auger Shaftless Auger 4″ OD (10 cm) x 4″ (10 cm) Pitch
Max Feed Rate 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 0.8 cu ft (0.02 cu m) per minute
Minimum Bed Length 96 in (243.8 cm) 96 in (243.8 cm) 78 in (198 cm) 78 in (198 cm) 66 in (168 cm) 66 in (168 cm) 33.5 in (85 cm)*
Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 12 in (31 cm) Diameter Poly Spinner
Spinner Assembly Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable
Spinner Gearmotor 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner)
Spreader Overall Length 122 in / 309 cm 122 in / 309 cm 115 in / 292 cm 115 in / 292 cm 93.5 in / 237 cm 93.5 in / 237 cm 52 in / 132 cm
Spreading Width 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material 2 ft – 40 ft (0.6 m – 12 m) Dry free-flowing material
Tie-Down Kit Standard Standard Standard Standard Standard Standard Standard
Top Screen Standard Standard Standard Standard Standard Standard Standard
Trough 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 14 ga. Stainless Steel
Vehicle Application 15,000+ GVWR 15,000+ GVWR 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 1,000 Bed Capacity
Vibrator Optional Standard (Dual Vibrator) Optional Standard (Dual Vibrator) Optional Standard (Dual Vibrator) Standard (Single Vibrator)
Weight 760 lbs / 345 kg 710 lbs / 322 kg 650 lbs / 295 kg 600 lbs / 272 kg 600 lbs / 272 kg 550 lbs / 249 kg 230 lbs / 104 kg
