Specs
|

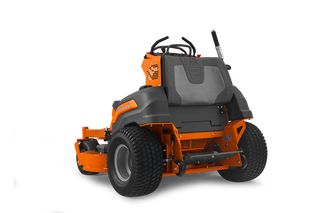

V548 ZERO TURN 2023 V548 SKU: 970 65 91‑01 |
|
|---|---|
| Cutting System |
V548 ZERO TURN 2023 V548
SKU: 970 65 91‑01
|
Cutting width |
48 in |
Cutting deck type |
7-gauge fabricated |
Cutting methods |
Collect/Mulch/Side discharge |
Cutting deck material |
Steel |
Deck thickness |
7 gauge |
Cutting height steps |
14 |
Blade engagement |
Electric clutch |
Blades |
3 pcs |
Anti-scalp wheels |
3 |
Nose roller |
No |
Deck lifting system |
Manual, hand operated |
Cutting deck surface treatment |
Powder coated |
Spindle/mandrel type |
Aluminium, commercial |
Greasable mandrels |
Yes |
Deck Wash Port |
No |
| Approval | |
Homeowner Warranty |
5 Years or 1,500 Hours (whichever occurs first) |
Commercial Warranty |
5 Years or 1,500 Hours (whichever occurs first) |
| Capacity | |
Productivity |
3.7 acres/hr |
Speed forward max |
10 mph |
Speed forward min |
0 mph |
| Dimensions | |
Base machine, height |
48 in |
Base machine, length |
57 in |
Base machine, width (chute down) |
62 in |
Base machine, width (chute up) |
50 in |
Weight |
1,140 lbs |
| Drive system | |
Transmission type |
Pump/Wheel motor |
Transmission manufacturer |
Parker |
Transmission model |
HP1/DL |
Pump displacement |
12 cm³ |
Fan-cooled pumps |
Yes |
| Engine | |
Engine brand |
Kawasaki |
Motor/engine manufacturer |
Kawasaki |
Engine Power (As rated by the engine manufacturer) |
24.5 hp |
Engine name |
FX Series V-Twin |
Cylinder displacement |
52 cu.inch |
Cylinders |
2 |
Engine cooling |
Air |
Air filter type |
Heavy-Duty Canister Style |
Power/fuel type |
Gasoline |
Engine lubrication type |
Pressure |
Oil filter |
Yes |
Fuel tank volume (with reserve) |
7 gal (US) |
Fuel tank location |
Side (Single) |
| Equipment | |
Seat material |
Vinyl |
Seat back height |
Low |
Hour meter type |
Yes |
Cup holder |
Yes |
Seat type |
Standard |
