Specs
|
Z345 ZERO TURN Z345 54″ (Kohler) – No Electronics SKU: 970 74 38‑01 |
|
|---|---|
| Capacity |

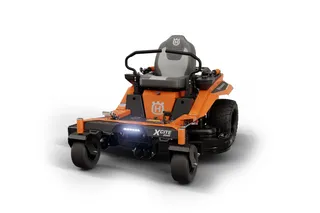

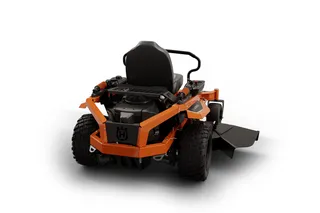

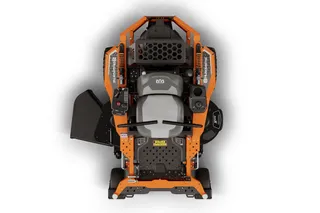

Z345 ZERO TURN Z345 54″ (Kohler) – No Electronics
SKU: 970 74 38‑01
|
Cutting width |
54 in |
Speed forward min |
0 mph |
Speed forward max |
8 mph |
| Emission | |
Exhaust emissions (CO₂ EU V)2 |
852 g/kWh |
| Cutting deck | |
Cutting Methods (filter) |
Collecting, Mulching, Side discharge |
Cutting methods |
Collect/Mulch/Side discharge |
Deck thickness |
10 gauge |
Deck Wash Port |
Yes |
Greasable mandrels |
No |
Nose roller |
Yes |
Cutting deck surface treatment |
Powder coated |
Spindle/mandrel type |
Cast iron |
Deck lifting system |
Manual, foot assisted |
Cutting height steps |
12 |
Cutting deck type |
10-gauge fabricated |
Anti-scalp wheels |
4 |
Blade engagement |
Electric |
Blades |
3 pcs |
Cutting deck material |
Steel |
Cutting height, min (approximate) |
1.5 in |
Cutting height, max (approximate) |
4.5 in |
| Dimensions | |
Weight |
794 lbs |
Base machine, height (ROPS down) |
46 in |
Base machine, height (ROPS up) |
46 in |
Base machine, height |
46 in |
Base machine, length |
78.75 in |
Base machine, width (chute down) |
68 in |
Base machine, width (chute up) |
53.9 in |
| Drive system | |
Transmission manufacturer |
Tuff Torq |
Transmission type |
Hydrostatic |
| Engine | |
Engine name |
7000 Series |
Engine brand |
Kohler |
Engine Power (As rated by the engine manufacturer)1 |
24 hp |
Cylinder displacement |
44.2 cu.inch |
Air filter type |
Heavy-Duty Canister Style |
Cylinders |
2 |
Engine cooling |
Air |
Engine lubrication type |
Full pressure with oil filter |
Fuel tank location |
Mid |
Fuel tank volume (with reserve) |
4.31 gal (US) |
Motor/engine manufacturer |
Kohler |
Oil filter |
Yes |
| Equipment | |

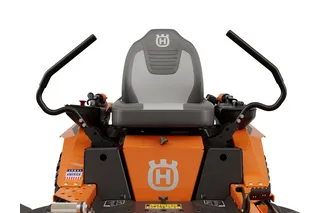

Seat type |
18″ high back |
Cup holder |
Yes |
Hinged armrests |
Optional |
Hour meter type |
Digital with pre-programmed service intervals |
ROPS |
No |
Seat back height |
High |
Seat material |
Vinyl |
| Control | |
Connectivity |
Not applicable |
