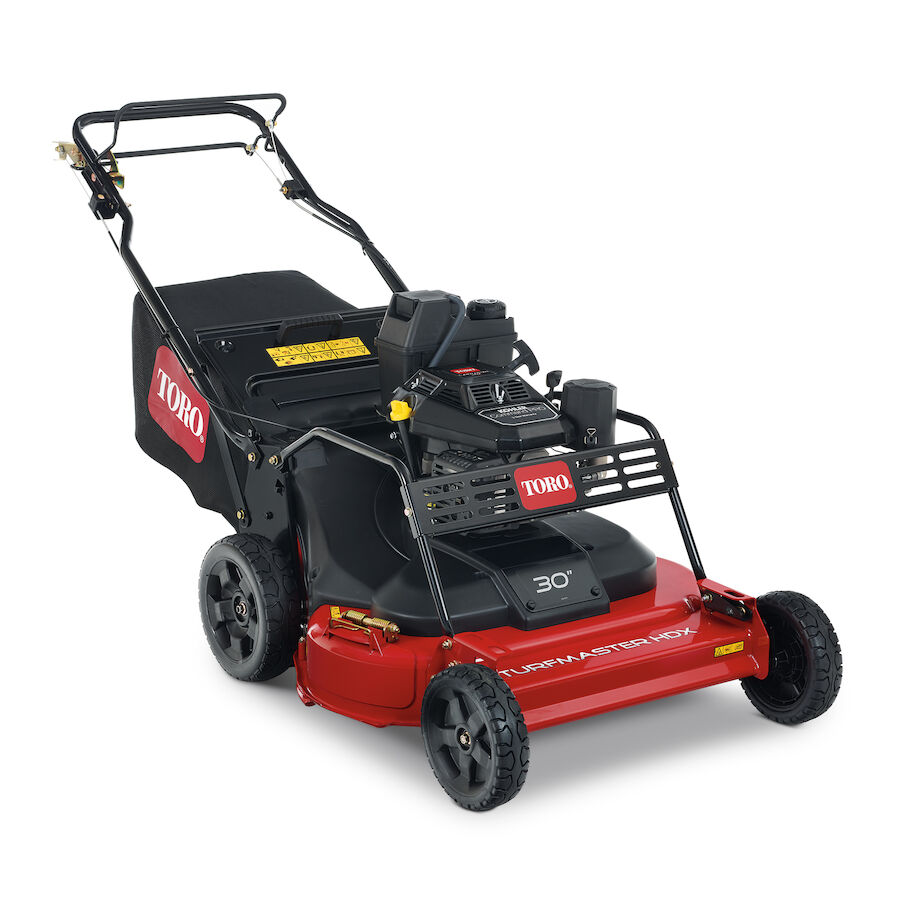

Toro 30 in. (76 cm) TurfMaster® HDX (22235)

Made to Last – 13-gauge steel deck and heavy-duty components.
Reduced Refills – Less time refueling with the 1-gallon gas tank.
Toro Tough – Rubber tires with co-polymer wheels and ball bearings.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Bagger Capacity	2.5 bushels
Blade Design	0.135 in. / 0.343 cm Thick Steel
Blade Engagement	Blade Brake Clutch (BBC)
Blade Tip Speed	18,000 ft/min / 5,486 m/min
Box Dimensions	41.75 in x 33 in x 26 in / 106.0 cm x 83.8 cm x 66.0 cm
CARB Compliant	CARB Compliant
Deck Material	13 Gauge Steel Deck / Cast Aluminum Frame
Deck Size	30 in / 76 cm
Engine	Kohler CV224 Command Pro 224 cc
Engine Brand	Kohler
Engine Displacement (cc)	224 cc
Forward Mowing Speed	Up to 4.0 mph / 6.4 kph
Fuel Capacity	1 gal. / 3.8 L / 4 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 – 5.0 in. / 3.8 – 12.7 cm in 0.50 in (1.3 cm) increments
Mulch, Bag, Side Discharge	Bag standard, Mulch standard, Side discharge standard
Number of Blades	2
Product Type	Walk Behind Mowers
Product Use	Commercial
Spindle Housing	Die Cast Spindle, 17 mm Cold Formed Spindle Shafts
Start Type	Pull Cord
Tires	Front: 9 in. x 2 in. (22.8 cm x 5.0 cm) Rubber Tire w/Co-Polymer Wheels Rear: 10.5 in. x 3 in. (26.6 cm x 7.6 cm) Rubber Tire w/Co-Polymer Wheels
Transmission	Heavy Duty Variable Speed Rear Wheel Drive
Weight	187 lbs / 84.2 kg
