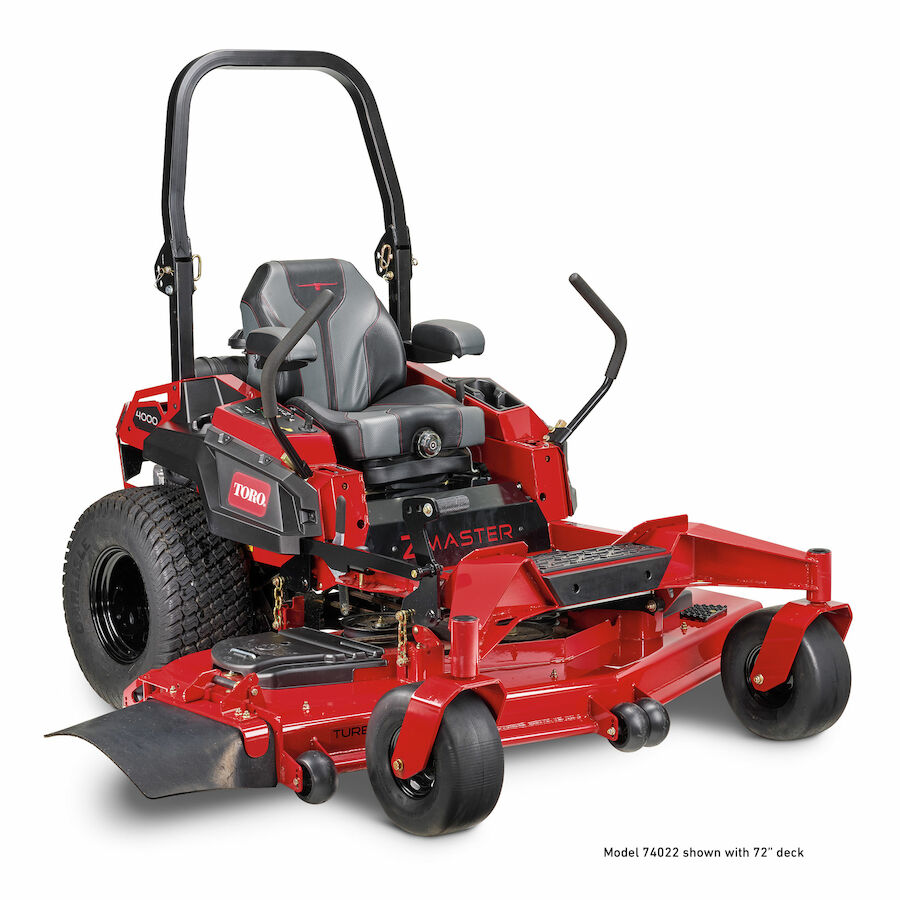

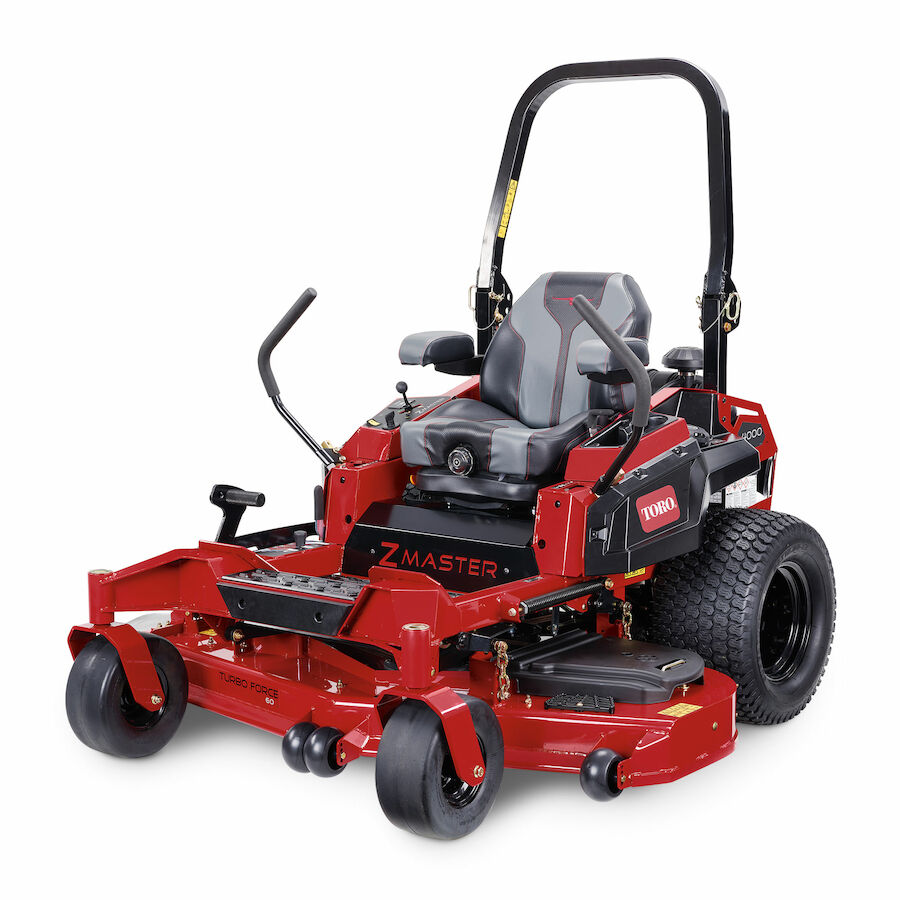

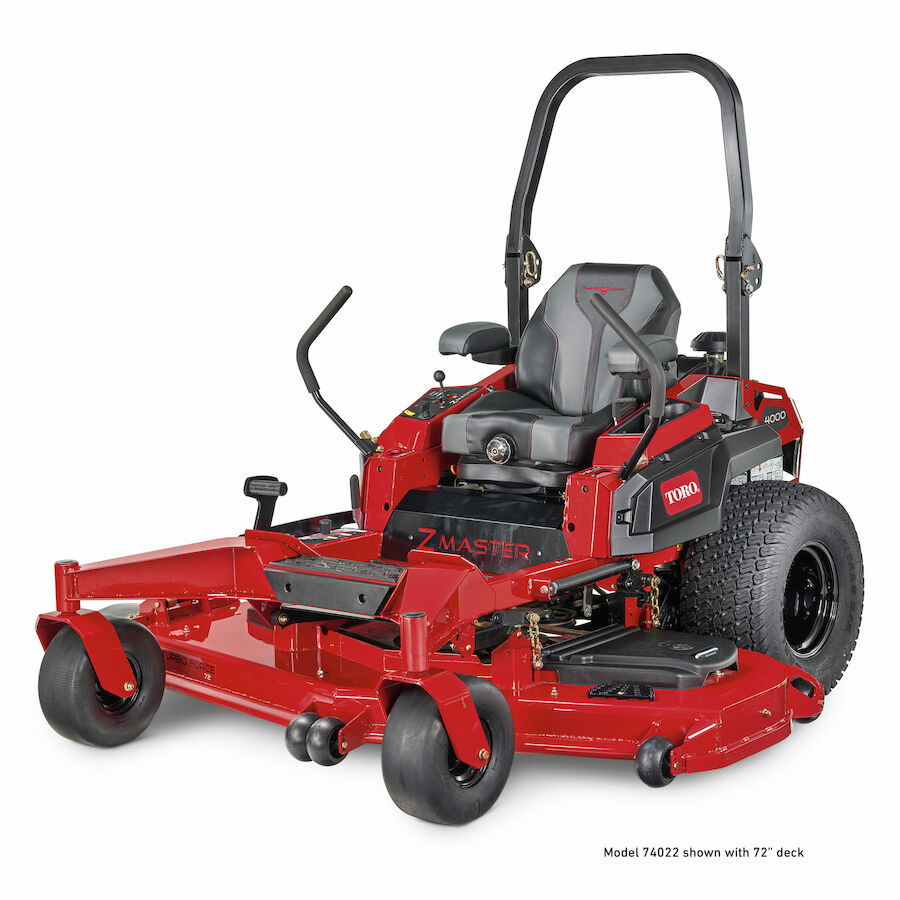

Toro 4000 Series HDX Pro XL 60 in. (152 cm) 35 hp 999cc (74020)

  • Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
  • Easy on and off with a step-through front end, deck step plate, and anti-slip floormat.
  • Keep your phone and drink at arm’s reach.
  • Keep tabs on time and keep devices powered up with the hour meter and USB ports.
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Blades 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions 90.5 in. x 70.25 in. x 52 in. / 229.9 cm x 178.6 cm x 132 cm
CARB Compliant Not CARB Compliant
Caster Tires 15 in. x 6.5 in. – 6 in. (38.1 cm x 16.5 cm – 15.2 cm) Flat-Free Semi-Pneumatic
Clutch Electromagnetic
Deck Design 60″ (152.4 cm) 7-Gauge High-Strength Steel TURBO FORCE®
Deck Size 60 in / 152 cm
Discharge Chute Rubber
Drive Tires Carlisle Multi Trac 26 in. x 12 in. – 12 in. (66 cm x 30.5 cm – 30.5 cm)
Engine 35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
Engine Brand Kawasaki
Engine Displacement (cc) 999 cc
Engine Horsepower 35 hp
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 12.0 mph / 19.3 kph
Fuel Capacity 10 gal. / 37.8 L / 40 Qt.
Fuel Type Gasoline
Height of Cut 1.5 – 5.5 in. / 3.8 – 14.0 cm in 0.25 in (0.6 cm) increments
Hour Meter Standard
Product Type Zero Turn Mowers
Roll-Over Protection System (ROPS) Folding; Standard
Seat Handcrafted Deluxe Suspension Seat with Arm Rests
Spindle Bearings Maintenance-free
Spindle Housing 9 in / 2.9 cm Diameter Aluminum
Start Type Electric
Steering Controls 1.4″ (3.6 cm) Diameter Grips; Adjustable, Dampened
Transmission ZT-5400 Integrated Pumps and Wheel Motors
Weight 1,285 lbs / 582.9 kg
