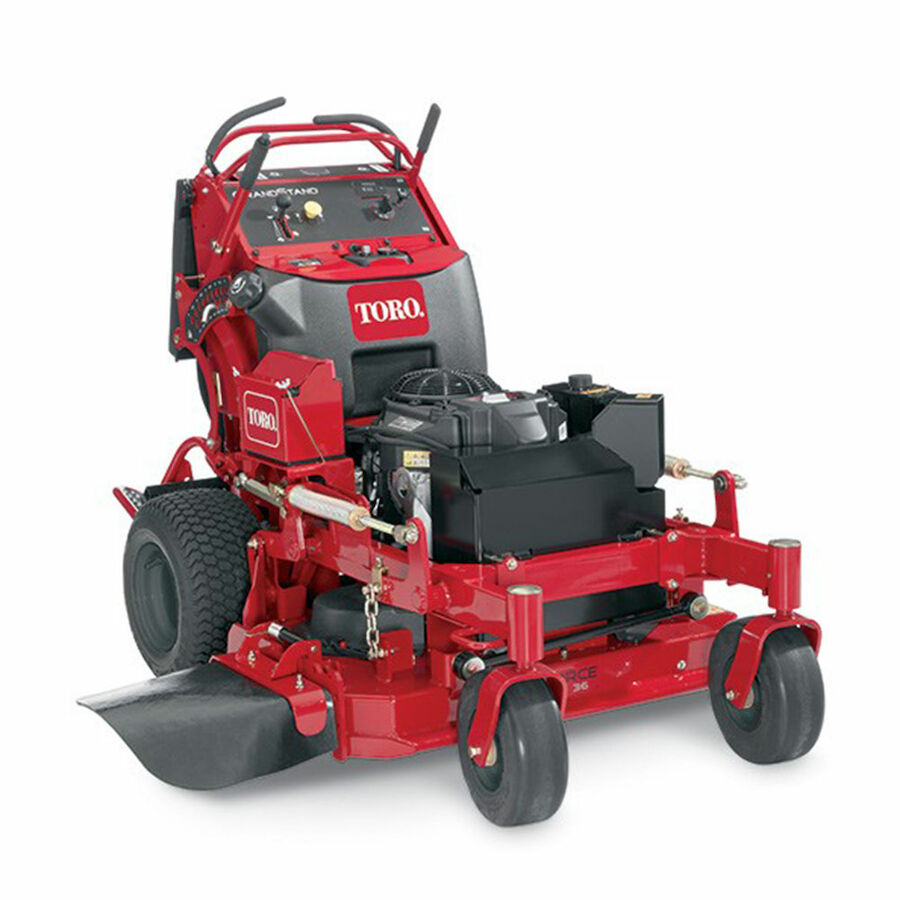

Toro GrandStand® 36 in. (91 cm) 15 hp 541cc (74534)

Foldable operator platform instantly converts the machine to a walk-behind.
Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.
Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

SKU: toro-74534 Category: GrandStand Brand: Toro

Specs

Adjustable Discharge Baffle	Standard
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Blades	0.204 in. (0.5 cm) heat-treated steel
Box Dimensions	77.25 in. x 49 in. x 52 in. x 196.2 cm x 124.5 cm x 132.1 cm
CARB Compliant	Not CARB Compliant
Carrier Frame	3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
Caster Tires	11 in. x 4 in. – 5 in. (28 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic
Clutch	Electromagnetic
Comfort Platform	Foldable Operator Platform with Suspension
Controls	Twin lever
Deck Design	7-gauge 36″ (91 cm) TURBO FORCE® with bull-nose bumper
Deck Material	7 Gauge Steel
Deck Size	36 in / 91 cm
Discharge Chute	Rubber
Drive System	Pumps 10cc rev Wheel Motors 10 cir
Drive Tires	18 in. x 8.5 in. – 8 in. (46 cm x 22 cm – 20 cm)
Engine	15 hp* (11kW) Kawasaki® FS541V 603 cc
Engine Brand	Kawasaki
Engine Displacement (cc)	603 cc
Engine Horsepower	15.0 hp
Forward Ground/Transport Speed	Up to 8.0 mph / 12.8 kph
Front Bumper	Reinforced Bull-Nose
Fuel Capacity	7.8 gal. / 29.5 L / 31.2 Qt.
Fuel Type	Gasoline
Height of Cut	1.0 – 5.0 in. / 2.5 – 12.7 cm
Hour Meter	Standard
Hydraulic Fluid	Premium synthetic
Number of Blades	3
Product Type	Stand-On Mowers
Product Use	Commercial
Spindle Bearings	Maintenance-free
Spindle Housing	9.375 in / 23.8 cm Diameter Cast Iron
Start Type	Electric
Steering Controls	Twin Lever
Weight	837 lbs / 379.7 kg
