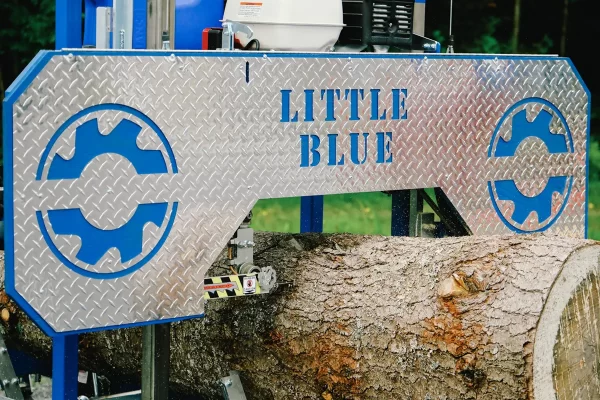

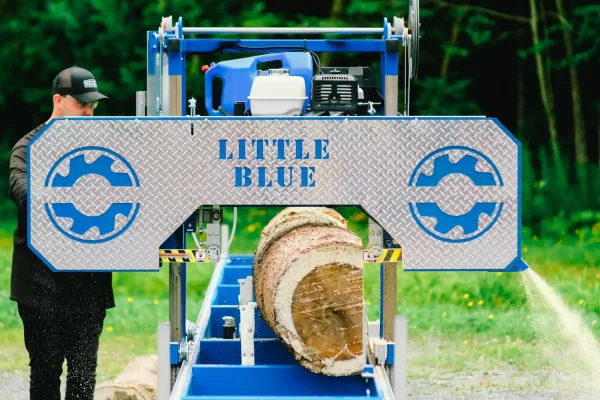

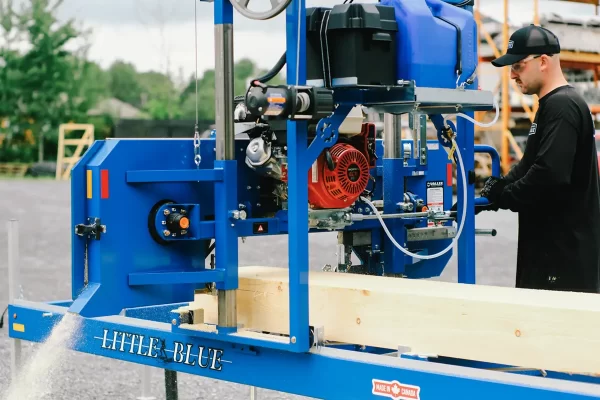

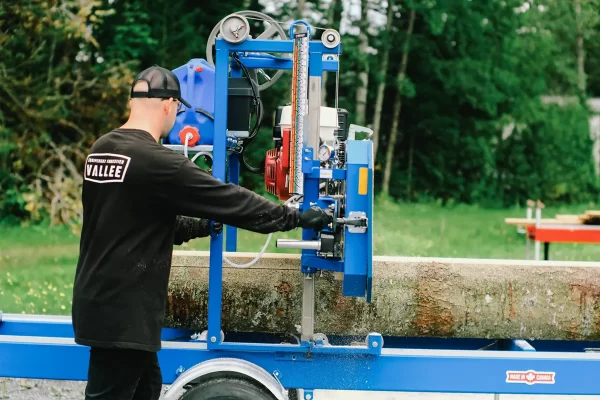

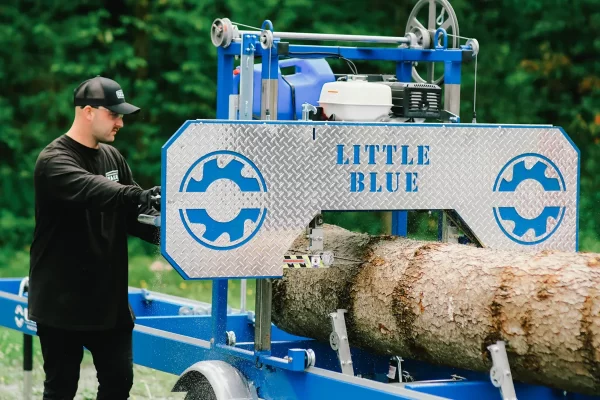

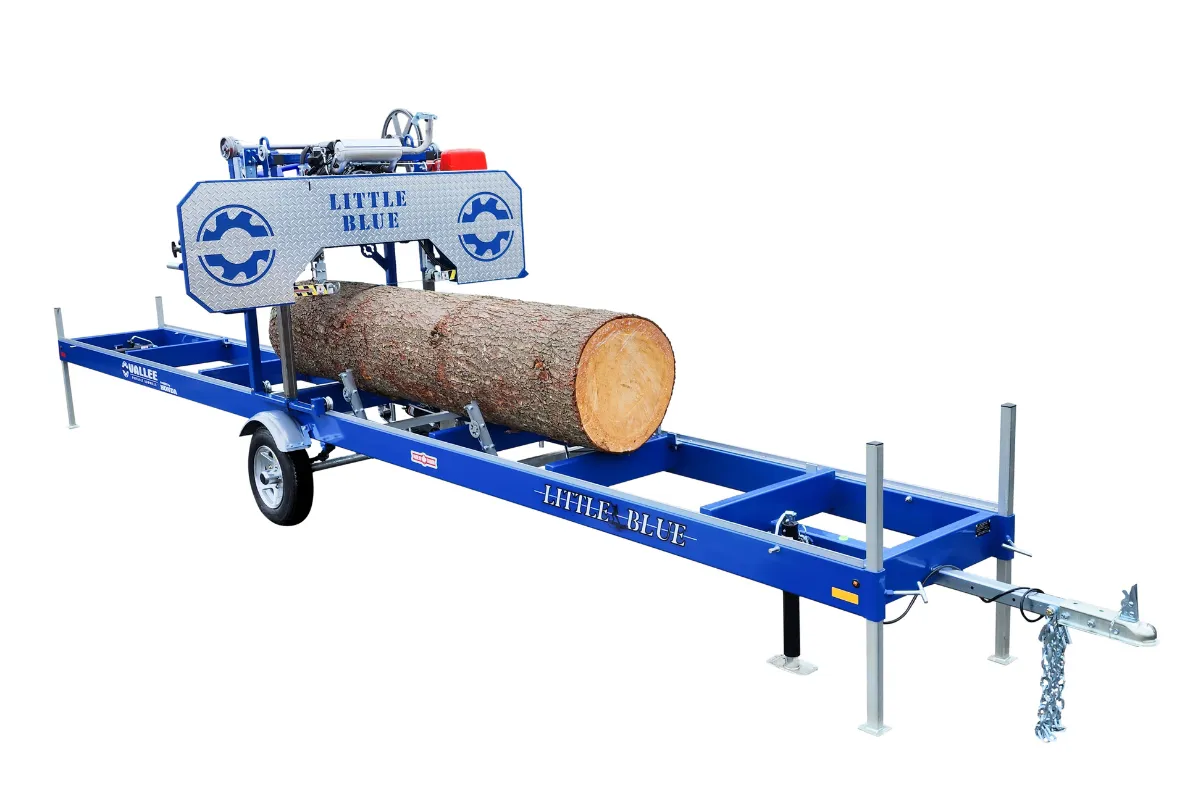

Vallee Forestry Equipment LITTLE BLUE

Engine

• 13 HP Honda GX390 or optional 20 HP Honda GX630
• Electric starter
• 18 amps/200 Watts alternator
• 3-year warranty by the manufacturer

Saw head

• Capacity of 30’’ in diameter
• Maximum board width of 24’’
• Last board cutting capacity ⅞” thick
• Cam lock with pressure gauge blade tensioner
• One piece solid front panel for easy access blade maintenance
• Electric saw head height adjustment with automatic locking system
• High-quality 4000 lb electric winch
• High grade double bearing blade-guide
• Large 7 gallons (26 liters) removable lubrification tank
• Heavy-Duty saw head frame made of welded 2’’x2’’ solid steel tubing
• Large colored lumber scale, details from ¾’’ up to 4’’
• Automatic blade lubricant system
• Automatic blade brake system
• Automatic engine throttle and saw blade engagement
• Blade size of 157 ½’’ x 1 ¼’’  (1 blade included)
• MXV-890 Drive Belt
• B56 Flywheel Belt
• Hydraulic blade tensioner available in option.

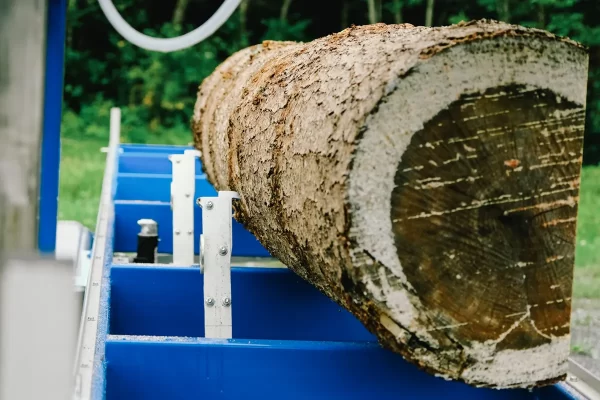

Frame

• Capacity of 17’ maximum board length, onto a 19 ½’ frame or optional 24’ frame (cut 21’)
• Solid steel tubing frame completely welded (no joints)
• 4 tubular frame sizes available
  • 2” x 4” x ⅛”
  • 2” x 4” x³⁄₁₆”
  • 2” x 6” x ⅛”
  • 2” x 6” x³⁄₁₆”
• 2 log clamps
• 2 levelers equipped with casters for easy log rotation
• 3 stopper posts
• Adjustable jacks and stabilizing feet for optimal leveling
• A storage platform for tools
• Frame rollers to facilitate the movement of logs and boards available in option

Towing equipment

• Optional single axle or twin axle road trailer kit
• High-speed wheels and tires
• Wheel fenders
• 2000 lb. suspension and axle
• 2-inch drawbar and 3500-lb. safety chain
• Brake lights and turn signals
• Illuminated license plate bracket
• Frame-integrated wiring
