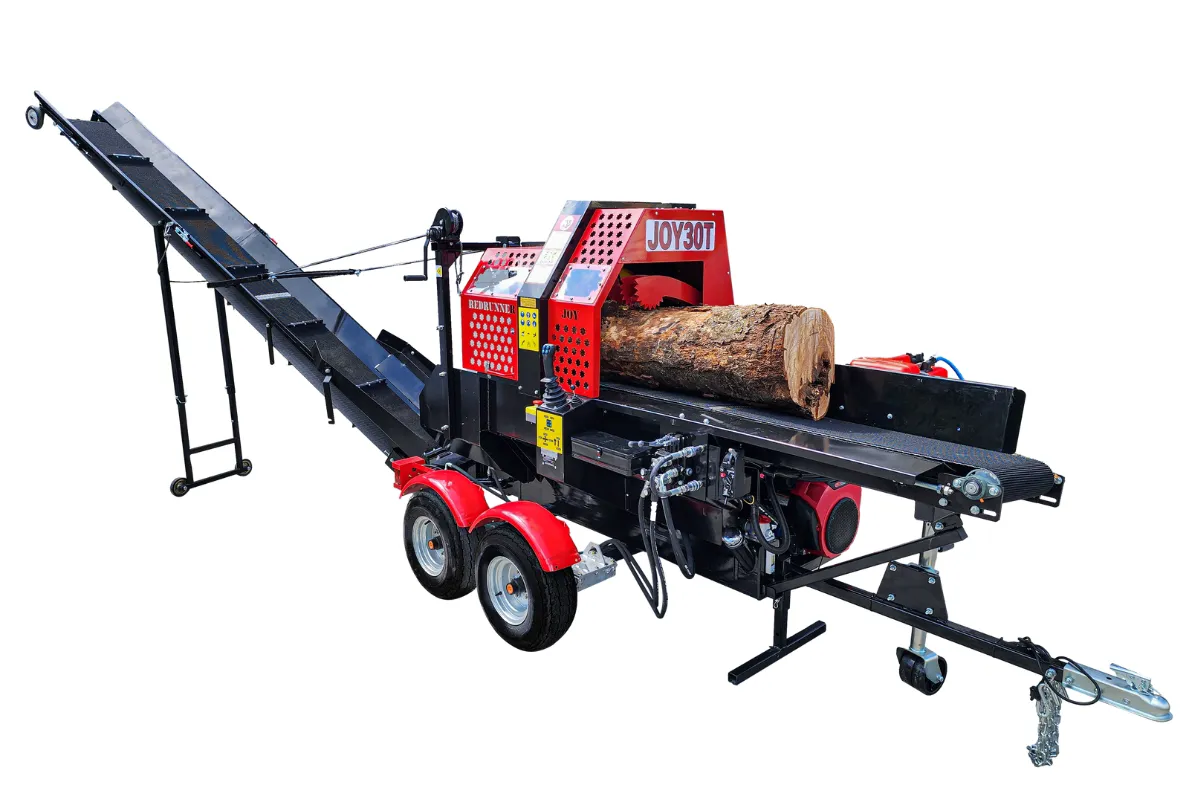

Vallee Forestry Equipment RED RUNNER JOY 30T SR

Designed for bigger logs, the Red Runner JOY firewood processor combines strength and precision. Its hydraulic controls with a joystick ensure maximum performance, making every job easier and faster.

Main features

  • Can take logs up to 20-inch in diameter, able to produce 4 face cords/hour
  • High quality Torflex suspension, wheel fenders with LED signals, 10″ wheels with high speed tires
  • Hydraulically controlled outfeed conveyor that swivels from left to right
  • All the operations regrouped and controlled with a simple joystick
  • Powered by a 22HP Honda gas engine

  United States: In accordance with U.S. motor vehicle regulations, please note that this equipment may not be used on roads or highways without being properly loaded onto a compliant trailer. Off-road use only.

Engine

  • 22 HP Honda GX690 (3-year warranty by Honda)
  • Electric starter
  • Gasoline, air cooled, 4 stroke, one cylinder

Saw section

  • 24’’ hydraulically actionned Oregon Harvester sawbar offering a 20’’ cutting capacity
  • 404’’ X .080’’X 78 drive links chain
  • Automatic chain lubrication system
  • Hydraulic saw motor of superior quality allowing a powerful cutting speed at 6000 rpm
  • Openable saw cover for easy access and maintenance of the saw and chain
  • Saw cover safety switch. If the cover is open, the saw stops immediately
  • Includes an easy-to-read ruler to measure the desired lengths of cuts of the log, possible to cut logs between 10 and 22 inches

Splitting Section

  • Easy and very safe splitting clutch. It is as easy to initiate as it is to stop. In addition, it stops automatically when the saw cover is opened
  • Splitting power of 30 nominal tons
  • Quick return of the splitter’s cylinder
  • 6-way splitting blade included
  • Adjustable oil flow system
  • Oversized screen oil filter, easy to clean and environmentally friendly, allowing high precision filtration
  • Filter indicator, it will tell you when it’s time to clean it
  • Larger cap for the hydraulic oil tank, screwed, ventilated and better placed to facilitate filling

Infeed conveyor section

  • Maximum length of 10 feet long logs at the input, can be increased to 16 feet with the addition of a feeding table in option
  • Premium quality full length entrance conveyor belt
  • Allows you to advance your logs up to the saw, without any effort

Exit conveyor section

  • Hydraulically controlled outfeed conveyor that swivels from left to right
  • Conveyor length of 10.5 feet, foldable for easy transportation and storage
  • 11.5-inch wide superior quality conveyor belt with steel covered conveyor cleats
  • Conveyor hydraulic control valve for greater safety and easier winter start-up
  • 1200 lb winch for conveyor height adjustment
  • Heavy-Duty winch rope

Towing section

  • 2 inch towing drawbar
  • 3500-lb safety chains
  • High quality Torflex suspension, wheel fenders with LED signals, 10″ wheels with high speed tires

SPECIALLY FOR YOU

  • Reinforced hydraulic system to prevent overheating of hydraulic oil
  • 1 adjustable jack to increase the stability of your firewood processor
  • Hydraulic power output double valve
  • Emergency stop button
  • Hour meter to easily follow your maintenance schedule
  • Toolbox
