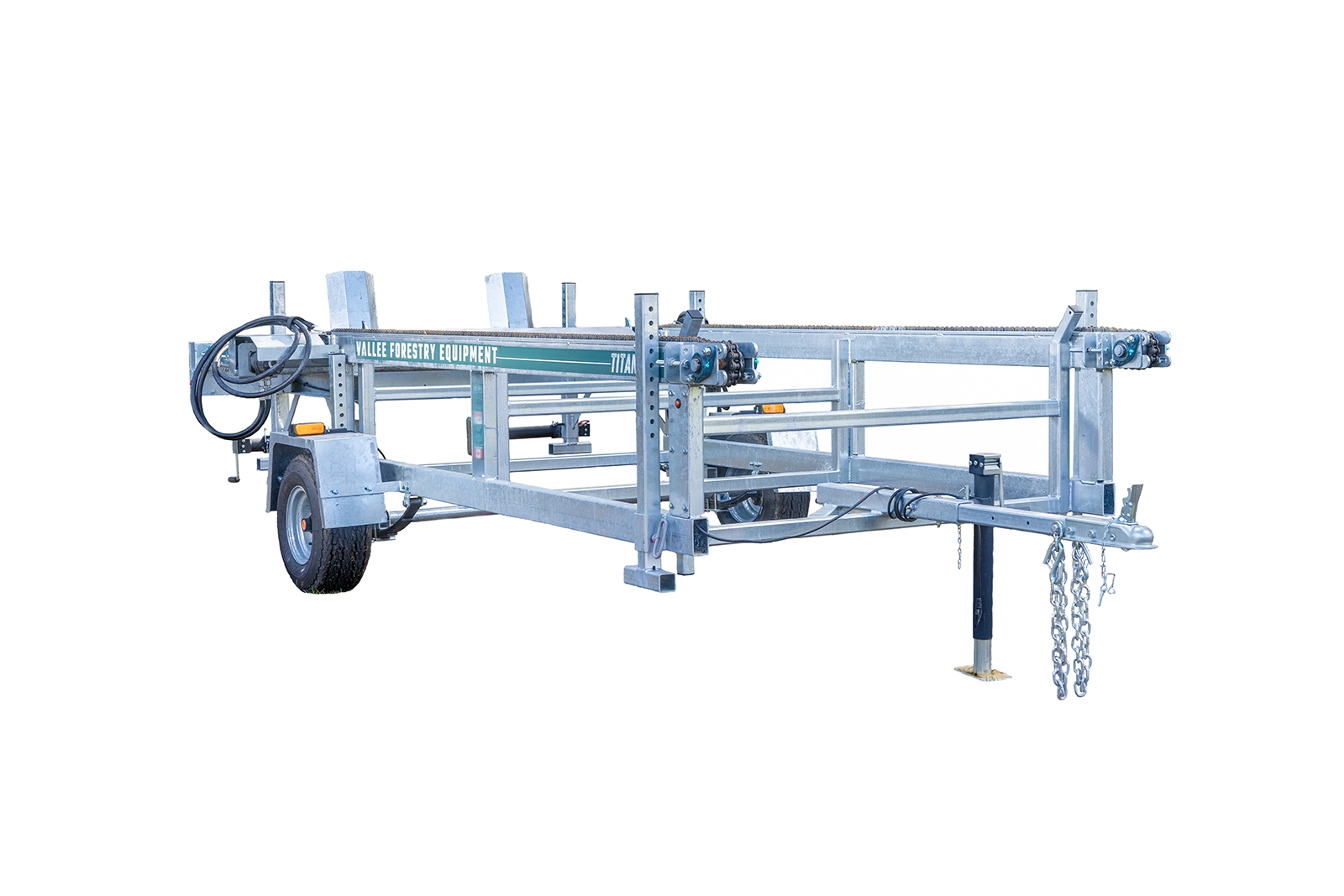

Vallee Forestry Equipment TITAN ROAD Hydraulic Infeed Log Table

Main features

  • The hydraulic loading table built strong for heavy logs and intensive use
  • Fully welded frame for maximum strength
  • Hot dipped galvanized for increased durability
  • Equipped with a mobile unit for easy movement

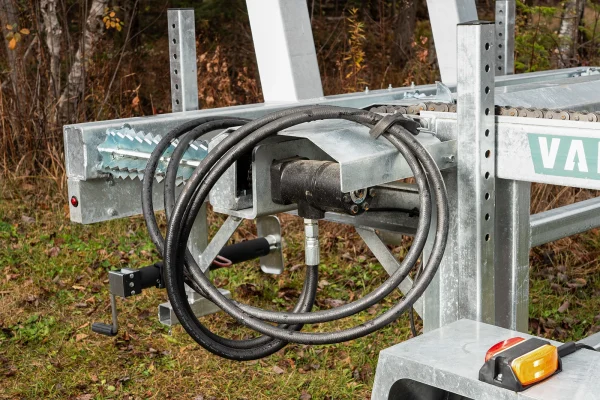

  • Controlled directly from the levers of your firewood processor

***USA*** In accordance with American laws on the regulation of road vehicles, this equipment cannot be driven on highways without being secured on a compliant trailer. It can only be driven on roads in states where the laws allow it.

SKU: vf-titan-road-hydraulic-infeed-log-table Category: Brand:

Specs

Frame

  • Steel grade 44W and 50W
  • Weight 1,300 lbs
  • Max capacity with legs in stationary mode : 13,000 lbs

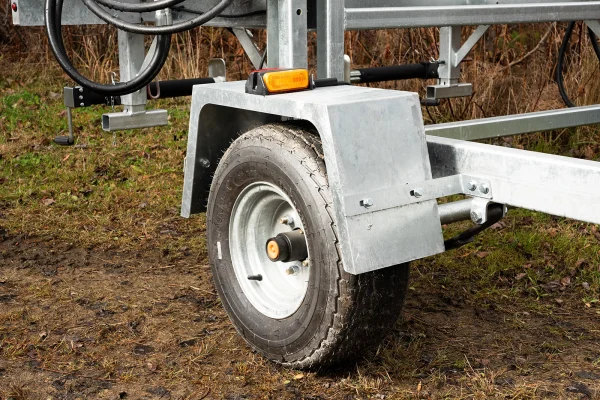

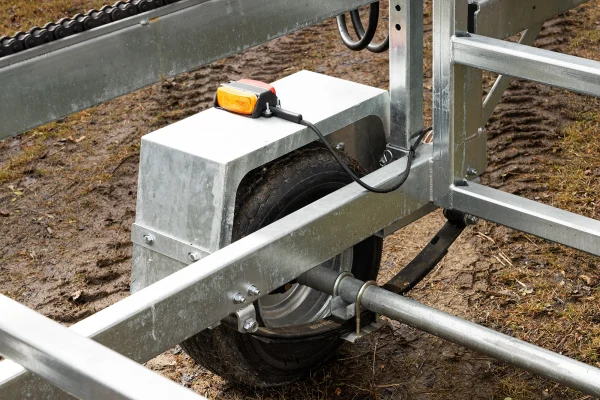

Mobile unit

  • 2 inch tow bar with safety chains

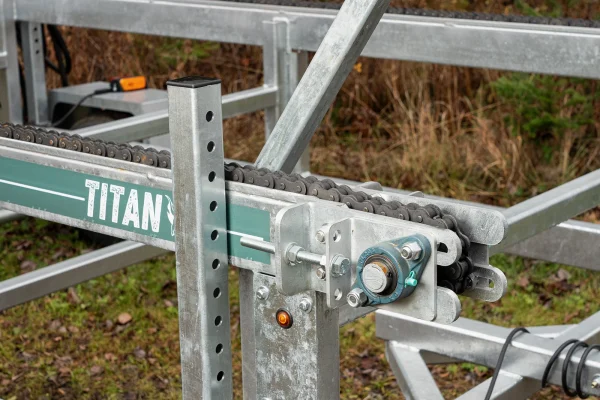

Rollers & chain conveyor

  • Maximum weight to drive the chain conveyor : 4,200 lbs
  • Maximum weight to drive the rollers conveyor : 1,950 lbs

Dimensions

  • Width of 87 inches
  • Overall length of 184 inches
  • Height of 48 inches
