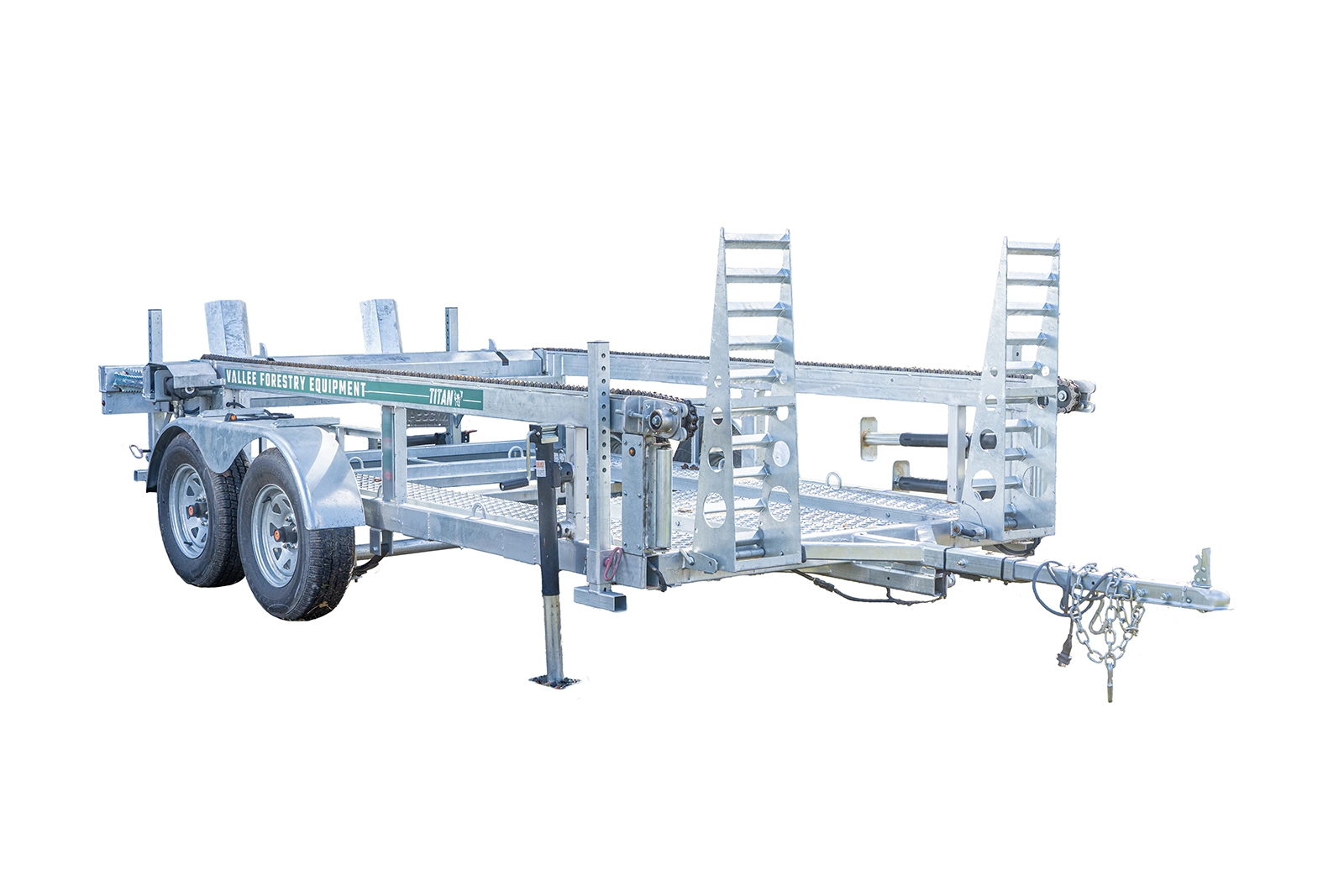

Vallee Forestry Equipment TITAN ROAD TRAILER Hydraulic Infeed Log Table

Main features

  • The hydraulic loading table built strong for heavy logs and intensive use

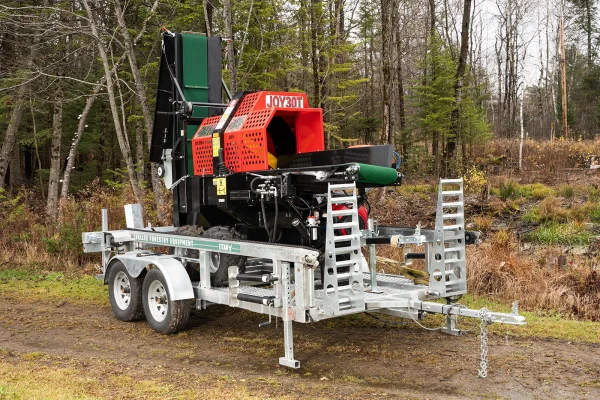

  • Built to load and transport your processor
  • Fully welded frame for maximum strength
  • Hot dipped galvanized for increased durability
  • Equipped with a mobile unit for easy movement
  • Controlled directly from the levers of your firewood processor

***USA*** In accordance with American laws on the regulation of road vehicles, this equipment cannot be driven on highways without being secured on a compliant trailer. It can only be driven on roads in states where the laws allow it.

Frame

  • Steel grade 44W and 50W
  • Weight 2,100 lbs
  • Max capacity with legs in stationary mode : 10,500 lbs

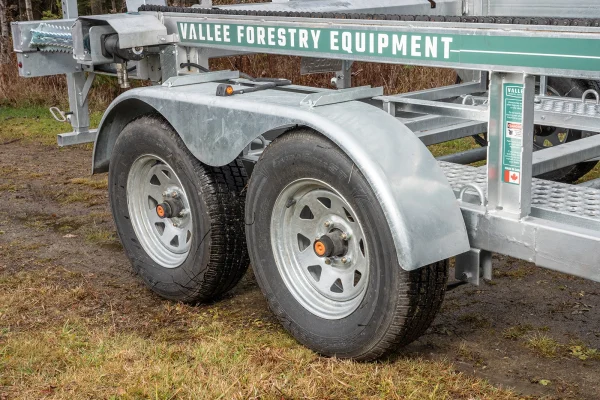

Mobile unit

  • Towing capcity : Maximum 4,800 lbs
  • Axle capacity with wheel : 2,000 lbs @ 25 km/h
  • 2 inch tow bar with safety chains

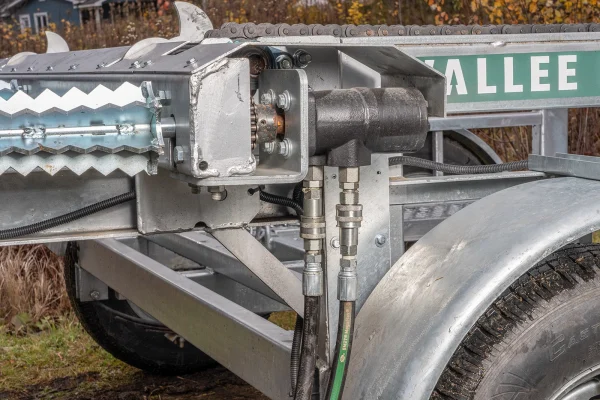

Rollers & chain conveyor

  • Maximum weight to drive the chain conveyor : 4,200 lbs
  • Maximum weight to drive the rollers conveyor : 1,950 lbs

Dimensions

  • Width of 90 inches
  • Overall length of 210 inches
  • Height of 47 inches
