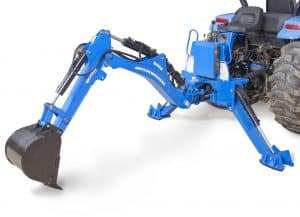

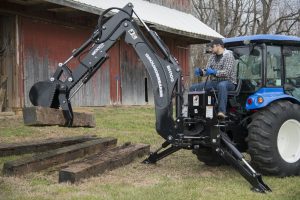

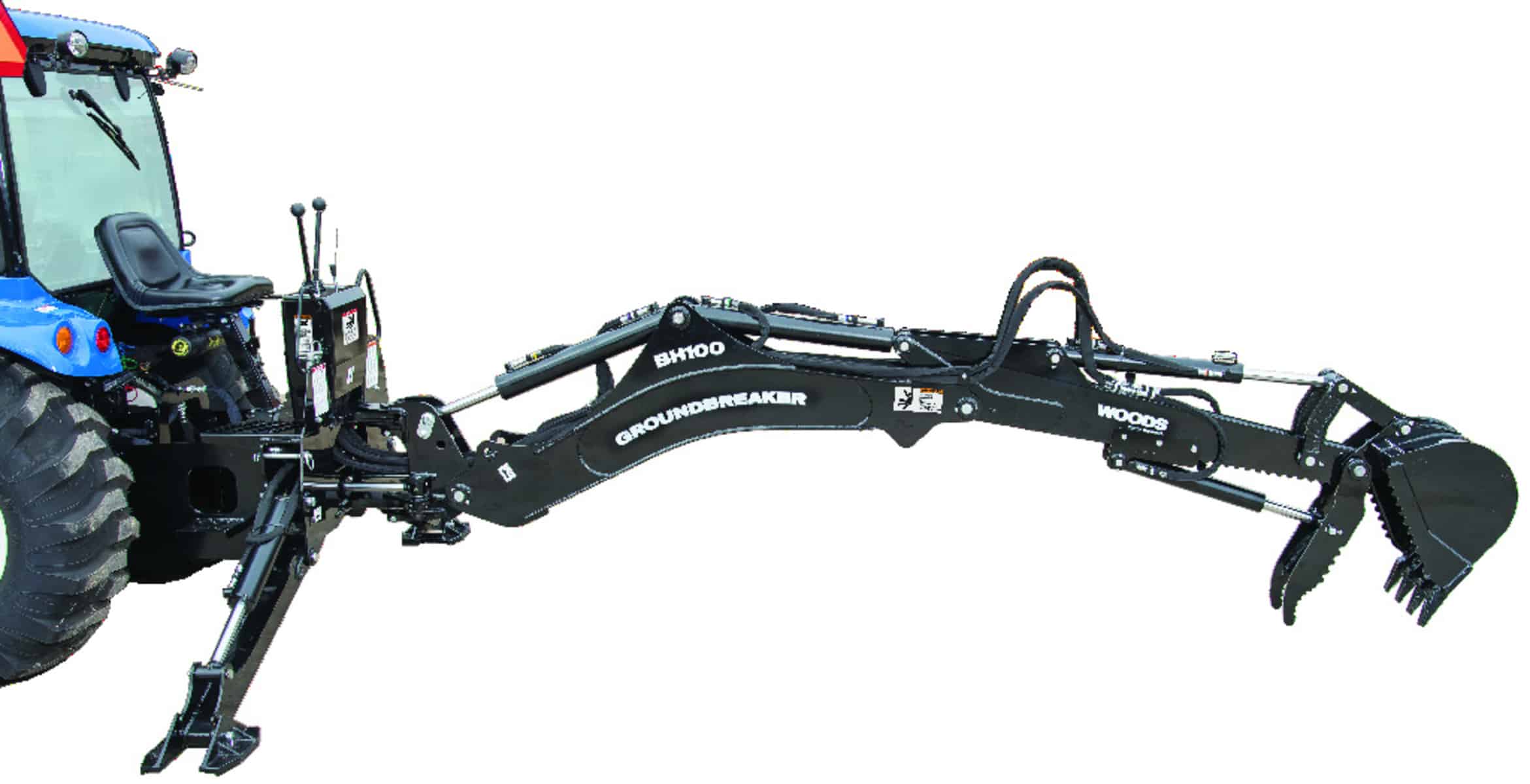

Woods BH100

Extra Heavy-Duty

Greater Visibility

Curved-boom design allows you to dig with greater visibility and control.

Fits Many Tractors

Subframe kits and three-point mounts available for many tractor models.

Industry-leading 2-year Tractor Protection

Peace of mind with an unmatched 2-year tractor warranty when a properly installed Woods subframe is purchased from Woods.

Product Tier

Extra Heavy-Duty

Tractor PTO HP

40-100

Digging Depth – 2′ Flat Bottom (in | ft)

120

,

10

Digging Depth – 8 ft Flat Bottom (in)

102

Reach from Swing Pivot (in)

161

Loading Height (in)

100

Loading Reach (in)

70

Transport Height

104

Transport Length (in)

55

Approx. Weight – Frame Only (lbs)

1,320

Swing Arc (degrees)

180

Stabilizer Spread – Up (transporting) (in)

71

Stabilizer Spread – Down (operating) (in)

102

Relief Pressure (psi)

2,465

Bucket Digging Force (lbs)

4,600

Dipperstick Digging Force (lbs)

2,720

Bucket Rotation (degrees)

180

Trenching Bucket Widths (in)

12

,

15

,

18

,

24

Thumb

Optional mechanical or hydraulic

Flip-Over Stabilizer Pads

Standard

Stabilizer Street Pads

Optional

PTO Pump Kit

Optional

Ditching Bucket

36

Cemetery / Bellhole Bucket

36

2-Cylinder Swing

Yes

Warranty

2 year limited

,

including the tractor
