Woods BH75

Heavy-Duty

Greater Visibility

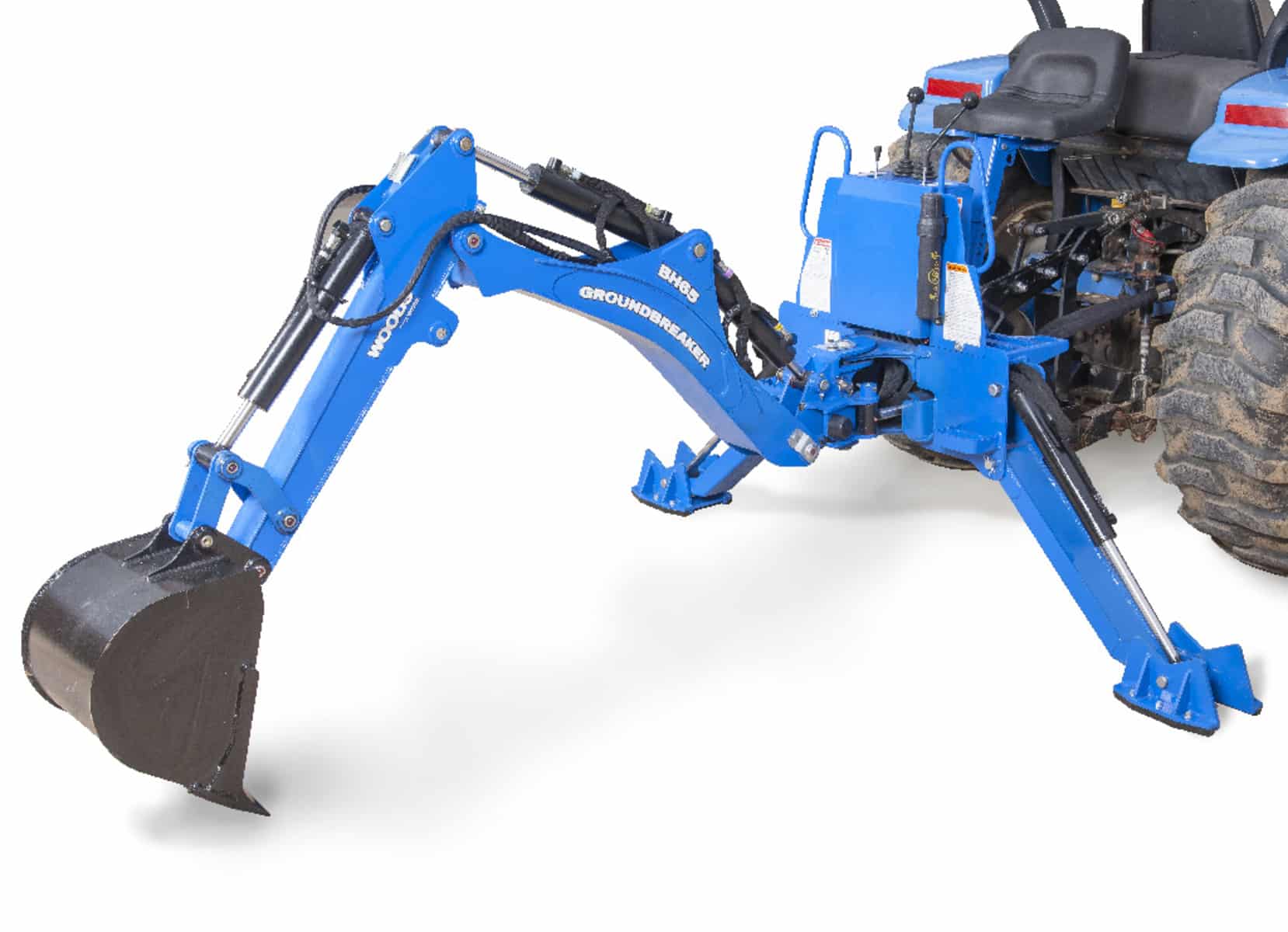

Curved-boom design allows you to dig with greater visibility and control.

Fits Many Tractors

Subframe kits and three-point mounts available for many tractor models.

Industry-leading 2-year Tractor Protection

Peace of mind with an unmatched 2-year tractor warranty when a properly installed Woods subframe is purchased from Woods.

Product Tier

Heavy-Duty

Tractor PTO HP

20-40

Digging Depth – 2′ Flat Bottom (in | ft)

90

,

7.5

Digging Depth – 8 ft Flat Bottom (in)

70

Reach from Swing Pivot (in)

119

Loading Height (in)

73

Loading Reach (in)

46

Transport Height (in)

74

Transport Length (in)

45

Approx. Weight – Frame Only (lbs)

842

Swing Arc (degrees)

180

Stabilizer Spread – Up (transporting) (in)

52

Stabilizer Spread – Down (operating) (in)

83

Relief Pressure (psi)

2,465

Bucket Digging Force (lbs)

3,380

Dipperstick Digging Force (lbs)

2,230

Bucket Rotation (degrees)

180

Trenching Bucket Widths (in)

9

,

12

,

16

,

18

,

24

Thumb

Optional mechanical

Flip-Over Stabilizer Pads

Standard

Stabilizer Street Pads

Optional

PTO Pump Kit

Optional

Ditching Bucket

N/A

Cemetery / Bellhole Bucket

N/A

2-Cylinder Swing

Yes

Warranty

2 year limited

,

including the tractor

Woods C®
