Extra Heavy-Duty

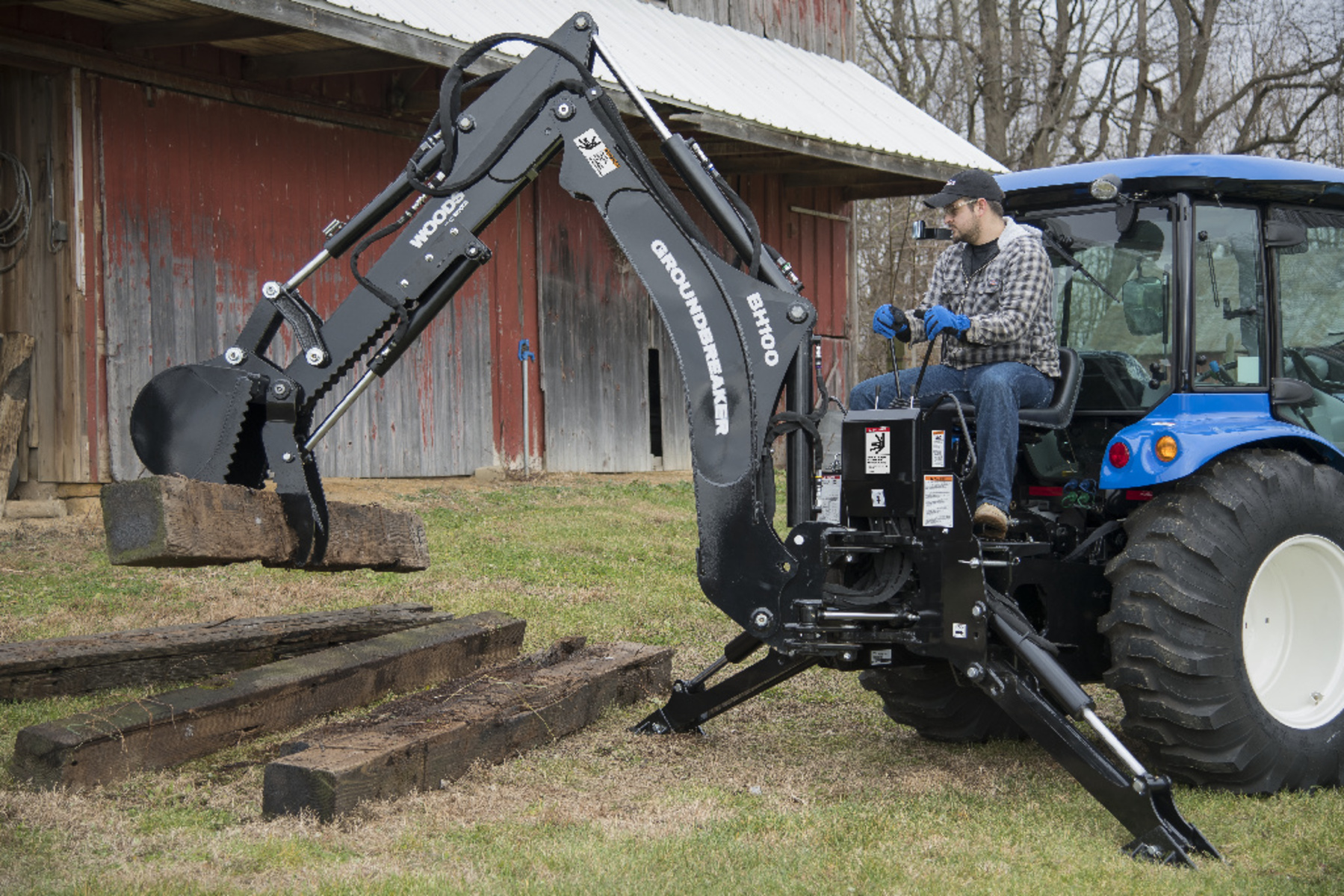

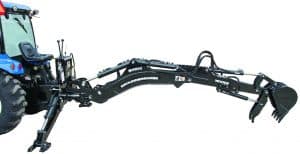

Curved-boom design allows you to dig with greater visibility and control.
Subframe kits and three-point mounts available for many tractor models.
Peace of mind with an unmatched 2-year tractor warranty when a properly installed Woods subframe is purchased from Woods.
| Product Tier |
Extra Heavy-Duty
|
|---|---|
| Tractor PTO HP |
30-100
|
| Digging Depth – 2′ Flat Bottom (in | ft) |
102 , 8.5
|
| Digging Depth – 8 ft Flat Bottom (in) |
82
|
| Reach from Swing Pivot (in) |
141
|
| Loading Height (in) |
83
|
| Loading Reach (in) |
61
|
| Transport Height (in) |
94
|
| Transport Length (in) |
55
|
| Approx. Weight – Frame Only (lbs) |
1,275
|
| Swing Arc (degrees) |
180
|
| Stabilizer Spread – Up (transporting) (in) |
71
|
| Stabilizer Spread – Down (operating) (in) |
102
|
| Relief Pressure (psi) |
2,465
|
| Bucket Digging Force (lbs) |
4,600
|
| Dipperstick Digging Force (lbs) |
2,940
|
| Bucket Rotation (degrees) |
180
|
| Trenching Bucket Widths (in) |
12 , 15 , 18 , 24
|
| Thumb |
Optional mechanical or hydraulic
|
| Flip-Over Stabilizer Pads |
Standard
|
| Stabilizer Street Pads |
Optional
|
| PTO Pump Kit |
Optional
|
| Ditching Bucket |
36
|
| Cemetery / Bellhole Bucket |
36
|
| 2-Cylinder Swing |
Yes
|
| Warranty |
2 year limited , including the tractor
|
