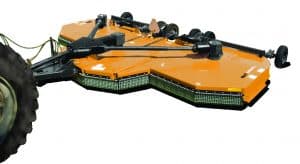

Woods BW20.51

Ideal for cutting tall grasses and saplings up to 2 inches in diameter
Hinged metal gearbox shields open easily for maintenance
A 10-year gearbox warranty includes labor and seals under the Woods Cut Above™ Warranty for confidence in your purchase decision.
Woods Exclusive EZ-Change™ Blade System allows you to change blades in five easy steps with only a 3/4″ wrench.
Heavy-duty skid shoes prevent gouging and protect the deck
Strategically placed, welded baffles cut and distribute debris evenly
Side frame depth of 13.25 inches – the deepest in the industry
NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.

Tractor PTO HP	70-200
Hitch Type	Pivoting clevis
Cutting Height (in)	2 to 15
Cutting Capacity Diameter (in)	2
Cutting Width (in)	240
Blade Tip Speed (fpm)	15,450 at 540 rpm; 16,300 at 1,000 rpm
Weight (lbs)	6,510
Deck Thickness (in)	.135 (10 ga)
Side Skirt Thickness (in)	0.25
Side Skirt Depth (in)	13-1/4
Transport Width (in)	123
Wing Flex Up/Down (degrees)	90 up, 22 down
Driveline Rating	CAT 6 CV main, CAT 4 wing
Splitter/Wing Gearbox Rating (hp)	250 / 200 *Gearbox horsepower ratings listed are based on Woods’ field testing
Output Shaft Diameter (in)	2
Tongue Weight (lbs)	2,400
Wheel Options	21 in. laminated, 25 in. severe-duty Ag, 25 in. severe-duty Ag foam-filled, 27 in. severe-duty Ag foam-filled, 29 in. used aircraft
Gearbox Warranty (yrs)	10
Options	Double row chain shielding; tandem spring arm suspension; pintel ring hitch; spring-loaded wing lock-ups for narrow (118 Inches) transport width; LED lights
Suspension	Spring-loaded axles
Blade Overlap (in)	6
Blade Dimensions (in)	.5 x 4
Cutting Area Shielding	Standard chain shielding
Structure Warranty	2 years
