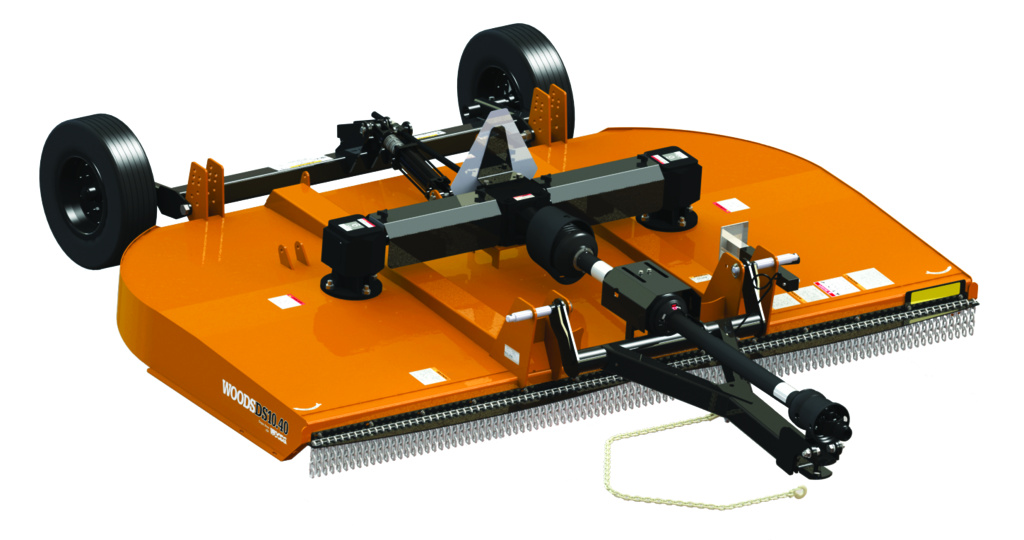

Woods DS10.40

Woods DS10.40

Professional

Easy Connection

Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.

Easy Maintenance

EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.

Unmatched Gearbox PROTECTION

10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and  Triple Seal™ Gearbox Protection. See how it works.

SKU: we-ds10.40 Category: Brand:

Specs

Product Tier

Professional
Tractor PTO (Minimum HD)

40
Tractor PTO Speed (rpm)

540
Hitch

pivoting clevis
Hydraulic Variable Offset

N/A
Cutting Width (in)

120
Cutting Capacity Diameter (in)

2
Adjustable Cutting Height (in)

2 – 12
Blade Tip Speed (fpm)

16,700
Blade Size (in)

.5 x 4
Deck Side Depth | Thickness (in)

10 deep

,

.135 thick
Weight (lbs)

1,820
Wheel Selection

Laminated, severe-duty new ag; foam filled new ag, 15″ rims
Gearbox Rating

120 center, 90 spindle *Gearbox horsepower ratings listed are based on field testing.
Optional Dual-Wheels

No
Driveline w/Slip Clutch

CAT 4 CV
Quick-hitch Compatible

Yes
Gearbox Warranty

10 years
Structure Warranty

2 years
