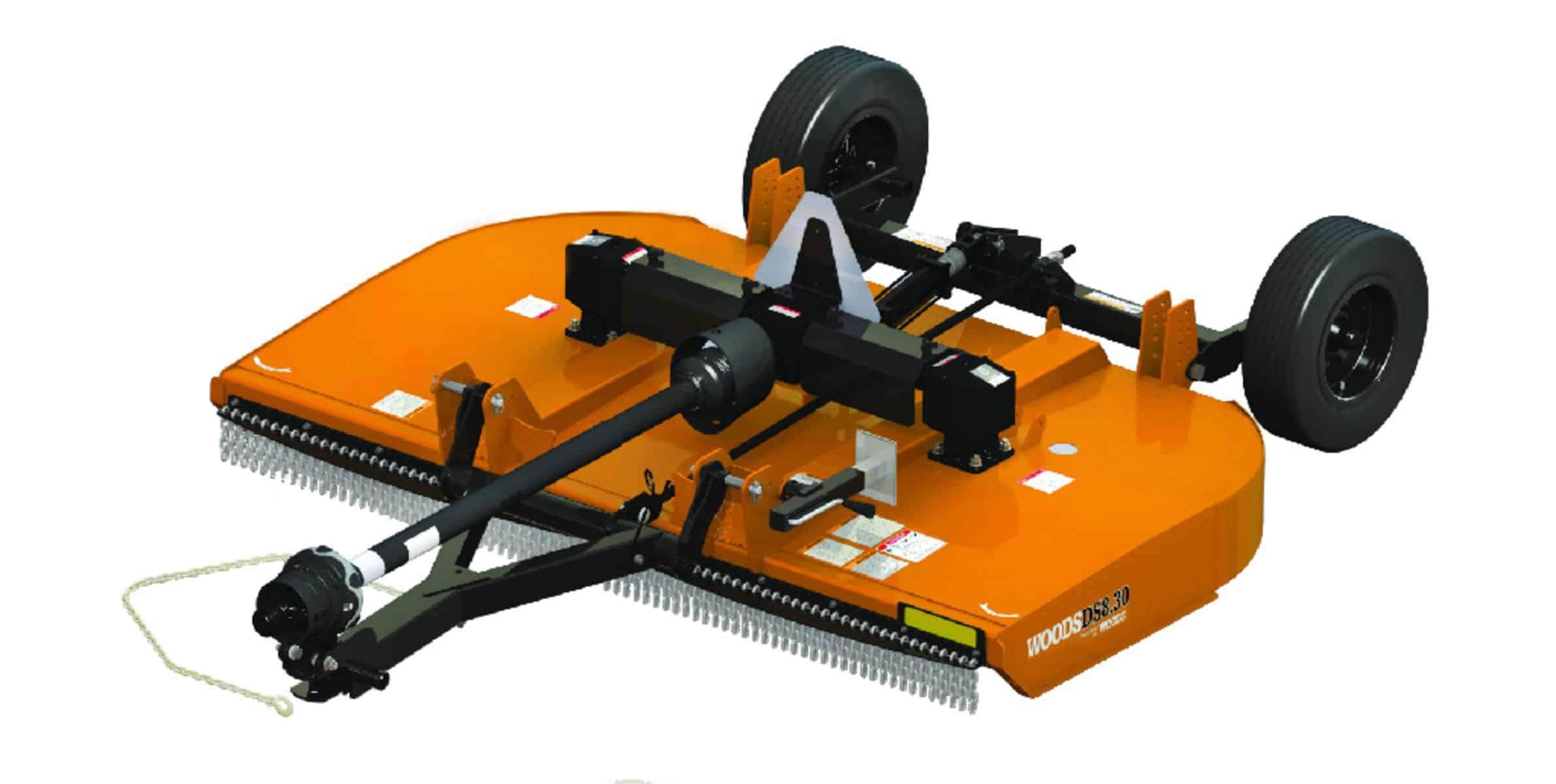

Woods DS8.30

Standard-Plus

Easy Connection

Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.

Easy Maintenance

EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.

Unmatched Gearbox PROTECTION

10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and  Triple Seal™ Gearbox Protection. See how it works.

Product Tier

Standard-Plus

Tractor PTO (Minimum HP)

35

Tractor PTO Speed (rpm)

540

Hitch

pivoting clevis

Hydraulic Variable Offset (in)

N/A

Cutting Width (in)

96

Cutting Capacity Diameter (in)

1.5

Adjustable Cutting Height (in)

2 – 12

Blade Tip Speed (fpm)

15,200

Blade Size (in)

.5 x 4

Deck Side Depth | Thickness (in)

10 deep, .135 thick

Weight (lbs)

1,440

Wheel Selection

Laminated, severe-duty new ag; foam filled new ag, 15″ rims

Gearbox Rating

100 center, 75 spindle *Gearbox horsepower ratings listed are based on field testing.

Driveline w/Slip Clutch

CAT 4 CV

Quick-hitch Compatible

Yes

Gearbox Warranty

10 years

Structure Warranty

2 years
