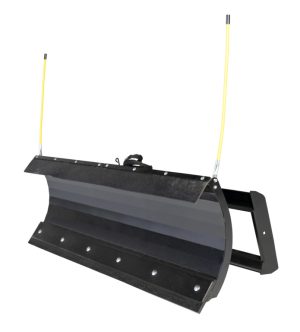

Woods LFB72.20

Woods LFB72.20

Standard

Impact Resistant

The trip moldboard protects the blade, loader, and tractor if the edge of the blade contacts an obstacle.

Process Heavy Snow

Our Loader Front Blade is built with advanced-grade steel which is stronger and more durable than standard steel. This feature allows the blade to be lighter, so the tractor can lift and move more snow per square foot than heavier competitive model attachments.

Easy Adjustment

The lighter blade makes for easy manual angle adjustments. Select from five adjustments for a 60-degree overall rotation. Optional hydraulic angle adjustment is also available.

Easy Connection

Skid steer quick-attach mounting allows operators to easily hook-up to the tractor for compact and sub-compact tractors only, not to be used with skid steers or track loaders.

SKU: we-lfb72.20 Category: Brand:

Specs

Product Tier

Standard
PTO Power Requirements (HP)

Up to 35
Coupler System

Skid Steer Quick-Attach (For compact and sub-compact tractors only, not to be used with skid steers or track loaders)
Maximum Tractor Weight (lbs)

2800
Weight (lbs)

225
Moldboard Height (in)

21
Moldboard Width (in)

71 1/4
Moldboard Thickness (in)

.105″ (12 gauge)
Moldboard Material

Grade 80 High-Strength Steel
Moldboard

Standard Spring Loaded Trip can be locked in position
Cutting Edge Dimensions (in)

.25 x 6
Cutting Edge Reverseable and Replaceable

Yes
Blade Angle

0°, 15° and 30° positions in either direction
Blade Angle Adjustment

Standard Manual Blade Angle or Optional Hydraulic
Skid Shoe

Standard Adjustable or Optional Urethane Kit
Additional Options

Reversible Urethane Cutting Edge Plow Guide Kit, Rubber Deflector, Urethane Skid Shoe Kit, Hydraulic Angle Kit
