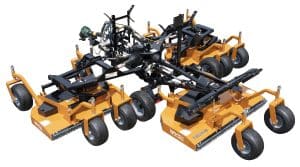

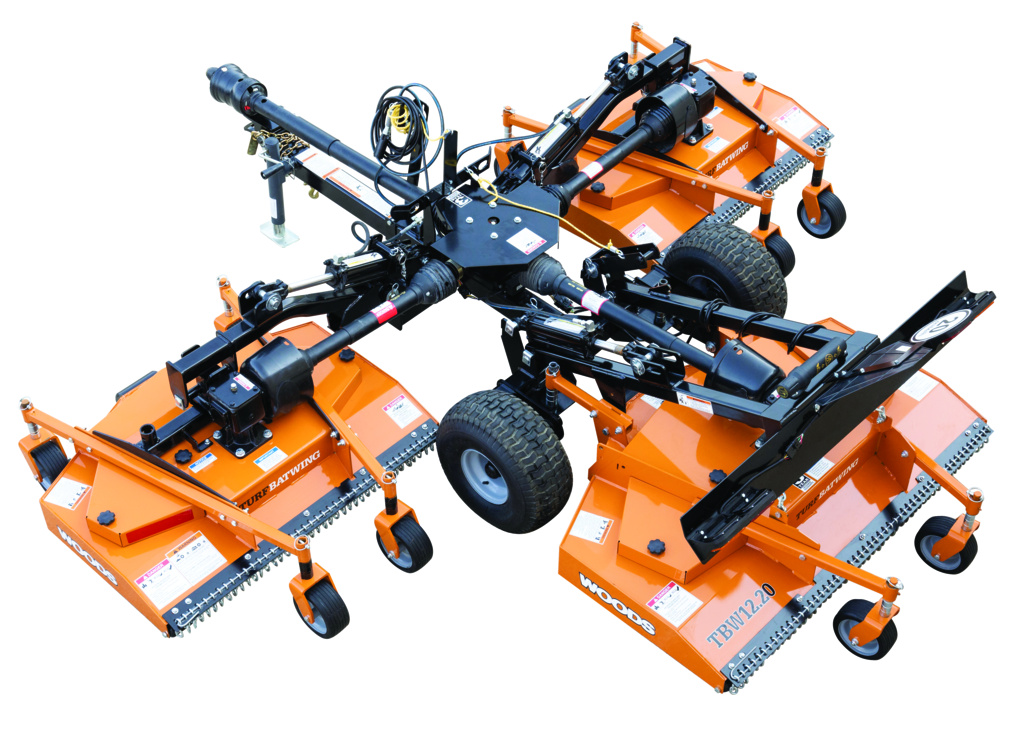

Woods TBW12.20

Standard

Every Turf Batwing® features the best-in-class cutting technology of the TurfKeeper® Series verified by independent testing.
Read Cut Quality Study.

High blade tip speeds and a high-torque belt design let you mow faster while maintaining superior cut quality.

6-year warranty including parts, labor, and seals.

Product Tier	Standard
Tractor PTO 540 rpm (HP)	25-60
Hitch	CAT 1 Drawbar
Cutting Width (in)	144
Cutting Height (in)	1.5 – 5.0
Deck Cut Widths (in)	Wing Deck 48 / Center Deck 60
Deck Overlap (in)	6
Blade Tip Speed (fpm)	17,900/18,200
Blade Spindle Bearings	Double ball bearings
Overall Wt. / Transport Tongue Wt. (lbs)	2005 / 384
Transport H x L W (in)	71.5 x 135 x 91
Transport Tires (in)	(2) 20.5 x 8-10
Caster Wheels (in)	(10) 8 x 3.5 solid
Gearbox Rating (HP)	100 splitter / 30 deck
Drive Type	Gearbox over v-belt
Drivelines	Main CAT 3 (CV) / Wing CAT 3
Wing Deck Lift Cylinders	3 x 10 single-acting
Center Deck Lift Cylinders	3 x 8 single-acting
Trailer Frame Construction	4.0 x 4.0 x .25 square tube
Deck Thickness (in)	0.141
Blade Dimensions (in)	(6) .25 x 2.5 x 17.0, (3) .25 x 2.5 x 20.8
Hitch Adjustment	Floating clevis, multi-position
Transport Lock	Automatic, manual release
Transport Tires	Non-highway speed-rated
Cut Height Adjustment	Caster spacers
Belt Construction	B-section, Kevlar®
Belt Cover	Clutching cover
Belt Adjustment	Spring-loaded idler
Rear Chain Shielding	Optional
Anti-Scalp Rollers	(1) Front and (2) Rear Optional
Light Kit	Optional
Hydraulic Remotes Required	1
Hydraulic Wing Unlock	Optional
Warranty Spindle/Gearbox	1 year / 6 years
