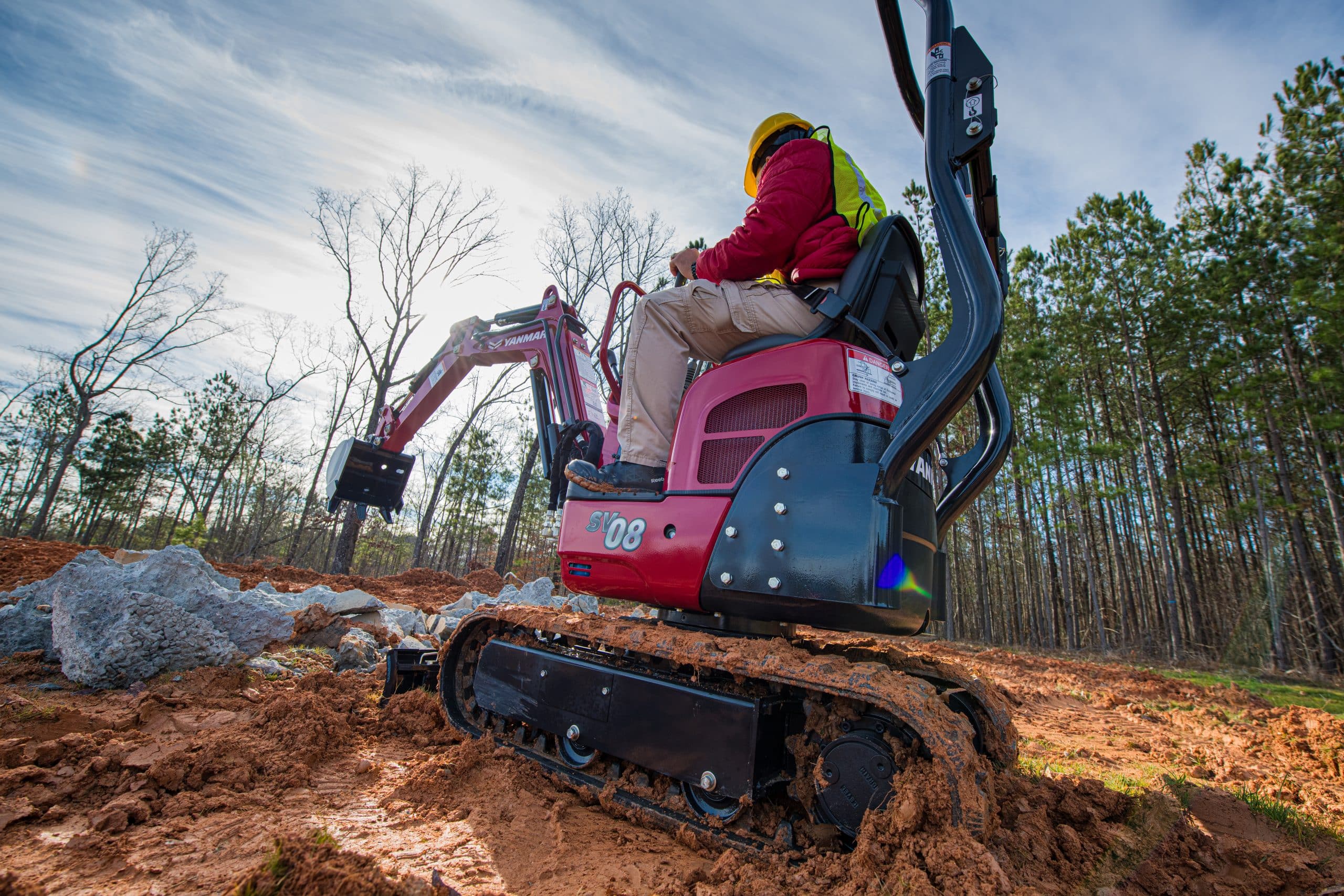

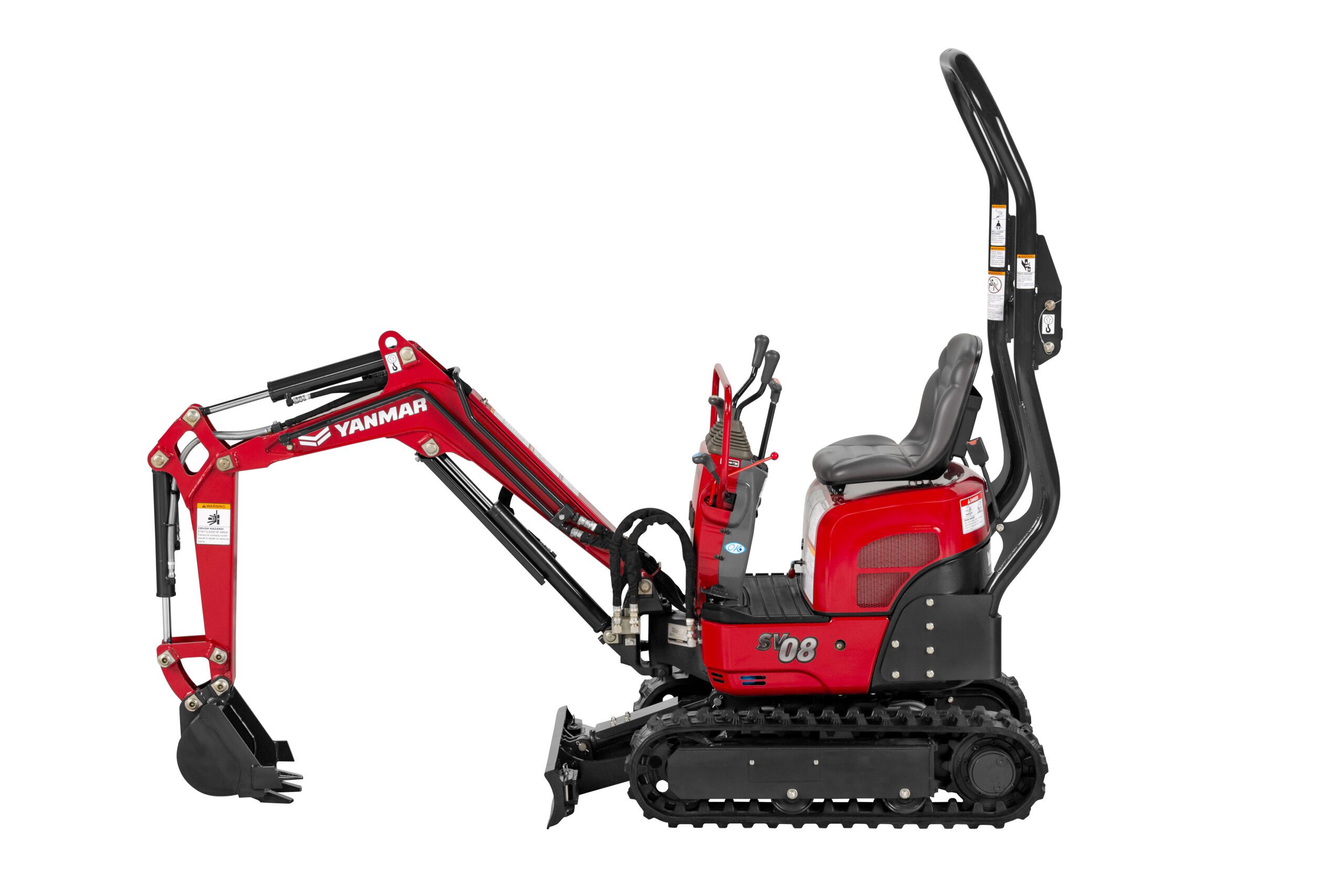

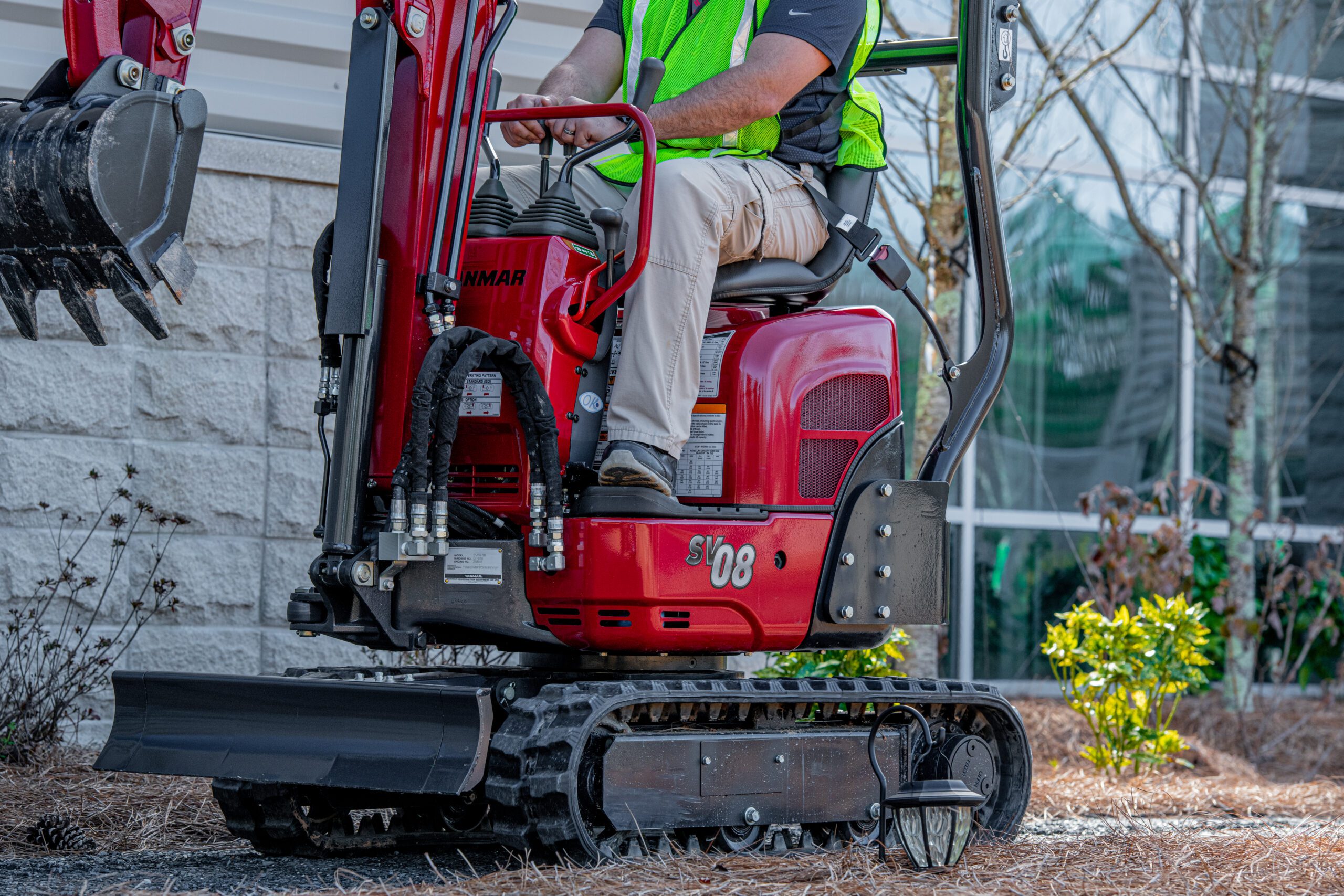

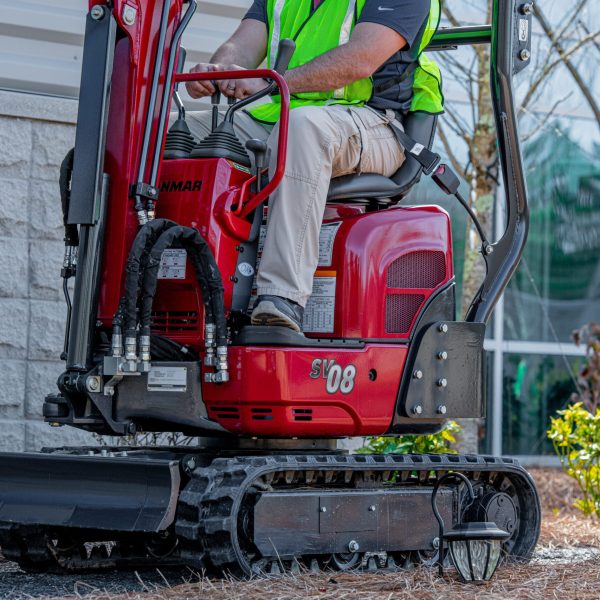

YANMAR Mini Excavator SV08-1D

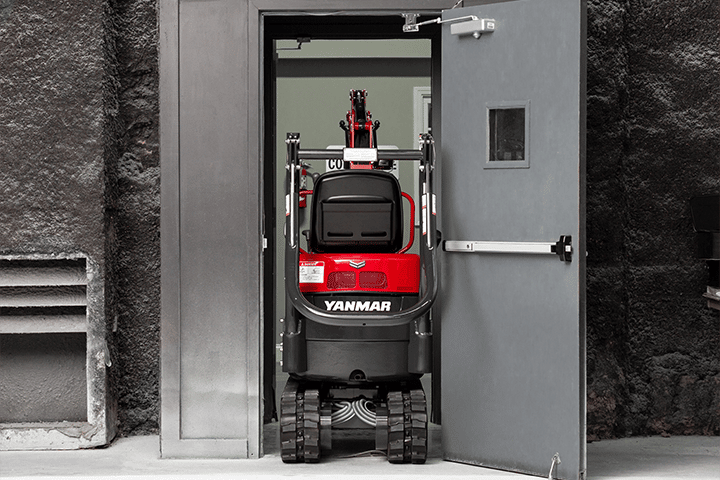

Get big jobs done, even when the jobsite isn’t. Our smallest mini excavator is big on capability and has all the right tools to accomplish tough jobs in the tightest spaces including inside buildings. With an ultra-tight tail, low-noise operation, and incredibly clean and environmentally friendly Tier 4 powertrain, it’s perfect for indoor operation, residential neighborhoods, or where minimal disruptions are critical. Plus, with adjustable width tracks and a folding blade, it can work in the tightest gaps.

Engine

This div for css purpose only
Type
Water-cooled 2-cylinder diesel
Water-cooled 2-cylinder diesel

This div for css purpose only
Model
402F-05 EG84548R
402F-05 EG84548R

This div for css purpose only
Output HP (kW)/rpm
10.3 / 2,800
7.7 / 2,800

Operating Weight

This div for css purpose only
Rubber Track
2,348 lbs.
1.07 t

Performance

Max Digging Force, Bucket / Arm
2,360 lbs. / 1,390 lbs.
10.5 kN / 6.2 kN

Traveling Speed
1.12 MPH
1.8 km / h

Swing Speed
8.4 RPM
8.4 RPM

Boom Swing Angle, (L / R)
45°/ 90°
45°/ 90°

Ground Contact Pressure (Rubber Track)

This div for css purpose only
Ground Contact Pressure (Rubber Track)
4.18 PSI
28.4 kPa

Hydraulic System

Pump Capacity
5.2 GPM
19.7 L/min

Main Relief Set Pressure
2,625 PSI x 2
18.1 MPa x 2

Blade Dimensions

This div for css purpose only
Width x height
2´3˝ / 2´9˝ x 7˝ ft-in
680 / 840 x 180 mm

Fuel Tank Capacity

This div for css purpose only
Fuel Tank Capacity
2.6 Gals
10 L
