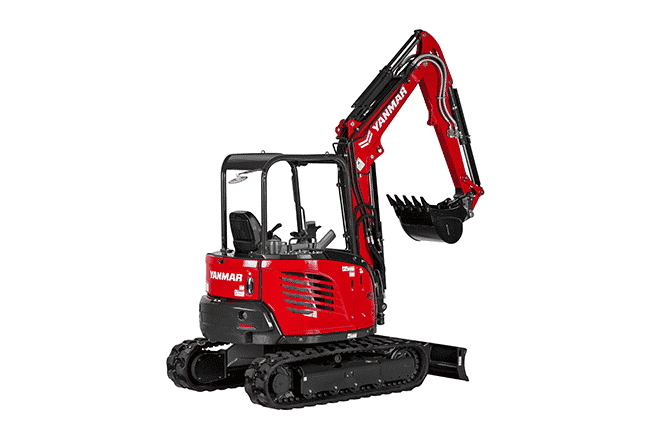

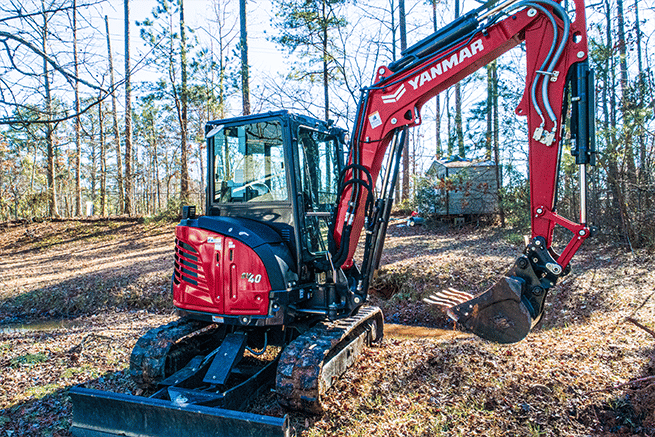

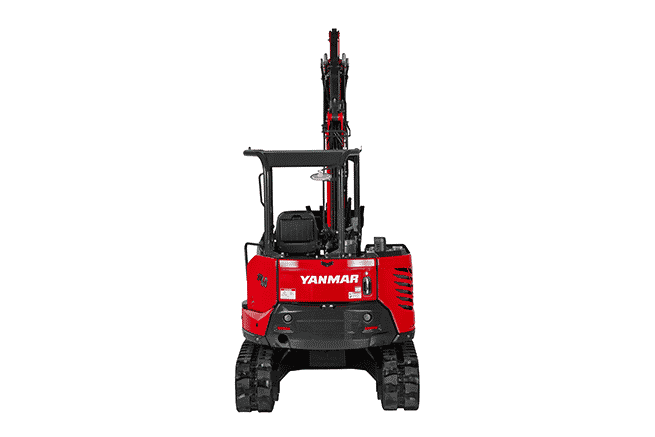

YANMAR Mini Excavator SV40

The SV40 redefines the mini excavator category by pushing the limits of performance and capability. With best-in-class power, digging force and lifting capacity, you’ll be hard pressed to find a job it can’t do. More than just powerful, the SV40 also features our patented hydraulic quick-coupler attachment system, auto-shifting two-speed shift travel to efficiently move between work areas, and standard blade float control. You can also add optional 4-way or 6-way blade control. Plus, the advanced cab features innovative and intuitive controls, informative LCD monitoring system, and automated diagnostic making it easier to schedule maintenance for less down time and increased productivity.

Engine

This div for css purpose only
Model
YANMAR 4TNV88C-PBV1
YANMAR 4TNV88C-PBV1

This div for css purpose only
Output
39.0 HP / 2,400 rpm
29.1 kW / 2,400 rpm

This div for css purpose only
Type
Water-cooled 4-cylinder diesel
Water-cooled 4-cylinder diesel

Operating Weight

Rubber Track (Canopy)
9,206 lbs
4.18 t

Steel Track (Canopy)
9,493 lbs
4.31 t

Rubber Track (Cabin)
9,515 lbs
4.32 t

Steel Track (Cabin)
9,801 lbs
4.45 t

Performance

Max Digging Force, Bucket / Arm
7,209 / 4,211 lbs
32.08* / 18.73 kN (*without quick coupler)

Traveling Speed, High / Low
2.9 / 1.5 MPH
4.6 / 2.4 km/h

Swing Speed
10 RPM
10 RPM

Boom Swing Angle, (L / R)
43° / 65°
43° / 65°

Ground Contact Pressure

Rubber Track (Canopy)
4.5 PSI
31 kPa

Steel Track (Canopy)
4.63 PSI
31.9 kPa

Rubber Track (Cabin)
4.64 PSI
33 kPa

Steel Track (Cabin)
4.79 PSI
33 kPa

Hydraulic System

Pump Capacity
11.2 + 11.2 + 9.7 + 2.8 GPM
42.5 + 42.5 + 37 + 10.8 L / min

Main Relief Set Pressure
3,553 x 2 + 3,133 + 566 PSI
24.5 x 2 + 21.6 + 3.9 MPa

Blade Dimensions

This div for css purpose only
Width x Height
68″ x 15.2″
1,740 x 385 mm

Fuel Tank

This div for css purpose only
Capacity
14.8 Gals
55 L
