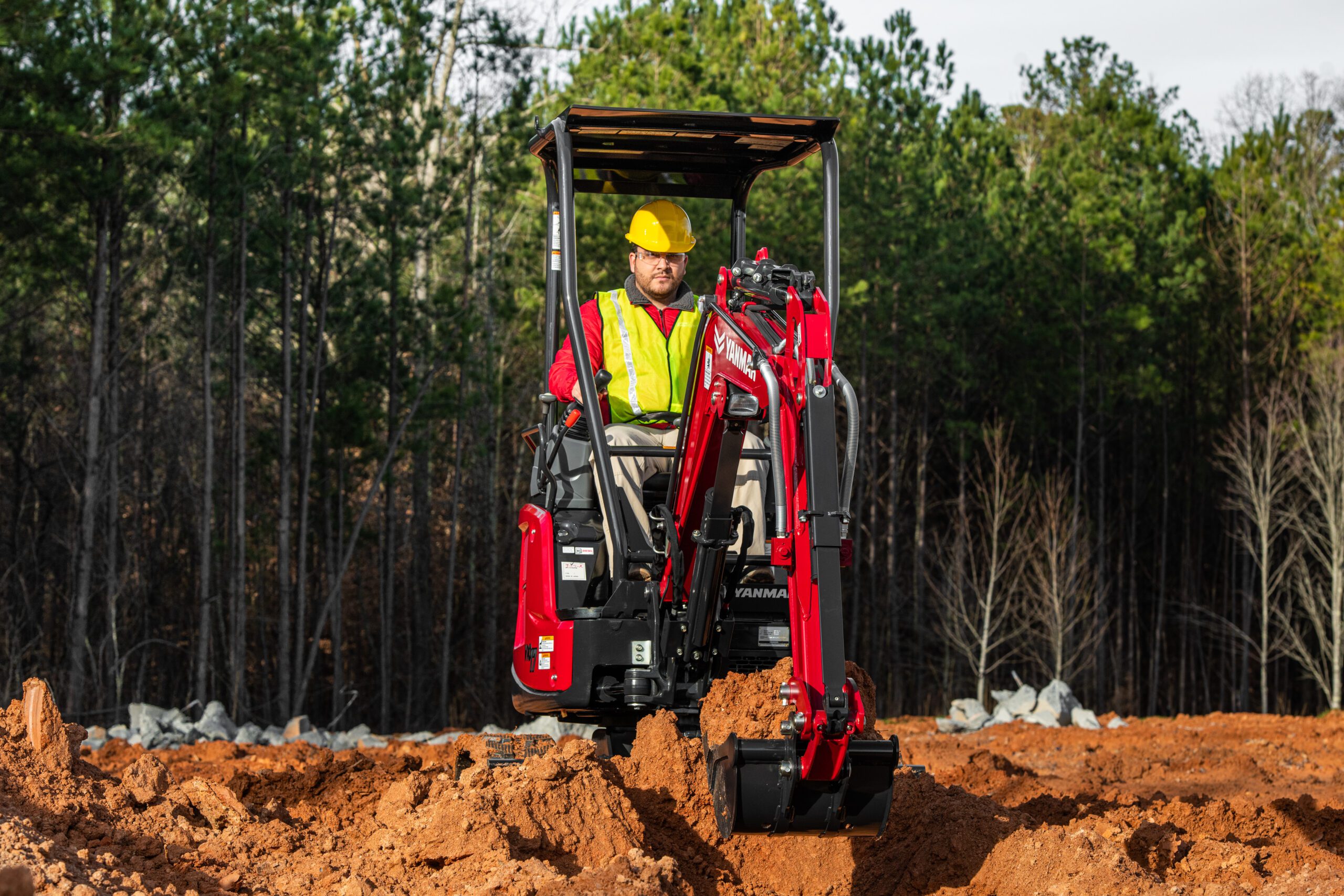

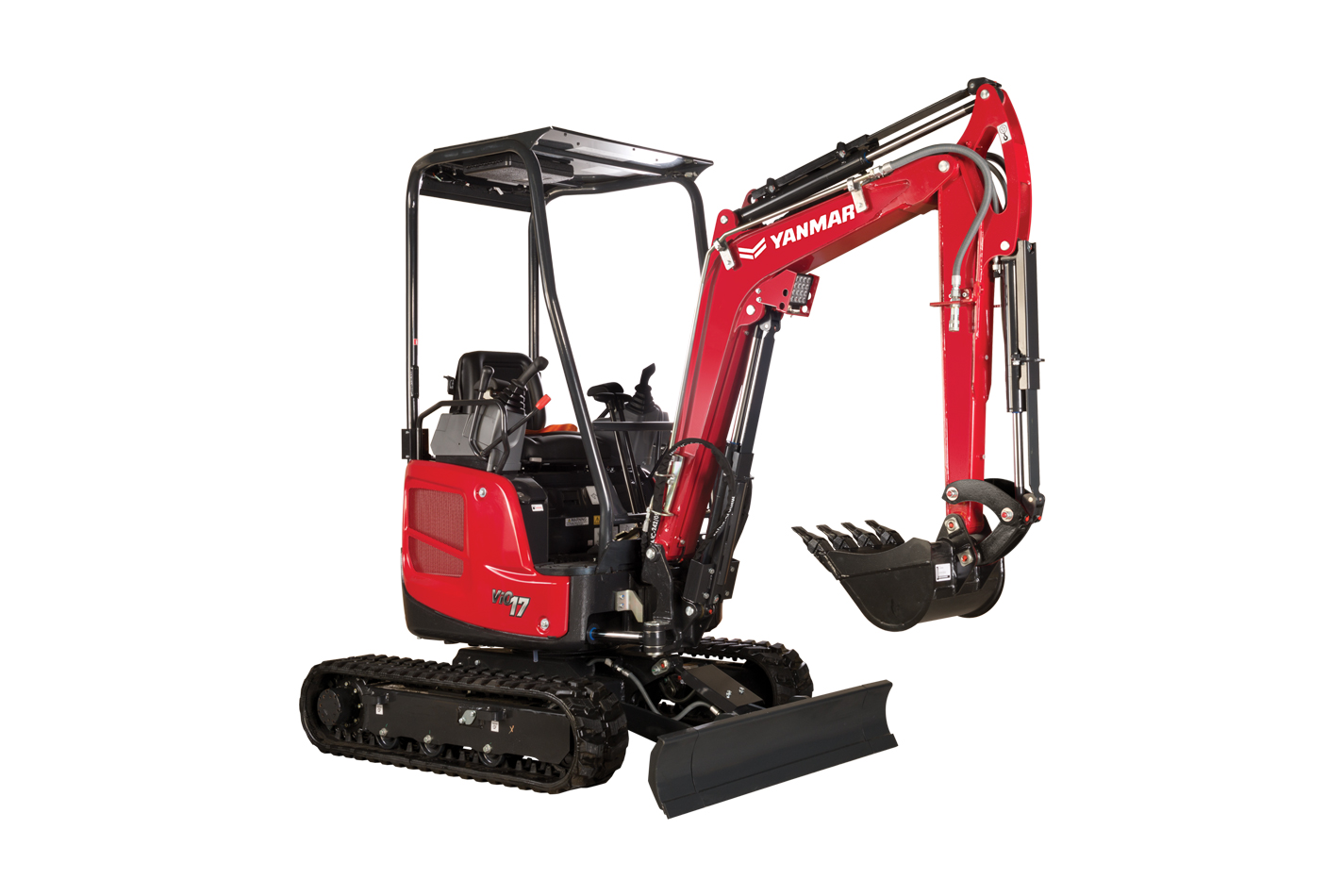

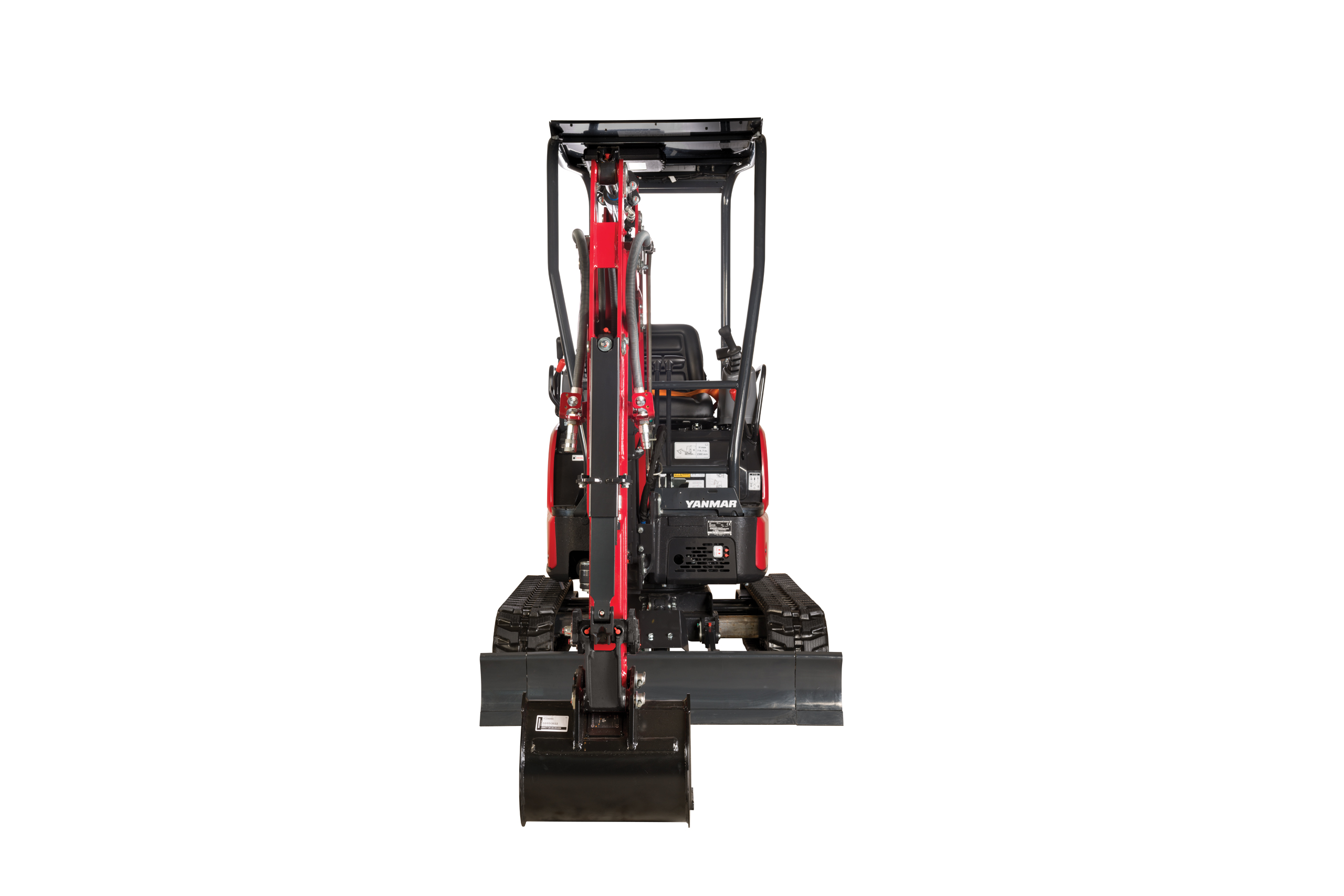

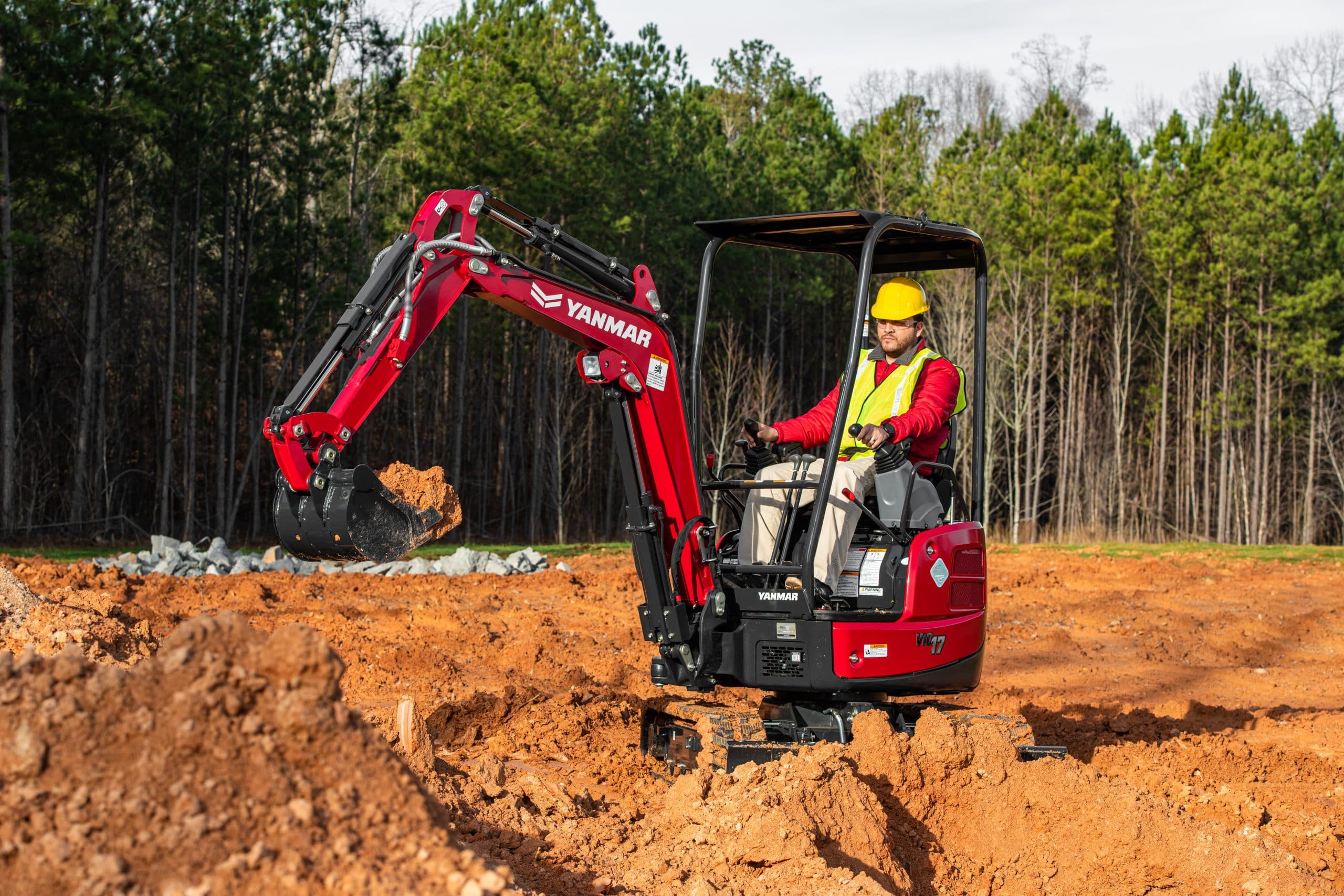

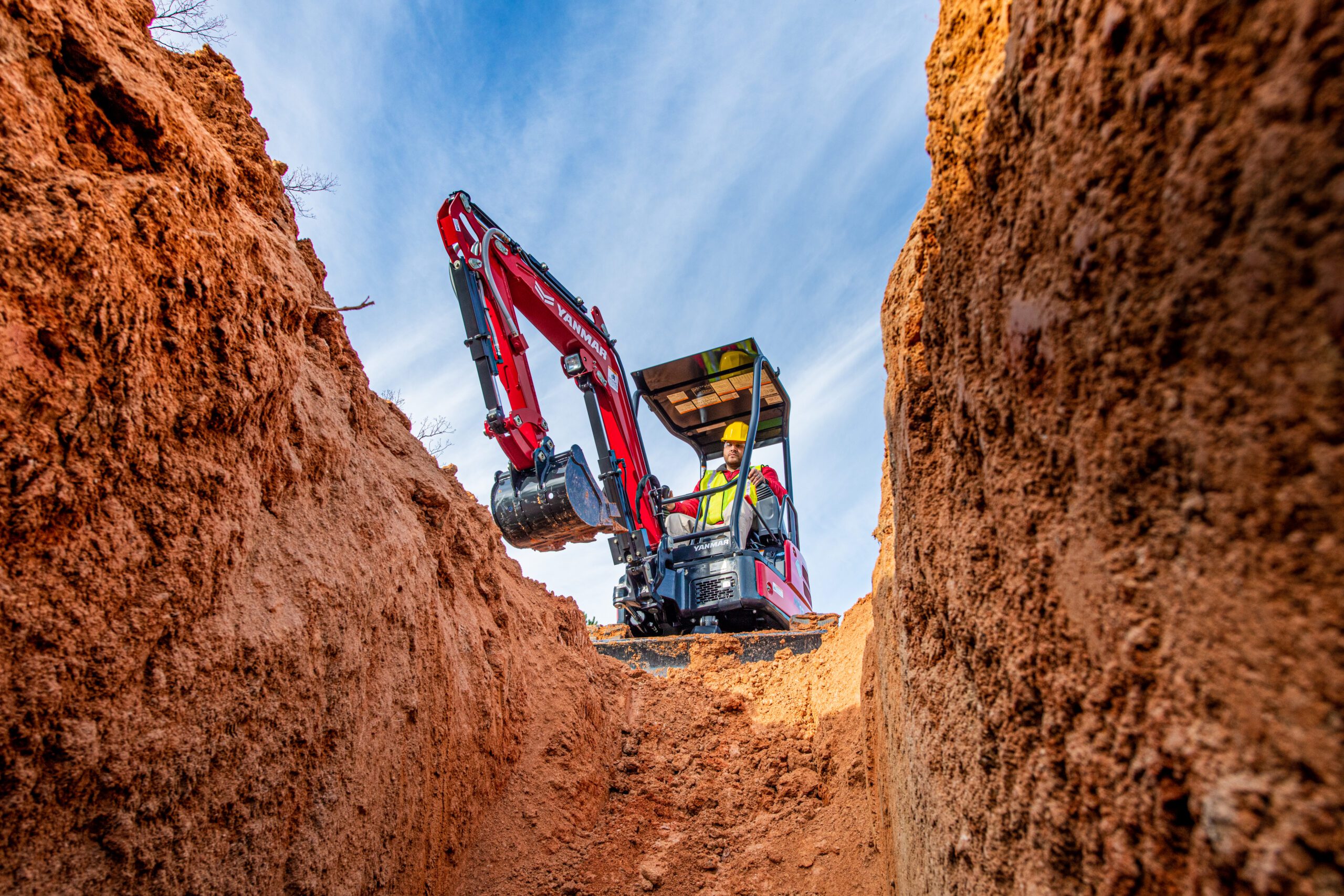

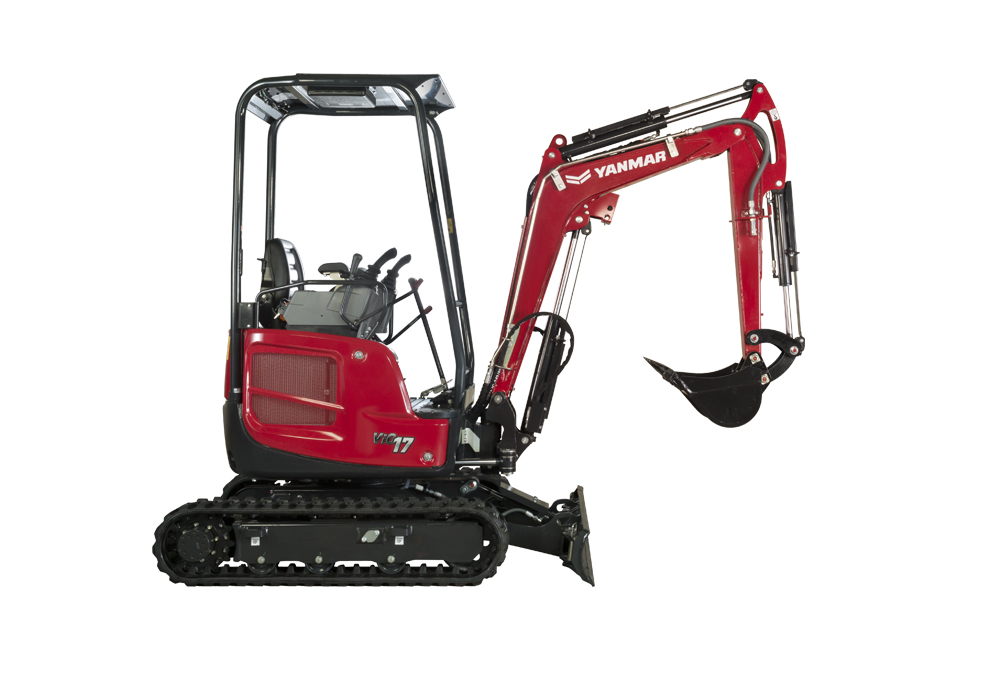

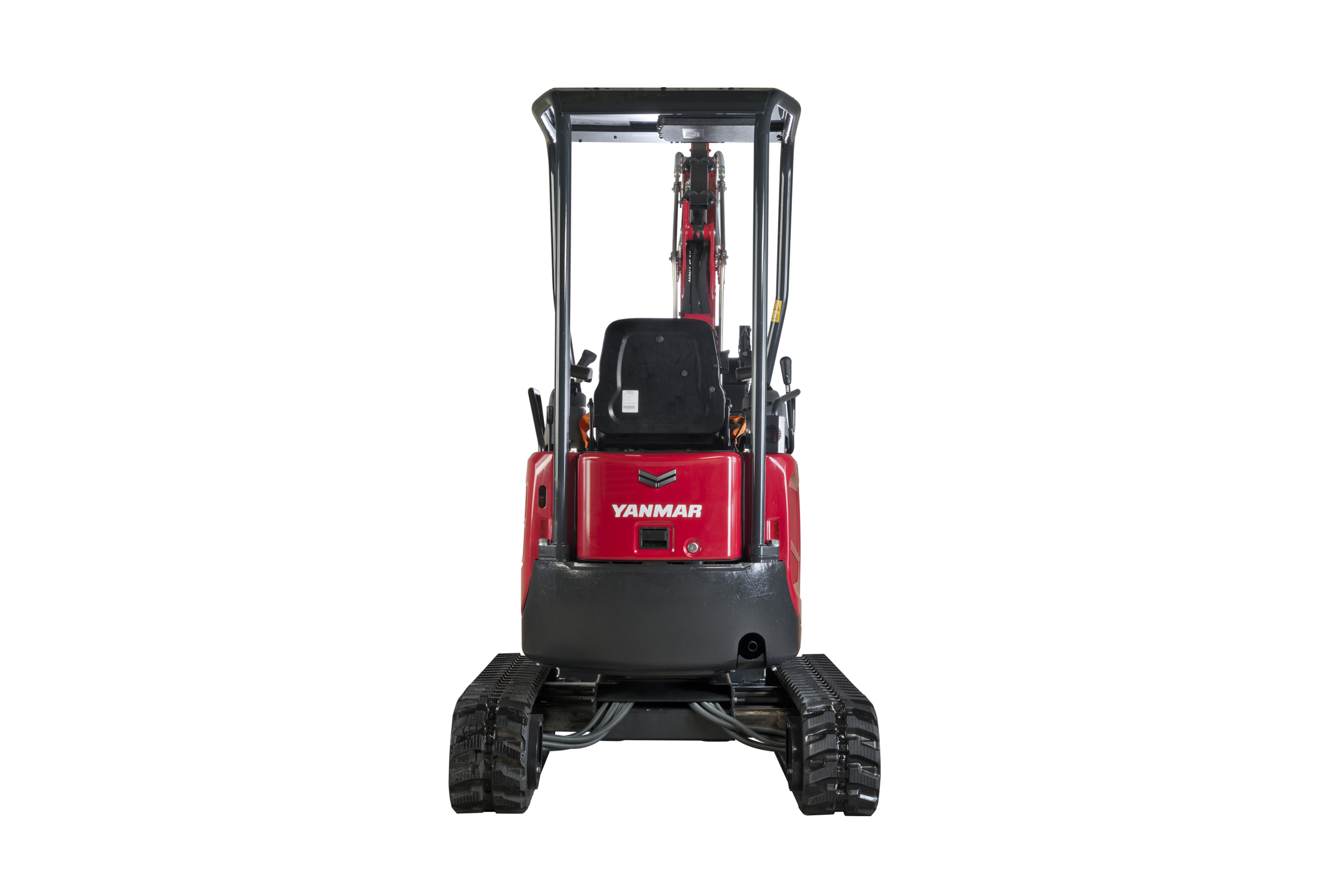

YANMAR Mini Excavator ViO17-1E

When tight spaces call and you need additional power and digging depth to get the job done quickly, ViO17-1E is the answer. This tight space taskmaster can go almost anywhere. With our unique retractable undercarriage, you can hydraulically extend and retract the track width making it even easier to access narrow jobsites. And the ViO17-1E is our smallest zero tail swing model, giving you the added flexibility to work around walls, buildings, or landscaping. Plus, operators will appreciate the comfortable operator station and intuitive controls.

Engine

This div for css purpose only
Model
YANMAR 3TNV74F-SPBV
YANMAR 3TNV74F-SPBV

This div for css purpose only
Output
14.5 HP / 2,400 RPM
10.8 / 2,400 kW/rpm

This div for css purpose only
Type
Water-cooled 3-cylinder diesel
Water-cooled 3-cylinder diesel

Operating Weight

This div for css purpose only
Rubber Track
4,023 lbs.
1.74 t

Performance

Max Digging Force, Bucket / Arm
3,474 / 1,993 lbs
15.2 / 8.5 kN

Traveling Speed
2.6 / 1.3 MPH
4.3 / 2.1 km / h

Swing Speed
9.5 RPM
9.5 RPM

Boom Swing Angle (L / R)
42° / 65°
42° / 65°

Ground Contact Pressure

This div for css purpose only
Rubber Track
4.1 PSI
28.6 kPa

Hydraulic System

Pump Capacity
Double Variable Displacement Pump: 2*4.6 GPM

Gear Pump: 3.5 GPM

17.6 + 17.6 + 13.2 + 11.2 L / min

Main Relief Set Pressure
2,986 PSI
20.6 x2, 16.7 x 1, 29 x 1 MPa

Blade Dimensions

This div for css purpose only
Width x height
4´2˝ / 3´1˝ x 9˝.8
1,280 / 950 x 235 mm

Fuel Tank

This div for css purpose only
Capacity
5.3 Gals
20 L
