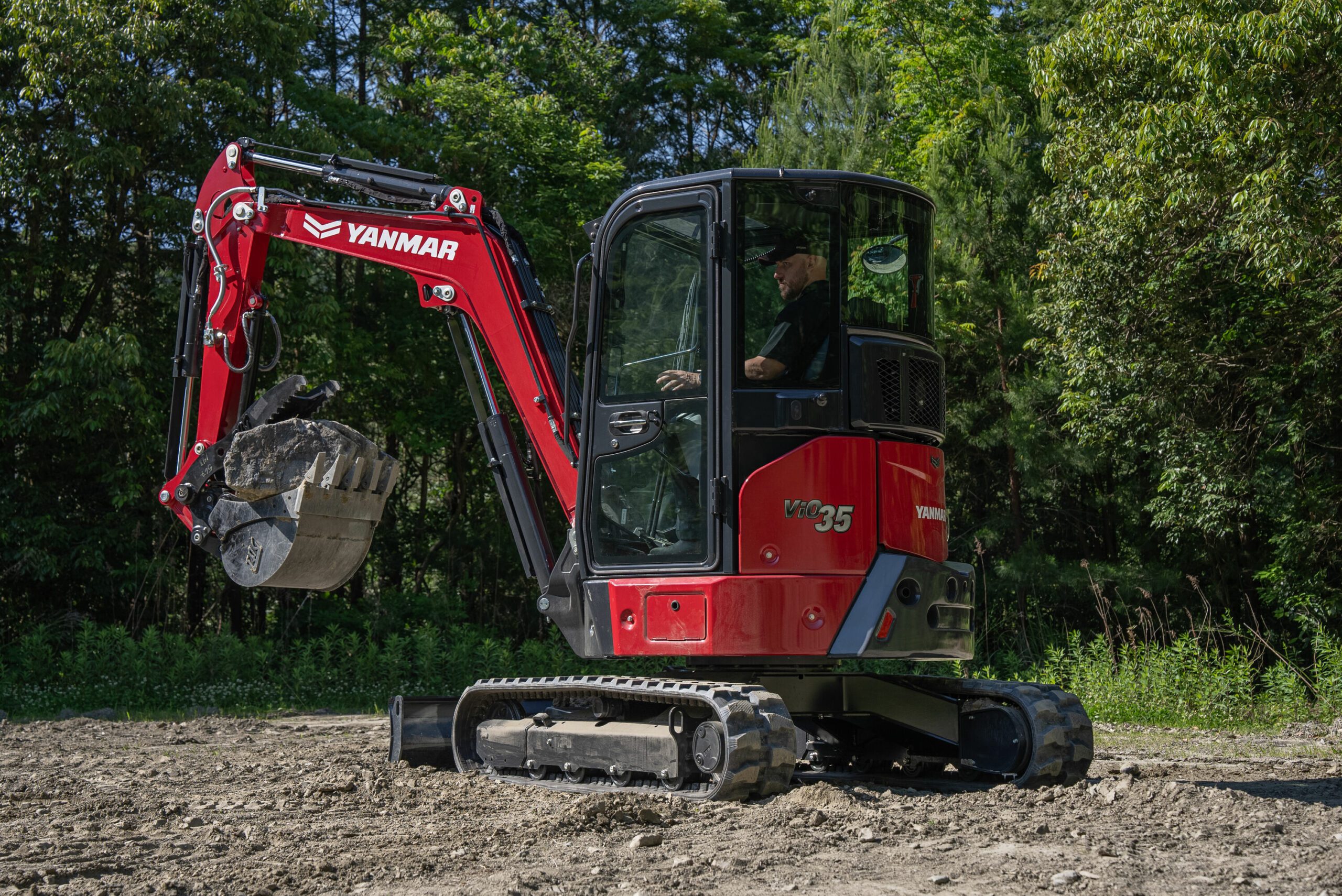

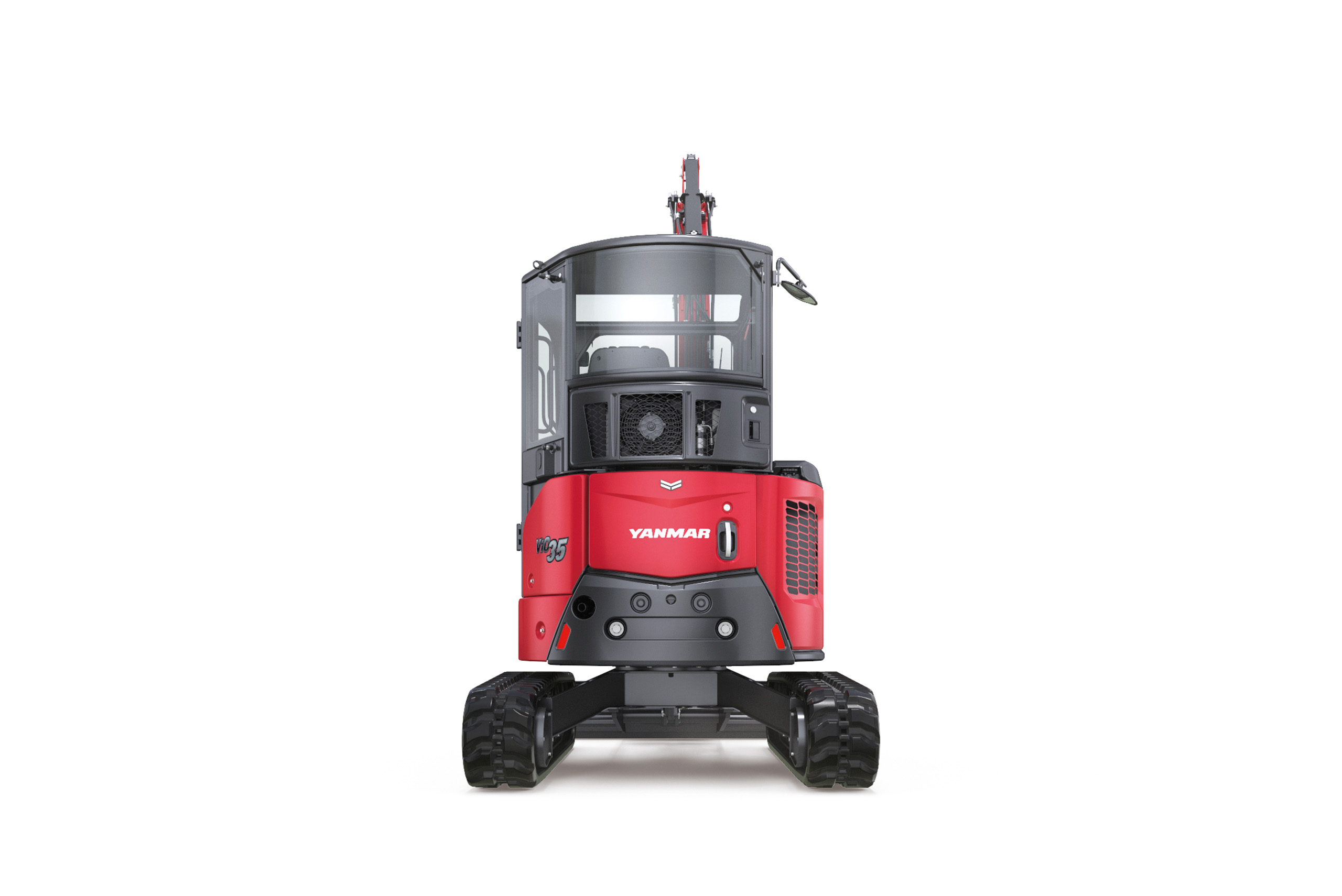

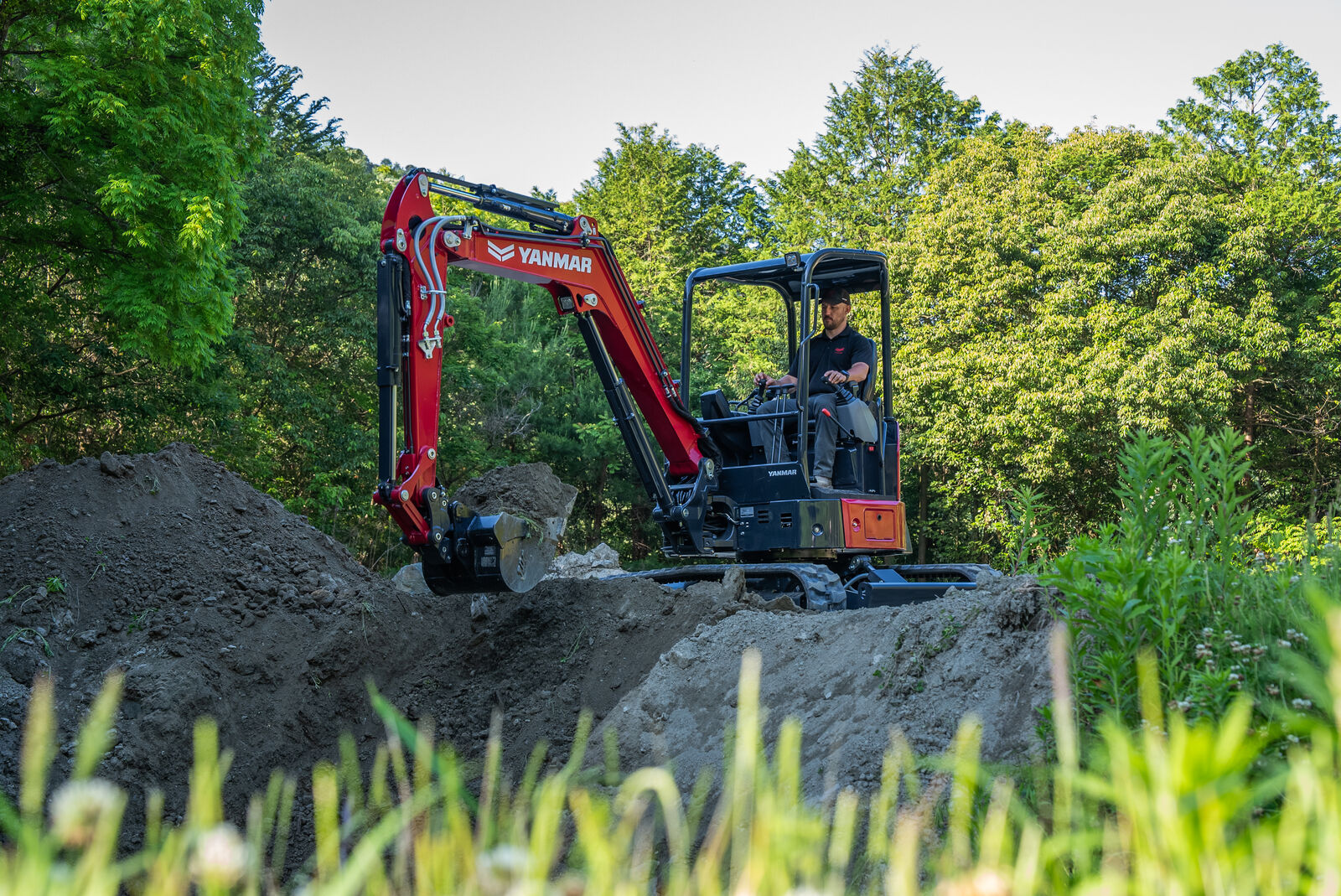

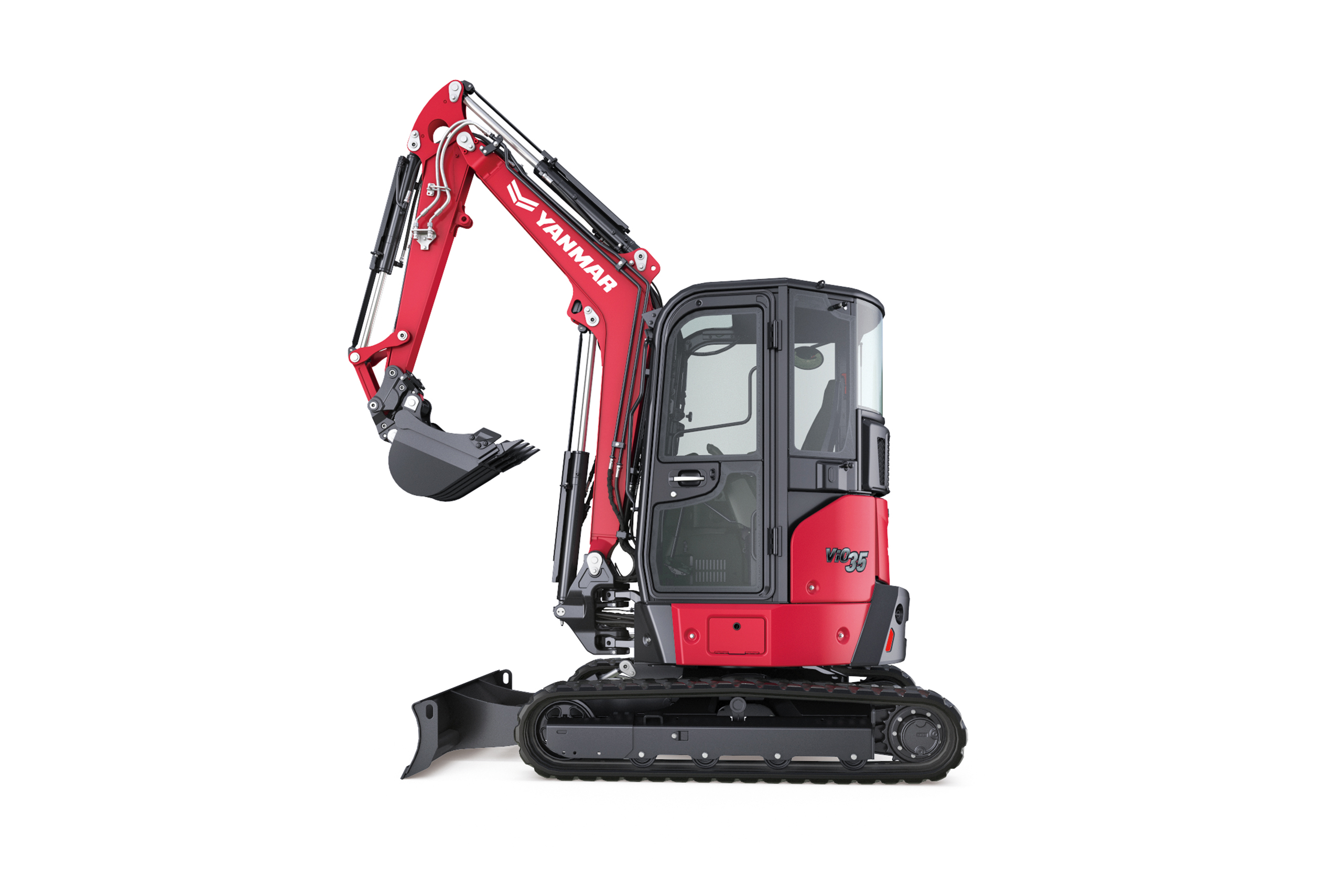

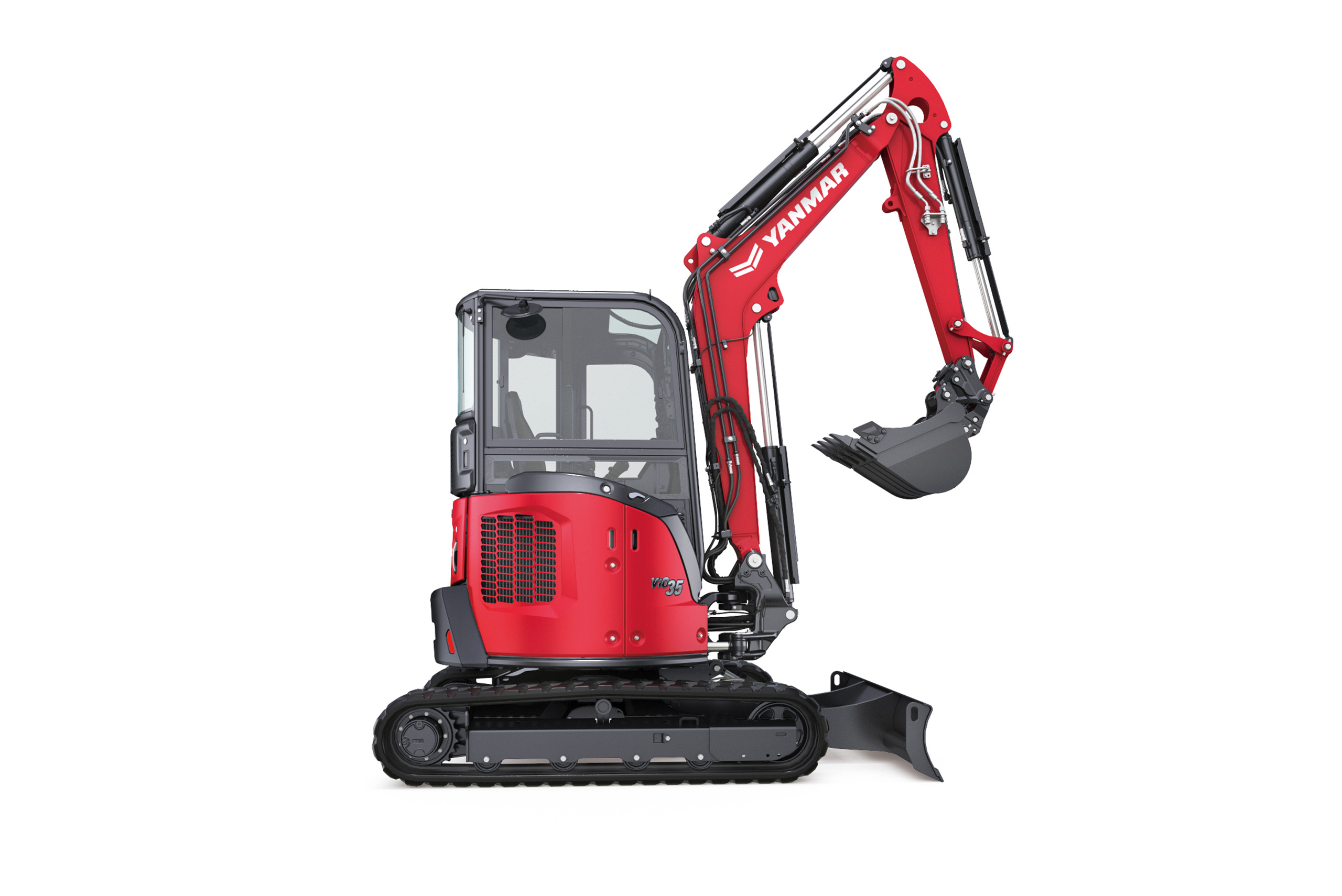

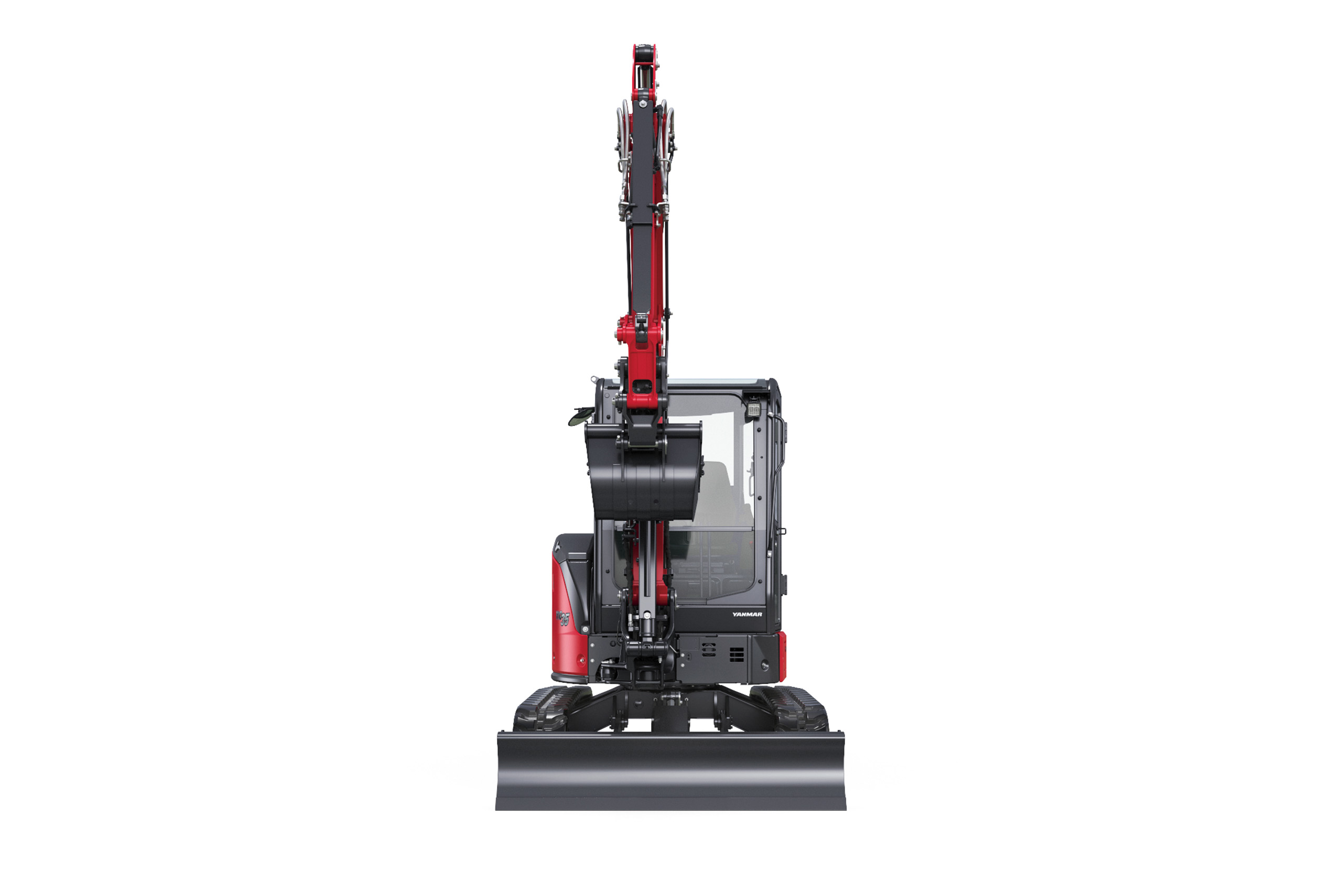

YANMAR Mini Excavator ViO35-7

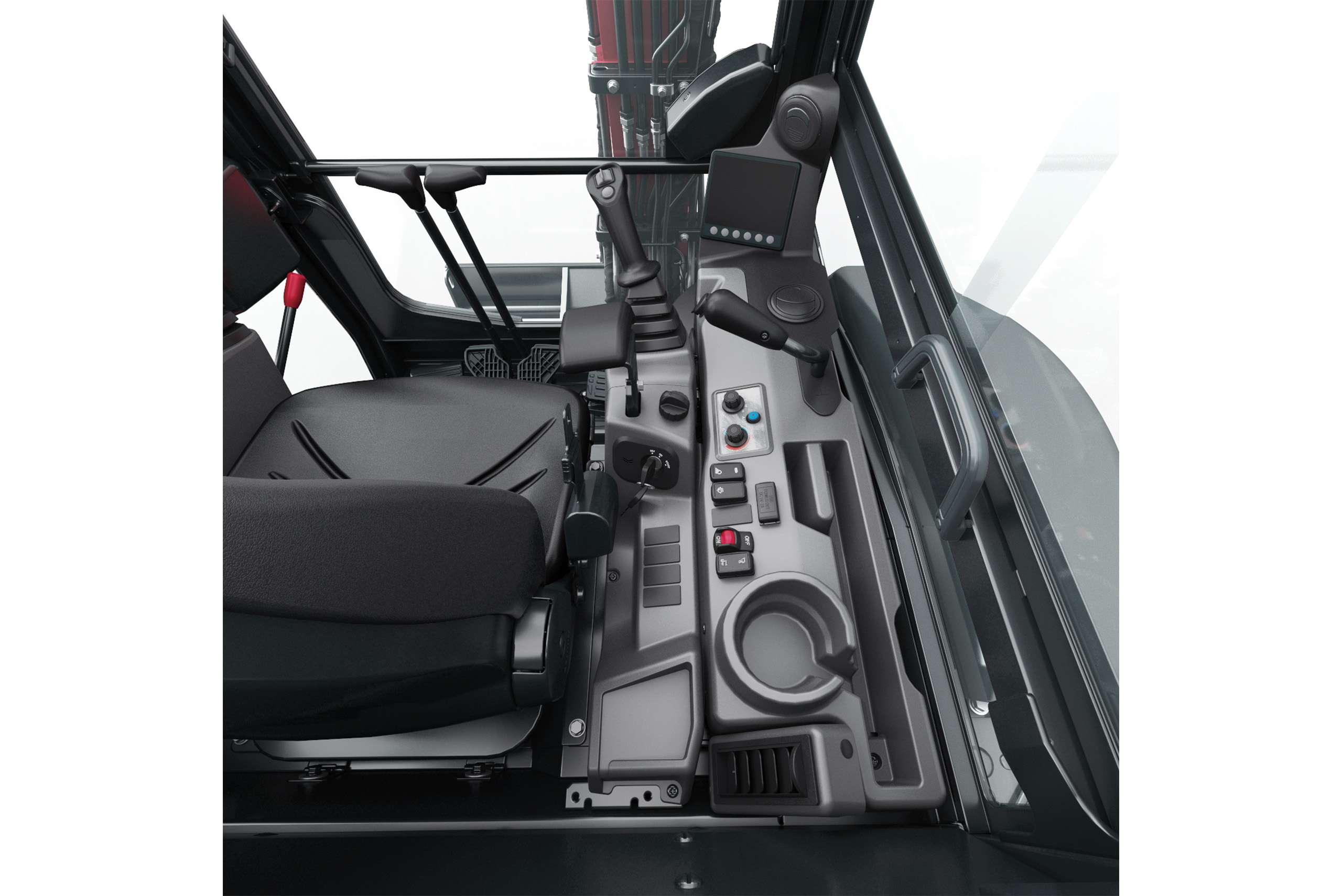

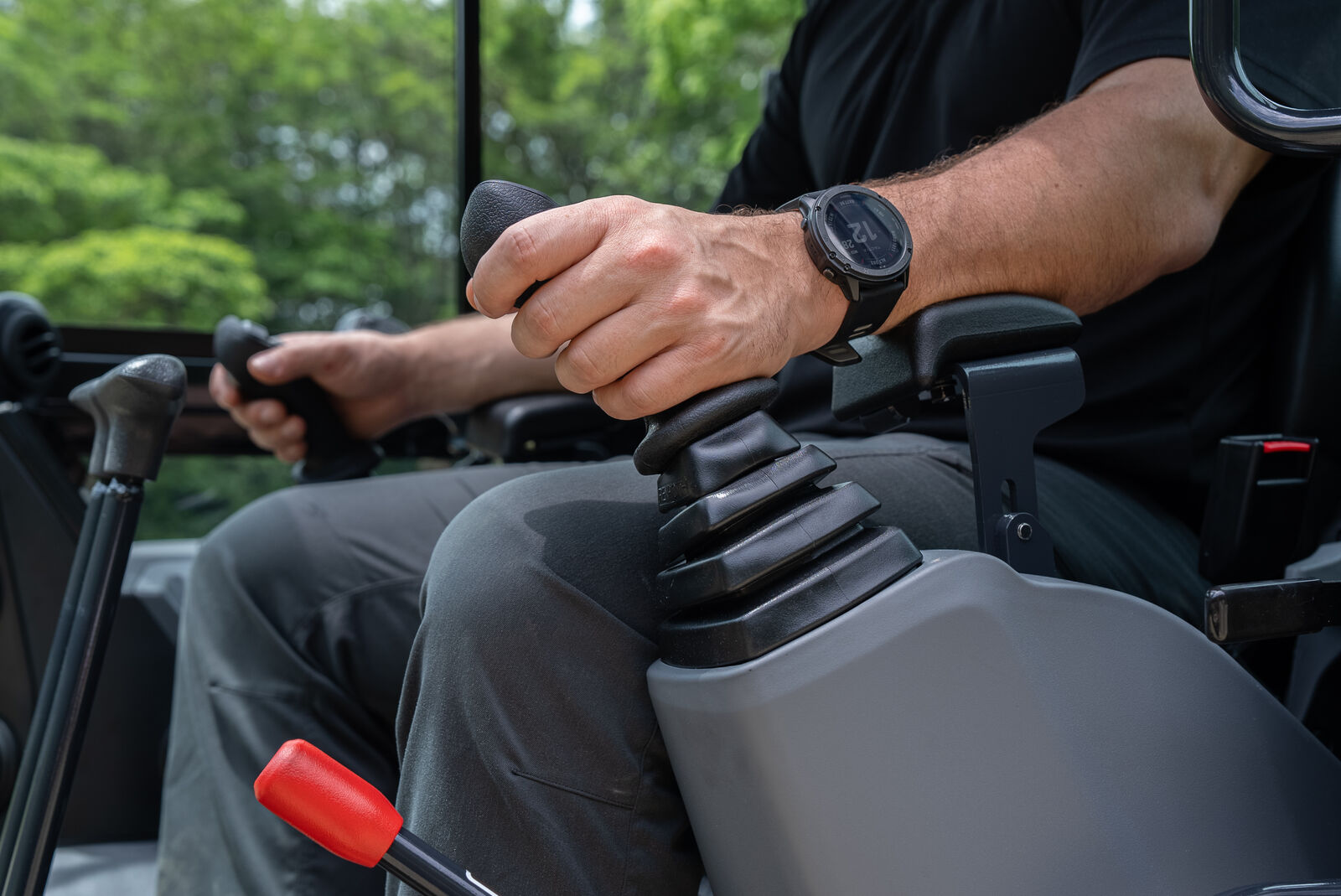

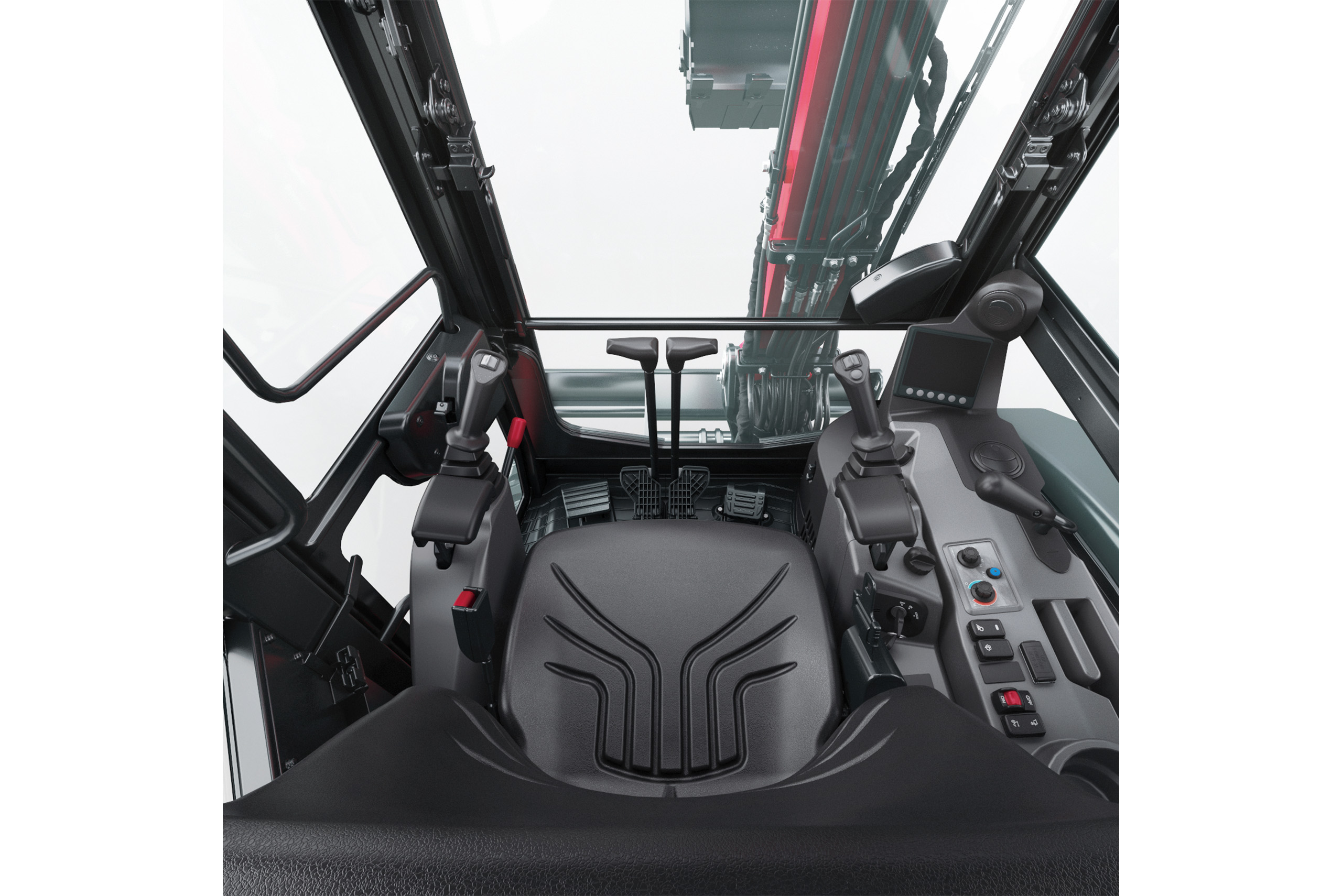

Achieve high power in a compact size with the 24.4-horsepower Yanmar ViO35-7 mini excavator. Powered by a Tier 4 Final Yanmar engine, the 3.5-ton-class machine is a flexible and robust workhorse with high power for its 7,882-pound size, making it easy, reliable and efficient to operate. Get more done with increased productivity from the ViO35-7’s three-pump system which provides industry-leading multi-function performance. The robust machine is built with your experience top of mind, featuring leading 360-degree visibility, plenty of foot space, a comfortable seat and ergonomic controls. Operate with confidence knowing the ViO35-7 is backed by a 4-year/4,000-hour warranty – nearly double the traditional mini excavator warranty.

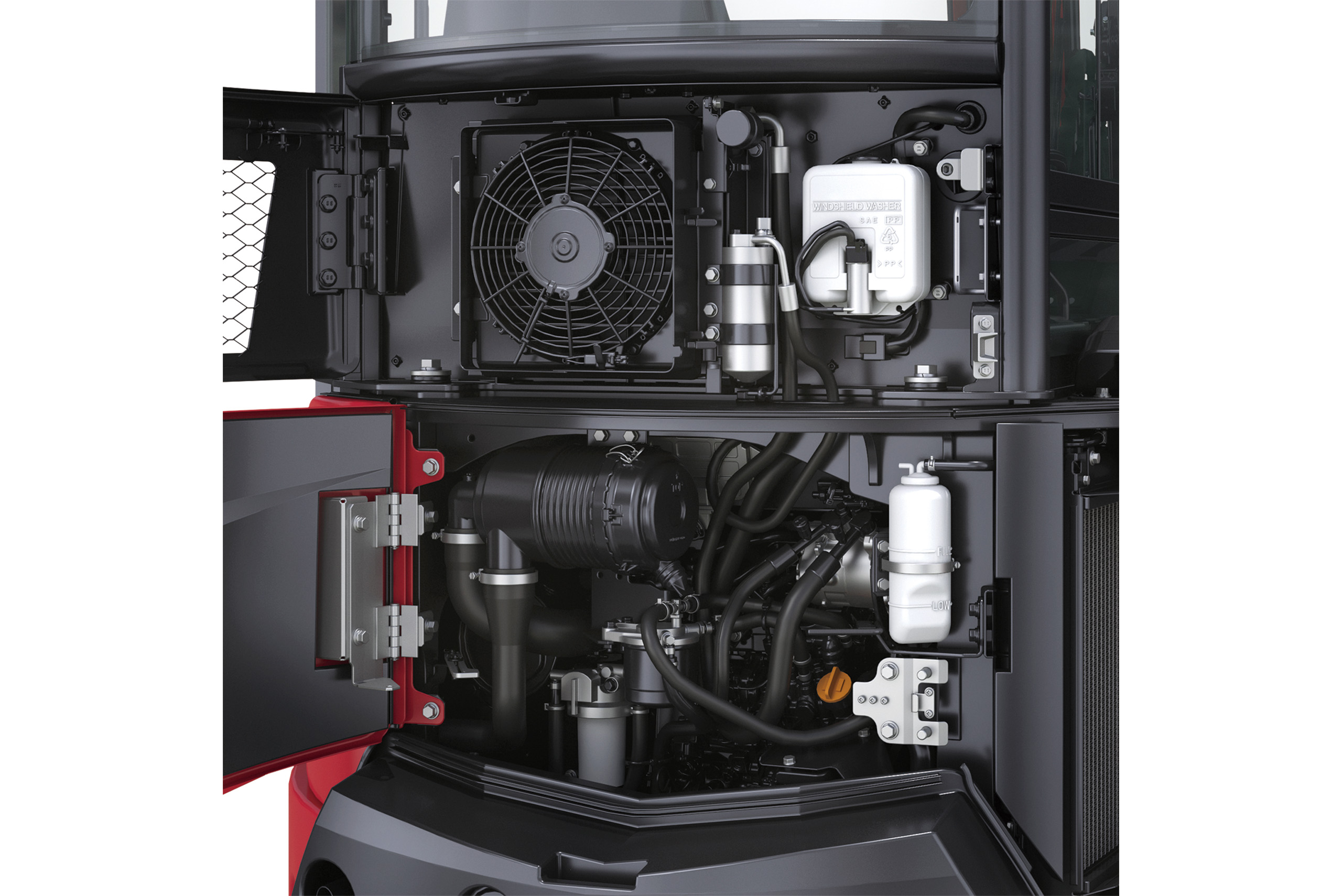

Engine

This div for css purpose only
Model
3TNV88F-ESBV4
3TNV88F-ESBV4

This div for css purpose only
Rated Output
24.4 HP / 2,200 rpm
18.2 kW / 2,200 rpm

This div for css purpose only
Type
Vertical 3-cylinder water-cooled direct injection diesel engine
Vertical 3-cylinder water-cooled direct injection diesel engine

Operating Weight

Rubber Track (Canopy)
7,540 lbs
3.37 t

Rubber Track (Cabin)
7,882 lbs
3.58 t

Performance

Max Digging Force, Bucket / Arm
5,485 / 4,159 lbs
24.4 kN / 18.5 kN

Traveling Speed, High / Low
3.0 MPH / 1.8 MPH
4.8 km/h / 2.9 km/h

Swing Speed
9.4 RPM
9.4 RPM

Boom Swing Angle, (L / R)
71 / 52
71 / 52

Ground Contact Pressure (Rubber Track)

Canopy
4.44 PSI
30.6 kPa

Cabin
4.64 PSI
32.0 kPa

Hydraulic System

Pump Capacity
9.9 GPM x 2 {Variable displacement pump} 7.1 GPM x 1, 2.6 GPM x 1 {Gear pump}
37.4 (L/min) x 2 {Variable displacement pump} 26.8 (L/min) x 9.9 (L/min) x 1 {Gear pump}

Main Relief Set Pressure
3,205 x 2, 2,988 x 1 PSI
22.1 x 2, 20.6 x 1 MPa

Blade Dimensions

Width
5′ 8″
1,740 mm

Stroke, Raise / Lower from G.L.
1′ 5″ / 1′ 3″
425 mm / 370 mm

Fuel Tank

This div for css purpose only
Capacity
11.6 Gals
44 L
