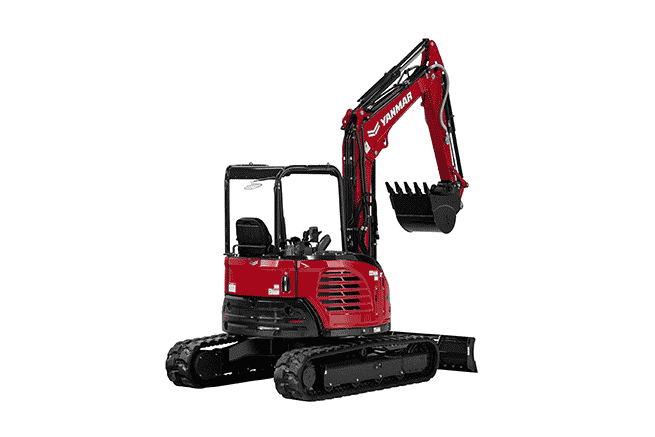

YANMAR Mini Excavator ViO50-6A

When you combine the best-in-class performance with true zero tail swing technology, you get the definitive performance of the Vi050-6A. This 5-ton mini excavator never shies away from work thanks to the hard-nosed performance of its 39HP Tier 4 Final Yanmar diesel engine. We then super-charged its capability with compact workspace capability of true zero tail swing, giving you the ability to dig, backfill and pack quickly in the tightest confines. The full-featured Vi050-6A features the standard performance and efficiency of ECO mode, auto deceleration, 78” backfill blade, and auto-shifting two-speed travel. Plus add even more capability with optional 4-way blade control, blade auto-float, and second auxiliary hydraulic circuit, and you’ll soon discover doing more for less is second nature for this mini excavator.

REQUEST QUOTE
GET FINANCING

Engine

This div for css purpose only
Model
YANMAR 4TNV88C-PBV1
YANMAR 4TNV88C-PBV1

This div for css purpose only
Output
39.0 / 2,400 HP
29.1 / 2,400 kW/rpm

This div for css purpose only
Type
Vertical 4-cylinder water-cooled direct injection diesel engine
Vertical 4-cylinder water-cooled direct injection diesel engine

Operating Weight

Rubber Track (Canopy)
10,417 lbs
4.73 t

Steel Track (Canopy)
10,703 lbs
4.86 t

Rubber Track (Cabin)
10,792 lbs
4.92 t

Steel Track (Cabin)
11,078
5.03 t

Performance

Max Digging Force, Bucket / Arm
6,497 / 4,676 lbs
36.5* kW / 2,400 rpm (*without quick coupler)

Traveling Speed, High / Low
2.9 / 1.5 MPH
4.6 / 2.4 km/h

Swing Speed
10 RPM
10 RPM

Boom Swing Angle, (L / R)
68° / 68°
68° / 68°

Ground Contact Pressure

Rubber Track (Canopy)
4.25 PSI
29.3 kPa

Steel Track (Canopy)
4.42 PSI
30.5 kPa

Rubber Track (Cabin)
4.41 PSI
30.4 kPa

Steel Track (Cabin)
4.58 PSI
31.6 kPa

Hydraulic System

Pump Capacity
11.2 + 11.2 + 9.7 + 2.8 GPM
42.5 + 42.5 + 37 + 10.8 L / min

Main Relief Set Pressure
3,553 x 2 + 3,133 + 566 PSI
24.5 x 2 + 21.6 + 3.9 MPa

Blade Dimensions

This div for css purpose only
Width x Height
6’6″ x 1’4″
1,970 x 400 mm

Fuel Tank

This div for css purpose only
Capacity
17.4 Gals
66 L
