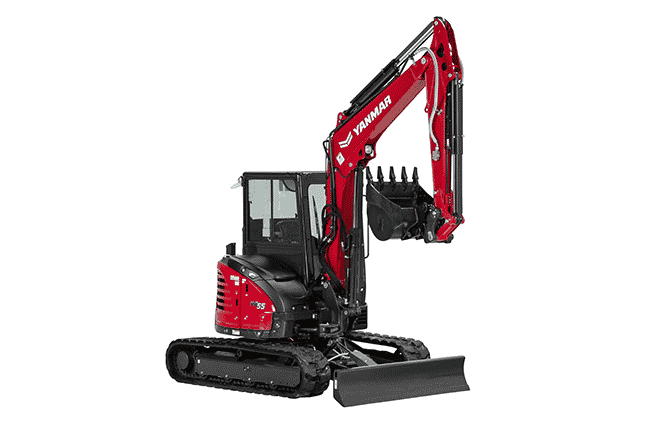

YANMAR Mini Excavator ViO55-6A

Looking for more performance, low cost of ownership and the versatility and small space capability of true zero tail swing? Look no further than the Vi055-6A. We’ve packed the most wanted features and Yanmar innovations into this 5.5-ton class mini excavator including standard auto-shifting two-speed travel to efficiently move between dig areas. Providing all the performance you need is a turbo-charged Tier 4 Final Yanmar diesel engine resulting in more than 47HP at your fingertips. You can then add more capability with the optional 4-way blade and floating function. Add it all up and you have an excavator that can tackle the toughest tasks in places where larger, heavier, and less maneuverable excavators simply can’t go. Plus, with our legendary Yanmar ease of maintenance and rugged dependability, you can rest assured you’ll be able to work harder and longer for less.

Engine

This div for css purpose only
Model
YANMAR 4TNV86CT-PBV
YANMAR 4TNV86CT-PBV

This div for css purpose only
Output
47.6 HP
35.5 / 2,400 kW/rpm

This div for css purpose only
Type
Water-cooled 4-cylinder diesel
Water-cooled 4-cylinder diesel

Operating Weight

Rubber Track (Canopy)
11,850 lbs
5.38 t

Steel Track (Canopy)
11,916 lbs
5.41 t

Rubber Track (Cabin)
12,247 lbs
5.55 t

Steel Track (Cabin)
12,313 lbs
5.58 t

Performance

Max Digging Force, Bucket / Arm
7,464 / 5,058 lbs
41.9* / 24.4* kN (*without quick coupler)

Traveling Speed, High / Low
2.6 / 1.4 MPH
4.2 / 2.2 km/h

Swing Speed
10 RPM
10 RPM

Boom Swing Angle, (L / R)
68° / 68°
68° / 68°

Ground Contact Pressure

Rubber Track (Canopy)
4.17 PSI
28.8 kPa

Steel Track (Canopy)
4.25 PSI
29.3 kPa

Rubber Track (Cabin)
4.40 PSI
30.3 kPa

Steel Track (Cabin)
4.47 PSI
30.9 kPa

Hydraulic System

Pump Capacity
12 + 12 + 9.7 + 2.8 GPM
42.5 + 42.5 + 37 + 10.8 L / min

Main Relief Set Pressure
3,553 x 3 + 566 PSI
24.5 x 3 + 3.9 MPa

Blade Dimensions

This div for css purpose only
Width x Height
6´6˝ x 1´4˝
1,970 x 400 mm

Fuel Tank

This div for css purpose only
Capacity
17.4 Gals
66 L
