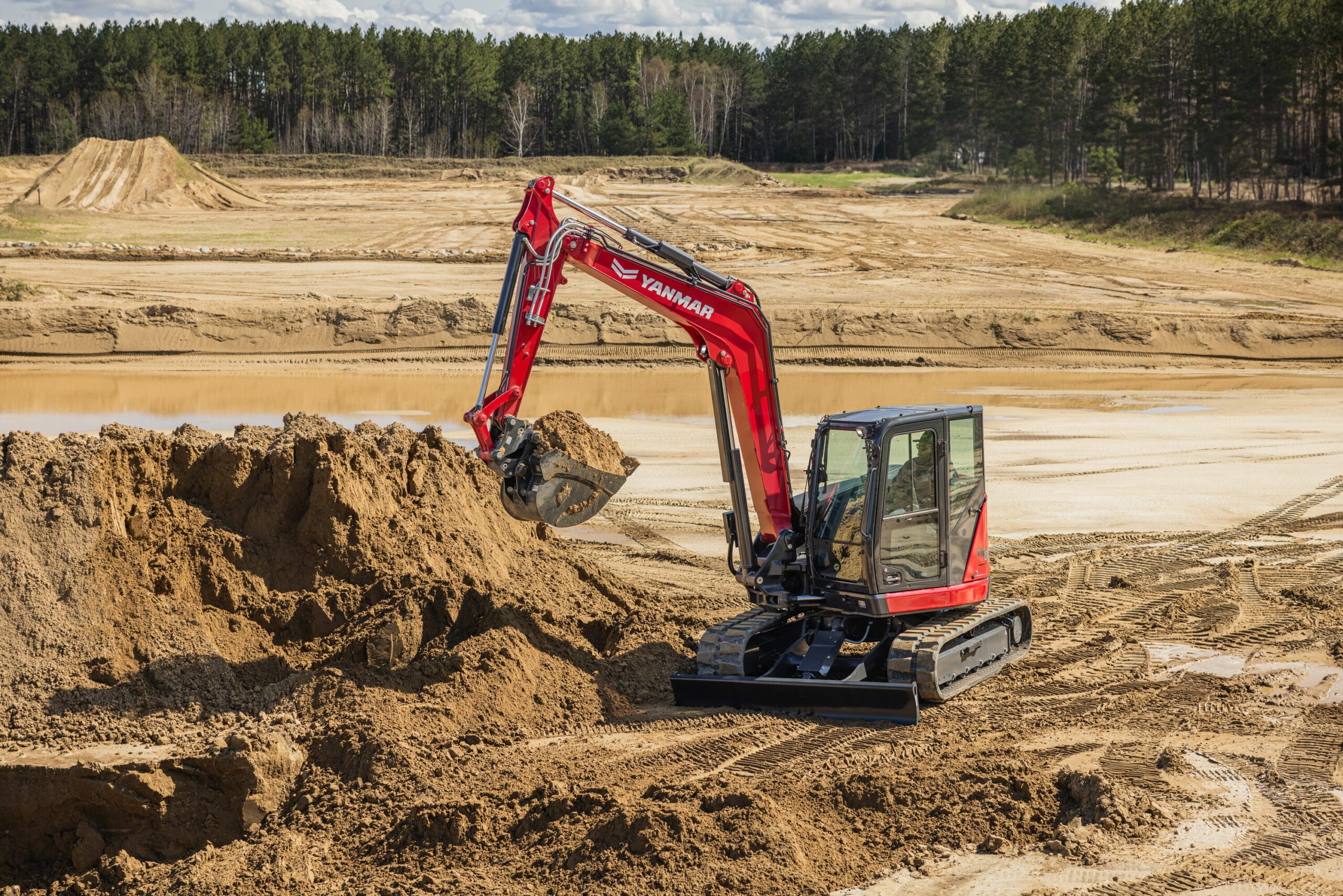

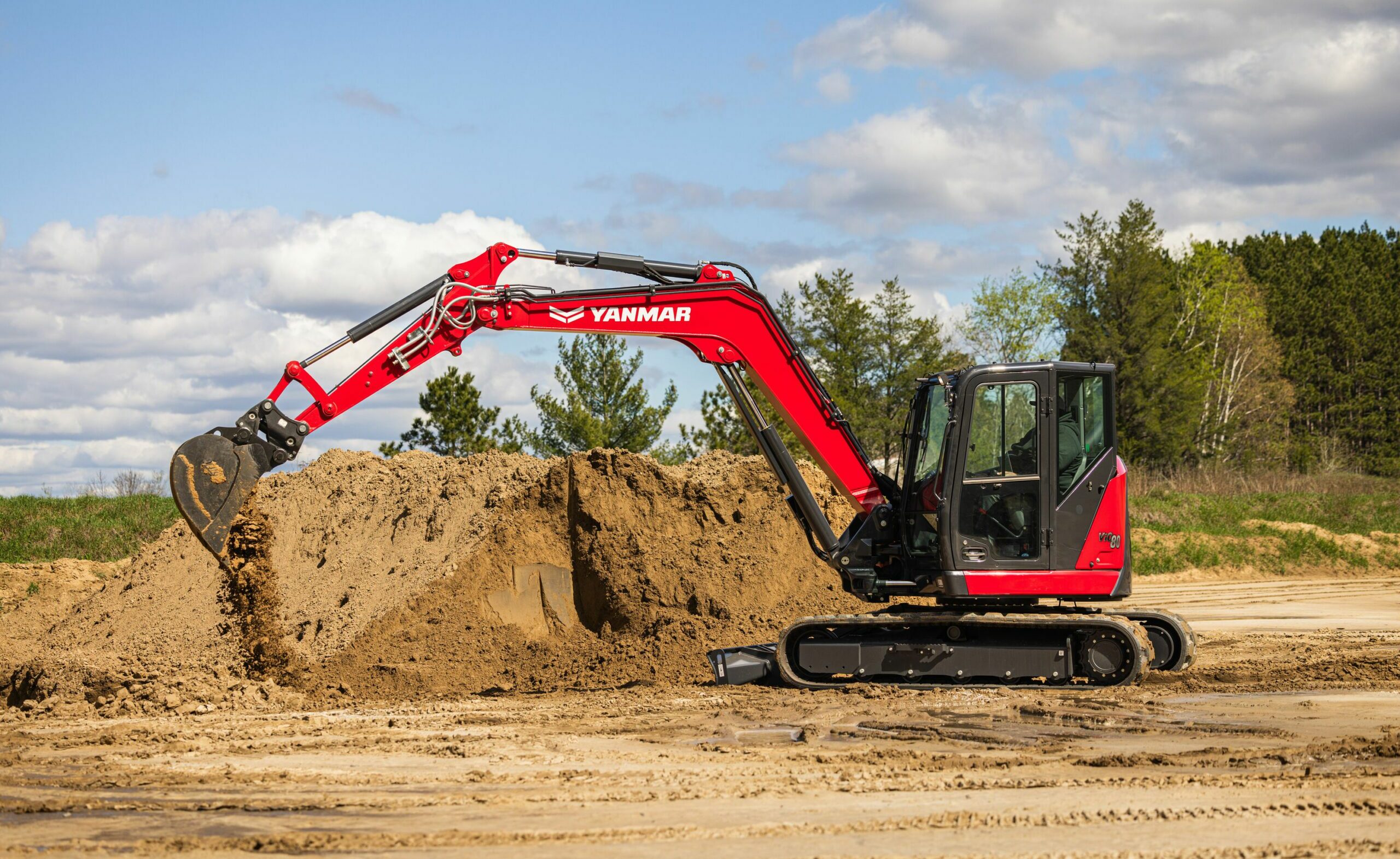

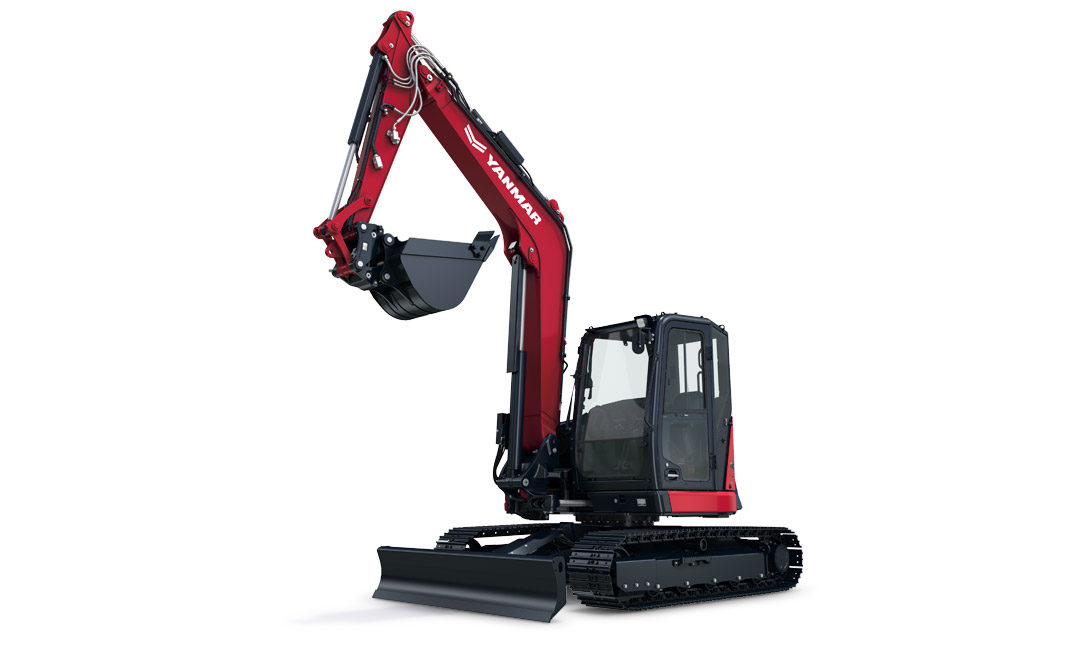

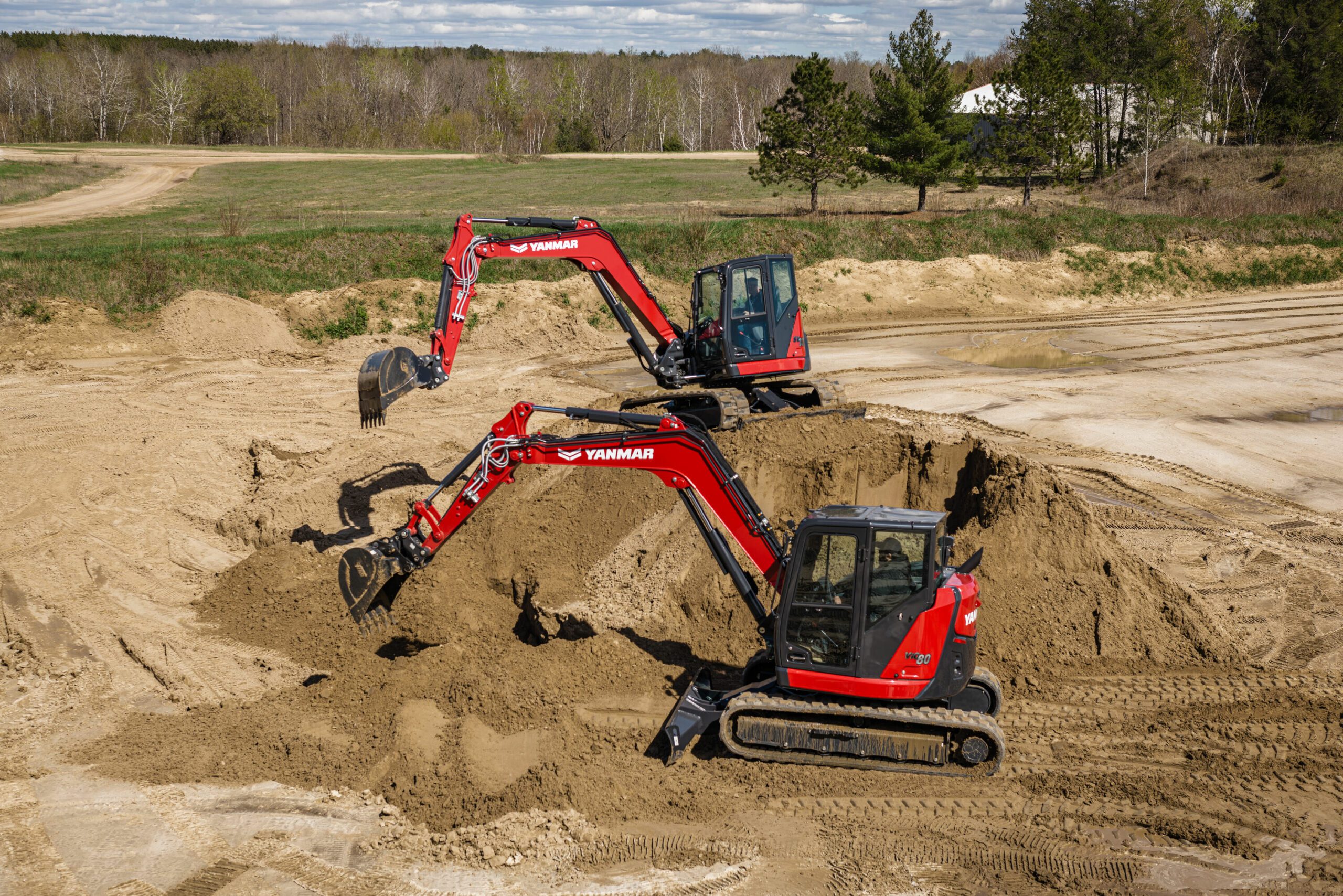

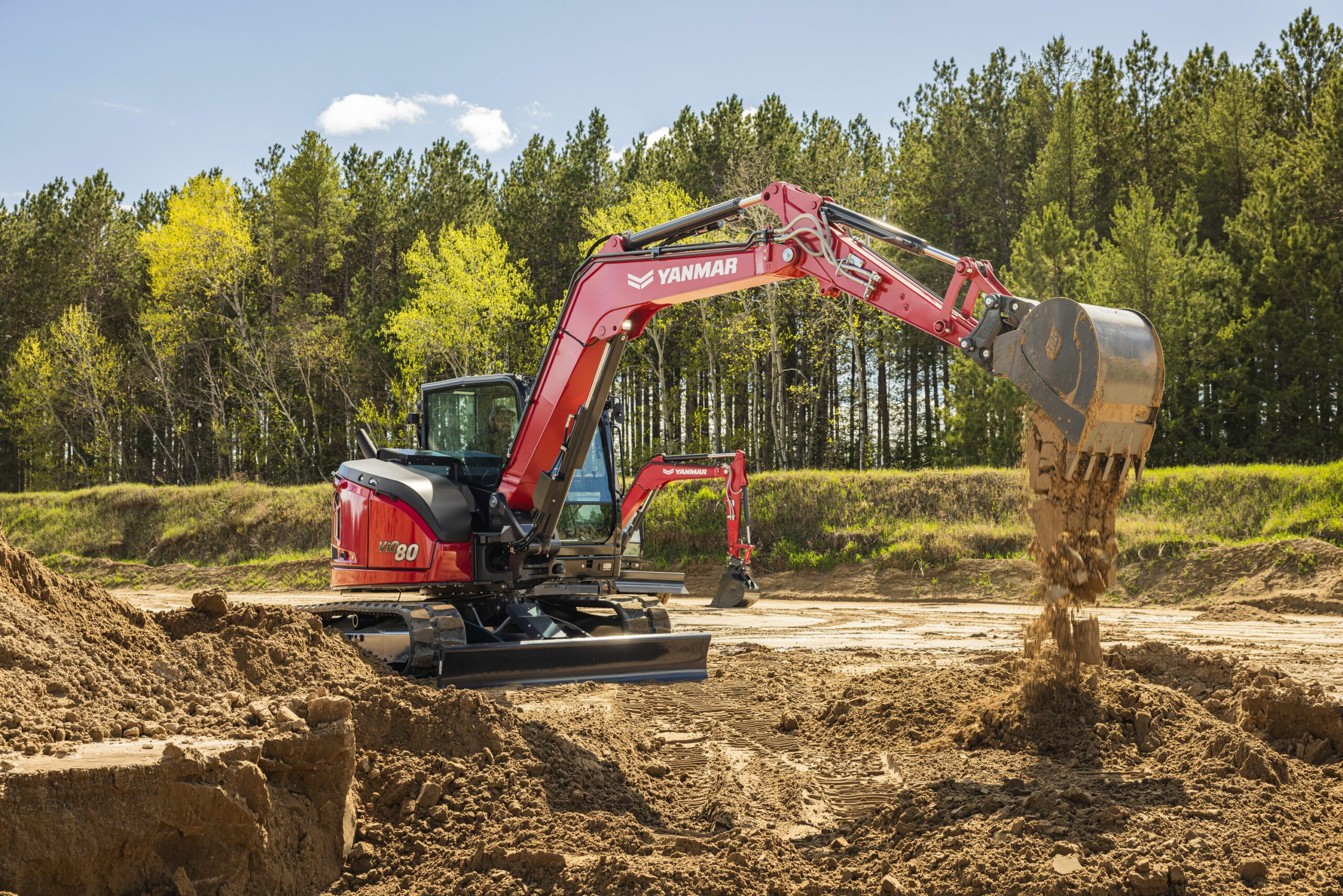

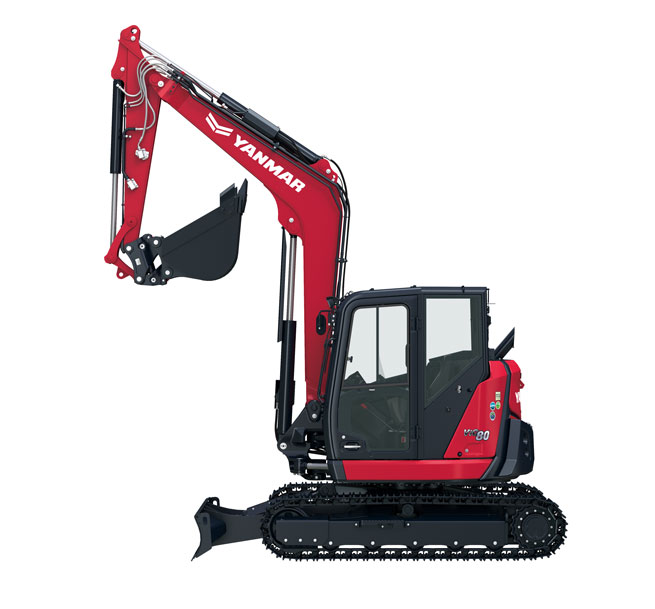

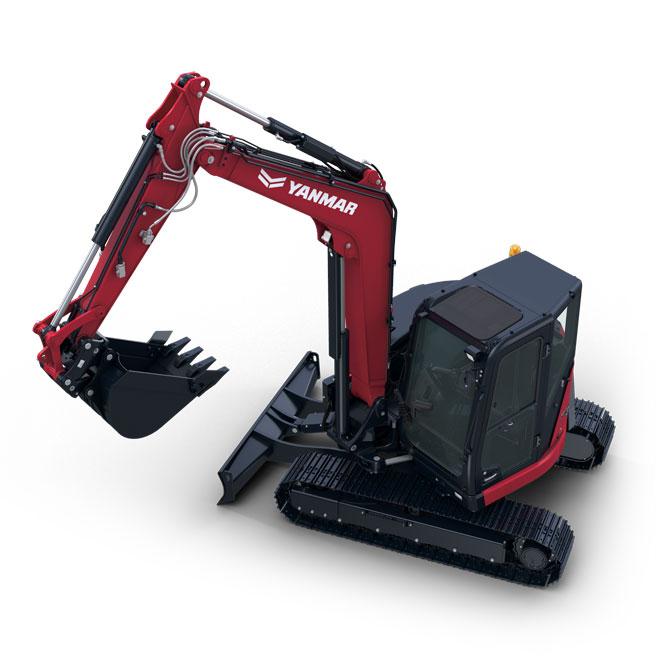

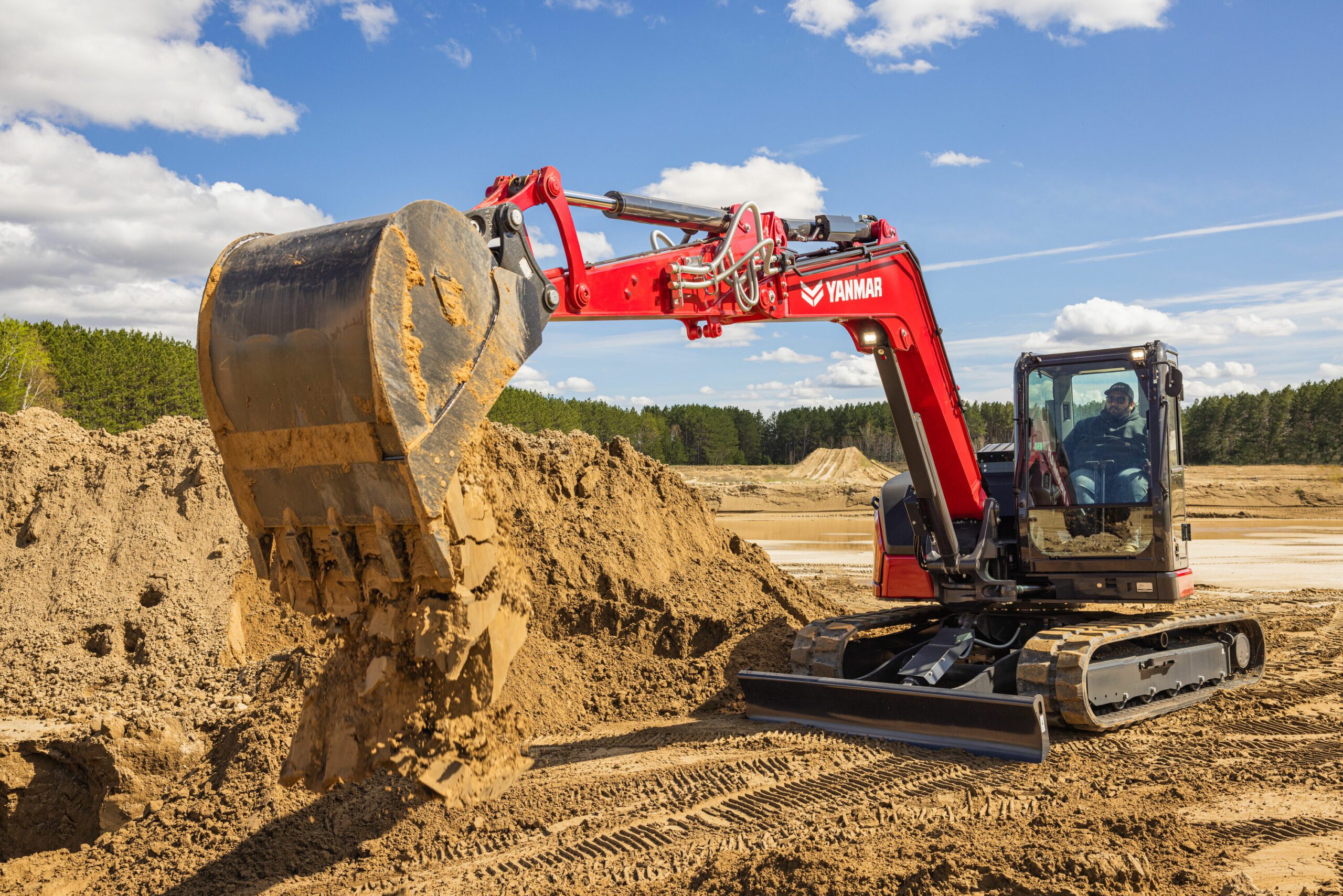

YANMAR Mini Excavator ViO80-7

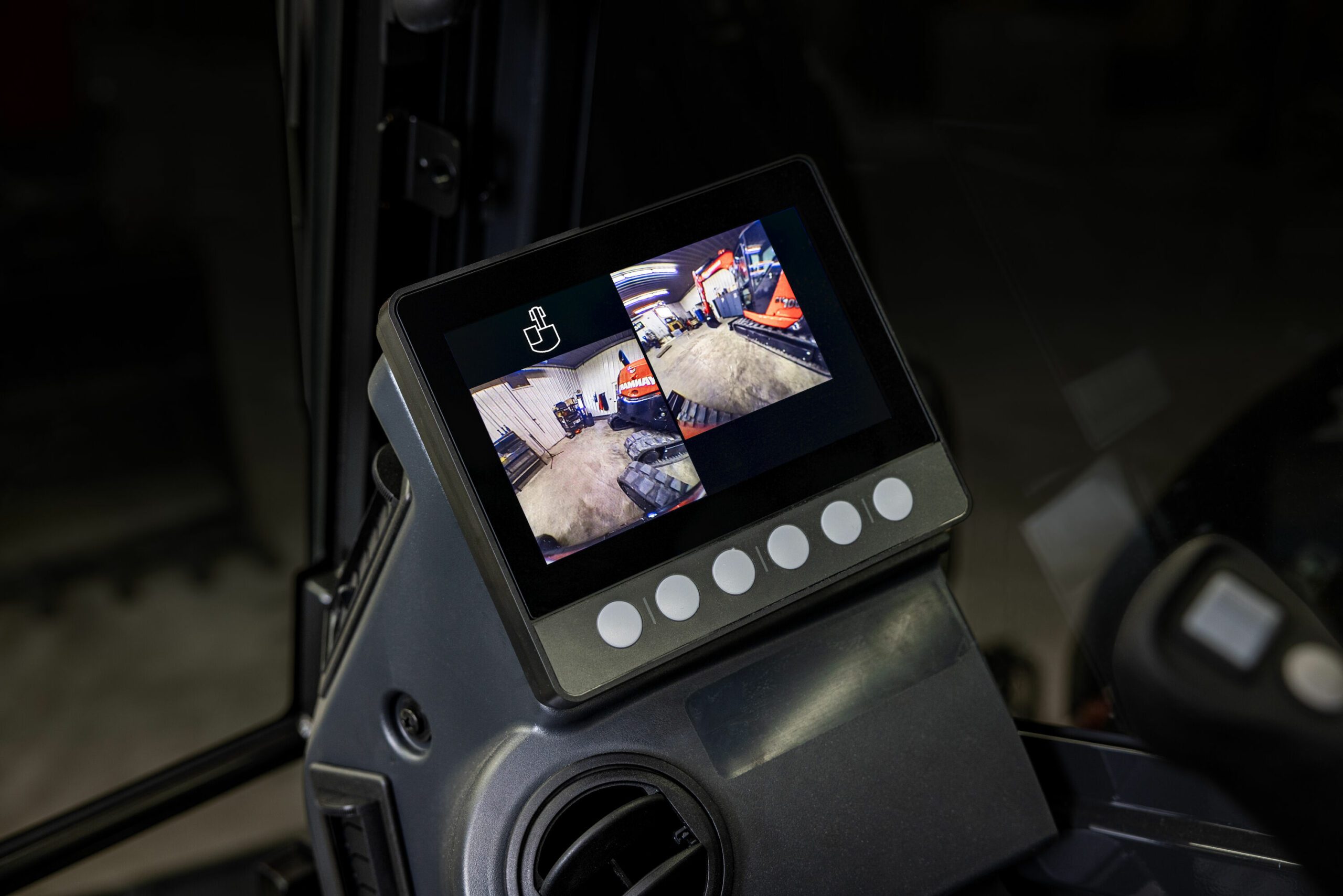

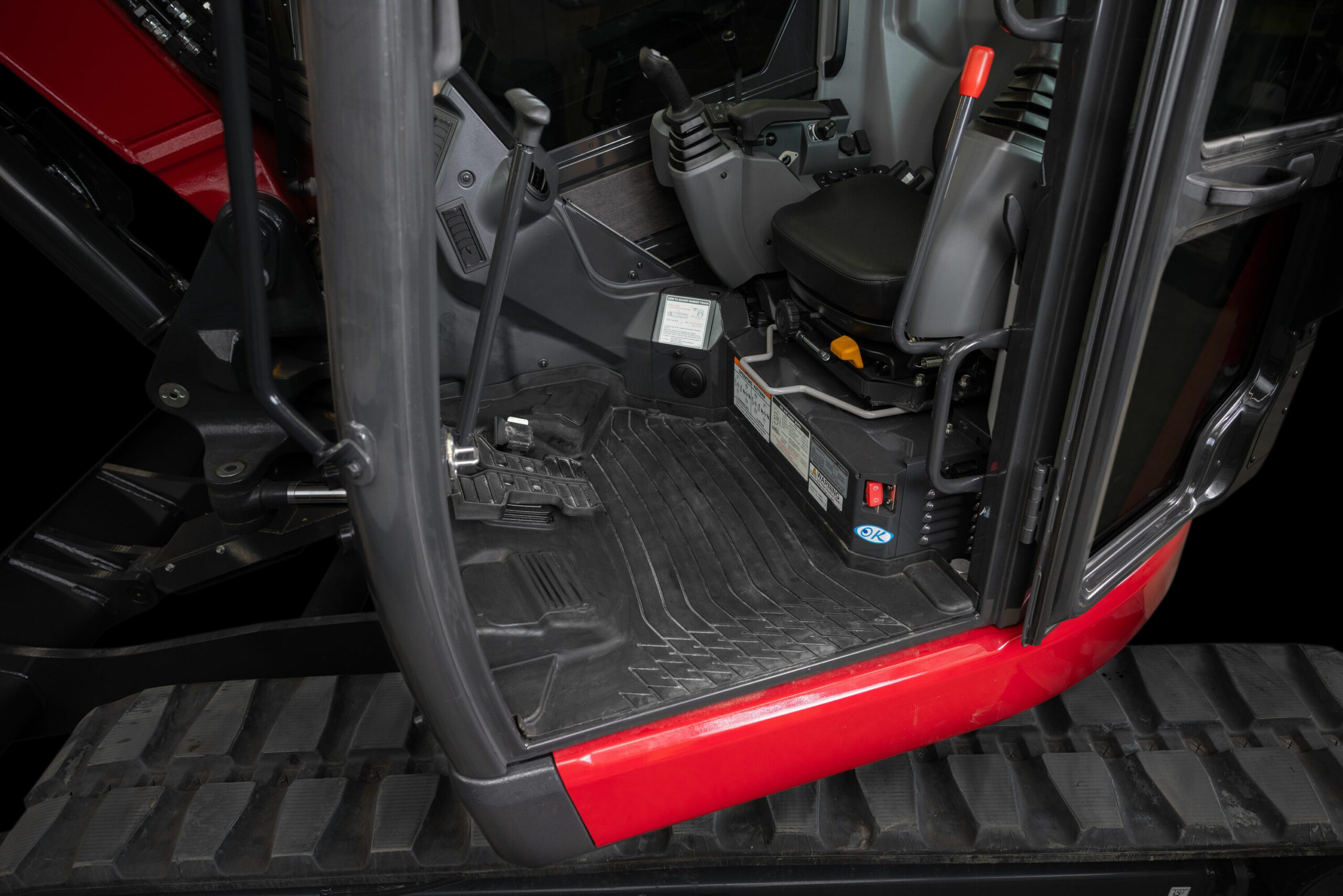

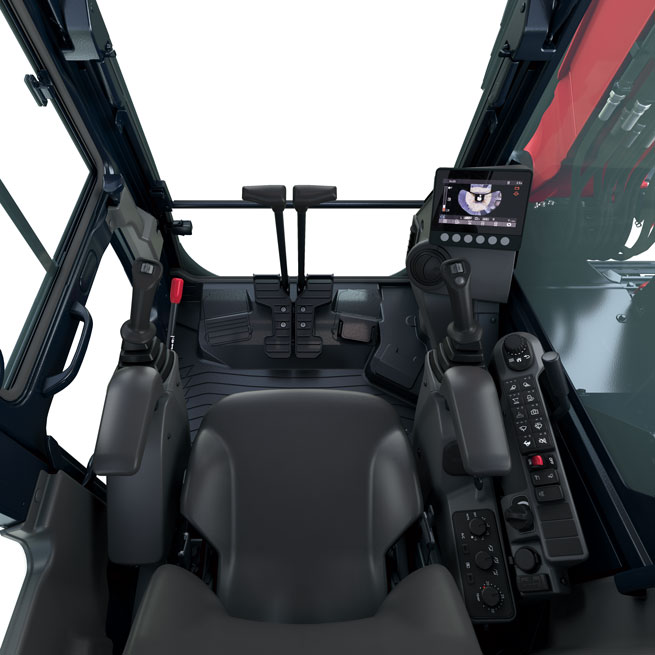

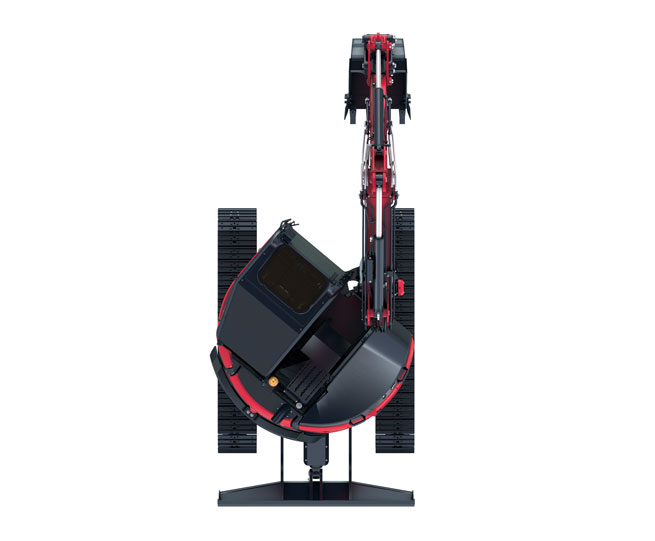

The ViO80-7 goes where larger conventional tail swing excavators can’t and does so while providing unmatched machine performance. The biggest of our true zero tail swing excavators, the ViO80-7 is powered by a 67-horsepower Tier 4 Final Yanmar engine and is ideal for fleets and work in utility, construction, demolition and landscaping applications, to name a few. The improved model uses its included 2-Pump Load Sensing (2PLS) hydraulics to direct hydraulic flow where it’s needed most. This allows for higher speeds, productivity, performance, and maximum fuel efficiency. Plus, the ViO80-7’s upgraded cab includes a more spacious operator area, a 7-inch color display, improved visibility and more.

Engine

This div for css purpose only
Model
YANMAR 4TNV98CT-VBV2
YANMAR 4TNV98CT-VBV2

This div for css purpose only
Output
67.1 HP
50.0 / 1,800 kW/rpm

This div for css purpose only
Type
Vertical water-cooled 4-cylinder diesel
Vertical water-cooled 4-cylinder diesel

Operating Weight

Cab. Rubber Track
18,409 lbs
8.3 t

Cab. Steel Track
18,453 lbs
8.4 t

Performance

This div for css purpose only
Max Digging Force, Bucket / Arm
10,813 / 8,093 lbs
48.1 / 36.0 kN

This div for css purpose only
Traveling Speed, High / Low
Rubber Track: 2.9 / 1.6 MPH; Steel Track: 2.8 / 1.4 MPH
Rubber Track: 4.8 / 2.5 km/h; Steel Track: 4.5 / 2.3 km/h

This div for css purpose only
Swing Speed
9 RPM
9 RPM

This div for css purpose only
Boom Swing Angle, (L / R)
60° / 60°
60° / 60°

This div for css purpose only
Gradeability
25°
25°

Ground Contact Pressure

Cab. Rubber Track
5.3 PSI
36.3 kPa

Cab. Steel Track
5.3 PSI
36.3 kPa

Hydraulic System

Pump Capacity
29.46 x 2 + 4.5 GPM
111.5 x 2 + 17.0 L / min

Main Relief Set Pressure
3,989 x 2 + 493 PSI
27.5 x 2 + 3.4 MPa

Blade Dimensions

Width x Height
7’5” x 1’5”
2,290 x 450 mm

Working Area of Blade (Upper/Lower)
1’4” / 1’6”
400 / 500 mm

Fuel Tank

This div for css purpose only
Capacity
30.9 Gals
117 L
