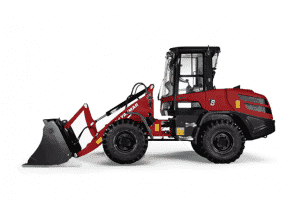

YANMAR Wheel Loader V10

The big job capability of our V10 compact loader starts at the heart where you’ll find a turbo-charged, Tier 4 Final certified Yanmar diesel engine. The compact design features sophisticated electronics for optimum control and performance and is bolstered by our legendary dependability, extended service times and 3-year, 3,000-hour warranty. We then fed that power through a smooth hydrostatic transmission and advanced hydraulics that can lift bigger loads faster and with greater precision. The result is a compact wheel loader that can finish jobs faster, has less down time and delivers more value for your business.

Operating Weight

This div for css purpose only
SAE J 1197
12,787 lbs
5,800 kg

Engine Power

This div for css purpose only
Net power rating at 2,200 rpm (SAE J 1349)
73 hp
53.7 kW

Performance

Bucket Capacity
1.31-1.96 yd3
1.0-1.5 m3

Tipping Load, Straight
9,634 lbs
4,370 kg

Tipping Load, Articulated
8,510 lbs
3,860 kg

Draw bar
(L) 10,498.58 (H) 10,903.23
(L) 10,498.58 (H) 10,903.23

Steering

This div for css purpose only
Total steering angle
80 deg
80 deg

Brakes

This div for css purpose only
Auxiliary brake
Hydrostatic drive provides dynamic braking
Hydrostatic drive provides dynamic braking

Tires

This div for css purpose only
Standard
405/70 R 20 SPT 9 Dunlop
405/70 R 20 SPT 9 Dunlop
