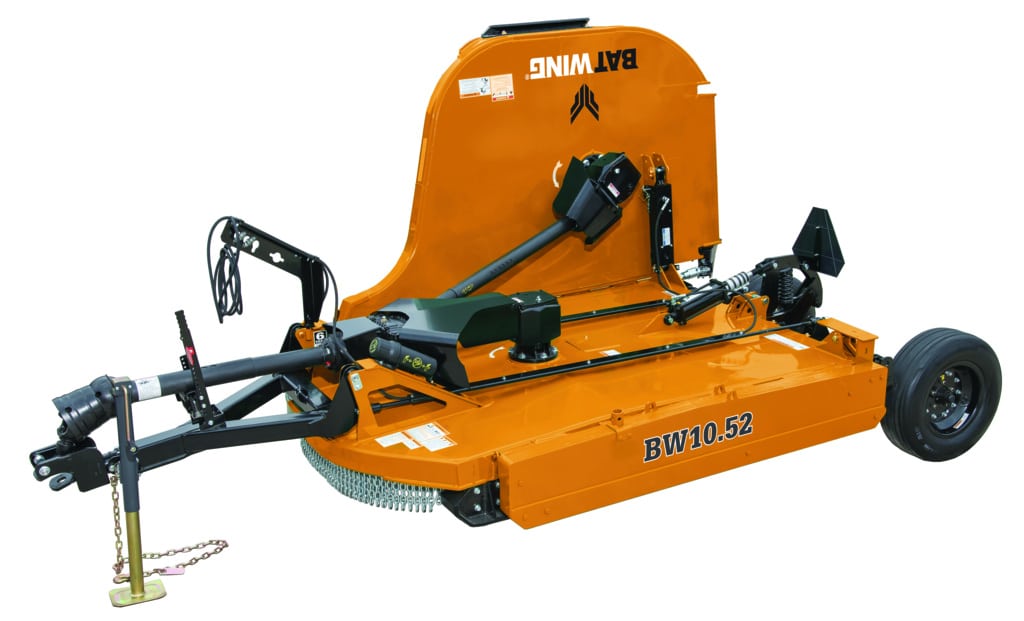

Woods BW10.52

Woods BW10.52

Professional

#1 In Cut Quality

Enabled by deep cutting decks, high-lift blades, and new features like Woods Exclusive Level Lock™ Technology that ensures a more level cut height across rugged terrain.
Read Cut Quality Study.

Easy Maintenance

EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.

Easy Connection

The Woods Exclusive Smartlift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.

Unmatched Gearbox PROTECTION

10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and  Triple Seal™ Gearbox Protection. See how it works.

SKU: we-bw10.52 Category: Brand:

Specs

Product Tier

Professional
Tractor PTO HP

45-200
Tractor PTO (rpm)

540 or 1,000
Hitch Type

Swivel clevis hitch
Adjustable Cutting Height (in)

2 to 15
Cutting Capacity Diameter (in)

3
Cutting Width (ft)

10
Cutting Area Shielding

Single or Double Chain
Blade Tip Speed (fpm)

15,526 (wing), 15,904 (center) at 540 rpm 15,708 (wing), 15,422 (center) at 1,000 rpm
Blade Size (in)

.5 x 4
Weight; varies with tires and options (lbs)

3,950-4,725
Tongue Weight (lbs)

1,935
Transport Width (in)

93
Hydraulics Wing Flex (degrees)

90 up, 22 down
Side Skirt (in)

.25 thick x 13 deep
Stump Jumper Type

Oval
Deck Thickness (in)

0.135
Wheel Type

21 in. laminated, 25 in. severe-duty Ag, 25 in. severe-duty Ag foam-filled, 27 in. severe-duty Ag foam-filled, 29 in. used aircraft
Driveline Rating

CAT 6 CV main, CAT 4 wing
Gearbox Rating (hp)

210 splitter / 200 center and wing
Gearbox Warranty (yrs)

10
Output Shaft Size (in)

2 dia
Options

Double row chain shielding, Dual wheels, Towing Eye
Structure Warranty

2 years
